Inverse-distance-weighted interpolation stencil. More...

#include <trackingInverseDistanceCellCellStencil.H>

Inheritance diagram for trackingInverseDistance:

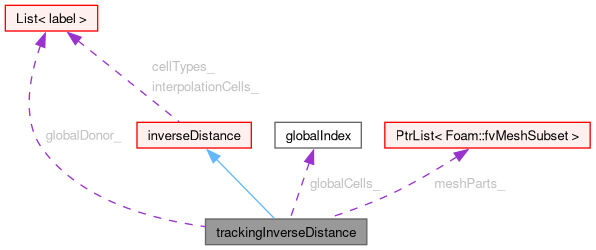

Collaboration diagram for trackingInverseDistance:

[legend]

Public Member Functions
	TypeName ("trackingInverseDistance")
	Runtime type information.
	trackingInverseDistance (const fvMesh &, const dictionary &, const bool)
	Construct from fvMesh.
virtual	~trackingInverseDistance ()
	Destructor.
virtual bool	update ()
	Update stencils. Return false if nothing changed.
Public Member Functions inherited from inverseDistance
	TypeName ("inverseDistance")
	Runtime type information.
	inverseDistance (const fvMesh &, const dictionary &, const bool)
	Construct from fvMesh.
virtual	~inverseDistance ()
	Destructor.
virtual const labelUList &	cellTypes () const
	Return the cell type list.
virtual const labelUList &	interpolationCells () const
	Indices of interpolated cells.
virtual const mapDistribute &	cellInterpolationMap () const
	Return a communication schedule.
virtual const labelListList &	cellStencil () const
	Per interpolated cell the neighbour cells (in terms of slots as.
virtual const scalarListList &	cellInterpolationWeights () const
	Weights for cellStencil.
virtual const scalarList &	cellInterpolationWeight () const
	Per interpolated cell the interpolation factor. (0 = use.
virtual void	stencilWeights (const point &sample, const pointList &donorCcs, scalarList &weights) const
	Calculate inverse distance weights for a single acceptor.
Public Member Functions inherited from cellCellStencil
	TypeName ("cellCellStencil")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, cellCellStencil, mesh,(const fvMesh &mesh, const dictionary &dict, const bool update),(mesh, dict, update))
	cellCellStencil (const fvMesh &)
	Construct from fvMesh.
virtual	~cellCellStencil ()
	Destructor.
virtual const wordHashSet &	nonInterpolatedFields () const
	Return the names of any (stencil or mesh specific) fields that.
virtual wordHashSet &	nonInterpolatedFields ()
	Return non-const non-interpolating fields.
bool	localStencil (const labelUList &) const
	Helper: is stencil fully local.
const labelIOList &	zoneID () const
	Helper: get reference to registered zoneID. Loads volScalarField.
template<class T>
void	interpolate (const fvMesh &mesh, Field< T > &psi) const
	Explicit interpolation of acceptor cells from donor cells. Looks up cellCellStencil.
template<class GeoField>
void	interpolate (GeoField &psi) const
	Explicit interpolation of acceptor cells from donor cells with boundary condition handling.
template<class GeoField>
void	interpolate (const fvMesh &mesh, const wordHashSet &suppressed) const
	Explicit interpolation of all registered fields. No boundary conditions. Excludes selected fields (and their old-time fields).
void	walkFront (const globalIndex &globalCells, const scalar layerRelax, const labelListList &allStencil, labelList &allCellTypes, scalarField &allWeight, const scalarList &compactCellVol, const labelListList &compactStencil, const labelList &zoneID, const label holeLayers, const label useLayer) const
	Surround holes with layer(s) of interpolated cells.
void	setUpFront (const labelList &allCellTypes, bitSet &isFront) const
	Set up front using allCellTypes.
void	setUpFrontOnOversetPatch (const labelList &allCellTypes, bitSet &isFront) const
	Set up front on overset patches.
void	seedCell (const label cellI, const scalar wantedFraction, bitSet &isFront, scalarField &fraction) const
	Seed faces of cell with wantedFraction (if higher than current).
InfoProxy< cellCellStencil >	info () const noexcept
	Return info proxy, used to print stencil information to a stream.
template<class Type>
Foam::tmp< Foam::volScalarField >	createField (const fvMesh &mesh, const word &name, const UList< Type > &psi)

Protected Member Functions
void	markPatchesAsHoles (PstreamBuffers &pBufs, const List< treeBoundBoxList > &patchBb, const List< labelVector > &patchDivisions, const PtrList< PackedList< 2 > > &patchParts, const label srcI, const label tgtI, labelList &allCellTypes) const
	Mark all cells overlapping (a voxel covered by) a src patch.
void	markDonors (PstreamBuffers &pBufs, const List< treeBoundBoxList > &meshBb, const PtrList< voxelMeshSearch > &meshSearches, const labelList &allCellTypes, const label srcI, const label tgtI, labelListList &allStencil, labelList &allDonor) const
Protected Member Functions inherited from inverseDistance
void	markPatchesAsHoles (PstreamBuffers &pBufs, const PtrList< fvMeshSubset > &meshParts, const List< treeBoundBoxList > &patchBb, const List< labelVector > &patchDivisions, const PtrList< PackedList< 2 > > &patchParts, const label srcI, const label tgtI, labelList &allCellTypes) const
	Mark all cells overlapping (a voxel covered by) a src patch.
bool	betterDonor (const label destMesh, const label currentDonorMesh, const label newDonorMesh) const
	If multiple donors meshes: decide which is best.
void	markDonors (const globalIndex &globalCells, PstreamBuffers &pBufs, const PtrList< fvMeshSubset > &meshParts, const List< treeBoundBoxList > &meshBb, const labelList &allCellTypes, const label srcI, const label tgtI, labelListList &allStencil, labelList &allDonor) const
	Determine donors for all tgt cells.
void	uncompactedRegionSplit (const fvMesh &mesh, const globalIndex &globalFaces, const label nZones, const labelList &zoneID, const labelList &cellTypes, const boolList &isBlockedFace, labelList &cellRegion) const
	Replacement of regionSplit.
autoPtr< globalIndex >	compactedRegionSplit (const fvMesh &mesh, const globalIndex &globalFaces, labelList &cellRegion) const
void	findHoles (const globalIndex &globalCells, const fvMesh &mesh, const labelList &zoneID, const labelListList &stencil, labelList &cellTypes) const
	Do flood filling to detect unreachable (from patches) sections.
void	seedCell (const label cellI, const scalar wantedFraction, bitSet &isFront, scalarField &fraction) const
	Seed faces of cell with wantedFraction (if higher than current).
virtual void	createStencil (const globalIndex &, const bool allowHoleDonors)
	Create stencil starting from the donor containing the acceptor allowHoleDonors : allow donors of type HOLE (otherwise are filtered out).
void	holeExtrapolationStencil (const globalIndex &globalCells)
	Make holes next to live ones type SPECIAL and include in interpolation stencil.
Protected Member Functions inherited from cellCellStencil
void	suppressMotionFields ()
	Helper: populate nonInterpolatedFields_ with motion solver.

Static Protected Member Functions
static bool	markBoundaries (const fvMesh &mesh, const vector &smallVec, const boundBox &bb, labelVector &nDivs, PackedList< 2 > &patchTypes, const labelList &cellMap, labelList &patchCellTypes)
	Mark voxels of patchTypes with type of patch face.
Static Protected Member Functions inherited from inverseDistance
static label	index (const labelVector &nDivs, const labelVector &)
	Convert ijk indices into single index.
static labelVector	index3 (const labelVector &nDivs, const label)
	Convert single index into ijk.
static labelVector	index3 (const boundBox &bb, const labelVector &nDivs, const point &pt)
	Convert coordinate into ijk.
static point	position (const boundBox &bb, const labelVector &nDivs, const label boxI)
	Convert index back into coordinate.
static void	fill (PackedList< 2 > &elems, const boundBox &bb, const labelVector &nDivs, const boundBox &subBb, const unsigned int val)
	Fill all elements overlapping subBb with value val.
static bool	overlaps (const boundBox &bb, const labelVector &nDivs, const PackedList< 2 > &voxels, const treeBoundBox &subBb, const unsigned int val)
	Is any voxel inside subBb set to val.
static void	markBoundaries (const fvMesh &mesh, const vector &smallVec, const boundBox &bb, const labelVector &nDivs, PackedList< 2 > &patchTypes, const labelList &cellMap, labelList &patchCellTypes)
	Mark voxels of patchTypes with type of patch face.
Static Protected Member Functions inherited from cellCellStencil
template<class Type>
static tmp< volScalarField >	createField (const fvMesh &mesh, const word &name, const UList< Type > &)
	Helper: create volScalarField for postprocessing.
static word	baseName (const word &name)
	Helper: strip off trailing _0.

Protected Attributes
globalIndex	globalCells_
	Global indexing for cells.
labelList	globalDonor_
	Current (global) donor cell.
PtrList< fvMeshSubset >	meshParts_
	Subset according to zone.
Protected Attributes inherited from inverseDistance
const dictionary	dict_
	Dictionary of motion control parameters.
const bool	allowHoleDonors_
	Allow holes as donors.
const bool	allowInterpolatedDonors_
	Allow interpolared as donors.
vector	smallVec_
	Small perturbation vector for geometric tests.
labelList	cellTypes_
	Per cell the cell type.
labelList	interpolationCells_
	Indices of interpolated cells.
autoPtr< mapDistribute >	cellInterpolationMap_
	Fetch interpolated cells.
labelListList	cellStencil_
	Interpolation stencil.
scalarListList	cellInterpolationWeights_
	Interpolation weights.
volScalarField	cellInterpolationWeight_
	Amount of interpolation.
Protected Attributes inherited from cellCellStencil
const fvMesh &	mesh_
	Reference to the mesh.
wordHashSet	nonInterpolatedFields_
	Set of fields that should not be interpolated.
const dictionary	dict_
	Dictionary of motion control parameters.

Additional Inherited Members
Public Types inherited from cellCellStencil
enum	patchCellType { OTHER = 0 , PATCH = 1 , OVERSET = 2 }
enum	cellType { CALCULATED = 0 , INTERPOLATED = 1 , HOLE = 2 , SPECIAL = 3 , POROUS = 4 }
Static Public Member Functions inherited from cellCellStencil
static autoPtr< cellCellStencil >	New (const fvMesh &, const dictionary &dict, const bool update=true)
	New function which constructs and returns pointer to a.
static const labelIOList &	zoneID (const fvMesh &)
	Helper: get reference to registered zoneID. Loads volScalarField.
static labelList	count (const label size, const labelUList &lst)
	Count occurrences (in parallel).
static void	globalCellCells (const globalIndex &gi, const polyMesh &mesh, const boolList &isValidDonor, const labelList &selectedCells, labelListList &cellCells, pointListList &cellCellCentres)
	Helper: create cell-cell addressing in global numbering.
template<class T>
static void	interpolate (Field< T > &psi, const fvMesh &mesh, const cellCellStencil &overlap, const List< scalarList > &wghts)
	Interpolation of acceptor cells from donor cells.
template<class GeoField, class SuppressBC>
static void	correctBoundaryConditions (GeoField &psi)
	Version of correctBoundaryConditions that excludes 'overset' bcs.
Static Protected Attributes inherited from cellCellStencil
static const Enum< cellType >	cellTypeNames_
	Mode type names.

Detailed Description

Inverse-distance-weighted interpolation stencil.

Source files

Definition at line 52 of file trackingInverseDistanceCellCellStencil.H.

Constructor & Destructor Documentation

◆ trackingInverseDistance()

trackingInverseDistance	(	const fvMesh &	mesh,
		const dictionary &	dict,
		const bool	doUpdate )

Construct from fvMesh.

Definition at line 492 of file trackingInverseDistanceCellCellStencil.C.

References Foam::decrIndent(), dict, Foam::endl(), forAll, globalCells_, globalDonor_, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, Foam::gMax(), Foam::incrIndent(), Foam::indent(), Foam::Info, Pstream::listReduce(), mesh, cellCellStencil::mesh_, meshParts_, update(), Foam::Zero, and cellCellStencil::zoneID().

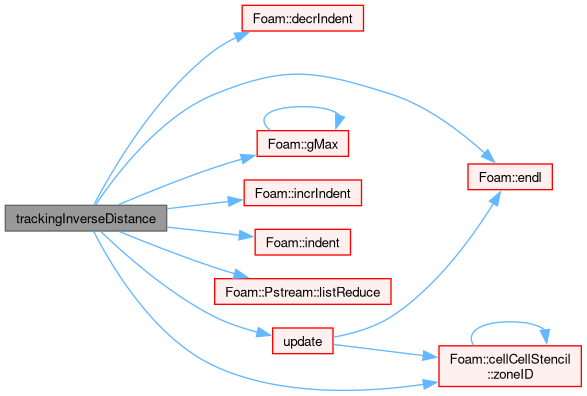

Here is the call graph for this function:

◆ ~trackingInverseDistance()

~trackingInverseDistance ( )

virtual

Destructor.

Definition at line 557 of file trackingInverseDistanceCellCellStencil.C.

Member Function Documentation

◆ markBoundaries()

bool markBoundaries	(	const fvMesh &	mesh,
		const vector &	smallVec,
		const boundBox &	bb,
		labelVector &	nDivs,
		PackedList< 2 > &	patchTypes,
		const labelList &	cellMap,
		labelList &	patchCellTypes )

staticprotected

Mark voxels of patchTypes with type of patch face.

Definition at line 48 of file trackingInverseDistanceCellCellStencil.C.

References fvPatch::constraintType(), boundBox::contains(), Foam::endl(), fvPatch::faceCells(), voxelMeshSearch::fill(), forAll, boundBox::grow(), Foam::isA(), mesh, cellCellStencil::OTHER, boundBox::overlaps(), voxelMeshSearch::overlaps(), cellCellStencil::OVERSET, cellCellStencil::PATCH, fvPatch::patch(), patchTypes(), pbm, Foam::Pout, pp(), and WarningInFunction.

Referenced by update().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ markPatchesAsHoles()

void markPatchesAsHoles	(	PstreamBuffers &	pBufs,
		const List< treeBoundBoxList > &	patchBb,
		const List< labelVector > &	patchDivisions,
		const PtrList< PackedList< 2 > > &	patchParts,
		const label	srcI,
		const label	tgtI,
		labelList &	allCellTypes ) const

protected

Mark all cells overlapping (a voxel covered by) a src patch.

with type HOLE

Definition at line 189 of file trackingInverseDistanceCellCellStencil.C.

References UPstream::allProcs(), PstreamBuffers::clear(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, PstreamBuffers::finishedSends(), forAll, boundBox::grow(), cellCellStencil::HOLE, cellCellStencil::mesh_, meshParts_, UPstream::myProcNo(), os(), treeBoundBox::overlaps(), voxelMeshSearch::overlaps(), cellCellStencil::PATCH, and inverseDistance::smallVec_.

Referenced by update().

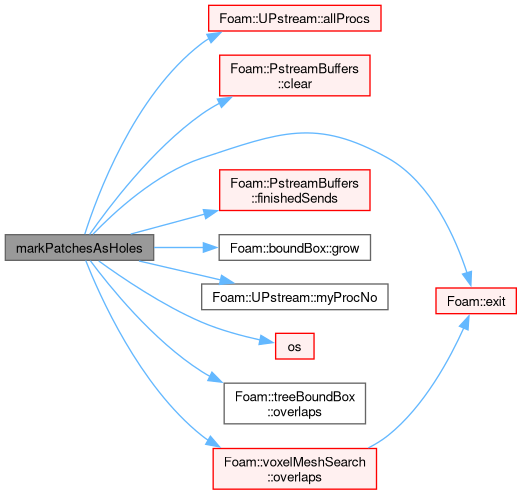

Here is the call graph for this function:

Here is the caller graph for this function:

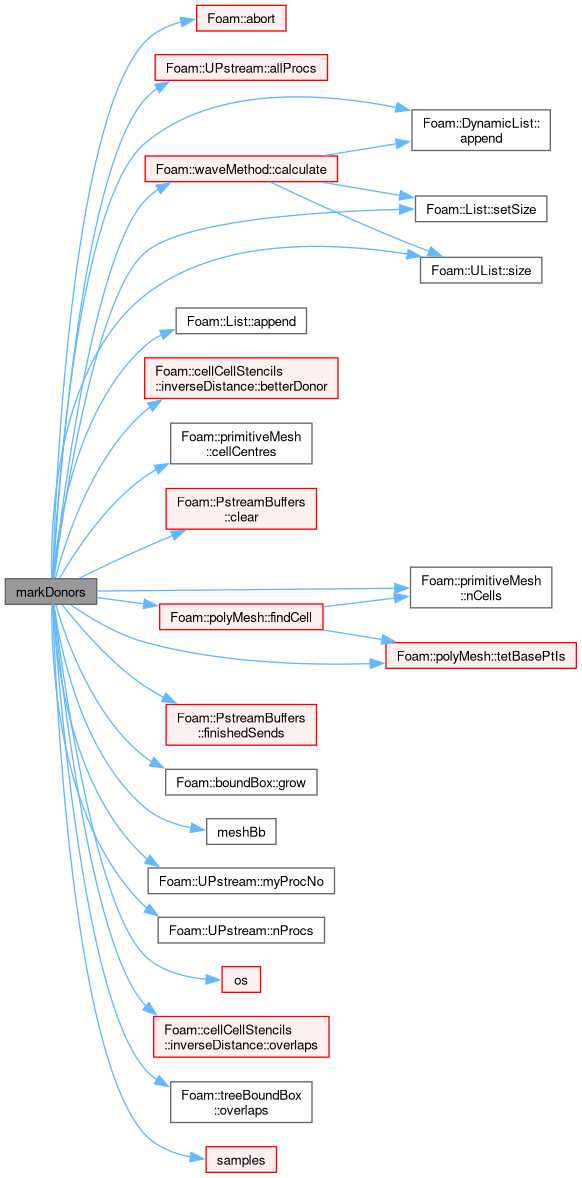

◆ markDonors()

void markDonors	(	PstreamBuffers &	pBufs,
		const List< treeBoundBoxList > &	meshBb,
		const PtrList< voxelMeshSearch > &	meshSearches,
		const labelList &	allCellTypes,
		const label	srcI,
		const label	tgtI,
		labelListList &	allStencil,
		labelList &	allDonor ) const
