cyclicAMIPolyPatch Class Reference

Cyclic patch for Arbitrary Mesh Interface (AMI). More...

#include <cyclicAMIPolyPatch.H>

Inheritance diagram for cyclicAMIPolyPatch:

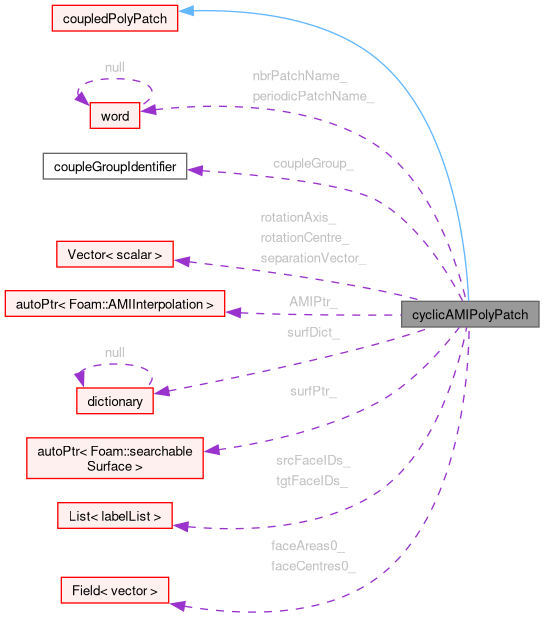

Collaboration diagram for cyclicAMIPolyPatch:

Public Member Functions

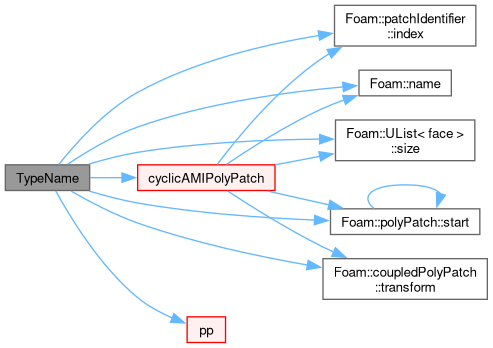

	TypeName ("cyclicAMI")
	Runtime type information.

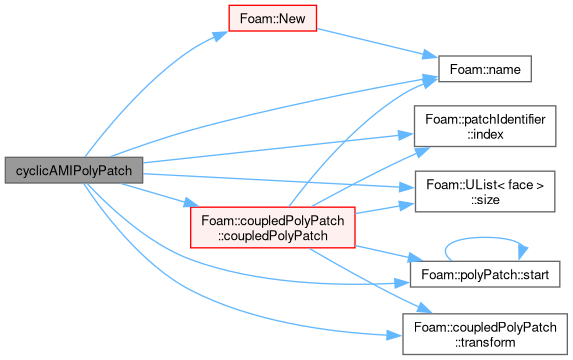

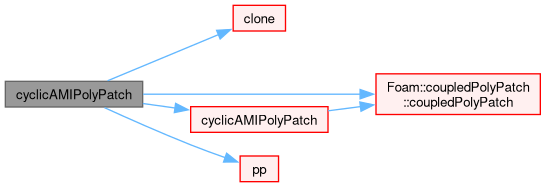

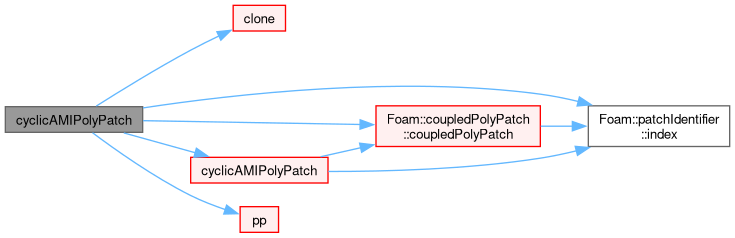

	cyclicAMIPolyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType, const transformType transform=UNKNOWN, const word &defaultAMIMethod=faceAreaWeightAMI::typeName)
	Construct from (base coupled patch) components.

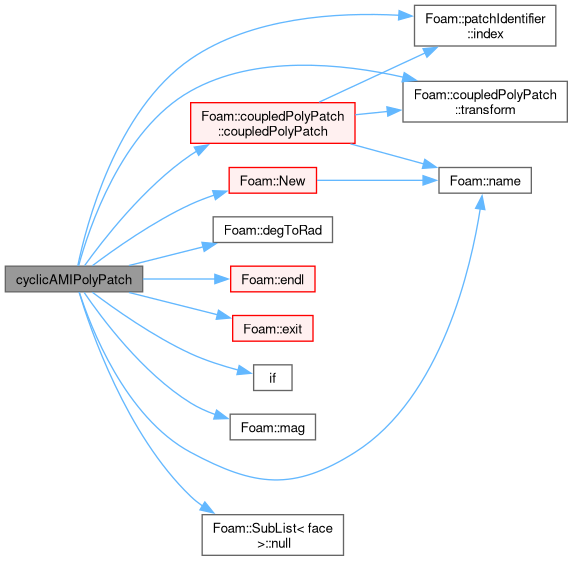

	cyclicAMIPolyPatch (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType, const word &defaultAMIMethod=faceAreaWeightAMI::typeName)
	Construct from dictionary.
	cyclicAMIPolyPatch (const cyclicAMIPolyPatch &, const polyBoundaryMesh &)
	Construct as copy, resetting the boundary mesh.

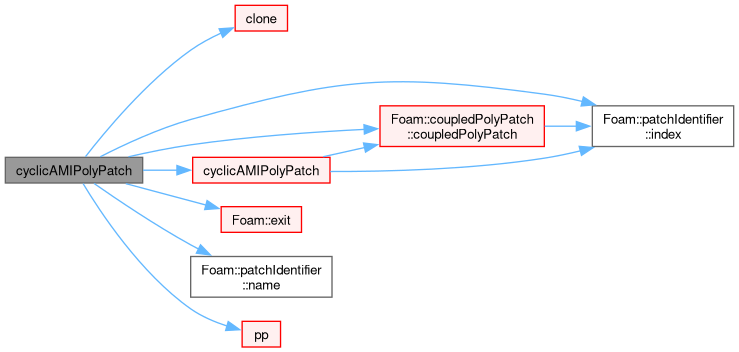

	cyclicAMIPolyPatch (const cyclicAMIPolyPatch &pp, const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart, const word &nbrPatchName)
	Construct given the original patch and resetting the.
	cyclicAMIPolyPatch (const cyclicAMIPolyPatch &pp, const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart)
	Construct given the original patch and a map.
virtual autoPtr< polyPatch >	clone (const polyBoundaryMesh &bm) const
	Construct and return a clone, resetting the boundary mesh.
virtual autoPtr< polyPatch >	clone (const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart) const
	Construct and return a clone, resetting the face list and boundary mesh.
virtual autoPtr< polyPatch >	clone (const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart) const
	Construct and return a clone, resetting the face list.
virtual	~cyclicAMIPolyPatch ()=default
	Destructor.
virtual void	newInternalProcFaces (label &, label &) const
	Return number of new internal of this polyPatch faces.
virtual const labelUList &	nbrCells () const
	Return nbrCells.
virtual label	neighbPolyPatchID () const
	Return nbr patch ID.
virtual refPtr< labelListList >	mapCollocatedFaces () const
	Return collocated faces map.
virtual bool	masterImplicit () const
	Return implicit master.

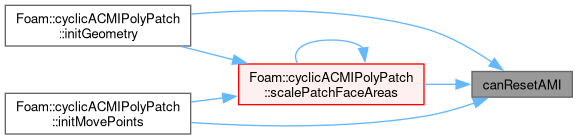

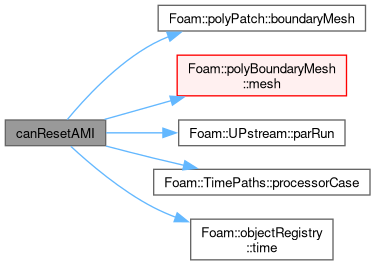

bool	canResetAMI () const
	Flag to indicate whether the AMI can be reset.
bool	createAMIFaces () const
	Return access to the createAMIFaces flag.
bool	updatingAMI () const
	Return access to the updated flag.
virtual bool	changeTopology () const
	Return true if this patch changes the mesh topology.

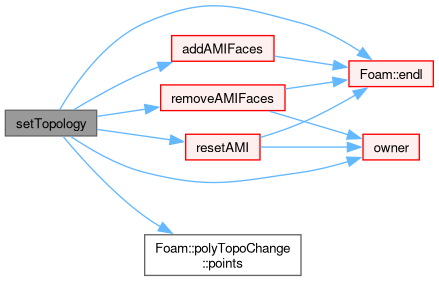

virtual bool	setTopology (polyTopoChange &topoChange)
	Set topology changes in the polyTopoChange object.
virtual bool	coupled () const
	Is patch 'coupled'. Note that on AMI the geometry is not coupled but the fields are!
const word &	neighbPatchName () const
	Neighbour patch name.

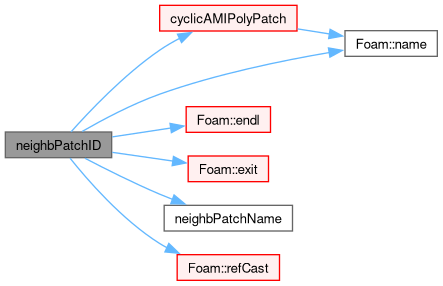

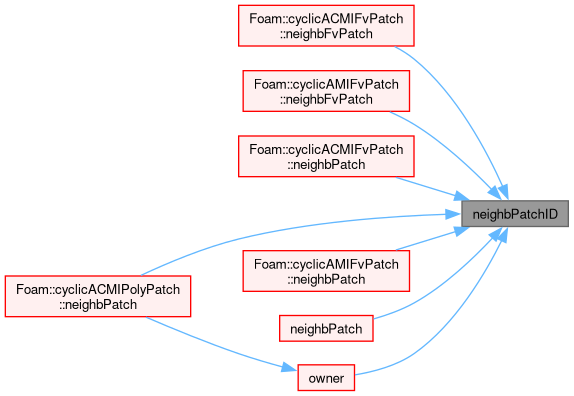

virtual label	neighbPatchID () const
	Neighbour patch ID.
scalar	fraction () const
	Particle fraction increase between AMI pathces.

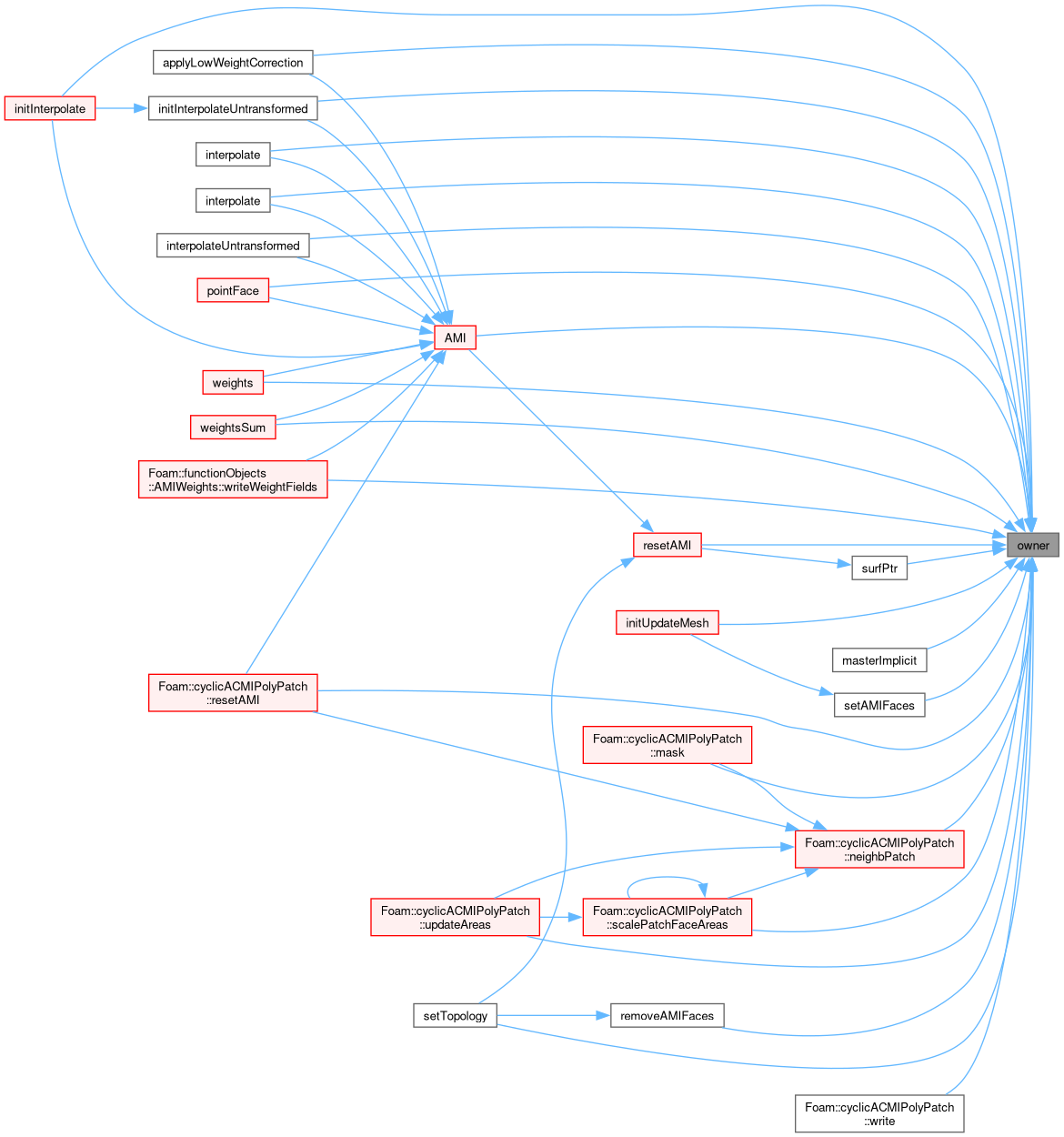

virtual bool	owner () const
	Does this side own the patch?

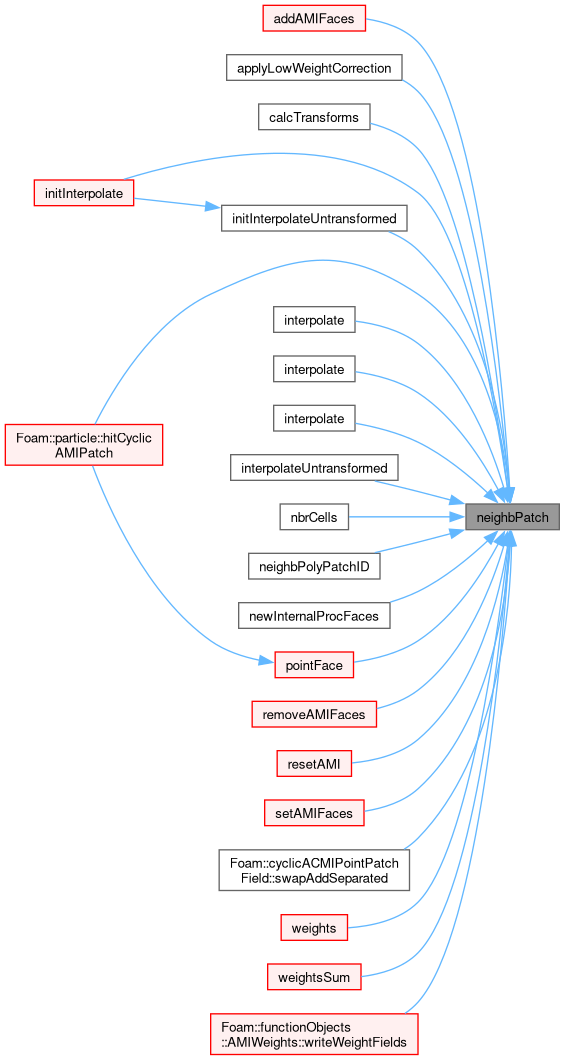

virtual const cyclicAMIPolyPatch &	neighbPatch () const
	Return a reference to the neighbour patch.
label	periodicPatchID () const
	Periodic patch ID (or -1).

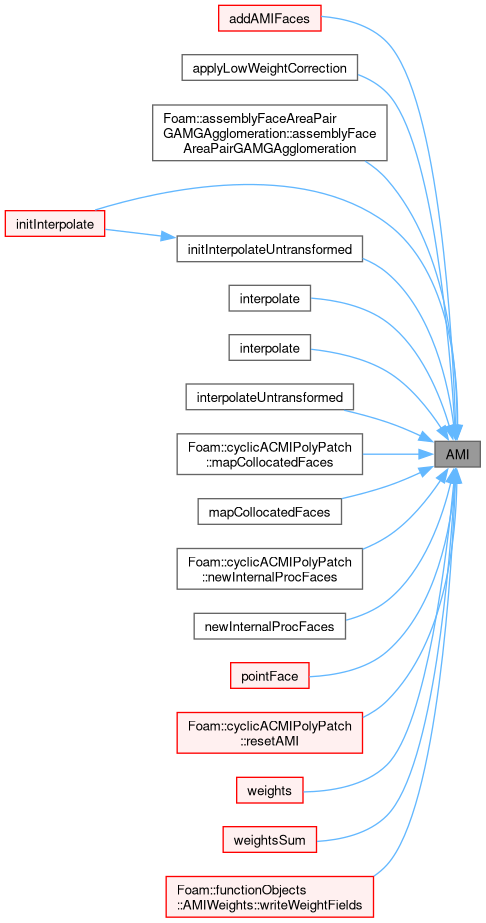

const AMIPatchToPatchInterpolation &	AMI () const
	Return a reference to the AMI interpolator.
const scalarListList &	weights () const
	Helper function to return the weights.
const scalarField &	weightsSum () const
	Helper function to return the weights sum.
bool	applyLowWeightCorrection () const
	Return true if applying the low weight correction.
vectorField &	faceAreas0 () const
	Return access to the initial face areas.
vectorField &	faceCentres0 () const
	Return access to the initial face centres.
const vector &	rotationAxis () const
	Axis of rotation for rotational cyclic AMI.
const point &	rotationCentre () const
	Point on axis of rotation for rotational cyclic AMI.
const vector &	separationVector () const
	Translation vector for translational cyclic AMI.

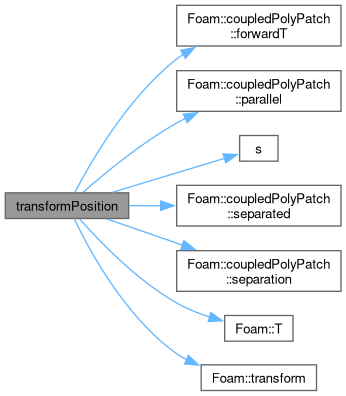

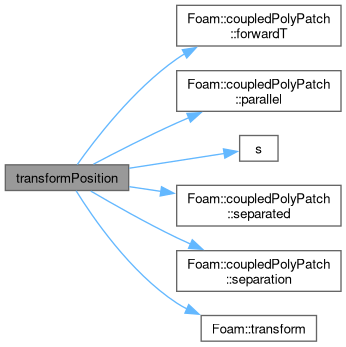

virtual void	transformPosition (pointField &) const
	Transform patch-based positions from nbr side to this side.
virtual void	transformPosition (point &l, const label facei) const
	Transform a patch-based position from nbr side to this side.

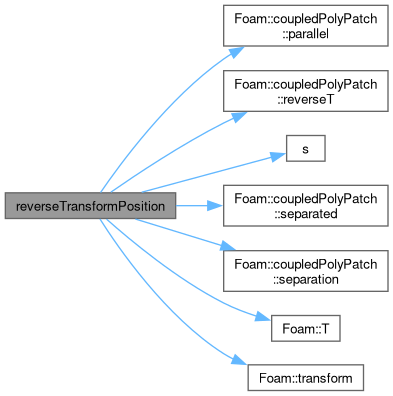

virtual void	reverseTransformPosition (point &l, const label facei) const
	Transform a patch-based position from this side to nbr side.

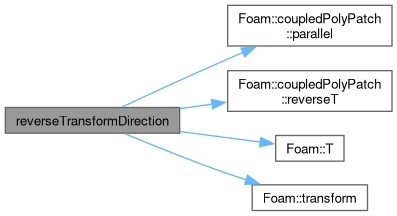

virtual void	reverseTransformDirection (vector &d, const label facei) const
	Transform a patch-based direction from this side to nbr side.
template<class Type>

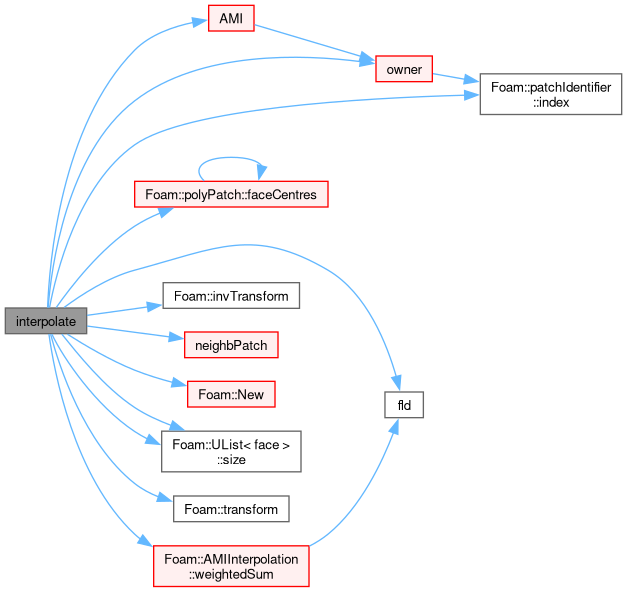

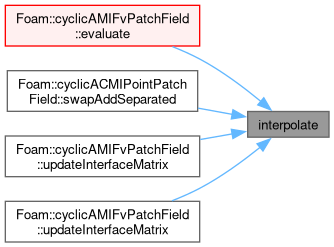

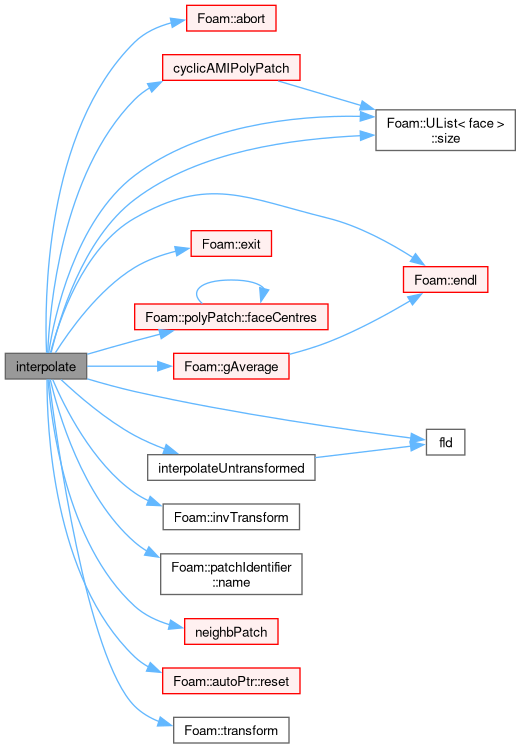

tmp< Field< Type > >	interpolate (const Field< Type > &fld, const UList< Type > &defaultValues=UList< Type >()) const
	Interpolate field.
template<class Type>
tmp< Field< Type > >	interpolate (const tmp< Field< Type > > &tFld, const UList< Type > &defaultValues=UList< Type >()) const
	Interpolate tmp field.
template<class Type>

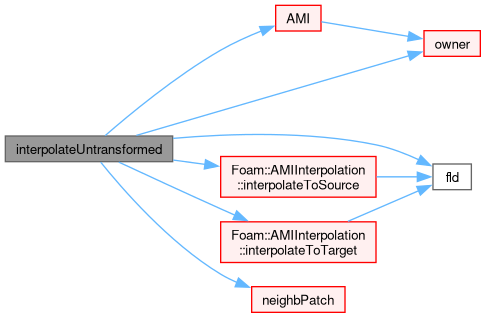

tmp< Field< Type > >	interpolateUntransformed (const Field< Type > &fld, const UList< Type > &defaultValues) const
	Interpolate without periodic.
template<class Type, class CombineOp>
void	interpolate (const UList< Type > &fld, const CombineOp &cop, List< Type > &result, const UList< Type > &defaultValues=UList< Type >()) const
	Low-level interpolate List.
template<class Type>

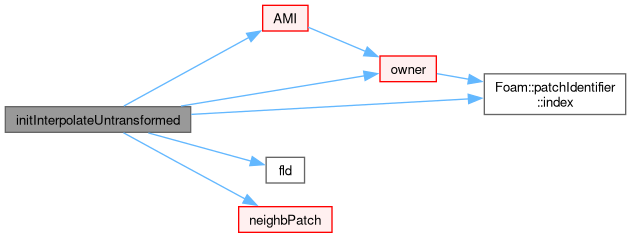

void	initInterpolateUntransformed (const Field< Type > &fld, labelRange &sendRequests, labelRange &recvRequests, PtrList< List< Type > > &sendBuffers, PtrList< List< Type > > &recvBuffers, labelRange &sendRequests1, labelRange &recvRequests1, PtrList< List< Type > > &sendBuffers1, PtrList< List< Type > > &recvBuffers1) const
template<class Type>

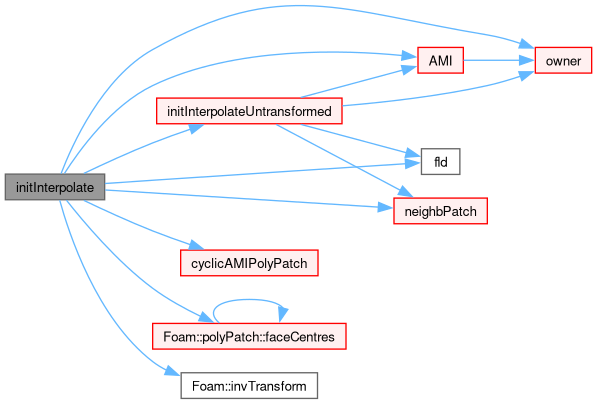

void	initInterpolate (const Field< Type > &fld, labelRange &sendRequests, labelRange &recvRequests, PtrList< List< Type > > &sendBuffers, PtrList< List< Type > > &recvBuffers, labelRange &sendRequests1, labelRange &recvRequests1, PtrList< List< Type > > &sendBuffers1, PtrList< List< Type > > &recvBuffers1) const
template<class Type>
tmp< Field< Type > >	interpolate (const Field< Type > &localFld, const labelRange &requests, const PtrList< List< Type > > &recvBuffers, const labelRange &requests1, const PtrList< List< Type > > &recvBuffers1, const UList< Type > &defaultValues) const
virtual void	calcGeometry (const primitivePatch &referPatch, const pointField &thisCtrs, const vectorField &thisAreas, const pointField &thisCc, const pointField &nbrCtrs, const vectorField &nbrAreas, const pointField &nbrCc)
	Calculate the patch geometry.
virtual void	initOrder (PstreamBuffers &, const primitivePatch &) const
	Initialize ordering for primitivePatch. Does not refer to *this (except for name() and type() etc.).
virtual bool	order (PstreamBuffers &, const primitivePatch &, labelList &faceMap, labelList &rotation) const
	Return new ordering for primitivePatch.

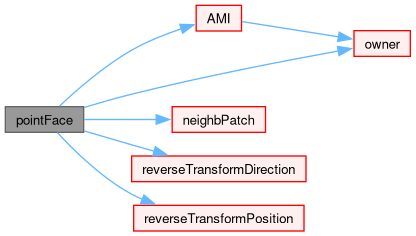

label	pointFace (const label facei, const vector &n, point &p) const
	Return face index on neighbour patch which shares point p following trajectory vector n.

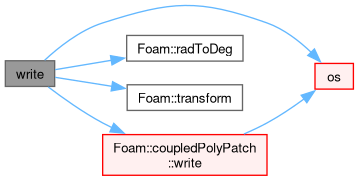

virtual void	write (Ostream &) const
	Write the polyPatch data as a dictionary.
template<class Type>
Foam::tmp< Foam::Field< Type > >	interpolateUntransformed (const Field< Type > &fld, const UList< Type > &defaultValues) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	interpolate (const Field< Type > &fld, const UList< Type > &defaultValues) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	interpolate (const tmp< Field< Type > > &tFld, const UList< Type > &defaultValues) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	interpolate (const Field< Type > &localFld, const labelRange &requests, const PtrList< List< Type > > &recvBuffers, const labelRange &requests1, const PtrList< List< Type > > &recvBuffers1, const UList< Type > &defaultValues) const
Public Member Functions inherited from coupledPolyPatch
	TypeName ("coupled")
	Runtime type information.
	coupledPolyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType, const transformType transform)
	Construct from components.
	coupledPolyPatch (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType)
	Construct from dictionary.
	coupledPolyPatch (const coupledPolyPatch &, const polyBoundaryMesh &bm)
	Copy construct, resetting the boundary mesh.
	coupledPolyPatch (const coupledPolyPatch &, const labelList &faceCells)
	Copy construct, resetting the faceCells.
	coupledPolyPatch (const coupledPolyPatch &pp, const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart)
	Construct given the original patch and resetting the face list and boundary mesh information.
	coupledPolyPatch (const coupledPolyPatch &pp, const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart)
	Construct given the original patch and a map.
virtual	~coupledPolyPatch ()
	Destructor.
virtual bool	neighbour () const
	Does the coupled side own the patch ?
virtual label	referPatchID () const
	The referring patchID (eg, for cyclics).
virtual transformType	transform () const
	Type of transform.
virtual transformType &	transform ()
	Type of transform.
virtual bool	separated () const
	Are the planes separated.
virtual const vectorField &	separation () const
	If the planes are separated the separation vector.
virtual bool	parallel () const
	Are the cyclic planes parallel.
virtual const tensorField &	forwardT () const
	Return face transformation tensor.
virtual const tensorField &	reverseT () const
	Return neighbour-cell transformation tensor.
virtual const boolList &	collocated () const
	Are faces collocated. Either size 0,1 or length of patch.
scalar	matchTolerance () const
Public Member Functions inherited from polyPatch
	TypeName ("patch")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, polyPatch, word,(const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType),(name, size, start, index, bm, patchType))
	declareRunTimeSelectionTable (autoPtr, polyPatch, dictionary,(const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType),(name, dict, index, bm, patchType))
	polyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType)
	Construct from components.
	polyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &physicalType, const wordList &inGroups)
	Construct from components.
	polyPatch (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType)
	Construct from dictionary.
	polyPatch (const polyPatch &, const polyBoundaryMesh &)
	Copy construct, resetting the boundary mesh.
	polyPatch (const polyPatch &pp, const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart)
	Construct given the original patch and resetting the face list and boundary mesh information.
	polyPatch (const polyPatch &pp, const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart)
	Construct given the original patch and a map.
	polyPatch (const polyPatch &p)
	Copy construct.
	polyPatch (const polyPatch &p, const labelList &faceCells)
	Copy construct, setting faceCells.
virtual autoPtr< polyPatch >	clone (const labelList &faceCells) const
	Construct and return a clone, setting faceCells.
virtual	~polyPatch ()
	Destructor.
virtual word	neighbRegionID () const
	Return neighbour region name.
label	offset () const noexcept
	The offset where this patch starts in the boundary face list.
label	start () const noexcept
	Return start label of this patch in the polyMesh face list.
labelRange	range () const
	Return start/size range of this patch.
const polyBoundaryMesh &	boundaryMesh () const noexcept
	Return boundaryMesh reference.
template<class T>
const UIndirectList< T >	patchInternalList (const UList< T > &internalValues) const
	Extract face cell data.
template<class T>
const List< T >::subList	patchSlice (const UList< T > &values) const
	This patch slice from the complete list, which has size mesh::nFaces(), using the number of patch faces.
template<class T>
const Field< T >::subField	patchSlice (const Field< T > &values) const
	Slice Field to patch, using the number of patch faces.
template<class T>
const List< T >::subList	boundarySlice (const UList< T > &values) const
	This patch slice from the list of boundary values, which has size mesh::nBoundaryFaces(), using the number of patch faces.
const faceList::subList	faces () const
	Return mesh faces for the patch.
const labelList::subList	faceOwner () const
	Return face owner for the patch.
const vectorField::subField	faceCentres () const
	Return face centres.
const vectorField::subField	faceAreas () const
	Return face normals.
tmp< vectorField >	faceCellCentres () const
	Return face cell centres.
tmp< scalarField >	areaFraction (const pointField &points) const
	Calculate the area fraction as the ratio of the stored face area and the area given by the face points.
tmp< scalarField >	areaFraction () const
	Return the cached area fraction. Usually only set for the non-overlap patches on ACMI.
void	areaFraction (const scalar fraction)
	Set uniform cached area fraction.
void	areaFraction (const tmp< scalarField > &fraction)
	Set cached area fraction (non-uniform).
const labelUList &	faceCells () const
	Return face-cell addressing.
const labelList &	meshEdges () const
	Return global edge index for local edges.
virtual void	clearAddressing ()
	Clear addressing.
label	whichFace (const label facei) const noexcept
	Return label of face in patch from global face label.
void	operator= (const polyPatch &p)
	Copy assignment.
Public Member Functions inherited from patchIdentifier
	patchIdentifier (const patchIdentifier &)=default
	Copy construct.
	patchIdentifier (patchIdentifier &&)=default
	Move construct.
patchIdentifier &	operator= (const patchIdentifier &)=default
	Copy assignment.
patchIdentifier &	operator= (patchIdentifier &&)=default
	Move assignment.
virtual	~patchIdentifier ()=default
	Destructor.
	patchIdentifier ()
	Default construct: name="", index=0.
	patchIdentifier (const word &name, const label index)
	Construct from mandatory components.
	patchIdentifier (const word &name, const label index, const word &physicalType, const wordList &inGroups=wordList())
	Construct from components.
	patchIdentifier (const word &name, const dictionary &dict, const label index)
	Construct from dictionary.
	patchIdentifier (const patchIdentifier &ident, const label newIndex)
	Copy construct, resetting the index (if non-negative).
	patchIdentifier (patchIdentifier &&ident, const label newIndex)
	Move construct, resetting the index (if non-negative).
const word &	name () const noexcept
	The patch name.
word &	name () noexcept
	Modifiable patch name.
label	index () const noexcept
	The index of this patch in the boundaryMesh.
label &	index () noexcept
	Modifiable index of this patch in the boundaryMesh.
const word &	physicalType () const noexcept
	The (optional) physical type of the patch.
word &	physicalType () noexcept
	Modifiable (optional) physical type of the patch.
const wordList &	inGroups () const noexcept
	The (optional) groups that the patch belongs to.
wordList &	inGroups () noexcept
	Modifiable (optional) groups that the patch belongs to.
bool	inGroup (const word &name) const
	True if given name is in a group.
void	addGroup (const word &name)
	Add (unique) group for the patch.
void	removeGroup (const word &name)
	Remove group for the patch.
void	write (Ostream &os) const
	Write (physicalType, inGroups) dictionary entries (without surrounding braces).
Public Member Functions inherited from PrimitivePatch< SubList< face >, const pointField & >
	PrimitivePatch (const SubList< face > &faces, const const pointField &&points)
	Construct from components.
	PrimitivePatch (SubList< face > &&faces, const const pointField &&points)
	Construct from components, transferring faces.
	PrimitivePatch (SubList< face > &faces, const pointField &&points, const bool reuse)
	Construct from components, reuse storage.
	PrimitivePatch (const PrimitivePatch< SubList< face >, const pointField & > &pp)
	Copy construct.
virtual	~PrimitivePatch ()
	Destructor.
void	clearOut ()
void	clearGeom ()
void	clearTopology ()
void	clearPatchMeshAddr ()
void	swap (PrimitivePatch &)=delete
	Suppress direct swapping, since storage containers may be const.
const Field< point_type > &	points () const noexcept
	Return reference to global points.
label	nFaces () const noexcept
	Number of faces in the patch.
label	nPoints () const
	Number of points supporting patch faces.
label	nEdges () const
	Number of edges in patch.
const edgeList &	edges () const
	Return list of edges, address into LOCAL point list.
const edgeList::subList	internalEdges () const
	Return sub-list of internal edges, address into LOCAL point list.
const edgeList::subList	boundaryEdges () const
	Return sub-list of boundary edges, address into LOCAL point list.
label	nInternalEdges () const
	Number of internal edges.
label	nBoundaryEdges () const
	Number of boundary edges == (nEdges() - nInternalEdges()).
bool	isInternalEdge (const label edgei) const
	Is internal edge?
const labelList &	boundaryPoints () const
	Return list of boundary points, address into LOCAL point list.
const labelListList &	faceFaces () const
	Return face-face addressing.
const labelListList &	edgeFaces () const
	Return edge-face addressing.
const labelListList &	faceEdges () const
	Return face-edge addressing.
const labelListList &	pointEdges () const
	Return point-edge addressing.
const labelListList &	pointFaces () const
	Return point-face addressing.
const List< face_type > &	localFaces () const
	Return patch faces addressing into local point list.
labelList	boundaryFaces () const
	Extract list of local faces corresponding to the boundary edges.
labelList	uniqBoundaryFaces () const
	Extract sorted list of unique local faces associated with the boundary edges.
const labelList &	meshPoints () const
	Return labelList of mesh points in patch.
const Map< label > &	meshPointMap () const
	Mesh point map.
const Field< point_type > &	localPoints () const
	Return pointField of points in patch.
const labelList &	localPointOrder () const
	Return orders the local points for most efficient search.
label	whichPoint (const label gp) const
	Given a global point index, return the local point index.
edge	meshEdge (const label edgei) const
	From patch edge to global edge using meshPoints.
edge	meshEdge (const edge &e) const
	From patch edge to global edge using meshPoints.
label	findEdge (const edge &e) const
	Search for edge (local point labels) and return its index in the edge list or -1 if not found.
labelList	meshEdges (const edgeList &allEdges, const labelListList &cellEdges, const labelList &faceCells) const
	Return labels of patch edges in the global edge list using cell addressing.
labelList	meshEdges (const edgeList &allEdges, const labelListList &pointEdges) const
	Return labels of patch edges into the global edge list using basic edge addressing.
label	meshEdge (const label edgei, const edgeList &allEdges, const labelListList &pointEdges) const
	Return label of the local patch edge into the global edge list using basic edge addressing.
labelList	meshEdges (const labelUList &edgeLabels, const edgeList &allEdges, const labelListList &pointEdges) const
	Return labels of specified patch edges into the global edge list using basic edge addressing.
const Field< point_type > &	faceCentres () const
	Return face centres for patch.
const Field< point_type > &	faceAreas () const
	Return face area vectors for patch.
const Field< scalar > &	magFaceAreas () const
	Return face area magnitudes for patch.
const Field< point_type > &	faceNormals () const
	Return face unit normals for patch.
const Field< point_type > &	pointNormals () const
	Return point normals for patch.
Pair< point_type >	box () const
	The enclosing (bounding) box for the patch points.
scalar	sphere (const label facei) const
	The enclosing (bounding) sphere radius^2 for specified face.
bool	hasFaceAreas () const
bool	hasFaceCentres () const
bool	hasFaceNormals () const
bool	hasPointNormals () const
bool	hasBoundaryPoints () const
bool	hasEdges () const
bool	hasFaceFaces () const
bool	hasEdgeFaces () const
bool	hasFaceEdges () const
bool	hasPointEdges () const
bool	hasPointFaces () const
bool	hasMeshPoints () const
bool	hasMeshPointMap () const
List< objectHit >	projectPoints (const ToPatch &targetPatch, const Field< point_type > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const
	Project vertices of patch onto another patch.
List< objectHit >	projectFaceCentres (const ToPatch &targetPatch, const Field< point_type > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const
	Project vertices of patch onto another patch.
const labelListList &	edgeLoops () const
	Return list of closed loops of boundary vertices.
surfaceTopo	surfaceType (labelHashSet *badEdgesPtr=nullptr) const
	Calculate surface type formed by patch, optionally recording the indices of illegal edges.
bool	checkTopology (const bool report=false, labelHashSet *pointSetPtr=nullptr) const
	Check surface formed by patch for manifoldness (see above).
bool	checkPointManifold (const bool report=false, labelHashSet *pointSetPtr=nullptr) const
	Checks primitivePatch for faces sharing point but not edge.
void	operator= (const PrimitivePatch< SubList< face >, const pointField & > &rhs)
	Copy assign faces. Leave points alone (could be a reference).
void	operator= (PrimitivePatch< SubList< face >, const pointField & > &&rhs)
	Move assign faces. Leave points alone (could be a reference).
label	whichEdge (const edge &e) const
	Identical to findEdge.
Foam::List< Foam::objectHit >	projectPoints (const ToPatch &targetPatch, const Field< typename Foam::PrimitivePatch< SubList< face >, const pointField & >::point_type > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const
Foam::List< Foam::objectHit >	projectFaceCentres (const ToPatch &targetPatch, const Field< typename Foam::PrimitivePatch< SubList< face >, const pointField & >::point_type > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const
Public Member Functions inherited from PrimitivePatchBase
	ClassName ("PrimitivePatch")
	Runtime type information.
	PrimitivePatchBase ()=default
	Default construct.
Public Member Functions inherited from SubList< face >
	SubList () noexcept=default
	Default construct, zero-sized and nullptr.
	SubList (const SubList< face > &) noexcept=default
	Copy construct, shallow copy.
	SubList (const UList< face > &list) noexcept
	Construct from UList, the entire size.
	SubList (const FixedList< face, N > &list) noexcept
	Construct from FixedList, the entire size.
	SubList (const UList< face > &list, const label len)
	Construct from UList and sub-list size, start at 0.
	SubList (const UList< face > &list, const label len, const label start)
	Construct from UList, sub-list size and start index.
	SubList (const UList< face > &list, const labelRange &range)
	Construct from UList and a (start,size) range.
	SubList (const labelRange &range, const UList< face > &list)
	Construct from UList and a (start,size) range, but bypassing run-time range checking.
UList< face > &	reset (std::nullptr_t) noexcept
	Reset to zero-sized and nullptr.
UList< face > &	reset (const UList< face > &list) noexcept
	Reset to use entire UList.
UList< face > &	reset (const UList< face > &list, const label len)
	Reset to use UList with sub-list size, start at 0.
UList< face > &	reset (const UList< face > &list, const label len, const label start)
	Reset to use UList with sub-list size and start index.
UList< face > &	reset (const UList< face > &list, const labelRange &range)
	Reset to use UList with a (start,size) range.
UList< face > &	reset (const labelRange &range, const UList< face > &list)
	Reset to use UList with a (start,size) range, but bypassing run-time range checking.
	operator const Foam::List< face > & () const
	Allow cast to a const List<T>&.
void	operator= (const SubList< face > &list)
	Copy assign entries (deep copy) from given sub-list. Sizes must match!
void	operator= (const UList< face > &list)
	Copy assign entries (deep copy) from given list. Sizes must match!
void	operator= (const IndirectListBase< face, Addr > &list)
	Copy assign entries from given indirect list. Sizes must match!
void	operator= (const face &val)
	Assign all entries to the given value.
void	operator= (Foam::zero)
	Assign all entries to zero.
	operator const Foam::List< face > & () const
	Allow cast to a const List<T>&.
Public Member Functions inherited from UList< face >
	UList (const UList< face > &) noexcept=default
	Copy construct, shallow copy.
	UList (UList< face > &&) noexcept=default
	Move construct, shallow copy.
UList< face > &	operator= (const UList< face > &)=delete
	No copy assignment (default: shallow copy).
UList< face > &	operator= (UList< face > &&) noexcept=default
	Move assignment, shallow copy.
constexpr	UList () noexcept
	Default construct, zero-sized and nullptr.
	UList (face *__restrict__ ptr, const label len) noexcept
	Construct from components.
	UList (SubList< face > &&) noexcept
	Move construct from a SubList, shallow copy.
label	fcIndex (const label i) const noexcept
	The forward circular index. The next index in the list which returns to the first at the end of the list.
label	rcIndex (const label i) const noexcept
	The reverse circular index. The previous index in the list which returns to the last at the beginning of the list.
const face &	fcValue (const label i) const
	Return forward circular value (ie, next value in the list).
face &	fcValue (const label i)
	Return forward circular value (ie, next value in the list).
const face &	rcValue (const label i) const
	Return reverse circular value (ie, previous value in the list).
face &	rcValue (const label i)
	Return reverse circular value (ie, previous value in the list).
const face *	cdata () const noexcept
	Return pointer to the underlying array serving as data storage.
face *	data () noexcept
	Return pointer to the underlying array serving as data storage.
const char *	cdata_bytes () const noexcept
	Return pointer to the underlying array serving as data storage,.
char *	data_bytes () noexcept
	Return pointer to the underlying array serving as data storage,.
face &	front ()
	Access first element of the list, position [0].
const face &	front () const
	Access first element of the list.
face &	back ()
	Access last element of the list, position [size()-1].
const face &	back () const
	Access last element of the list, position [size()-1].
std::streamsize	size_bytes () const noexcept
	Number of contiguous bytes for the List data.
std::streamsize	byteSize () const
	Number of contiguous bytes for the List data, runtime FatalError if type is not contiguous.
void	checkStart (const label start) const
	Check start is within valid range [0,size).
void	checkSize (const label size) const
	Check size is within valid range [0,size].
void	checkRange (const label start, const label len) const
	Check that start and length define a valid range.
void	checkIndex (const label i) const
	Check index is within valid range [0,size).
bool	uniform () const
	True if all entries have identical values, and list is non-empty.
bool	contains (const face &val) const
	True if the value is contained in the list.
bool	contains (const face &val, label pos, label len=-1) const
	Is the value contained in the list?
label	find (const face &val) const
	Find index of the first occurrence of the value.
label	find (const face &val, label pos, label len=-1) const
	Find index of the first occurrence of the value.
label	rfind (const face &val, label pos=-1) const
	Find index of the last occurrence of the value.
void	moveFirst (const label i)
	Move element to the first position.
void	moveLast (const label i)
	Move element to the last position.
void	swapFirst (const label i)
	Swap element with the first element. Fatal on an empty list.
void	swapLast (const label i)
	Swap element with the last element. Fatal on an empty list.
void	shallowCopy (face *__restrict__ ptr, const label len) noexcept
	Copy the pointer and size.
void	shallowCopy (std::nullptr_t) noexcept
	Copy nullptr and zero size.
void	shallowCopy (const UList< face > &list) noexcept
	Copy the pointer and size held by the given UList.
void	deepCopy (const UList< face > &list)
	Copy elements of the given UList. Sizes must match!
void	deepCopy (const IndirectListBase< face, Addr > &list)
	Copy elements of the given indirect list. Sizes must match!
SubList< face >	slice (const label pos, label len=-1)
	Return SubList slice (non-const access) - no range checking.
const SubList< face >	slice (const label pos, label len=-1) const
	Return SubList slice (const access) - no range checking.
SubList< face >	slice (const labelRange &range)
	Return SubList slice (non-const access) - with range checking.
const SubList< face >	slice (const labelRange &range) const
	Return SubList slice (const access) - with range checking.
face &	operator[] (const label i)
	Return element of UList.
const face &	operator[] (const label i) const
	Return element of constant UList.
	operator const Foam::List< face > & () const
	Allow cast to a const List<T>&.
void	operator= (const face &val)
	Assignment of all entries to the given value.
void	operator= (Foam::zero)
	Assignment of all entries to zero.
iterator	begin () noexcept
	Return an iterator to begin traversing the UList.
iterator	end () noexcept
	Return an iterator to end traversing the UList.
iterator	begin (const label i) noexcept
	Return iterator at offset i from begin, clamped to [0,size] range.
const_iterator	cbegin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	cend () const noexcept
	Return const_iterator to end traversing the constant UList.
const_iterator	begin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	end () const noexcept
	Return const_iterator to end traversing the constant UList.
const_iterator	cbegin (const label i) const noexcept
	Return const_iterator at offset i from begin, clamped to [0,size] range.
const_iterator	begin (const label i) const noexcept
	Return const_iterator at offset i from begin, clamped to [0,size] range.
reverse_iterator	rbegin ()
	Return reverse_iterator to begin reverse traversing the UList.
reverse_iterator	rend ()
	Return reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	crbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	crend () const
	Return const_reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	rbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	rend () const
	Return const_reverse_iterator to end reverse traversing the UList.
bool	empty () const noexcept
	True if List is empty (ie, size() is zero).
label	size () const noexcept
	The number of elements in the container.
label	capacity () const noexcept
	Size of the underlying storage.
void	swap (UList< face > &list) noexcept
	Swap content with another UList of the same type in constant time.
bool	operator== (const UList< face > &list) const
	Equality operation on ULists of the same type.
bool	operator!= (const UList< face > &list) const
	The opposite of the equality operation. Takes linear time.
bool	operator< (const UList< face > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator> (const UList< face > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator<= (const UList< face > &list) const
	Return true if !(a > b). Takes linear time.
bool	operator>= (const UList< face > &list) const
	Return true if !(a < b). Takes linear time.
Istream &	readList (Istream &is)
	Read List contents from Istream.
void	writeEntry (const word &keyword, Ostream &os) const
	Write the List as a dictionary entry with keyword.
Ostream &	writeList (Ostream &os, const label shortLen=0) const
	Write List, with line-breaks in ASCII when length exceeds shortLen.
bool	all () const
	True if all entries are 'true' or if the list is empty.
bool	any () const
	True if any entries are 'true'.
bool	none () const
	True if no entries are 'true'.
bool	test (const label i) const
	Test bool value at specified position, always false for out-of-range access.
bool	get (const label i) const
	Return bool value at specified position, always false for out-of-range access.
bool	unset (const label i)
	Unset the bool entry at specified position, always false for out-of-range access.
std::string_view	view () const
	Return a string_view of the charList. Content is non-modifiable.
face &	first ()
	Access first element of the list, position [0].
const face &	first () const
	Access first element of the list.
face &	last ()
	Access last element of the list, position [size()-1].
const face &	last () const
	Access last element of the list, position [size()-1].
bool	found (const face &val, label pos=0) const
	Same as contains().
auto	expr () const
	Wrap value as expression.
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.
	operator const Foam::List< face > & () const
	Allow cast to a const List<T>&.

Static Public Attributes
static const scalar	tolerance_ = 1e-10
	Tolerance used e.g. for area calculations/limits.
Static Public Attributes inherited from coupledPolyPatch
static const Enum< transformType >	transformTypeNames
Static Public Attributes inherited from polyPatch
static int	disallowGenericPolyPatch
	Debug switch to disallow the use of genericPolyPatch.

Protected Member Functions

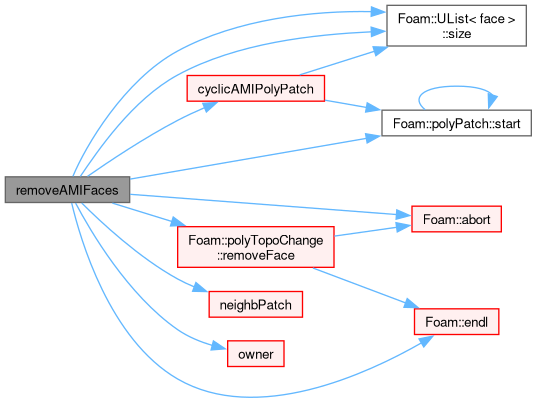

virtual bool	removeAMIFaces (polyTopoChange &topoChange)
	Collect faces to remove in the topoChange container.

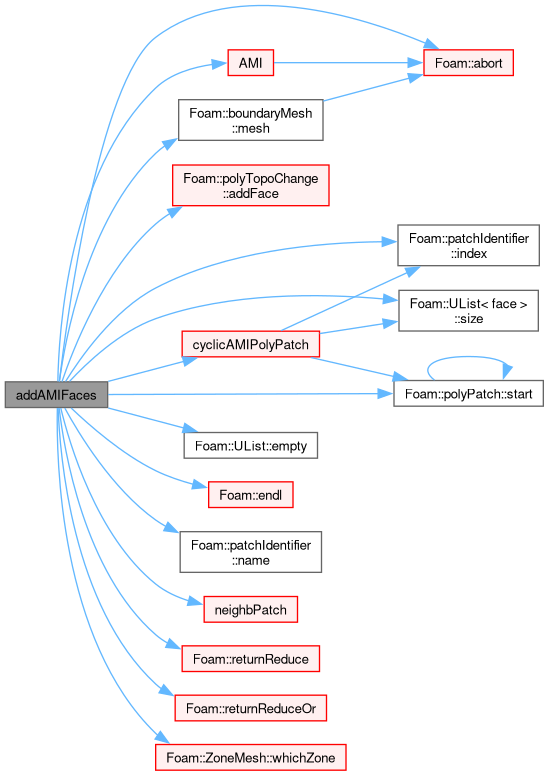

virtual bool	addAMIFaces (polyTopoChange &topoChange)
	Collect faces to add in the topoChange container.

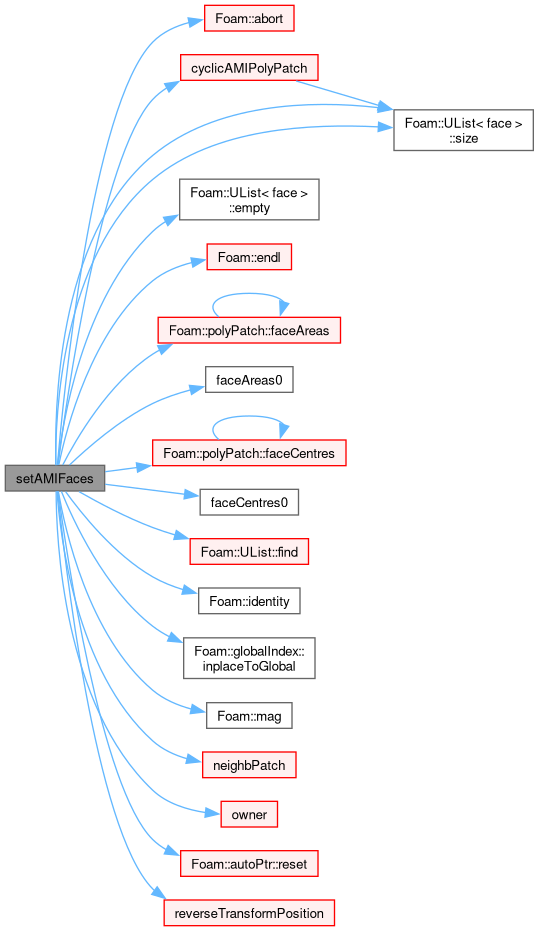

virtual void	setAMIFaces ()
	Set properties of newly inserted faces after topological changes.

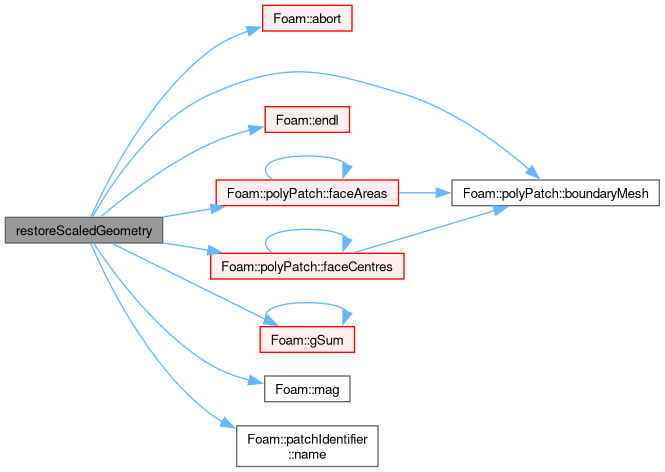

virtual void	restoreScaledGeometry ()
	Helper to re-apply the geometric scaling lost during mesh updates.

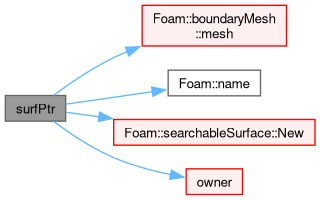

const autoPtr< searchableSurface > &	surfPtr () const
	Create and return pointer to the projection surface.

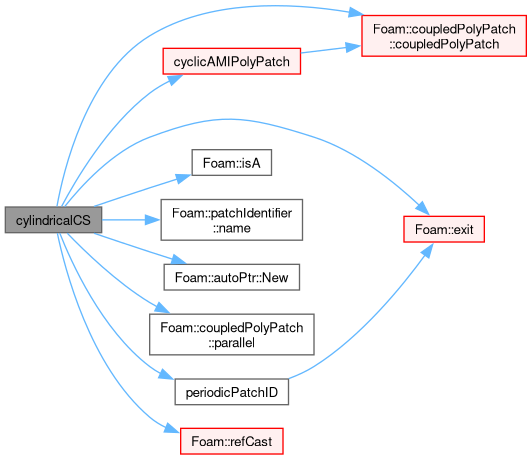

autoPtr< coordSystem::cylindrical >	cylindricalCS () const
	Create a coordinate system from the periodic patch (or nullptr).

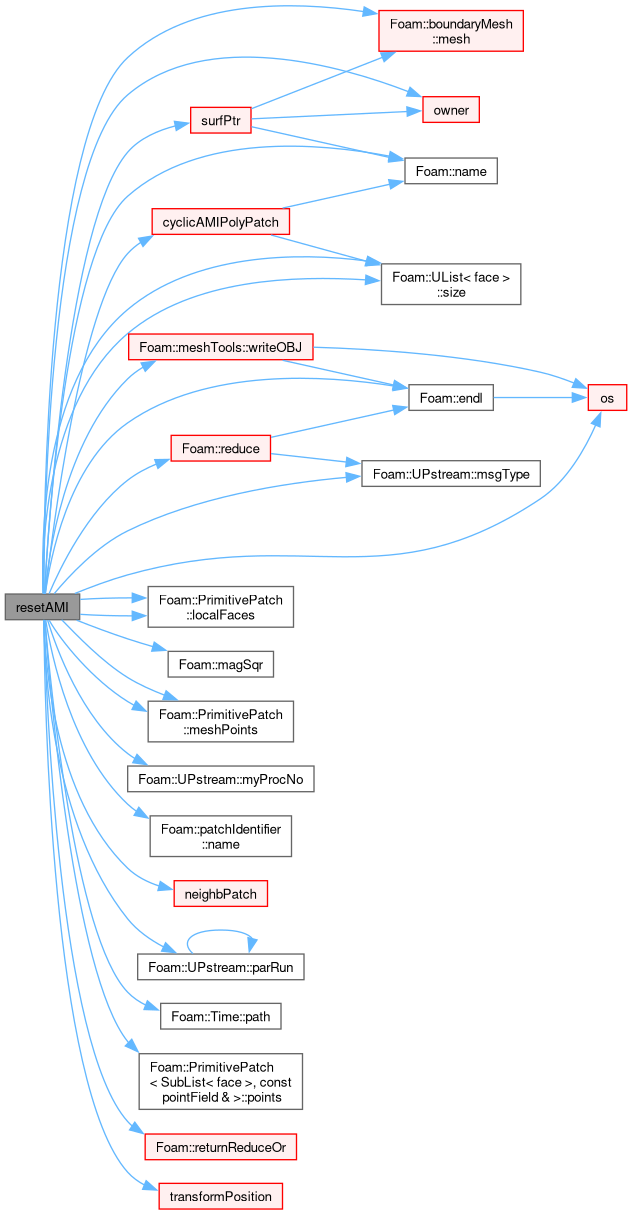

virtual void	resetAMI (const UList< point > &points) const
	Reset the AMI interpolator, supply patch points.
virtual void	resetAMI () const
	Reset the AMI interpolator, use current patch points.

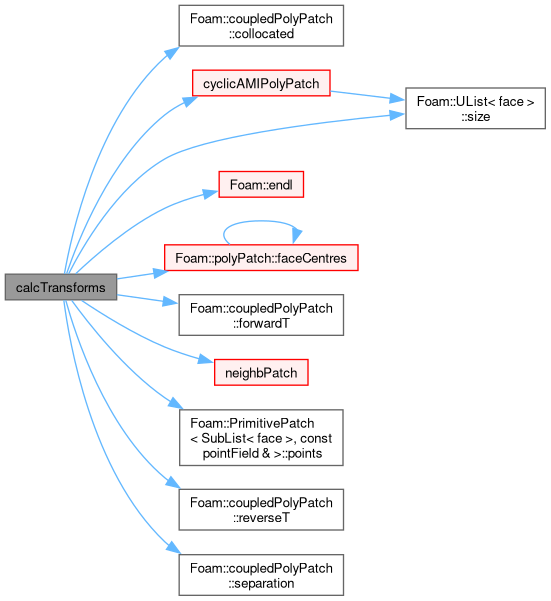

virtual void	calcTransforms ()
	Recalculate the transformation tensors.
virtual void	initGeometry (PstreamBuffers &)
	Initialise the calculation of the patch geometry.
virtual void	calcGeometry (PstreamBuffers &)
	Calculate the patch geometry.

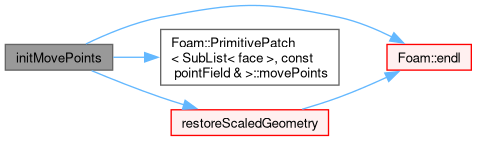

virtual void	initMovePoints (PstreamBuffers &pBufs, const pointField &)
	Initialise the patches for moving points.
virtual void	movePoints (PstreamBuffers &pBufs, const pointField &)
	Correct patches after moving points.

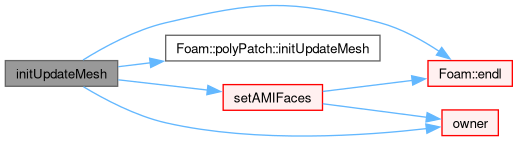

virtual void	initUpdateMesh (PstreamBuffers &)
	Initialise the update of the patch topology.
virtual void	updateMesh (PstreamBuffers &)
	Update of the patch topology.
virtual void	clearGeom ()
	Clear geometry.
Protected Member Functions inherited from coupledPolyPatch
void	calcTransformTensors (const vectorField &Cf, const vectorField &Cr, const vectorField &nf, const vectorField &nr, const scalarField &smallDist, const scalar absTol, const transformType=UNKNOWN) const
	Calculate the transformation tensors.
Protected Member Functions inherited from polyPatch
virtual void	movePoints (const Field< point_type > &)
	Inherit movePoints from primitivePatch.
Protected Member Functions inherited from UList< face >
void	setAddressableSize (const label n) noexcept
	Set addressed size to be inconsistent with allocated storage.
void	size (const label n)
	Older name for setAddressableSize.
void	writeEntry (Ostream &os) const
	Write the UList with its compound type.
labelRange	validateRange (const labelRange &requestedRange) const
	Return a validated (start,size) subset range, which means that it always addresses a valid section of the list.
void	fill_uniform (const face &val)
	Assign all entries to the given value.
void	fill_uniform (Foam::zero)
	Assign all entries to zero.

Protected Attributes
word	nbrPatchName_
	Name of other half.
const coupleGroupIdentifier	coupleGroup_
	Optional patchGroup to find neighbPatch.
label	nbrPatchID_
	Index of other half.
const scalar	fraction_
	Particle displacement fraction across AMI.
vector	rotationAxis_
	Axis of rotation for rotational cyclics.
point	rotationCentre_
	Point on axis of rotation for rotational cyclics.
bool	rotationAngleDefined_
	Flag to show whether the rotation angle is defined.
scalar	rotationAngle_
	Rotation angle.
vector	separationVector_
	Translation vector.
word	periodicPatchName_
	Periodic patch name.
label	periodicPatchID_
	Periodic patch.
autoPtr< AMIPatchToPatchInterpolation >	AMIPtr_
	AMI interpolation class.
const dictionary	surfDict_
	Dictionary used during projection surface construction.
autoPtr< searchableSurface >	surfPtr_
	Projection surface.
bool	createAMIFaces_
	Flag to indicate that new AMI faces will created.
bool	moveFaceCentres_
	Move face centres (default = no).
bool	updatingAMI_
labelListList	srcFaceIDs_
labelListList	tgtFaceIDs_
vectorField	faceAreas0_
	Temporary storage for AMI face areas.
vectorField	faceCentres0_
	Temporary storage for AMI face centres.
bool	cacheAMI_

Additional Inherited Members
Public Types inherited from coupledPolyPatch
enum	transformType {   UNKNOWN , ROTATIONAL , TRANSLATIONAL , COINCIDENTFULLMATCH ,   NOORDERING }
Public Types inherited from PrimitivePatch< SubList< face >, const pointField & >
enum	surfaceTopo
	Enumeration defining the surface type. Used in check routines. More...
typedef std::remove_reference< SubList< face > >::type::value_type	face_type
	The face type.
typedef std::remove_reference< const pointField & >::type::value_type	point_type
	The point type.
typedef SubList< face >	FaceListType
	The face list type.
typedef const pointField &	PointFieldType
	The point field type.
typedef face_type	FaceType
	Deprecated(2020-03) prefer face_type typedef.
Public Types inherited from UList< face >
typedef face	value_type
	The value type the list contains.
typedef face *	pointer
	The pointer type for non-const access to value_type items.
typedef const face *	const_pointer
	The pointer type for const access to value_type items.
typedef face &	reference
	The type used for storing into value_type objects.
typedef const face &	const_reference
	The type used for reading from constant value_type objects.
typedef face *	iterator
	Random access iterator for traversing a UList.
typedef const face *	const_iterator
	Random access iterator for traversing a UList.
typedef label	size_type
	The type to represent the size of a UList.
typedef label	difference_type
	The difference between iterator objects.
typedef std::reverse_iterator< iterator >	reverse_iterator
	Reverse iterator (non-const access).
typedef std::reverse_iterator< const_iterator >	const_reverse_iterator
	Reverse iterator (const access).
using	is_List
	Have unique tag.
Static Public Member Functions inherited from coupledPolyPatch
static scalarField	calcFaceTol (const UList< face > &faces, const pointField &points, const pointField &faceCentres)
	Calculate typical tolerance per face. Is currently max distance.
Static Public Member Functions inherited from polyPatch
static autoPtr< polyPatch >	New (const word &patchType, const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm)
	Return pointer to a new patch created on freestore from components.
static autoPtr< polyPatch >	New (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm)
	Return pointer to a new patch created on freestore from dictionary.
static autoPtr< polyPatch >	New (const word &patchType, const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm)
	Return pointer to a new patch created on freestore from dictionary.
static bool	constraintType (const word &patchType)
	Return true if the given type is a constraint type.
static wordList	constraintTypes ()
	Return a list of all the constraint patch types.
Static Public Member Functions inherited from patchIdentifier
static word	defaultName (const label n=-1)
	Default patch name: "patch" or "patchN".
Static Public Member Functions inherited from SubList< face >
static const SubList< face > &	null () noexcept
	Return a null SubList (reference to a nullObject). Behaves like an empty SubList.
Static Public Member Functions inherited from UList< face >
static const UList< face > &	null () noexcept
	Return a null UList (reference to a nullObject). Behaves like an empty UList.
static constexpr label	max_size () noexcept
	The size of the largest possible UList.
Static Protected Member Functions inherited from coupledPolyPatch
static void	writeOBJ (Ostream &os, const point &pt)
	Write point in OBJ format.
static void	writeOBJ (Ostream &, const pointField &, const labelList &)
	Write selected points in OBJ format.
static void	writeOBJ (const fileName &, const UList< face > &, const pointField &)
	Write patch.
static void	writeOBJ (Ostream &os, const point &p0, const point &p1, label &vertI)
	Write edge in OBJ format.
static pointField	getAnchorPoints (const UList< face > &, const pointField &, const transformType)
	Get a unique anchor point for all faces.
static label	getRotation (const pointField &points, const face &f, const point &anchor, const scalar tol)
	Get the number of vertices face f needs to be rotated such that.

Detailed Description

Cyclic patch for Arbitrary Mesh Interface (AMI).

Includes provision for updating the patch topology to enforce a 1-to-1 face match across the interface, based on the createAMIFaces flag.

The manipulations are based on the reference:

H.J. Aguerre, S. Márquez Damián, J.M. Gimenez, N.M.Nigro, Conservative
handling of arbitrary non-conformal interfaces using an efficient
supermesh, Journal of Computational Physics 335(15) 21-49. 2017.
https://doi.org/10.1016/j.jcp.2017.01.018.

Source files

• cyclicAMIPolyPatch.H
• cyclicAMIPolyPatch.C

Definition at line 65 of file cyclicAMIPolyPatch.H.

Constructor & Destructor Documentation

cyclicAMIPolyPatch() [1/5]

cyclicAMIPolyPatch	(	const word &	name,
		const label	size,
		const label	start,
		const label	index,
		const polyBoundaryMesh &	bm,
		const word &	patchType,
		const transformType	transform = UNKNOWN,
		const word &	defaultAMIMethod = faceAreaWeightAMI::typeName )

Construct from (base coupled patch) components.

Definition at line 677 of file cyclicAMIPolyPatch.C.

References AMIPtr_, coupledPolyPatch::coupledPolyPatch(), createAMIFaces_, faceAreas0_, faceCentres0_, fraction_, patchIdentifier::index(), moveFaceCentres_, Foam::name(), nbrPatchID_, nbrPatchName_, Foam::New(), periodicPatchID_, periodicPatchName_, rotationAngle_, rotationAngleDefined_, rotationAxis_, rotationCentre_, separationVector_, UList< face >::size(), srcFaceIDs_, polyPatch::start(), surfDict_, surfPtr_, tgtFaceIDs_, coupledPolyPatch::transform(), updatingAMI_, and Foam::Zero.

Referenced by addAMIFaces(), calcTransforms(), clone(), clone(), cyclicACMIPolyPatch::cyclicACMIPolyPatch(), cyclicACMIPolyPatch::cyclicACMIPolyPatch(), cyclicACMIPolyPatch::cyclicACMIPolyPatch(), cyclicACMIPolyPatch::cyclicACMIPolyPatch(), cyclicACMIPolyPatch::cyclicACMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicPeriodicAMIPolyPatch::cyclicPeriodicAMIPolyPatch(), cyclicPeriodicAMIPolyPatch::cyclicPeriodicAMIPolyPatch(), cyclicPeriodicAMIPolyPatch::cyclicPeriodicAMIPolyPatch(), cyclicPeriodicAMIPolyPatch::cyclicPeriodicAMIPolyPatch(), cyclicPeriodicAMIPolyPatch::cyclicPeriodicAMIPolyPatch(), cylindricalCS(), initInterpolate(), interpolate(), neighbPatchID(), removeAMIFaces(), resetAMI(), setAMIFaces(), and TypeName().

Here is the call graph for this function:

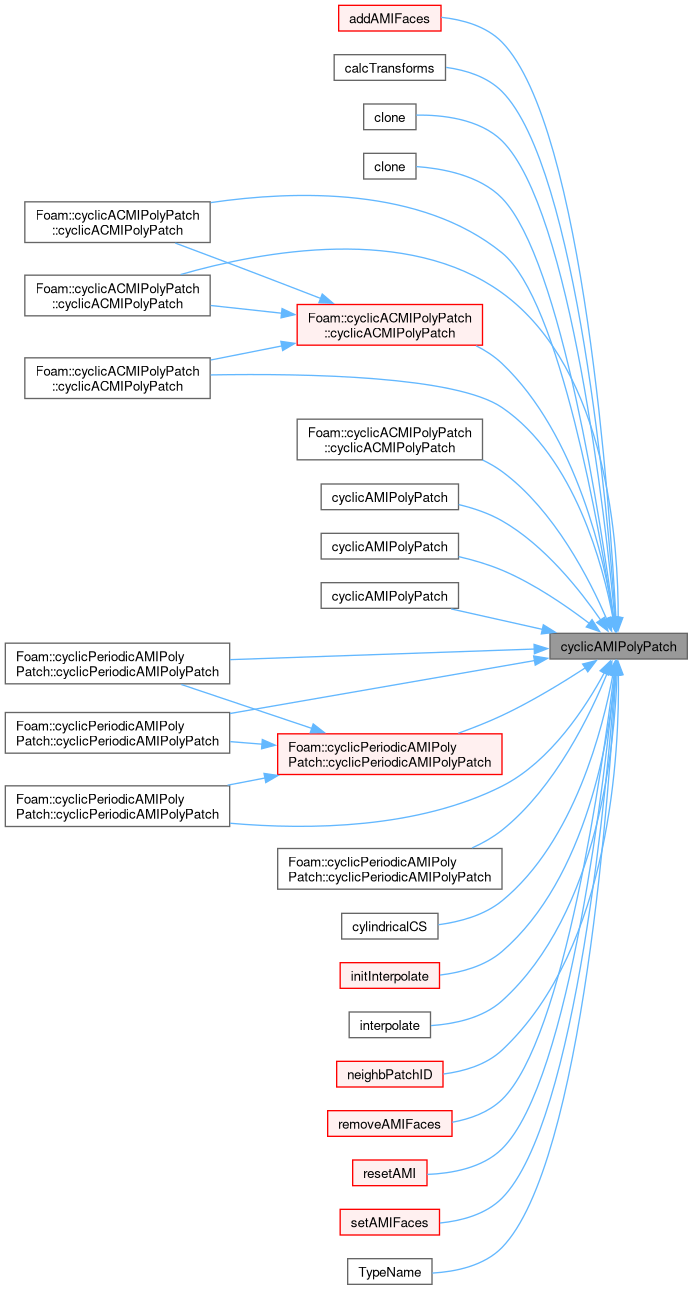

Here is the caller graph for this function:

cyclicAMIPolyPatch() [2/5]

cyclicAMIPolyPatch	(	const word &	name,
		const dictionary &	dict,
		const label	index,
		const polyBoundaryMesh &	bm,
		const word &	patchType,
		const word &	defaultAMIMethod = faceAreaWeightAMI::typeName )

Construct from dictionary.

Definition at line 716 of file cyclicAMIPolyPatch.C.

References AMIPtr_, coupledPolyPatch::coupledPolyPatch(), coupleGroup_, createAMIFaces_, Foam::degToRad(), dict, Foam::endl(), Foam::exit(), faceAreas0_, faceCentres0_, Foam::FatalIOError, FatalIOErrorInFunction, fraction_, if(), patchIdentifier::index(), Foam::Info, Foam::mag(), moveFaceCentres_, Foam::name(), nbrPatchID_, nbrPatchName_, Foam::New(), SubList< face >::null(), periodicPatchID_, periodicPatchName_, coupledPolyPatch::ROTATIONAL, rotationAngle_, rotationAngleDefined_, rotationAxis_, rotationCentre_, separationVector_, srcFaceIDs_, surfDict_, surfPtr_, tgtFaceIDs_, coupledPolyPatch::transform(), coupledPolyPatch::TRANSLATIONAL, updatingAMI_, and Foam::Zero.

Here is the call graph for this function:

cyclicAMIPolyPatch() [3/5]

cyclicAMIPolyPatch	(	const cyclicAMIPolyPatch &	pp,
		const polyBoundaryMesh &	bm )

Construct as copy, resetting the boundary mesh.

Definition at line 834 of file cyclicAMIPolyPatch.C.

References AMIPtr_, clone(), coupledPolyPatch::coupledPolyPatch(), coupleGroup_, createAMIFaces_, cyclicAMIPolyPatch(), faceAreas0_, faceCentres0_, fraction_, moveFaceCentres_, nbrPatchID_, nbrPatchName_, periodicPatchID_, periodicPatchName_, pp(), rotationAngle_, rotationAngleDefined_, rotationAxis_, rotationCentre_, separationVector_, srcFaceIDs_, surfDict_, surfPtr_, tgtFaceIDs_, and updatingAMI_.

Here is the call graph for this function:

cyclicAMIPolyPatch() [4/5]

cyclicAMIPolyPatch	(	const cyclicAMIPolyPatch &	pp,
		const polyBoundaryMesh &	bm,
		const label	index,
		const label	newSize,
		const label	newStart,
		const word &	nbrPatchName )

Construct given the original patch and resetting the.

face list and boundary mesh information

Definition at line 868 of file cyclicAMIPolyPatch.C.

References AMIPtr_, clone(), coupledPolyPatch::coupledPolyPatch(), coupleGroup_, createAMIFaces_, cyclicAMIPolyPatch(), Foam::exit(), faceAreas0_, faceCentres0_, Foam::FatalError, FatalErrorInFunction, fraction_, patchIdentifier::index(), moveFaceCentres_, patchIdentifier::name(), nbrPatchID_, nbrPatchName_, periodicPatchID_, periodicPatchName_, pp(), rotationAngle_, rotationAngleDefined_, rotationAxis_, rotationCentre_, separationVector_, srcFaceIDs_, surfDict_, surfPtr_, tgtFaceIDs_, and updatingAMI_.

Here is the call graph for this function:

cyclicAMIPolyPatch() [5/5]

cyclicAMIPolyPatch	(	const cyclicAMIPolyPatch &	pp,
		const polyBoundaryMesh &	bm,
		const label	index,
		const labelUList &	mapAddressing,
		const label	newStart )

Construct given the original patch and a map.

Definition at line 914 of file cyclicAMIPolyPatch.C.

References AMIPtr_, clone(), coupledPolyPatch::coupledPolyPatch(), coupleGroup_, createAMIFaces_, cyclicAMIPolyPatch(), faceAreas0_, faceCentres0_, fraction_, patchIdentifier::index(), moveFaceCentres_, nbrPatchID_, nbrPatchName_, periodicPatchID_, periodicPatchName_, pp(), rotationAngle_, rotationAngleDefined_, rotationAxis_, rotationCentre_, separationVector_, srcFaceIDs_, surfDict_, surfPtr_, tgtFaceIDs_, and updatingAMI_.

Here is the call graph for this function:

~cyclicAMIPolyPatch()

virtual ~cyclicAMIPolyPatch ( )

virtualdefault

Destructor.

Member Function Documentation

removeAMIFaces()

bool removeAMIFaces ( polyTopoChange & topoChange )

protectedvirtual

Collect faces to remove in the topoChange container.

Definition at line 75 of file cyclicAMIPolyPatchTopologyChange.C.

References Foam::abort(), createAMIFaces_, cyclicAMIPolyPatch(), DebugInFunction, Foam::endl(), Foam::FatalError, FatalErrorInFunction, neighbPatch(), owner(), polyTopoChange::removeFace(), UList< T >::size(), UList< face >::size(), srcFaceIDs_, polyPatch::start(), and tgtFaceIDs_.

Referenced by setTopology().

Here is the call graph for this function:

Here is the caller graph for this function:

addAMIFaces()

bool addAMIFaces ( polyTopoChange & topoChange )

protectedvirtual

Collect faces to add in the topoChange container.

Definition at line 130 of file cyclicAMIPolyPatchTopologyChange.C.

References Foam::abort(), polyTopoChange::addFace(), AMI(), createAMIFaces_, cyclicAMIPolyPatch(), DebugInFunction, UList< T >::empty(), Foam::endl(), Foam::FatalError, FatalErrorInFunction, forAll, patchIdentifier::index(), Foam::Info, boundaryMesh::mesh(), mesh, patchIdentifier::name(), name, neighbPatch(), Foam::nl, Foam::Pout, Foam::returnReduce(), Foam::returnReduceOr(), UList< T >::size(), srcFaceIDs_, polyPatch::start(), tgtFaceIDs_, and ZoneMesh< ZoneType, MeshType >::whichZone().

Referenced by setTopology().

Here is the call graph for this function:

Here is the caller graph for this function:

setAMIFaces()

void setAMIFaces ( )

protectedvirtual

Set properties of newly inserted faces after topological changes.

Definition at line 254 of file cyclicAMIPolyPatchTopologyChange.C.

References Foam::abort(), AMIPtr_, createAMIFaces_, cyclicAMIPolyPatch(), DebugInFunction, UList< face >::empty(), Foam::endl(), polyPatch::faceAreas(), faceAreas0(), faceAreas0_, polyPatch::faceCentres(), faceCentres0(), faceCentres0_, Foam::FatalError, FatalErrorInFunction, UList< T >::find(), forAll, Foam::identity(), globalIndex::inplaceToGlobal(), Foam::mag(), name, neighbPatch(), Foam::nl, owner(), Foam::Pout, autoPtr< T >::reset(), reverseTransformPosition(), UList< T >::size(), UList< face >::size(), srcFaceIDs_, tgtFaceIDs_, and tolerance_.

Referenced by initUpdateMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

restoreScaledGeometry()

void restoreScaledGeometry ( )

protectedvirtual

Helper to re-apply the geometric scaling lost during mesh updates.

Definition at line 28 of file cyclicAMIPolyPatchTopologyChange.C.

References Foam::abort(), polyPatch::boundaryMesh(), createAMIFaces_, DebugInfo, DebugInFunction, Foam::endl(), polyPatch::faceAreas(), faceAreas0_, polyPatch::faceCentres(), faceCentres0_, Foam::FatalError, FatalErrorInFunction, Foam::gSum(), Foam::mag(), mesh, moveFaceCentres_, patchIdentifier::name(), Foam::nl, and WarningInFunction.

Referenced by initMovePoints().

Here is the call graph for this function:

Here is the caller graph for this function:

surfPtr()

const Foam::autoPtr< Foam::searchableSurface > & surfPtr ( ) const

protected

Create and return pointer to the projection surface.

Definition at line 331 of file cyclicAMIPolyPatch.C.

References boundaryMesh::mesh(), mesh, IOobjectOption::MUST_READ, Foam::name(), searchableSurface::New(), IOobjectOption::NO_WRITE, owner(), surfDict_, and surfPtr_.

Referenced by resetAMI().

Here is the call graph for this function:

Here is the caller graph for this function:

cylindricalCS()

Foam::autoPtr< Foam::coordSystem::cylindrical > cylindricalCS ( ) const

protected

Create a coordinate system from the periodic patch (or nullptr).

Definition at line 284 of file cyclicAMIPolyPatch.C.

References coupledPolyPatch::coupledPolyPatch(), cyclicAMIPolyPatch(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::isA(), patchIdentifier::name(), name, autoPtr< T >::New(), coupledPolyPatch::parallel(), periodicPatchID(), Foam::refCast(), and Foam::Zero.

Here is the call graph for this function:

resetAMI() [1/2]

void resetAMI ( const UList< point > & points ) const

protectedvirtual

Reset the AMI interpolator, supply patch points.

Reimplemented in cyclicACMIPolyPatch.

Definition at line 368 of file cyclicAMIPolyPatch.C.

References AMIPtr_, createAMIFaces_, cyclicAMIPolyPatch(), DebugInFunction, Foam::endl(), Foam::Info, PrimitivePatch< FaceList, PointField >::localFaces(), PrimitivePatch< SubList< face >, const pointField & >::localFaces(), Foam::magSqr(), VectorSpace< Form, Cmpt, Ncmpts >::max, boundaryMesh::mesh(), mesh, PrimitivePatch< FaceList, PointField >::meshPoints(), PrimitivePatch< SubList< face >, const pointField & >::meshPoints(), UPstream::msgType(), UPstream::myProcNo(), Foam::name(), patchIdentifier::name(), name, neighbPatch(), os(), owner(), UPstream::parRun(), Time::path(), PrimitivePatch< SubList< face >, const pointField & >::points(), Foam::reduce(), Foam::returnReduceOr(), UList< T >::size(), UList< face >::size(), srcFaceIDs_, surfPtr(), tgtFaceIDs_, tolerance_, transformPosition(), WarningInFunction, and Foam::meshTools::writeOBJ().

Referenced by AMI(), resetAMI(), and setTopology().

Here is the call graph for this function:

Here is the caller graph for this function:

resetAMI() [2/2]

void resetAMI ( ) const

protectedvirtual

Reset the AMI interpolator, use current patch points.

Reimplemented in cyclicACMIPolyPatch.

Definition at line 362 of file cyclicAMIPolyPatch.C.

References mesh, points, and resetAMI().

Referenced by cyclicACMIPolyPatch::resetAMI().

Here is the call graph for this function:

Here is the caller graph for this function:

calcTransforms()

void calcTransforms ( )

protectedvirtual

Recalculate the transformation tensors.

Definition at line 521 of file cyclicAMIPolyPatch.C.

References coupledPolyPatch::collocated(), cyclicAMIPolyPatch(), DebugInFunction, DebugPout, Foam::endl(), polyPatch::faceCentres(), forAll, coupledPolyPatch::forwardT(), name, neighbPatch(), Foam::nl, PrimitivePatch< FaceList, PointField >::points(), coupledPolyPatch::reverseT(), coupledPolyPatch::separation(), and UList< T >::size().

Here is the call graph for this function:

initGeometry()

void initGeometry ( PstreamBuffers & pBufs )

protectedvirtual

Initialise the calculation of the patch geometry.

Implements coupledPolyPatch.

Reimplemented in cyclicACMIPolyPatch.

Definition at line 557 of file cyclicAMIPolyPatch.C.

References AMIPtr_, DebugInFunction, Foam::endl(), and polyPatch::initGeometry().

Referenced by cyclicACMIPolyPatch::initGeometry().

Here is the call graph for this function:

Here is the caller graph for this function:

calcGeometry() [1/2]

void calcGeometry ( PstreamBuffers & pBufs )

protectedvirtual

Calculate the patch geometry.

Implements coupledPolyPatch.

Reimplemented in cyclicACMIPolyPatch.

Definition at line 574 of file cyclicAMIPolyPatch.C.

References DebugInFunction, and Foam::endl().

Referenced by cyclicACMIPolyPatch::calcGeometry().

Here is the call graph for this function:

Here is the caller graph for this function:

initMovePoints()

void initMovePoints ( PstreamBuffers & pBufs, const pointField & p )

protectedvirtual

Initialise the patches for moving points.

Implements coupledPolyPatch.

Reimplemented in cyclicACMIPolyPatch.

Definition at line 580 of file cyclicAMIPolyPatch.C.

References AMIPtr_, createAMIFaces_, DebugInFunction, Foam::endl(), PrimitivePatch< SubList< face >, const pointField & >::movePoints(), p, and restoreScaledGeometry().

Referenced by cyclicACMIPolyPatch::initMovePoints().

Here is the call graph for this function:

Here is the caller graph for this function:

movePoints()

void movePoints ( PstreamBuffers & pBufs, const pointField & p )

protectedvirtual

Correct patches after moving points.

Implements coupledPolyPatch.

Reimplemented in cyclicACMIPolyPatch.

Definition at line 616 of file cyclicAMIPolyPatch.C.

References DebugInFunction, Foam::endl(), and p.

Referenced by cyclicACMIPolyPatch::movePoints().

Here is the call graph for this function:

Here is the caller graph for this function:

initUpdateMesh()

void initUpdateMesh ( PstreamBuffers & pBufs )

protectedvirtual

Initialise the update of the patch topology.

Implements coupledPolyPatch.

Reimplemented in cyclicACMIPolyPatch.

Definition at line 640 of file cyclicAMIPolyPatch.C.

References createAMIFaces_, DebugInFunction, Foam::endl(), polyPatch::initUpdateMesh(), mesh, owner(), and setAMIFaces().

Referenced by cyclicACMIPolyPatch::initUpdateMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

updateMesh()

void updateMesh ( PstreamBuffers & pBufs )

protectedvirtual

Update of the patch topology.

Implements coupledPolyPatch.

Reimplemented in cyclicACMIPolyPatch.

Definition at line 653 of file cyclicAMIPolyPatch.C.

References DebugInFunction, Foam::endl(), and polyPatch::updateMesh().

Referenced by cyclicACMIPolyPatch::updateMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

clearGeom()

void clearGeom ( )

protectedvirtual

Clear geometry.

Reimplemented from polyPatch.

Reimplemented in cyclicACMIPolyPatch.

Definition at line 662 of file cyclicAMIPolyPatch.C.

References AMIPtr_, polyPatch::clearGeom(), DebugInFunction, Foam::endl(), and updatingAMI_.

Referenced by cyclicACMIPolyPatch::clearGeom().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeName()

TypeName

(

"cyclicAMI"

)

Runtime type information.

References cyclicAMIPolyPatch(), dict, patchIdentifier::index(), Foam::name(), pp(), UList< face >::size(), polyPatch::start(), coupledPolyPatch::transform(), and coupledPolyPatch::UNKNOWN.

Here is the call graph for this function:

clone() [1/3]

virtual autoPtr< polyPatch > clone ( const polyBoundaryMesh & bm ) const

inlinevirtual

Construct and return a clone, resetting the boundary mesh.

Reimplemented from polyPatch.

Reimplemented in cyclicACMIPolyPatch, and cyclicPeriodicAMIPolyPatch.

Definition at line 368 of file cyclicAMIPolyPatch.H.

References autoPtr< T >::NewFrom().

Referenced by cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), and cyclicAMIPolyPatch().

Here is the call graph for this function:

Here is the caller graph for this function:

clone() [2/3]

virtual autoPtr< polyPatch > clone ( const polyBoundaryMesh & bm, const label index, const label newSize, const label newStart ) const

inlinevirtual

Construct and return a clone, resetting the face list and boundary mesh.

Reimplemented from polyPatch.

Reimplemented in cyclicACMIPolyPatch, and cyclicPeriodicAMIPolyPatch.

Definition at line 377 of file cyclicAMIPolyPatch.H.

References cyclicAMIPolyPatch(), patchIdentifier::index(), and nbrPatchName_.

Here is the call graph for this function:

clone() [3/3]

virtual autoPtr< polyPatch > clone ( const polyBoundaryMesh & bm, const label index, const labelUList & mapAddressing, const label newStart ) const

inlinevirtual

Construct and return a clone, resetting the face list.

and boundary mesh

Reimplemented from polyPatch.

Reimplemented in cyclicACMIPolyPatch, and cyclicPeriodicAMIPolyPatch.

Definition at line 404 of file cyclicAMIPolyPatch.H.

References cyclicAMIPolyPatch(), and patchIdentifier::index().

Here is the call graph for this function:

newInternalProcFaces()

void newInternalProcFaces ( label & newFaces, label & newProcFaces ) const

virtual

Return number of new internal of this polyPatch faces.

Reimplemented from polyPatch.

Reimplemented in cyclicACMIPolyPatch.

Definition at line 949 of file cyclicAMIPolyPatch.C.

References AMI(), forAll, neighbPatch(), and UList< face >::size().

Here is the call graph for this function:

nbrCells()

virtual const labelUList & nbrCells ( ) const

inlinevirtual

Return nbrCells.

Reimplemented from polyPatch.

Definition at line 445 of file cyclicAMIPolyPatch.H.

References polyPatch::faceCells(), and neighbPatch().

Here is the call graph for this function:

neighbPolyPatchID()

virtual label neighbPolyPatchID ( ) const

inlinevirtual

Return nbr patch ID.

Reimplemented from polyPatch.

Definition at line 453 of file cyclicAMIPolyPatch.H.

References patchIdentifier::index(), and neighbPatch().

Here is the call graph for this function:

mapCollocatedFaces()

virtual refPtr< labelListList > mapCollocatedFaces ( ) const

inlinevirtual

Return collocated faces map.

Reimplemented from polyPatch.

Reimplemented in cyclicACMIPolyPatch.

Definition at line 461 of file cyclicAMIPolyPatch.H.

References AMI(), and AMIInterpolation::srcAddress().

Here is the call graph for this function:

masterImplicit()

virtual bool masterImplicit ( ) const

inlinevirtual

Return implicit master.

Reimplemented from polyPatch.

Definition at line 470 of file cyclicAMIPolyPatch.H.

References owner().

Here is the call graph for this function:

canResetAMI()

bool canResetAMI ( ) const

inline

Flag to indicate whether the AMI can be reset.

Definition at line 24 of file cyclicAMIPolyPatchI.H.

References polyPatch::boundaryMesh(), polyBoundaryMesh::mesh(), UPstream::parRun(), TimePaths::processorCase(), and objectRegistry::time().

Referenced by cyclicACMIPolyPatch::initGeometry(), cyclicACMIPolyPatch::initMovePoints(), and cyclicACMIPolyPatch::scalePatchFaceAreas().

Here is the call graph for this function:

Here is the caller graph for this function:

createAMIFaces()

bool createAMIFaces ( ) const

inline

Return access to the createAMIFaces flag.

Definition at line 30 of file cyclicAMIPolyPatchI.H.

References createAMIFaces_.

updatingAMI()

bool updatingAMI ( ) const

inline

Return access to the updated flag.

Definition at line 36 of file cyclicAMIPolyPatchI.H.

References updatingAMI_.

changeTopology()

bool changeTopology ( ) const

virtual

Return true if this patch changes the mesh topology.

True when createAMIFaces is true

Reimplemented from polyPatch.

Definition at line 642 of file cyclicAMIPolyPatchTopologyChange.C.

References createAMIFaces_, DebugInFunction, and Foam::endl().

Here is the call graph for this function:

setTopology()

bool setTopology ( polyTopoChange & topoChange )

virtual

Set topology changes in the polyTopoChange object.

Reimplemented from polyPatch.

Definition at line 652 of file cyclicAMIPolyPatchTopologyChange.C.

References addAMIFaces(), createAMIFaces_, DebugInFunction, Foam::endl(), owner(), polyTopoChange::points(), removeAMIFaces(), and resetAMI().

Here is the call graph for this function:

coupled()

virtual bool coupled ( ) const

inlinevirtual

Is patch 'coupled'. Note that on AMI the geometry is not coupled but the fields are!

Reimplemented from coupledPolyPatch.

Definition at line 514 of file cyclicAMIPolyPatch.H.

neighbPatchName()

const Foam::word & neighbPatchName ( ) const

inline

Neighbour patch name.

Definition at line 42 of file cyclicAMIPolyPatchI.H.

References coupleGroup_, nbrPatchName_, and patchID.

Referenced by cyclicACMIPolyPatch::clone(), and neighbPatchID().

Here is the caller graph for this function:

neighbPatchID()

Foam::label neighbPatchID ( ) const

virtual

Neighbour patch ID.

Definition at line 981 of file cyclicAMIPolyPatch.C.

References cyclicAMIPolyPatch(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::name(), name, nbrPatchID_, neighbPatchName(), Foam::nl, Foam::refCast(), and WarningInFunction.

Referenced by cyclicACMIFvPatch::neighbFvPatch(), cyclicAMIFvPatch::neighbFvPatch(), cyclicACMIFvPatch::neighbPatch(), cyclicACMIPolyPatch::neighbPatch(), cyclicAMIFvPatch::neighbPatch(), neighbPatch(), and owner().

Here is the call graph for this function:

Here is the caller graph for this function:

fraction()

Foam::scalar fraction ( ) const

inline

Particle fraction increase between AMI pathces.

Definition at line 55 of file cyclicAMIPolyPatchI.H.

References fraction_.

Referenced by particle< Type >::hitCyclicAMIPatch().

Here is the caller graph for this function:

owner()

bool owner ( ) const

virtual

Does this side own the patch?

Implements coupledPolyPatch.

Definition at line 1043 of file cyclicAMIPolyPatch.C.

References patchIdentifier::index(), and neighbPatchID().

Referenced by AMI(), applyLowWeightCorrection(), initInterpolate(), initInterpolateUntransformed(), initUpdateMesh(), interpolate(), interpolate(), interpolateUntransformed(), cyclicACMIPolyPatch::mask(), masterImplicit(), cyclicACMIPolyPatch::neighbPatch(), pointFace(), removeAMIFaces(), cyclicACMIPolyPatch::resetAMI(), resetAMI(), cyclicACMIPolyPatch::scalePatchFaceAreas(), setAMIFaces(), setTopology(), surfPtr(), cyclicACMIPolyPatch::updateAreas(), weights(), weightsSum(), cyclicACMIPolyPatch::write(), and AMIWeights::writeWeightFields().

Here is the call graph for this function:

Here is the caller graph for this function:

neighbPatch()

const Foam::cyclicAMIPolyPatch & neighbPatch ( ) const

virtual

Return a reference to the neighbour patch.

Reimplemented in cyclicACMIPolyPatch.

Definition at line 1049 of file cyclicAMIPolyPatch.C.

References neighbPatchID(), pp(), and Foam::refCast().

Referenced by addAMIFaces(), applyLowWeightCorrection(), calcTransforms(), particle< Type >::hitCyclicAMIPatch(), initInterpolate(), initInterpolateUntransformed(), interpolate(), interpolate(), interpolate(), interpolateUntransformed(), nbrCells(), neighbPolyPatchID(), newInternalProcFaces(), pointFace(), removeAMIFaces(), resetAMI(), setAMIFaces(), cyclicACMIPointPatchField< Type >::swapAddSeparated(), weights(), weightsSum(), and AMIWeights::writeWeightFields().

Here is the call graph for this function:

Here is the caller graph for this function:

periodicPatchID()

Foam::label periodicPatchID

(

)

const

Periodic patch ID (or -1).

Definition at line 1017 of file cyclicAMIPolyPatch.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::nl, periodicPatchID_, and periodicPatchName_.

Referenced by cylindricalCS().

Here is the call graph for this function:

Here is the caller graph for this function:

AMI()

const Foam::AMIPatchToPatchInterpolation & AMI

(

)

const

Return a reference to the AMI interpolator.

Definition at line 1056 of file cyclicAMIPolyPatch.C.

References Foam::abort(), AMIPtr_, Foam::FatalError, FatalErrorInFunction, owner(), and resetAMI().

Referenced by addAMIFaces(), applyLowWeightCorrection(), assemblyFaceAreaPairGAMGAgglomeration::assemblyFaceAreaPairGAMGAgglomeration(), initInterpolate(), initInterpolateUntransformed(), interpolate(), interpolate(), interpolateUntransformed(), cyclicACMIPolyPatch::mapCollocatedFaces(), mapCollocatedFaces(), cyclicACMIPolyPatch::newInternalProcFaces(), newInternalProcFaces(), pointFace(), cyclicACMIPolyPatch::resetAMI(), weights(), weightsSum(), and AMIWeights::writeWeightFields().

Here is the call graph for this function:

Here is the caller graph for this function:

weights()

const Foam::scalarListList & weights ( ) const

inline

Helper function to return the weights.

Definition at line 61 of file cyclicAMIPolyPatchI.H.

References AMI(), neighbPatch(), and owner().

Referenced by cyclicACMIPolyPatch::scalePatchFaceAreas().

Here is the call graph for this function:

Here is the caller graph for this function:

weightsSum()

const Foam::scalarField & weightsSum ( ) const

inline

Helper function to return the weights sum.

Definition at line 72 of file cyclicAMIPolyPatchI.H.

References AMI(), neighbPatch(), and owner().

Referenced by cyclicACMIPolyPatch::scalePatchFaceAreas().

Here is the call graph for this function:

Here is the caller graph for this function:

applyLowWeightCorrection()

bool applyLowWeightCorrection

(

)

const

Return true if applying the low weight correction.

Definition at line 1074 of file cyclicAMIPolyPatch.C.

References AMI(), neighbPatch(), and owner().

Here is the call graph for this function:

faceAreas0()

Foam::vectorField & faceAreas0 ( ) const

inline

Return access to the initial face areas.

Used for topology change

Definition at line 83 of file cyclicAMIPolyPatchI.H.

References faceAreas0_.

Referenced by setAMIFaces().

Here is the caller graph for this function:

faceCentres0()

Foam::vectorField & faceCentres0 ( ) const

inline

Return access to the initial face centres.

Used for topology change

Definition at line 89 of file cyclicAMIPolyPatchI.H.

References faceCentres0_.

Referenced by setAMIFaces().

Here is the caller graph for this function:

rotationAxis()

const Foam::vector & rotationAxis ( ) const

inline

Axis of rotation for rotational cyclic AMI.

Definition at line 94 of file cyclicAMIPolyPatchI.H.

References rotationAxis_.

rotationCentre()

const Foam::point & rotationCentre ( ) const

inline

Point on axis of rotation for rotational cyclic AMI.

Definition at line 100 of file cyclicAMIPolyPatchI.H.

References rotationCentre_.

separationVector()

const Foam::vector & separationVector ( ) const

inline

Translation vector for translational cyclic AMI.

Definition at line 106 of file cyclicAMIPolyPatchI.H.

References separationVector_.

transformPosition() [1/2]

void transformPosition ( pointField & l ) const

virtual

Transform patch-based positions from nbr side to this side.

Implements coupledPolyPatch.

Definition at line 1087 of file cyclicAMIPolyPatch.C.

References forAll, coupledPolyPatch::forwardT(), coupledPolyPatch::parallel(), coupledPolyPatch::ROTATIONAL, rotationCentre_, s(), coupledPolyPatch::separated(), coupledPolyPatch::separation(), and Foam::transform().

Referenced by resetAMI().

Here is the call graph for this function:

Here is the caller graph for this function:

transformPosition() [2/2]

void transformPosition ( point & l, const label facei ) const

virtual

Transform a patch-based position from nbr side to this side.

Implements coupledPolyPatch.

Definition at line 1122 of file cyclicAMIPolyPatch.C.

References coupledPolyPatch::forwardT(), coupledPolyPatch::parallel(), coupledPolyPatch::ROTATIONAL, rotationCentre_, s(), coupledPolyPatch::separated(), coupledPolyPatch::separation(), Foam::T(), and Foam::transform().

Here is the call graph for this function:

reverseTransformPosition()

void reverseTransformPosition ( point & l, const label facei ) const

virtual

Transform a patch-based position from this side to nbr side.

Definition at line 1160 of file cyclicAMIPolyPatch.C.

References coupledPolyPatch::parallel(), coupledPolyPatch::reverseT(), coupledPolyPatch::ROTATIONAL, rotationCentre_, s(), coupledPolyPatch::separated(), coupledPolyPatch::separation(), Foam::T(), and Foam::transform().

Referenced by pointFace(), and setAMIFaces().

Here is the call graph for this function:

Here is the caller graph for this function:

reverseTransformDirection()

void reverseTransformDirection ( vector & d, const label facei ) const

virtual

Transform a patch-based direction from this side to nbr side.

Definition at line 1198 of file cyclicAMIPolyPatch.C.

References coupledPolyPatch::parallel(), coupledPolyPatch::reverseT(), Foam::T(), and Foam::transform().

Referenced by particle< Type >::hitCyclicAMIPatch(), and pointFace().

Here is the call graph for this function:

Here is the caller graph for this function:

interpolate() [1/7]

template<class Type>

tmp< Field< Type > > interpolate	(	const Field< Type > &	fld,
		const UList< Type > &	defaultValues = UList< Type >() ) const

Interpolate field.

References fld().

Referenced by cyclicAMIFvPatchField< Type >::evaluate(), cyclicACMIPointPatchField< Type >::swapAddSeparated(), cyclicAMIFvPatchField< Type >::updateInterfaceMatrix(), and cyclicAMIFvPatchField< Type >::updateInterfaceMatrix().

Here is the call graph for this function:

Here is the caller graph for this function:

interpolate() [2/7]

template<class Type>

tmp< Field< Type > > interpolate	(	const tmp< Field< Type > > &	tFld,
		const UList< Type > &	defaultValues = UList< Type >() ) const

Interpolate tmp field.

interpolateUntransformed() [1/2]

template<class Type>

tmp< Field< Type > > interpolateUntransformed	(	const Field< Type > &	fld,
		const UList< Type > &	defaultValues ) const

Interpolate without periodic.

References fld().

Referenced by interpolate().

Here is the call graph for this function:

Here is the caller graph for this function:

interpolate() [3/7]

template<class Type, class CombineOp>

void interpolate	(	const UList< Type > &	fld,
		const CombineOp &	cop,
		List< Type > &	result,
		const UList< Type > &	defaultValues = UList<Type>() ) const

Low-level interpolate List.

Commented out for now since called with non-primitives (e.g. wallPoint

from FaceCellWave) - missing Foam::transform, Foam::invTransform

Definition at line 503 of file cyclicAMIPolyPatchTemplates.C.

References AMI(), fld(), neighbPatch(), and owner().

Here is the call graph for this function:

initInterpolateUntransformed()

template<class Type>

void initInterpolateUntransformed	(	const Field< Type > &	fld,
		labelRange &	sendRequests,
		labelRange &	recvRequests,
		PtrList< List< Type > > &	sendBuffers,
		PtrList< List< Type > > &	recvBuffers,
		labelRange &	sendRequests1,
		labelRange &	recvRequests1,
		PtrList< List< Type > > &	sendBuffers1,
		PtrList< List< Type > > &	recvBuffers1 ) const

Definition at line 169 of file cyclicAMIPolyPatchTemplates.C.

References AMI(), fld(), patchIdentifier::index(), neighbPatch(), and owner().

Referenced by initInterpolate().

Here is the call graph for this function:

Here is the caller graph for this function:

initInterpolate()

template<class Type>

void initInterpolate	(	const Field< Type > &	fld,
		labelRange &	sendRequests,
		labelRange &	recvRequests,
		PtrList< List< Type > > &	sendBuffers,
		PtrList< List< Type > > &	recvBuffers,
		labelRange &	sendRequests1,
		labelRange &	recvRequests1,
		PtrList< List< Type > > &	sendBuffers1,
		PtrList< List< Type > > &	recvBuffers1 ) const

Definition at line 249 of file cyclicAMIPolyPatchTemplates.C.

References AMI(), cyclicAMIPolyPatch(), polyPatch::faceCentres(), fld(), initInterpolateUntransformed(), Foam::invTransform(), Foam::is_rotational_vectorspace_v, neighbPatch(), owner(), and R.

Referenced by cyclicAMIFvPatchField< Type >::initInterfaceMatrixUpdate(), and cyclicAMIFvPatchField< Type >::initInterfaceMatrixUpdate().

Here is the call graph for this function:

Here is the caller graph for this function:

interpolate() [4/7]

template<class Type>

tmp< Field< Type > > interpolate	(	const Field< Type > &	localFld,
		const labelRange &	requests,
		const PtrList< List< Type > > &	recvBuffers,
		const labelRange &	requests1,
		const PtrList< List< Type > > &	recvBuffers1,
		const UList< Type > &	defaultValues ) const

References Foam::faceMap(), n, and p.

Here is the call graph for this function:

calcGeometry() [2/2]

void calcGeometry ( const primitivePatch & referPatch, const pointField & thisCtrs, const vectorField & thisAreas, const pointField & thisCc, const pointField & nbrCtrs, const vectorField & nbrAreas, const pointField & nbrCc )

virtual

Calculate the patch geometry.

Implements coupledPolyPatch.

Definition at line 1218 of file cyclicAMIPolyPatch.C.

initOrder()

void initOrder ( PstreamBuffers & pBufs, const primitivePatch & pp ) const

virtual

Initialize ordering for primitivePatch. Does not refer to *this (except for name() and type() etc.).

Implements coupledPolyPatch.

Reimplemented in cyclicACMIPolyPatch.

Definition at line 1231 of file cyclicAMIPolyPatch.C.

References pp().

Referenced by cyclicACMIPolyPatch::initOrder().

Here is the call graph for this function:

Here is the caller graph for this function:

order()

bool order ( PstreamBuffers & pBufs, const primitivePatch & pp, labelList & faceMap, labelList & rotation ) const

virtual

Return new ordering for primitivePatch.

Ordering is -faceMap: for every face index of the new face -rotation:for every new face the clockwise shift of the original face. Return false if nothing changes (faceMap is identity, rotation is 0), true otherwise.

Implements coupledPolyPatch.

Reimplemented in cyclicACMIPolyPatch.

Definition at line 1239 of file cyclicAMIPolyPatch.C.

References Foam::faceMap(), pp(), and List< T >::setSize().

Referenced by cyclicACMIPolyPatch::order().

Here is the call graph for this function:

Here is the caller graph for this function:

pointFace()

Foam::label pointFace	(	const label	facei,
		const vector &	n,
		point &	p ) const

Return face index on neighbour patch which shares point p following trajectory vector n.

Definition at line 1257 of file cyclicAMIPolyPatch.C.

References AMI(), n, neighbPatch(), owner(), p, reverseTransformDirection(), and reverseTransformPosition().

Referenced by particle< Type >::hitCyclicACMIPatch(), and particle< Type >::hitCyclicAMIPatch().

Here is the call graph for this function:

Here is the caller graph for this function:

write()

void write ( Ostream & os ) const

virtual

Write the polyPatch data as a dictionary.

Reimplemented from coupledPolyPatch.

Reimplemented in cyclicACMIPolyPatch, and cyclicPeriodicAMIPolyPatch.

Definition at line 1304 of file cyclicAMIPolyPatch.C.

References AMIPtr_, coupleGroup_, createAMIFaces_, fraction_, moveFaceCentres_, nbrPatchName_, coupledPolyPatch::NOORDERING, os(), periodicPatchName_, Foam::radToDeg(), coupledPolyPatch::ROTATIONAL, rotationAngle_, rotationAngleDefined_, rotationAxis_, rotationCentre_, separationVector_, srcFaceIDs_, surfDict_, tgtFaceIDs_, Foam::transform(), coupledPolyPatch::TRANSLATIONAL, coupledPolyPatch::write(), and Foam::Zero.

Referenced by cyclicACMIPolyPatch::write(), and cyclicPeriodicAMIPolyPatch::write().

Here is the call graph for this function:

Here is the caller graph for this function:

interpolateUntransformed() [2/2]

template<class Type>

Foam::tmp< Foam::Field< Type > > interpolateUntransformed	(	const Field< Type > &	fld,
		const UList< Type > &	defaultValues ) const

Definition at line 25 of file cyclicAMIPolyPatchTemplates.C.

References AMI(), fld(), AMIInterpolation::interpolateToSource(), AMIInterpolation::interpolateToTarget(), neighbPatch(), and owner().

Here is the call graph for this function:

interpolate() [5/7]

template<class Type>

Foam::tmp< Foam::Field< Type > > interpolate	(	const Field< Type > &	fld,
		const UList< Type > &	defaultValues ) const

Definition at line 43 of file cyclicAMIPolyPatchTemplates.C.

References Foam::abort(), cyclicAMIPolyPatch(), Foam::endl(), Foam::exit(), polyPatch::faceCentres(), Foam::FatalError, FatalErrorInFunction, fld(), forAll, Foam::gAverage(), interpolateUntransformed(), Foam::invTransform(), Foam::is_rotational_vectorspace_v, patchIdentifier::name(), name, neighbPatch(), Foam::nl, Foam::Pout, R, autoPtr< T >::reset(), UList< T >::size(), UList< face >::size(), and Foam::transform().

Here is the call graph for this function:

interpolate() [6/7]

template<class Type>

Foam::tmp< Foam::Field< Type > > interpolate	(	const tmp< Field< Type > > &	tFld,
		const UList< Type > &	defaultValues ) const

Definition at line 158 of file cyclicAMIPolyPatchTemplates.C.

References Foam::interpolate().

Here is the call graph for this function:

interpolate() [7/7]

template<class Type>

Foam::tmp< Foam::Field< Type > > interpolate	(	const Field< Type > &	localFld,
		const labelRange &	requests,
		const PtrList< List< Type > > &	recvBuffers,
		const labelRange &	requests1,
		const PtrList< List< Type > > &	recvBuffers1,
		const UList< Type > &	defaultValues ) const

Definition at line 321 of file cyclicAMIPolyPatchTemplates.C.

References AMI(), polyPatch::faceCentres(), fld(), patchIdentifier::index(), Foam::invTransform(), Foam::is_rotational_vectorspace_v, neighbPatch(), Foam::New(), owner(), UList< T >::size(), UList< face >::size(), Foam::transform(), AMIInterpolation::weightedSum(), and Foam::Zero.

Here is the call graph for this function:

Member Data Documentation

nbrPatchName_

word nbrPatchName_

mutableprotected

Name of other half.

Definition at line 93 of file cyclicAMIPolyPatch.H.

Referenced by clone(), cyclicPeriodicAMIPolyPatch::clone(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), neighbPatchName(), and write().

coupleGroup_

const coupleGroupIdentifier coupleGroup_

protected

Optional patchGroup to find neighbPatch.

Definition at line 98 of file cyclicAMIPolyPatch.H.

Referenced by cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), neighbPatchName(), and write().

nbrPatchID_

label nbrPatchID_

mutableprotected

Index of other half.

Definition at line 103 of file cyclicAMIPolyPatch.H.

Referenced by cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), and neighbPatchID().

fraction_

const scalar fraction_

protected

Particle displacement fraction across AMI.

Definition at line 108 of file cyclicAMIPolyPatch.H.

Referenced by cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), fraction(), and write().

rotationAxis_

vector rotationAxis_

protected

Axis of rotation for rotational cyclics.

Definition at line 118 of file cyclicAMIPolyPatch.H.

Referenced by cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), rotationAxis(), and write().

rotationCentre_

point rotationCentre_

protected

Point on axis of rotation for rotational cyclics.

Definition at line 123 of file cyclicAMIPolyPatch.H.

Referenced by cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), reverseTransformPosition(), rotationCentre(), transformPosition(), transformPosition(), and write().

rotationAngleDefined_

bool rotationAngleDefined_

protected

Flag to show whether the rotation angle is defined.

Definition at line 128 of file cyclicAMIPolyPatch.H.

Referenced by cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), and write().

rotationAngle_

scalar rotationAngle_

protected

Rotation angle.

Definition at line 133 of file cyclicAMIPolyPatch.H.

Referenced by cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), and write().

separationVector_

vector separationVector_

protected

Translation vector.

Definition at line 141 of file cyclicAMIPolyPatch.H.

Referenced by cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), separationVector(), and write().

periodicPatchName_

word periodicPatchName_

protected

Periodic patch name.

Definition at line 149 of file cyclicAMIPolyPatch.H.

Referenced by cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), periodicPatchID(), and write().

periodicPatchID_

label periodicPatchID_

mutableprotected

Periodic patch.

Definition at line 154 of file cyclicAMIPolyPatch.H.

Referenced by cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), and periodicPatchID().

AMIPtr_

autoPtr<AMIPatchToPatchInterpolation> AMIPtr_

mutableprotected

AMI interpolation class.

Definition at line 160 of file cyclicAMIPolyPatch.H.

Referenced by AMI(), clearGeom(), cyclicACMIPolyPatch::cyclicACMIPolyPatch(), cyclicACMIPolyPatch::cyclicACMIPolyPatch(), cyclicACMIPolyPatch::cyclicACMIPolyPatch(), cyclicACMIPolyPatch::cyclicACMIPolyPatch(), cyclicACMIPolyPatch::cyclicACMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicPeriodicAMIPolyPatch::cyclicPeriodicAMIPolyPatch(), cyclicPeriodicAMIPolyPatch::cyclicPeriodicAMIPolyPatch(), cyclicPeriodicAMIPolyPatch::cyclicPeriodicAMIPolyPatch(), cyclicPeriodicAMIPolyPatch::cyclicPeriodicAMIPolyPatch(), cyclicPeriodicAMIPolyPatch::cyclicPeriodicAMIPolyPatch(), initGeometry(), initMovePoints(), resetAMI(), setAMIFaces(), and write().

surfDict_

const dictionary surfDict_

protected

Dictionary used during projection surface construction.

Definition at line 165 of file cyclicAMIPolyPatch.H.

Referenced by cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), surfPtr(), and write().

surfPtr_

autoPtr<searchableSurface> surfPtr_

mutableprotected

Projection surface.

Definition at line 170 of file cyclicAMIPolyPatch.H.

Referenced by cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), and surfPtr().

createAMIFaces_

bool createAMIFaces_

mutableprotected

Flag to indicate that new AMI faces will created.

Set by the call to changeTopology

Definition at line 180 of file cyclicAMIPolyPatch.H.

Referenced by addAMIFaces(), changeTopology(), createAMIFaces(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicACMIPolyPatch::initGeometry(), cyclicACMIPolyPatch::initMovePoints(), initMovePoints(), initUpdateMesh(), removeAMIFaces(), resetAMI(), restoreScaledGeometry(), cyclicACMIPolyPatch::scalePatchFaceAreas(), setAMIFaces(), setTopology(), cyclicACMIPolyPatch::updateAreas(), and write().

moveFaceCentres_

bool moveFaceCentres_

protected

Move face centres (default = no).

Definition at line 185 of file cyclicAMIPolyPatch.H.

Referenced by cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), restoreScaledGeometry(), and write().

updatingAMI_

bool updatingAMI_

mutableprotected

Definition at line 187 of file cyclicAMIPolyPatch.H.

Referenced by clearGeom(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), and updatingAMI().

srcFaceIDs_

labelListList srcFaceIDs_

protected

Definition at line 189 of file cyclicAMIPolyPatch.H.

Referenced by addAMIFaces(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), removeAMIFaces(), resetAMI(), setAMIFaces(), and write().

tgtFaceIDs_

labelListList tgtFaceIDs_

protected

Definition at line 191 of file cyclicAMIPolyPatch.H.

Referenced by addAMIFaces(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), removeAMIFaces(), resetAMI(), setAMIFaces(), and write().

faceAreas0_

vectorField faceAreas0_

mutableprotected

Temporary storage for AMI face areas.

Definition at line 196 of file cyclicAMIPolyPatch.H.

Referenced by cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), faceAreas0(), restoreScaledGeometry(), and setAMIFaces().

faceCentres0_

vectorField faceCentres0_

mutableprotected

Temporary storage for AMI face centres.

Definition at line 201 of file cyclicAMIPolyPatch.H.

Referenced by cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), cyclicAMIPolyPatch(), faceCentres0(), restoreScaledGeometry(), and setAMIFaces().

cacheAMI_

bool cacheAMI_

protected

Definition at line 204 of file cyclicAMIPolyPatch.H.

tolerance_

const Foam::scalar tolerance_ = 1e-10

static

Tolerance used e.g. for area calculations/limits.

Definition at line 481 of file cyclicAMIPolyPatch.H.

Referenced by cyclicACMIPolyPatch::mapCollocatedFaces(), cyclicACMIPolyPatch::newInternalProcFaces(), cyclicACMIPolyPatch::nonOverlapPatchID(), cyclicACMIPolyPatch::reportCoverage(), resetAMI(), cyclicACMIPolyPatch::scalePatchFaceAreas(), setAMIFaces(), cyclicACMIPolyPatch::tolerance(), and cyclicACMIPolyPatch::updateAreas().

---

The documentation for this class was generated from the following files:

• src/meshTools/AMIInterpolation/patches/cyclicAMI/cyclicAMIPolyPatch/cyclicAMIPolyPatch.H
• src/meshTools/AMIInterpolation/patches/cyclicAMI/cyclicAMIPolyPatch/cyclicAMIPolyPatch.C
• src/meshTools/AMIInterpolation/patches/cyclicAMI/cyclicAMIPolyPatch/cyclicAMIPolyPatchI.H
• src/meshTools/AMIInterpolation/patches/cyclicAMI/cyclicAMIPolyPatch/cyclicAMIPolyPatchTemplates.C
• src/meshTools/AMIInterpolation/patches/cyclicAMI/cyclicAMIPolyPatch/cyclicAMIPolyPatchTopologyChange.C
