Constructs cutting plane through a mesh. More...

#include <cuttingPlane.H>

Inheritance diagram for cuttingPlane:

[legend]

Collaboration diagram for cuttingPlane:

[legend]

Public Member Functions
	cuttingPlane (const plane &pln, const primitiveMesh &mesh, const bool triangulate, const bitSet &cellIdLabels=bitSet())
	Construct from plane and mesh reference, possibly restricted to a list of cells.
	cuttingPlane (const plane &pln, const primitiveMesh &mesh, const bool triangulate, bitSet &&cellIdLabels)
	Construct from plane and mesh reference, possibly restricted to a list of cells.
	cuttingPlane (const plane &pln, const primitiveMesh &mesh, const bool triangulate, const labelUList &cellIdLabels)
	Construct from plane and mesh reference, possibly restricted to a list of cells.
const plane &	planeDesc () const
	The plane used.
plane &	planeDesc ()
	The plane used. Non-const access.
void	operator= (const cuttingPlane &rhs)
	Copy assignment.
Public Member Functions inherited from plane
	plane ()
	Construct zero-initialised.
	plane (const vector &normalVector)
	Construct from normal vector through the origin.
	plane (const point &originPoint, const vector &normalVector, const bool doNormalise=true)
	Construct from normal vector and point in plane.
	plane (const point &point1, const point &point2, const point &point3)
	Construct from three points in plane.
	plane (const UList< scalar > &coeffs)
	Construct from coefficients for the plane equation: ax + by + cz + d = 0.
	plane (const FixedList< scalar, 4 > &coeffs)
	Construct from coefficients for the plane equation: ax + by + cz + d = 0.
	plane (const dictionary &dict)
	Construct from dictionary.
	plane (Istream &is)
	Construct from Istream. Assumes (normal) (origin) input.
const vector &	normal () const noexcept
	The plane unit normal.
const point &	origin () const noexcept
	The plane base point.
point &	origin () noexcept
	The plane base point, for modification.
void	flip ()
	Flip the plane by reversing the normal.
FixedList< scalar, 4 >	planeCoeffs () const
	Return coefficients for the plane equation: ax + by + cz + d = 0.
point	nearestPoint (const point &p) const
	Return nearest point in the plane for the given point.
scalar	distance (const point &p) const
	Return distance (magnitude) from the given point to the plane.
scalar	signedDistance (const point &p) const
	Return distance from the given point to the plane.
scalar	normalIntersect (const point &pnt0, const vector &dir) const
	Return cut coefficient for plane and line defined by origin and direction.
scalar	normalIntersect (const ray &r) const
	Return cut coefficient for plane and ray.
template<class PointType, class PointRef>
scalar	lineIntersect (const line< PointType, PointRef > &l) const
	Return the cutting point between the plane and a line passing through the supplied points.
ray	planeIntersect (const plane &plane2) const
	Return the cutting line between this plane and another.
point	planePlaneIntersect (const plane &plane2, const plane &plane3) const
	Return the cutting point between this plane and two other planes.
point	somePointInPlane (const scalar dist=1e-3) const
	Return a point somewhere on the plane, a distance from the base.
side	whichSide (const point &p) const
	Return the side of the plane that the point is on.
int	sign (const point &p, const scalar tol=SMALL) const
	The sign for the side of the plane that the point is on.
point	mirror (const point &p) const
	Mirror the supplied point in the plane. Return the mirrored point.
void	writeDict (Ostream &os) const
	Write to dictionary.
const point &	refPoint () const noexcept
	The plane base point (same as origin).
side	sideOfPlane (const point &p) const
	Same as whichSide().
Public Member Functions inherited from cuttingSurfaceBase
	cuttingSurfaceBase ()=default
	Default construct.
virtual	~cuttingSurfaceBase ()=default
	Destructors.
const labelList &	meshCells () const
	The mesh cells cut.
labelList &	meshCells ()
	The mesh cells cut.
bool	cut () const
	Have any cells been cut?
void	operator= (const cuttingSurfaceBase &rhs)
	Copy assignment.
Public Member Functions inherited from MeshedSurface< face >
	ClassName ("MeshedSurface")
	Declare type-name (with debug switch).
	MeshedSurface ()
	Default construct, an empty surface.
	MeshedSurface (const MeshedSurface &surf)
	Copy construct.
	MeshedSurface (const UnsortedMeshedSurface< face > &surf)
	Copy construct from an UnsortedMeshedSurface.
	MeshedSurface (MeshedSurface &&surf)
	Move construct.
	MeshedSurface (UnsortedMeshedSurface< face > &&surf)
	Move construct from an UnsortedMeshedSurface.
	MeshedSurface (const pointField &pointLst, const UList< face > &faceLst, const UList< surfZone > &zoneLst)
	Copy construct from components (points, faces, zones).
	MeshedSurface (pointField &&pointLst, List< face > &&faceLst, const UList< surfZone > &zoneLst)
	Move construct from components (points, faces).
	MeshedSurface (const pointField &pointLst, const UList< face > &faceLst, const labelUList &zoneSizes=labelUList(), const UList< word > &zoneNames=UList< word >())
	Copy construct from components (points, faces).
	MeshedSurface (pointField &&pointLst, List< face > &&faceLst, const labelUList &zoneSizes=labelUList(), const UList< word > &zoneNames=UList< word >())
	Move construct from components (points, faces).
	MeshedSurface (const polyBoundaryMesh &pbm, const bool globalPoints=false)
	Construct from a boundary mesh with local points/faces.
	MeshedSurface (const surfMesh &mesh)
	Construct from a surfMesh.
	MeshedSurface (const fileName &name)
	Construct from file name (uses extension to determine type).
	MeshedSurface (const fileName &name, const word &fileType)
	Construct from file name and given file type.
	MeshedSurface (Istream &is)
	Construct from Istream.
	MeshedSurface (const Time &runTime)
	Construct from database (as surfMesh) with default name.
	MeshedSurface (const Time &runTime, const word &surfName)
	Construct from database (as surfMesh) with given surface name.
	MeshedSurface (const IOobject &io, const dictionary &dict, const bool isGlobal=true)
	Read construct using IO to find the file location.
	declareRunTimeSelectionTable (autoPtr, MeshedSurface, fileExtension,(const fileName &name),(name))
virtual	~MeshedSurface ()
	Destructor.
	declareMemberFunctionSelectionTable (void, UnsortedMeshedSurface, write, fileExtension,(const fileName &name, const MeshedSurface< face > &surf, IOstreamOption streamOpt, const dictionary &options),(name, surf, streamOpt, options))
label	size () const
	The surface size is the number of faces.
const List< face > &	surfFaces () const
	Return const access to the faces.
const labelList &	faceIds () const
	Return const access to faces ids.
const surfZoneList &	surfZones () const
	Const access to the surface zones.
const vectorField &	Sf () const
	Face area vectors (normals).
const scalarField &	magSf () const
	Face area magnitudes.
const vectorField &	Cf () const
	Face centres.
virtual void	clear ()
	Clear all storage.
virtual void	addZones (const UList< surfZone > &, const bool cullEmpty=false)
	Add surface zones.
virtual void	addZones (const labelUList &sizes, const UList< word > &names, const bool cullEmpty=false)
	Add surface zones.
virtual void	addZones (const labelUList &sizes, const bool cullEmpty=false)
	Add surface zones.
bool	addZonesToFaces ()
	Propagate zone information on face regions.
virtual void	removeZones ()
	Remove surface zones.
virtual void	movePoints (const pointField &newPoints)
	Move points.
virtual void	scalePoints (const scalar scaleFactor)
	Scale points. A non-positive factor is ignored.
virtual void	cleanup (const bool verbose)
	Remove invalid faces.
virtual void	compactPoints (labelList &pointMap=const_cast< labelList & >(labelList::null()))
	Remove unused points and renumber faces in local visit order.
virtual bool	stitchFaces (const scalar tol=SMALL, const bool verbose=false)
virtual bool	checkFaces (const bool verbose=false)
virtual label	nTriangles () const
	Count number of triangles.
virtual label	nTriangles (labelList &faceMap) const
	Count number of triangles, returning a face map of original ids.
virtual label	triangulate ()
	Triangulate in-place, returning the number of triangles added.
virtual label	triangulate (labelList &faceMap)
	Triangulate in-place, returning the number of triangles added.
void	subsetMeshMap (const BoolListType &include, labelList &pointMap, labelList &faceMap) const
	Create mappings for a sub-surface.
MeshedSurface	subsetMesh (const UList< bool > &include, labelList &pointMap, labelList &faceMap) const
	Return a new surface subsetted on the selected faces.
MeshedSurface	subsetMesh (const bitSet &include, labelList &pointMap, labelList &faceMap) const
	Return a new surface subsetted on the selected faces.
MeshedSurface	subsetMesh (const UList< bool > &include) const
	Return a new surface subsetted on the selected faces.
MeshedSurface	subsetMesh (const bitSet &include) const
	Return a new surface subsetted on the selected faces.
MeshedSurface	subsetMesh (const wordRes &includeNames, const wordRes &excludeNames=wordRes()) const
	Return a new surface subsetted on the selected zone names.
void	swap (MeshedSurface< face > &surf)
	Swap contents.
void	transfer (pointField &pointLst, List< face > &faceLst)
	Transfer the components.
void	transfer (MeshedSurface< face > &surf)
	Transfer the contents of the argument and annul the argument.
void	transfer (UnsortedMeshedSurface< face > &surf)
	Transfer the contents of the argument and annul the argument.
autoPtr< MeshedSurface< face > >	releaseGeom ()
	Release (clear) geometry and return for reuse.
void	swapFaces (List< face > &faces)
	Swap the stored faces. Use with caution.
void	swapPoints (pointField &points)
	Swap the stored points.
bool	read (const fileName &name, const word &fileType)
	Read from file. Chooses reader based on explicit extension.
virtual bool	read (const fileName &name)
	Read from file. Chooses reader based on detected extension.
void	writeStats (Ostream &os) const
virtual void	write (const fileName &name, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null) const
	Generic write routine. Chooses writer based on extension.
virtual void	write (const fileName &name, const word &fileType, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null) const
	Generic write routine for given format type.
void	write (const Time &runTime, const word &surfName=word::null) const
	Write to database.
void	operator= (const MeshedSurface< face > &surf)
	Copy assignment.
void	operator= (MeshedSurface< face > &&surf)
	Move assignment.
	operator MeshedSurfaceProxy< face > () const
	Conversion operator to MeshedSurfaceProxy.
	MeshedSurface (const MeshedSurface< face > &surf)
	MeshedSurface (MeshedSurface< face > &&surf)
bool	addZonesToFaces ()
	Specialization for labelledTri.
bool	addZonesToFaces ()
	operator MeshedSurfaceProxy< face > () const
	Conversion operator to MeshedSurfaceProxy.
Public Member Functions inherited from PrimitivePatch<::Foam::List< face >, pointField >
	PrimitivePatch (const ::Foam::List< face > &faces, const pointField &points)
	Construct from components.
	PrimitivePatch (::Foam::List< face > &&faces, const pointField &points)
	Construct from components, transferring faces.
	PrimitivePatch (::Foam::List< face > &faces, pointField &points, const bool reuse)
	Construct from components, reuse storage.
	PrimitivePatch (const PrimitivePatch< ::Foam::List< face >, pointField > &pp)
	Copy construct.
virtual	~PrimitivePatch ()
	Destructor.
void	clearOut ()
void	clearGeom ()
void	clearTopology ()
void	clearPatchMeshAddr ()
void	swap (PrimitivePatch &)=delete
	Suppress direct swapping, since storage containers may be const.
const Field< point_type > &	points () const noexcept
	Return reference to global points.
label	nFaces () const noexcept
	Number of faces in the patch.
label	nPoints () const
	Number of points supporting patch faces.
label	nEdges () const
	Number of edges in patch.
const edgeList &	edges () const
	Return list of edges, address into LOCAL point list.
const edgeList::subList	internalEdges () const
	Return sub-list of internal edges, address into LOCAL point list.
const edgeList::subList	boundaryEdges () const
	Return sub-list of boundary edges, address into LOCAL point list.
label	nInternalEdges () const
	Number of internal edges.
label	nBoundaryEdges () const
	Number of boundary edges == (nEdges() - nInternalEdges()).
bool	isInternalEdge (const label edgei) const
	Is internal edge?
const labelList &	boundaryPoints () const
	Return list of boundary points, address into LOCAL point list.
const labelListList &	faceFaces () const
	Return face-face addressing.
const labelListList &	edgeFaces () const
	Return edge-face addressing.
const labelListList &	faceEdges () const
	Return face-edge addressing.
const labelListList &	pointEdges () const
	Return point-edge addressing.
const labelListList &	pointFaces () const
	Return point-face addressing.
const List< face_type > &	localFaces () const
	Return patch faces addressing into local point list.
labelList	boundaryFaces () const
	Extract list of local faces corresponding to the boundary edges.
labelList	uniqBoundaryFaces () const
	Extract sorted list of unique local faces associated with the boundary edges.
const labelList &	meshPoints () const
	Return labelList of mesh points in patch.
const Map< label > &	meshPointMap () const
	Mesh point map.
const Field< point_type > &	localPoints () const
	Return pointField of points in patch.
const labelList &	localPointOrder () const
	Return orders the local points for most efficient search.
label	whichPoint (const label gp) const
	Given a global point index, return the local point index.
edge	meshEdge (const label edgei) const
	From patch edge to global edge using meshPoints.
edge	meshEdge (const edge &e) const
	From patch edge to global edge using meshPoints.
label	findEdge (const edge &e) const
	Search for edge (local point labels) and return its index in the edge list or -1 if not found.
labelList	meshEdges (const edgeList &allEdges, const labelListList &cellEdges, const labelList &faceCells) const
	Return labels of patch edges in the global edge list using cell addressing.
labelList	meshEdges (const edgeList &allEdges, const labelListList &pointEdges) const
	Return labels of patch edges into the global edge list using basic edge addressing.
label	meshEdge (const label edgei, const edgeList &allEdges, const labelListList &pointEdges) const
	Return label of the local patch edge into the global edge list using basic edge addressing.
labelList	meshEdges (const labelUList &edgeLabels, const edgeList &allEdges, const labelListList &pointEdges) const
	Return labels of specified patch edges into the global edge list using basic edge addressing.
const Field< point_type > &	faceCentres () const
	Return face centres for patch.
const Field< point_type > &	faceAreas () const
	Return face area vectors for patch.
const Field< scalar > &	magFaceAreas () const
	Return face area magnitudes for patch.
const Field< point_type > &	faceNormals () const
	Return face unit normals for patch.
const Field< point_type > &	pointNormals () const
	Return point normals for patch.
Pair< point_type >	box () const
	The enclosing (bounding) box for the patch points.
scalar	sphere (const label facei) const
	The enclosing (bounding) sphere radius^2 for specified face.
bool	hasFaceAreas () const
bool	hasFaceCentres () const
bool	hasFaceNormals () const
bool	hasPointNormals () const
bool	hasBoundaryPoints () const
bool	hasEdges () const
bool	hasFaceFaces () const
bool	hasEdgeFaces () const
bool	hasFaceEdges () const
bool	hasPointEdges () const
bool	hasPointFaces () const
bool	hasMeshPoints () const
bool	hasMeshPointMap () const
List< objectHit >	projectPoints (const ToPatch &targetPatch, const Field< point_type > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const
	Project vertices of patch onto another patch.
List< objectHit >	projectFaceCentres (const ToPatch &targetPatch, const Field< point_type > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const
	Project vertices of patch onto another patch.
const labelListList &	edgeLoops () const
	Return list of closed loops of boundary vertices.
surfaceTopo	surfaceType (labelHashSet *badEdgesPtr=nullptr) const
	Calculate surface type formed by patch, optionally recording the indices of illegal edges.
bool	checkTopology (const bool report=false, labelHashSet *pointSetPtr=nullptr) const
	Check surface formed by patch for manifoldness (see above).
bool	checkPointManifold (const bool report=false, labelHashSet *pointSetPtr=nullptr) const
	Checks primitivePatch for faces sharing point but not edge.
virtual void	movePoints (const Field< point_type > &)
	Correct patch after moving points.
void	operator= (const PrimitivePatch< ::Foam::List< face >, pointField > &rhs)
	Copy assign faces. Leave points alone (could be a reference).
void	operator= (PrimitivePatch< ::Foam::List< face >, pointField > &&rhs)
	Move assign faces. Leave points alone (could be a reference).
label	whichEdge (const edge &e) const
	Identical to findEdge.
Foam::List< Foam::objectHit >	projectPoints (const ToPatch &targetPatch, const Field< typename Foam::PrimitivePatch< ::Foam::List< face >, pointField >::point_type > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const
Foam::List< Foam::objectHit >	projectFaceCentres (const ToPatch &targetPatch, const Field< typename Foam::PrimitivePatch< ::Foam::List< face >, pointField >::point_type > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const
Public Member Functions inherited from PrimitivePatchBase
	ClassName ("PrimitivePatch")
	Runtime type information.
	PrimitivePatchBase ()=default
	Default construct.
Public Member Functions inherited from List< face >
constexpr	List () noexcept
	Default construct.
	List (const label len)
	Construct with given size.
	List (const label len, const face &val)
	Construct with given size and value for all elements.
	List (const label len, Foam::zero)
	Construct with given size initializing all elements to zero.
	List (Foam::one, const face &val)
	Construct with length=1, copying the value as the only content.
	List (Foam::one, face &&val)
	Construct with length=1, moving the value as the only content.
	List (Foam::one, Foam::zero)
	Construct with length=1, initializing content to zero.
	List (const List< face > &list)
	Copy construct from list.
	List (const UList< face > &list)
	Copy construct contents from list.
	List (List< face > &list, bool reuse)
	Construct as copy or re-use as specified.
	List (const UList< face > &list, const labelUList &indices)
	Copy construct subset of list.
	List (const UList< face > &list, const FixedList< label, N > &indices)
	Copy construct subset of list.
	List (const FixedList< face, N > &list)
	Construct as copy of FixedList<T, N>.
	List (const UPtrList< face > &list)
	Construct as copy of UPtrList<T> content.
	List (const IndirectListBase< face, Addr > &list)
	Construct as copy of IndirectList contents.
	List (std::initializer_list< face > list)
	Construct from an initializer list.
	List (List< face > &&list) noexcept
	Move construct from List.
	List (DynamicList< face, SizeMin > &&list)
	Move construct from DynamicList.
	List (Istream &is)
	Construct from Istream.
autoPtr< List< face > >	clone () const
	Clone.
	~List ()
	Destructor.
void	clear ()
	Clear the list, i.e. set size to zero.
void	resize (const label len)
	Adjust allocated size of list.
void	resize (const label len, const face &val)
	Adjust allocated size of list and set val for new elements.
void	resize_copy (label count, const label len)
	Change allocated size of list, retaining the first count elements.
void	resize_fill (const label len, const face &val)
	Adjust allocated size of list and set val for all elements.
void	resize_nocopy (const label len)
	Adjust allocated size of list without necessarily.
void	transfer (List< face > &list)
	Transfer the contents of the argument List into this list and annul the argument list.
void	transfer (DynamicList< face, SizeMin > &list)
	Transfer the contents of the argument List into this list and annul the argument list.
face &	newElmt (const label i)
	Return subscript-checked element of UList and resizing the list if required.
face &	emplace_back (Args &&... args)
	Construct an element at the end of the list, return reference to the new list element.
void	push_back (const face &val)
	Append an element at the end of the list.
void	push_back (face &&val)
	Move append an element at the end of the list.
void	push_back (const UList< face > &list)
	Append a List to the end of this list.
void	push_back (const IndirectListBase< face, Addr > &list)
	Append IndirectList contents at the end of this list.
label	push_uniq (const face &val)
	Append an element if not already in the list.
void	pop_back (label n=1)
	Reduce size by 1 or more elements. Can be called on an empty list.
void	operator= (const UList< face > &list)
	Assignment to UList operator. Takes linear time.
void	operator= (const List< face > &list)
	Assignment operator. Takes linear time.
void	operator= (const IndirectListBase< face, Addr > &list)
	Assignment from IndirectList. Takes linear time.
void	operator= (const FixedList< face, N > &list)
	Copy assignment from FixedList.
void	operator= (std::initializer_list< face > list)
	Assignment to an initializer list.
void	operator= (const face &val)
	Assignment of all entries to the given value.
void	operator= (Foam::zero)
	Assignment of all entries to zero.
void	operator= (List< face > &&list)
	Move assignment. Takes constant time.
void	operator= (DynamicList< face, SizeMin > &&list)
	Move assignment. Takes constant time.
Istream &	readList (Istream &is)
	Read List from Istream, discarding contents of existing List.
void	shallowCopy (const UList< face > &)=delete
	No shallowCopy permitted.
bool	set (const label i, bool val=true)
	A bitSet::set() method for a list of bool.
void	append (const face &val)
	Append an element at the end of the list.
void	append (face &&val)
	Move append an element at the end of the list.
void	append (const UList< face > &list)
	Append a List to the end of this list.
void	append (const IndirectListBase< face, Addr > &list)
	Append IndirectList contents at the end of this list.
label	appendUniq (const face &val)
	Same as push_uniq().
void	setSize (label n)
	Alias for resize().
void	setSize (label n, const face &val)
	Alias for resize().
	List (const Expression::ListExpression< E > &expr)
	Construct from value expression.
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.
void	resize (const label len)
Public Member Functions inherited from UList< face >
	UList (const UList< face > &) noexcept=default
	Copy construct, shallow copy.
	UList (UList< face > &&) noexcept=default
	Move construct, shallow copy.
UList< face > &	operator= (const UList< face > &)=delete
	No copy assignment (default: shallow copy).
UList< face > &	operator= (UList< face > &&) noexcept=default
	Move assignment, shallow copy.
constexpr	UList () noexcept
	Default construct, zero-sized and nullptr.
	UList (face *__restrict__ ptr, const label len) noexcept
	Construct from components.
	UList (SubList< face > &&) noexcept
	Move construct from a SubList, shallow copy.
label	fcIndex (const label i) const noexcept
	The forward circular index. The next index in the list which returns to the first at the end of the list.
label	rcIndex (const label i) const noexcept
	The reverse circular index. The previous index in the list which returns to the last at the beginning of the list.
const face &	fcValue (const label i) const
	Return forward circular value (ie, next value in the list).
face &	fcValue (const label i)
	Return forward circular value (ie, next value in the list).
const face &	rcValue (const label i) const
	Return reverse circular value (ie, previous value in the list).
face &	rcValue (const label i)
	Return reverse circular value (ie, previous value in the list).
const face *	cdata () const noexcept
	Return pointer to the underlying array serving as data storage.
face *	data () noexcept
	Return pointer to the underlying array serving as data storage.
const char *	cdata_bytes () const noexcept
	Return pointer to the underlying array serving as data storage,.
char *	data_bytes () noexcept
	Return pointer to the underlying array serving as data storage,.
face &	front ()
	Access first element of the list, position [0].
const face &	front () const
	Access first element of the list.
face &	back ()
	Access last element of the list, position [size()-1].
const face &	back () const
	Access last element of the list, position [size()-1].
std::streamsize	size_bytes () const noexcept
	Number of contiguous bytes for the List data.
std::streamsize	byteSize () const
	Number of contiguous bytes for the List data, runtime FatalError if type is not contiguous.
void	checkStart (const label start) const
	Check start is within valid range [0,size).
void	checkSize (const label size) const
	Check size is within valid range [0,size].
void	checkRange (const label start, const label len) const
	Check that start and length define a valid range.
void	checkIndex (const label i) const
	Check index is within valid range [0,size).
bool	uniform () const
	True if all entries have identical values, and list is non-empty.
bool	contains (const face &val) const
	True if the value is contained in the list.
bool	contains (const face &val, label pos, label len=-1) const
	Is the value contained in the list?
label	find (const face &val) const
	Find index of the first occurrence of the value.
label	find (const face &val, label pos, label len=-1) const
	Find index of the first occurrence of the value.
label	rfind (const face &val, label pos=-1) const
	Find index of the last occurrence of the value.
void	moveFirst (const label i)
	Move element to the first position.
void	moveLast (const label i)
	Move element to the last position.
void	swapFirst (const label i)
	Swap element with the first element. Fatal on an empty list.
void	swapLast (const label i)
	Swap element with the last element. Fatal on an empty list.
void	shallowCopy (face *__restrict__ ptr, const label len) noexcept
	Copy the pointer and size.
void	shallowCopy (std::nullptr_t) noexcept
	Copy nullptr and zero size.
void	shallowCopy (const UList< face > &list) noexcept
	Copy the pointer and size held by the given UList.
void	deepCopy (const UList< face > &list)
	Copy elements of the given UList. Sizes must match!
void	deepCopy (const IndirectListBase< face, Addr > &list)
	Copy elements of the given indirect list. Sizes must match!
SubList< face >	slice (const label pos, label len=-1)
	Return SubList slice (non-const access) - no range checking.
const SubList< face >	slice (const label pos, label len=-1) const
	Return SubList slice (const access) - no range checking.
SubList< face >	slice (const labelRange &range)
	Return SubList slice (non-const access) - with range checking.
const SubList< face >	slice (const labelRange &range) const
	Return SubList slice (const access) - with range checking.
face &	operator[] (const label i)
	Return element of UList.
const face &	operator[] (const label i) const
	Return element of constant UList.
	operator const Foam::List< face > & () const
	Allow cast to a const List<T>&.
void	operator= (const face &val)
	Assignment of all entries to the given value.
void	operator= (Foam::zero)
	Assignment of all entries to zero.
iterator	begin () noexcept
	Return an iterator to begin traversing the UList.
iterator	end () noexcept
	Return an iterator to end traversing the UList.
iterator	begin (const label i) noexcept
	Return iterator at offset i from begin, clamped to [0,size] range.
const_iterator	cbegin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	cend () const noexcept
	Return const_iterator to end traversing the constant UList.
const_iterator	begin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	end () const noexcept
	Return const_iterator to end traversing the constant UList.
const_iterator	cbegin (const label i) const noexcept
	Return const_iterator at offset i from begin, clamped to [0,size] range.
const_iterator	begin (const label i) const noexcept
	Return const_iterator at offset i from begin, clamped to [0,size] range.
reverse_iterator	rbegin ()
	Return reverse_iterator to begin reverse traversing the UList.
reverse_iterator	rend ()
	Return reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	crbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	crend () const
	Return const_reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	rbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	rend () const
	Return const_reverse_iterator to end reverse traversing the UList.
bool	empty () const noexcept
	True if List is empty (ie, size() is zero).
label	size () const noexcept
	The number of elements in the container.
label	capacity () const noexcept
	Size of the underlying storage.
void	swap (UList< face > &list) noexcept
	Swap content with another UList of the same type in constant time.
bool	operator== (const UList< face > &list) const
	Equality operation on ULists of the same type.
bool	operator!= (const UList< face > &list) const
	The opposite of the equality operation. Takes linear time.
bool	operator< (const UList< face > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator> (const UList< face > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator<= (const UList< face > &list) const
	Return true if !(a > b). Takes linear time.
bool	operator>= (const UList< face > &list) const
	Return true if !(a < b). Takes linear time.
Istream &	readList (Istream &is)
	Read List contents from Istream.
void	writeEntry (const word &keyword, Ostream &os) const
	Write the List as a dictionary entry with keyword.
Ostream &	writeList (Ostream &os, const label shortLen=0) const
	Write List, with line-breaks in ASCII when length exceeds shortLen.
bool	all () const
	True if all entries are 'true' or if the list is empty.
bool	any () const
	True if any entries are 'true'.
bool	none () const
	True if no entries are 'true'.
bool	test (const label i) const
	Test `bool` value at specified position, always false for out-of-range access.
bool	get (const label i) const
	Return `bool` value at specified position, always false for out-of-range access.
bool	unset (const label i)
	Unset the `bool` entry at specified position, always false for out-of-range access.
std::string_view	view () const
	Return a string_view of the charList. Content is non-modifiable.
face &	first ()
	Access first element of the list, position [0].
const face &	first () const
	Access first element of the list.
face &	last ()
	Access last element of the list, position [size()-1].
const face &	last () const
	Access last element of the list, position [size()-1].
bool	found (const face &val, label pos=0) const
	Same as contains().
auto	expr () const
	Wrap value as expression.
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.
	operator const Foam::List< face > & () const
	Allow cast to a const List<T>&.
Public Member Functions inherited from surfaceFormatsCore
	surfaceFormatsCore ()=default
	Default construct.
virtual	~surfaceFormatsCore ()=default
	Destructor.

Protected Member Functions
	cuttingPlane (const plane &pln)
	Construct from a plane description without any cutting.
virtual void	performCut (const primitiveMesh &mesh, const bool triangulate, bitSet &&cellIdLabels)
	Cut mesh, restricted to a list of cells.
void	checkOverlap (const word callerName, const boundBox &meshBounds, const boundBox &userBounds) const
	Check and warn if bounding boxes do not intersect, and if the plane does not intersect the bounding boxes.
bitSet	cellSelection (const polyMesh &mesh, const boundBox &userBounds, const wordRes &zoneNames, const word callerName, const bool warn) const
	Define cell selection from bounding-box and zones.
virtual void	performCut (const primitiveMesh &mesh, const bool triangulate, const labelUList &cellIdLabels)
	Cut mesh, restricted to a list of cells.
virtual void	performCut (const primitiveMesh &mesh, const bool triangulate, const bitSet &cellSelectionMask=bitSet())
	Cut mesh, restricted to a list of cells.
Protected Member Functions inherited from cuttingSurfaceBase
template<class EdgeOrientIntersect, class EdgeAlphaIntersect>
void	walkCellCuts (const primitiveMesh &mesh, const bitSet &cellCuts, const EdgeOrientIntersect &edgeOrientIntersect, const EdgeAlphaIntersect &edgeAlphaIntersect, const bool triangulate, label nFaceCuts=0)
	Walk cell cuts to create faces.
virtual void	remapFaces (const labelUList &faceMap)
	Remap action on triangulation or cleanup.
Protected Member Functions inherited from MeshedSurface< face >
void	transcribe (MeshedSurface< face > &surf)
	Transfer points/zones from 'face' to other other shapes.
void	checkZones (const bool verbose=true)
	Sanity check/resizing on zones.
pointField &	storedPoints ()
	Non-const access to global points.
List< face > &	storedFaces ()
	Non-const access to the faces.
labelList &	storedFaceIds ()
	Non-const access to face ids.
surfZoneList &	storedZones ()
	Non-const access to the zones.
void	sortFacesAndStore (DynamicList< face > &unsortedFaces, DynamicList< label > &zoneIds, DynamicList< label > &elemIds, bool sorted)
	Sort faces by zones and store sorted faces.
void	transcribe (MeshedSurface< face > &surf)
void	transcribe (MeshedSurface< face > &surf)
void	transcribe (MeshedSurface< face > &surf)
Protected Member Functions inherited from UList< face >
void	setAddressableSize (const label n) noexcept
	Set addressed size to be inconsistent with allocated storage.
void	size (const label n)
	Older name for setAddressableSize.
void	writeEntry (Ostream &os) const
	Write the UList with its compound type.
labelRange	validateRange (const labelRange &requestedRange) const
	Return a validated (start,size) subset range, which means that it always addresses a valid section of the list.
void	fill_uniform (const face &val)
	Assign all entries to the given value.
void	fill_uniform (Foam::zero)
	Assign all entries to zero.

Additional Inherited Members
Public Types inherited from plane
enum	side { FRONT = 1 , BACK = -1 , NORMAL = FRONT , FLIP = BACK }
	Side of the plane. More...
Public Types inherited from MeshedSurface< face >
typedef face	face_type
	The face type (same as the underlying PrimitivePatch).
typedef point	point_type
	The point type (same as the underlying PrimitivePatch).
Public Types inherited from PrimitivePatch<::Foam::List< face >, pointField >
enum	surfaceTopo
	Enumeration defining the surface type. Used in check routines. More...
typedef std::remove_reference< ::Foam::List< face > >::type::value_type	face_type
	The face type.
typedef std::remove_reference< pointField >::type::value_type	point_type
	The point type.
typedef ::Foam::List< face >	FaceListType
	The face list type.
typedef pointField	PointFieldType
	The point field type.
typedef face_type	FaceType
	Deprecated(2020-03) prefer face_type typedef.
Public Types inherited from List< face >
typedef SubList< face >	subList
	Declare type of subList.
Public Types inherited from UList< face >
typedef face	value_type
	The value type the list contains.
typedef face *	pointer
	The pointer type for non-const access to value_type items.
typedef const face *	const_pointer
	The pointer type for const access to value_type items.
typedef face &	reference
	The type used for storing into value_type objects.
typedef const face &	const_reference
	The type used for reading from constant value_type objects.
typedef face *	iterator
	Random access iterator for traversing a UList.
typedef const face *	const_iterator
	Random access iterator for traversing a UList.
typedef label	size_type
	The type to represent the size of a UList.
typedef label	difference_type
	The difference between iterator objects.
typedef std::reverse_iterator< iterator >	reverse_iterator
	Reverse iterator (non-const access).
typedef std::reverse_iterator< const_iterator >	const_reverse_iterator
	Reverse iterator (const access).
using	is_List
	Have unique tag.
Static Public Member Functions inherited from MeshedSurface< face >
static wordHashSet	readTypes ()
	Known readable file-types, without friends or proxies.
static wordHashSet	writeTypes ()
	Known writable file-types, without friends or proxies.
static bool	canReadType (const word &fileType, bool verbose=false)
	Can we read this file format? Also checks friend types.
static bool	canWriteType (const word &fileType, bool verbose=false)
	Can we write this file format? Also checks proxy types.
static bool	canRead (const fileName &name, bool verbose=false)
	Can we read this file format?
static autoPtr< MeshedSurface >	New (const fileName &name, const word &fileType, bool mandatory=true)
	Read construct from filename with given file type.
static autoPtr< MeshedSurface >	New (const fileName &name)
	Read construct from filename (file type implicit from extension).
static void	write (const fileName &name, const MeshedSurface< face > &surf, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null)
	Write to file, selecting writer based on its extension.
static void	write (const fileName &name, const word &fileType, const MeshedSurface< face > &surf, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null)
	Write to file, selecting writer based on the given extension.
Static Public Member Functions inherited from List< face >
static const List< face > &	null () noexcept
	Return a null List (reference to a nullObject). Behaves like an empty List.
Static Public Member Functions inherited from UList< face >
static const UList< face > &	null () noexcept
	Return a null UList (reference to a nullObject). Behaves like an empty UList.
static constexpr label	max_size () noexcept
	The size of the largest possible UList.
Static Public Member Functions inherited from surfaceFormatsCore
static bool	checkSupport (const wordHashSet &available, const word &fileType, const bool verbose=false, const char *functionName=nullptr)
	Verbose checking of fileType in the list of available types.
static fileName	findFile (const IOobject &io, const bool isGlobal=true)
	Use IOobject information to resolve file to load from, or empty if the file does not exist.
static fileName	findFile (const IOobject &io, const dictionary &dict, const bool isGlobal=true)
	Use IOobject information to resolve file to load from, or empty if the file does not exist.
Static Public Attributes inherited from cuttingSurfaceBase
static int	debug
	Debug information.
Static Public Attributes inherited from surfaceFormatsCore
static word	nativeExt
	The file extension corresponding to 'native' surface format.
Protected Types inherited from cuttingSurfaceBase
typedef meshedSurface	Mesh
	Typedef for convenience.
Static Protected Member Functions inherited from cuttingSurfaceBase
static void	checkOverlap (const word callerName, const boundBox &meshBounds, const boundBox &userBounds)
	Check and warn if bounding boxes do not intersect.
static bitSet	cellSelection (const polyMesh &mesh, const boundBox &userBounds, const wordRes &zoneNames, boundBox &meshBounds)
	Define cell selection from bounding-box and zones.
static bitSet	cellSelection (const polyMesh &mesh, const boundBox &userBounds, const wordRes &zoneNames, const word callerName, const bool warn)
	Define cell selection from bounding-box and zones.
Static Protected Member Functions inherited from surfaceFormatsCore
static string	getLineNoComment (ISstream &is, const char comment='#')
	Read non-empty and non-comment line.
template<class Container>
static List< surfZone >	oneZone (const Container &container, const word &name="zone0")
	Return a surfZone list with a single entry, the size of which corresponds to that of the container.
static labelList	getSelectedPatches (const surfZoneList &patches, const wordRes &allow, const wordRes &deny=wordRes())
	Return ids for zone/patch that match by name.
static fileName	relativeFilePath (const IOobject &io, const fileName &f, const bool isGlobal=true)
	Return fileName.
static fileName	checkFile (const IOobject &io, const bool isGlobal=true)
	Return fileName to load IOobject from.
static fileName	checkFile (const IOobject &io, const dictionary &dict, const bool isGlobal=true)
	Return fileName to load IOobject from.
Protected Attributes inherited from cuttingSurfaceBase
labelList	meshCells_
	List of the cells cut.

Detailed Description

Constructs cutting plane through a mesh.

No attempt at resolving degenerate cases. Since the cut faces can be quite ugly, they will often be triangulated.

Source files

Definition at line 54 of file cuttingPlane.H.

Constructor & Destructor Documentation

◆ cuttingPlane() [1/4]

cuttingPlane ( const plane & pln )

protected

Construct from a plane description without any cutting.

Definition at line 25 of file cuttingPlane.C.

References plane::plane().

Referenced by operator=(), sampledPlane::sampledPlane(), and sampledPlane::sampledPlane().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cuttingPlane() [2/4]

cuttingPlane	(	const plane &	pln,
		const primitiveMesh &	mesh,
		const bool	triangulate,
		const bitSet &	cellIdLabels = bitSet() )

Construct from plane and mesh reference, possibly restricted to a list of cells.

Definition at line 31 of file cuttingPlane.C.

References mesh, performCut(), plane::plane(), and MeshedSurface< face >::triangulate().

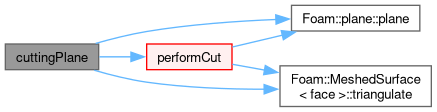

Here is the call graph for this function:

◆ cuttingPlane() [3/4]

cuttingPlane	(	const plane &	pln,
		const primitiveMesh &	mesh,
		const bool	triangulate,
		bitSet &&	cellIdLabels )

Construct from plane and mesh reference, possibly restricted to a list of cells.

Definition at line 45 of file cuttingPlane.C.

References mesh, performCut(), plane::plane(), and MeshedSurface< face >::triangulate().

Here is the call graph for this function:

◆ cuttingPlane() [4/4]

cuttingPlane	(	const plane &	pln,
		const primitiveMesh &	mesh,
		const bool	triangulate,
		const labelUList &	cellIdLabels )

Construct from plane and mesh reference, possibly restricted to a list of cells.

Definition at line 59 of file cuttingPlane.C.

References mesh, performCut(), plane::plane(), and MeshedSurface< face >::triangulate().

Here is the call graph for this function:

Member Function Documentation

◆ performCut() [1/3]

void performCut	(	const primitiveMesh &	mesh,
		const bool	triangulate,
		bitSet &&	cellIdLabels )

protectedvirtual

Cut mesh, restricted to a list of cells.

Reclaim memory for cellIdLabels

Implements cuttingSurfaceBase.

Definition at line 75 of file cuttingPlane.C.

References MeshedSurface< face >::clear(), e, plane::lineIntersect(), mesh, cuttingSurfaceBase::meshCells_, plane::plane(), pts, MeshedSurface< face >::triangulate(), and cuttingSurfaceBase::walkCellCuts().

Referenced by cuttingPlane(), cuttingPlane(), cuttingPlane(), and sampledPlane::update().

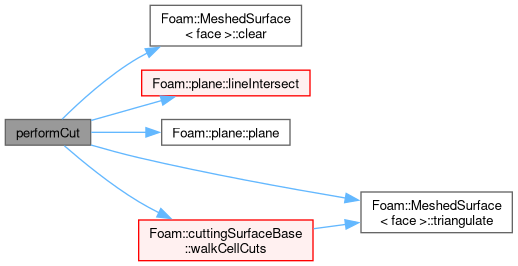

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkOverlap()

void checkOverlap	(	const word	callerName,
		const boundBox &	meshBounds,
		const boundBox &	userBounds ) const

protected

Check and warn if bounding boxes do not intersect, and if the plane does not intersect the bounding boxes.

Definition at line 26 of file cuttingPlaneSelection.C.

References cuttingSurfaceBase::checkOverlap(), Foam::endl(), boundBox::good(), boundBox::intersects(), Foam::nl, plane::plane(), and WarningInFunction.

Referenced by cellSelection().

Here is the call graph for this function:

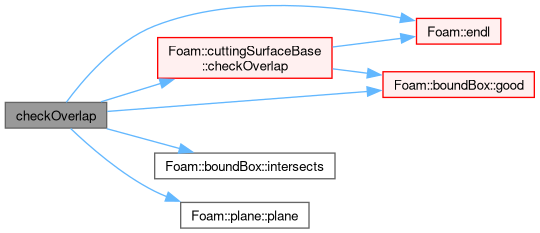

Here is the caller graph for this function:

◆ cellSelection()

Foam::bitSet cellSelection	(	const polyMesh &	mesh,
		const boundBox &	userBounds,
		const wordRes &	zoneNames,
		const word	callerName,
		const bool	warn ) const

protected

Define cell selection from bounding-box and zones.

Parameters

userBounds	Optionally user-specified bounding box
zoneNames	Optionally user-specified zone names
warn	Check and warn if the plane does not intersect with the bounds of the mesh (or submesh) or if the bounding box does not overlap with the mesh (or submesh)
