Function object that generates or modifies a field based on expressions. More...

#include <fvExpressionField.H>

Inheritance diagram for fvExpressionField:

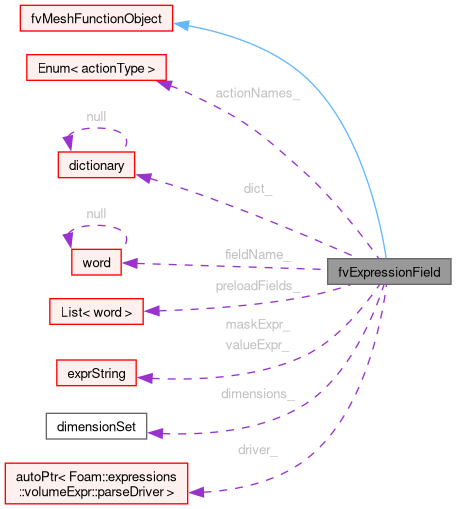

Collaboration diagram for fvExpressionField:

[legend]

Public Types
enum	actionType : unsigned char { opNone = 0 , opNew , opModify }
	Action type enumeration. More...

Public Member Functions
	TypeName ("exprField")
	Runtime type information.
	fvExpressionField (const word &name, const Time &runTime, const dictionary &dict, const bool loadFromFiles=false)
	Construct from name, Time and dictionary.
	fvExpressionField (const fvExpressionField &)=delete
	No copy construct.
void	operator= (const fvExpressionField &)=delete
	No copy assignment.
virtual	~fvExpressionField ()
	Destructor.
virtual word	fieldName () const
	Qualified/unqualified field name (depends on action).

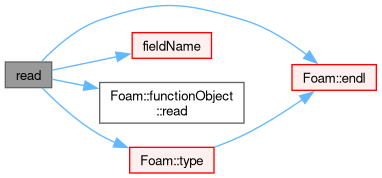

virtual bool	read (const dictionary &dict)
	Read the function-object dictionary.
virtual bool	execute ()
	Execute the function-object operations.
virtual bool	write ()
	Write the function-object results.
Public Member Functions inherited from fvMeshFunctionObject
	TypeName ("fvMeshFunctionObject")
	Runtime type information.
	fvMeshFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary.
	fvMeshFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)
	Construct from the region objectRegistry and dictionary.
virtual	~fvMeshFunctionObject ()=default
	Destructor.
Public Member Functions inherited from regionFunctionObject
	TypeName ("regionFunctionObject")
	Runtime type information.
	regionFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary.
	regionFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)
	Construct from the region objectRegistry and dictionary.
virtual	~regionFunctionObject ()=default
	Destructor.
template<class ObjectType>
const ObjectType *	lookupObjectPtr (const word &fieldName) const
	Deprecated(2018-10).
template<class ObjectType>
ObjectType *	lookupObjectRefPtr (const word &fieldName) const
	Deprecated(2018-10).
Public Member Functions inherited from stateFunctionObject
	stateFunctionObject (const word &name, const Time &runTime)
	Construct from components.
virtual	~stateFunctionObject ()=default
	Destructor.
dictionary &	propertyDict ()
	Return access to the property dictionary.
bool	foundProperty (const word &entryName) const
	Return true if the property exists.
void	clearTrigger ()
	Remove the trigger index from the properties.
label	getTrigger () const
	Get the current trigger index.
bool	setTrigger (const label triggeri)
	Set new trigger index.
bool	getDict (const word &entryName, dictionary &dict) const
	Set dictionary, return true if set.
bool	getObjectDict (const word &objectName, const word &entryName, dictionary &dict) const
	Set dictionary from named object, return true if set.
template<class Type>
Type	getProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property.
template<class Type>
bool	getProperty (const word &entryName, Type &value) const
	Set generic property, return true if set.
template<class Type>
void	setProperty (const word &entryName, const Type &value)
	Add generic property.
template<class Type>
Type	getObjectProperty (const word &objectName, const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from named object.
template<class Type>
bool	getObjectProperty (const word &objectName, const word &entryName, Type &value) const
	Set generic property from named object, return true if set.
template<class Type>
void	setObjectProperty (const word &objectName, const word &entryName, const Type &value)
	Add generic property from named object.
bool	getObjectResultDict (const word &objectName, dictionary &dict) const
template<class Type>
void	setResult (const word &entryName, const Type &value)
	Add result.
template<class Type>
void	setObjectResult (const word &objectName, const word &entryName, const Type &value)
	Add result from named object.
template<class Type>
Type	getResult (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve result.
template<class Type>
Type	getObjectResult (const word &objectName, const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve result from named object.
template<class Type>
bool	getObjectResult (const word &objectName, const word &entryName, Type &value) const
	Set result from named object, return true if set.
word	resultType (const word &entryName) const
	Retrieve the result type.
word	objectResultType (const word &objectName, const word &entryName) const
	Return the type of result.
wordList	objectResultEntries () const
	Retrieve the result entries.
wordList	objectResultEntries (const word &objectName) const
	Return result entries for named object.
void	writeResultEntries (Ostream &os) const
	Write the results entries for all objects to stream.
void	writeResultEntries (const word &objectName, Ostream &os) const
	Write the results entries for named object to stream.
void	writeAllResultEntries (Ostream &os) const
	Write the results entries for all objects to stream.
Public Member Functions inherited from timeFunctionObject
	timeFunctionObject (const word &name, const Time &runTime)
	Construct from Time.
virtual	~timeFunctionObject ()=default
	Destructor.
const Time &	time () const
	Return time database.
objectRegistry &	storedObjects ()
	Write access to the output objects ("functionObjectObjects") registered on Time.
const objectRegistry &	storedObjects () const
	Const access to the output objects ("functionObjectObjects") registered on Time.
Public Member Functions inherited from functionObject
	declareRunTimeSelectionTable (autoPtr, functionObject, dictionary,(const word &name, const Time &runTime, const dictionary &dict),(name, runTime, dict))
	functionObject (const word &name, const bool withNamePrefix=defaultUseNamePrefix)
	Construct from components.
autoPtr< functionObject >	clone () const
	Return clone.
virtual	~functionObject ()=default
	Destructor.
virtual const word &	type () const =0
	Runtime type information.
const word &	name () const noexcept
	Return the name of this functionObject.
bool	useNamePrefix () const noexcept
	Return the flag for adding a scoping name prefix.
bool	useNamePrefix (bool on) noexcept
	Modify the flag for adding a scoping name prefix.
virtual bool	execute (const label subIndex)
	Execute using the specified subIndex.
virtual bool	end ()
	Called when Time::run() determines that the time-loop exits.
virtual bool	adjustTimeStep ()
	Called at the end of Time::adjustDeltaT() if adjustTime is true.
virtual bool	filesModified () const
	Did any file get changed during execution?
virtual void	updateMesh (const mapPolyMesh &mpm)
	Update for changes of mesh.
virtual void	movePoints (const polyMesh &mesh)
	Update for changes of mesh.

Static Public Attributes
static const Enum< actionType >	actionNames_
	Action type names.
Static Public Attributes inherited from functionObject
static int	debug
	Flag to execute debug content.
static bool	postProcess
	Global post-processing mode switch.
static bool	defaultUseNamePrefix
	Global default for useNamePrefix.
static word	outputPrefix
	Directory prefix.

Protected Member Functions
template<class FieldType>
bool	loadAndStore (const IOobject &io)
	Attempt load from io, store on database if successful.
template<class Type>
bool	loadField (const IOobject &io)
	Forward to loadAndStore for supported types.
label	loadFields (const UList< word > &fieldSet_)
	Attempt to load specified fields.
template<class GeoField>

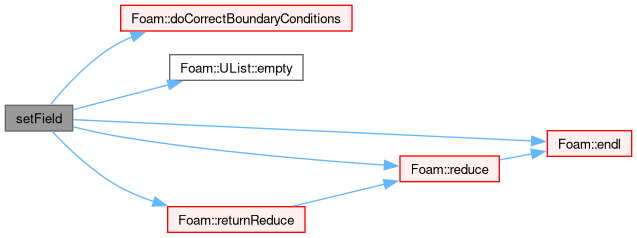

bool	setField (GeoField &output, const GeoField &evaluated, const boolField &cond)
	Sets the values of the output field based on a condition.

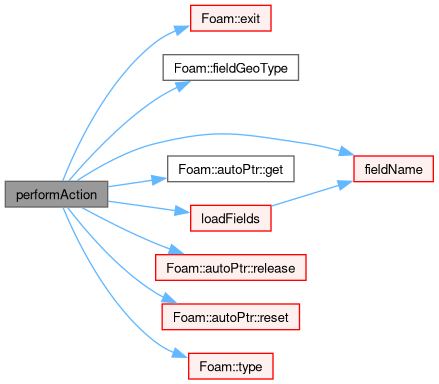

bool	performAction (bool doWrite)
	Execute the requested action.
Protected Member Functions inherited from fvMeshFunctionObject
	fvMeshFunctionObject (const fvMeshFunctionObject &)=delete
	No copy construct.
void	operator= (const fvMeshFunctionObject &)=delete
	No copy assignment.
Protected Member Functions inherited from regionFunctionObject
virtual const objectRegistry &	obr () const
	The region or sub-region registry being used.
template<class ObjectType>
bool	foundObject (const word &fieldName) const
	Find object (eg, a field) in the (sub) objectRegistry.
template<class ObjectType>
const ObjectType *	cfindObject (const word &fieldName) const
	Return const pointer to the object (eg, a field) in the (sub) objectRegistry.
template<class ObjectType>
const ObjectType *	findObject (const word &fieldName) const
	Return const pointer to the object (eg, a field) in the (sub) objectRegistry.
template<class ObjectType>
ObjectType *	findObject (const word &fieldName)
	Return non-const pointer to the object of the given Type, (sub) objectRegistry.
template<class ObjectType>
ObjectType *	getObjectPtr (const word &fieldName) const
	Return non-const pointer to the object of the given Type, using a const-cast to have it behave like a mutable.
template<class ObjectType>
const ObjectType &	lookupObject (const word &fieldName) const
	Lookup and return object (eg, a field) from the (sub) objectRegistry.
template<class ObjectType>
ObjectType &	lookupObjectRef (const word &fieldName) const
	Lookup and return object (eg, a field) from the (sub) objectRegistry.
template<class ObjectType>
bool	store (word &fieldName, const tmp< ObjectType > &tfield, bool cacheable=false)
	Store the field in the (sub) objectRegistry under the given name.
template<class ObjectType>
bool	storeInDb (const word &fieldName, const tmp< ObjectType > &tfield, const objectRegistry &obr)
	Store the field in an optional objectRegistry under the given name.
bool	writeObject (const word &fieldName)
	Write field if present in the (sub) objectRegistry.
bool	clearObject (const word &fieldName)
	Clear field from the (sub) objectRegistry if present.
void	clearObjects (const wordList &objNames)
	Clear fields from the (sub) objectRegistry if present.
	regionFunctionObject (const regionFunctionObject &)=delete
	No copy construct.
void	operator= (const regionFunctionObject &)=delete
	No copy assignment.
Protected Member Functions inherited from stateFunctionObject
const functionObjects::properties &	stateDict () const
	Return a const reference to the state dictionary.
functionObjects::properties &	stateDict ()
	Return non-const access to the state dictionary.
	stateFunctionObject (const stateFunctionObject &)=delete
	No copy construct.
void	operator= (const stateFunctionObject &)=delete
	No copy assignment.
Protected Member Functions inherited from timeFunctionObject
void	clearOutputObjects (const wordList &objNames)
	Remove specified items from "functionObjectObjects".
	timeFunctionObject (const timeFunctionObject &)=delete
	No copy construct.
void	operator= (const timeFunctionObject &)=delete
	No copy assignment.
Protected Member Functions inherited from functionObject
word	scopedName (const word &name) const
	Return a scoped (prefixed) name.

Protected Attributes
dictionary	dict_
	The context dictionary.
word	fieldName_
	Name of the field.
wordList	preloadFields_
	Names fields to preload.
expressions::exprString	maskExpr_
	The field-mask expression (modify mode).
expressions::exprString	valueExpr_
	Expression to evaluate.
dimensionSet	dimensions_
	Dimensions for new field.
actionType	action_
	Operation mode.
bool	autowrite_
	Set AUTO_WRITE for new field.
bool	store_
	Store calculated field.
bool	hasDimensions_
	True if dimensions_ should be used (creation).
bool	loadFromFiles_
	Load fields from files (not from objectRegistry).
autoPtr< expressions::volumeExprDriver >	driver_
Protected Attributes inherited from fvMeshFunctionObject
const fvMesh &	mesh_
	Reference to the fvMesh.
Protected Attributes inherited from regionFunctionObject
word	subRegistryName_
	Name for alternative object registry.
const objectRegistry &	obr_
	Reference to the region objectRegistry.
const objectRegistry *	obrPtr_
	Pointer to alternative (eg, sub-region) objectRegistry.
Protected Attributes inherited from timeFunctionObject
const Time &	time_
	Reference to the time database.

Additional Inherited Members
Static Public Member Functions inherited from functionObject
static autoPtr< functionObject >	New (const word &name, const Time &runTime, const dictionary &dict)
	Select from dictionary, based on its "type" entry.
Public Attributes inherited from functionObject
bool	log
	Flag to write log into Info.

Detailed Description

Function object that generates or modifies a field based on expressions.

Usage

A minimal example:

exprFieldFO
{
    // Mandatory entries
    type            exprField;
    libs            (fieldFunctionObjects);
    field           <word>;  // pTotal;
    expression      "p + 0.5*(rho*magSqr(U))";

    // Optional entries
    action          <word>;            // none, new, modify
    autowrite       <bool>;
    store           <bool>;
    dimensions      [ Pa ];         // for new field only
    readFields      (<wordList>);   // (p U rho), for post-process mode only
    useNamePrefix   false;          // for new field only

    // Inherited entries
    ...
}

// Modify an existing field
<name2>
{
    type    exprField;
    libs    (fieldFunctionObjects);
    field   pTotal;
    action  modify;

    // Static pressure only in these regions
    fieldMask   "(mag(pos()) < 0.05) && (pos().y() > 0)";
    expression  "p";
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`type`	Type name: exprField	word	yes
`libs`	Libraries: fieldFunctionObjects	wordList	yes
`field`	Name of input or output field	word	yes
`expression`	Field evaluation expression	string	yes
`action`	Type of operation: see below	word	no	new
`autowrite`	Add AUTO_WRITE to created field	bool	no	false
`store`	Store calculated field	bool	no	true
`fieldMask`	Masking as logical expression	string	no	""
`dimensions`	Apply specified dimensions to created field	dim-spec	no
`readFields`	Preload named fields (post-process mode)	wordList	no
`useNamePrefix`	Add prefix scoping to output name	bool	no	false

Options for the action entry:

none	:	No operation
new	:	Define field based on expression (default)
modify	:	Adjust field according to expression and fieldMask

The inherited entries are elaborated in:

fieldExpression.H

Note: The useNamePrefix entry is always ignored for the modify action.

Source files

Definition at line 204 of file fvExpressionField.H.

Member Enumeration Documentation

◆ actionType

enum actionType : unsigned char

Action type enumeration.

Enumerator
opNone	No operation.
opNew	Create/overwrite field (default).
opModify	Modify existing field.

Definition at line 215 of file fvExpressionField.H.

Constructor & Destructor Documentation

◆ fvExpressionField() [1/2]

fvExpressionField	(	const word &	name,
		const Time &	runTime,
		const dictionary &	dict,
		const bool	loadFromFiles = false )

Construct from name, Time and dictionary.

Definition at line 288 of file fvExpressionField.C.

References action_, autowrite_, dict, dict_, dimensions_, fieldName_, fvMeshFunctionObject::fvMeshFunctionObject(), hasDimensions_, loadFromFiles_, maskExpr_, Foam::name(), opNew, preloadFields_, read(), runTime, store_, and valueExpr_.

Referenced by fvExpressionField(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fvExpressionField() [2/2]

fvExpressionField ( const fvExpressionField & )

delete

No copy construct.

References fvExpressionField().

Here is the call graph for this function:

◆ ~fvExpressionField()

~fvExpressionField ( )

virtual

Destructor.

Definition at line 315 of file fvExpressionField.C.

Member Function Documentation

◆ loadAndStore()

template<class FieldType>

bool loadAndStore ( const IOobject & io )

protected

Attempt load from io, store on database if successful.

Definition at line 125 of file fvExpressionField.C.

References Foam::endl(), io, Log, fvMeshFunctionObject::mesh_, and regIOobject::store().

Referenced by loadField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadField()

template<class Type>

bool loadField ( const IOobject & io )

protected

Forward to loadAndStore for supported types.

|| loadAndStore<VolumeInternalField<Type>>(io)

Definition at line 142 of file fvExpressionField.C.

References io, and loadAndStore().

Referenced by loadFields().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadFields()

Foam::label loadFields ( const UList< word > & fieldSet_ )

protected

Attempt to load specified fields.

Definition at line 153 of file fvExpressionField.C.

References DebugInfo, Foam::endl(), fieldName(), io, loadField(), fvMeshFunctionObject::mesh_, IOobjectOption::MUST_READ, and IOobjectOption::NO_WRITE.

Referenced by performAction().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setField()

template<class GeoField>

bool setField	(	GeoField &	output,
		const GeoField &	evaluated,
		const boolField &	cond )

protected

Sets the values of the output field based on a condition.

Definition at line 214 of file fvExpressionField.C.

References action_, dimensions_, Foam::doCorrectBoundaryConditions(), UList< T >::empty(), Foam::endl(), forAll, hasDimensions_, Foam::Info, name, Foam::nl, opModify, Foam::reduce(), and Foam::returnReduce().

Here is the call graph for this function:

◆ performAction()

bool performAction ( bool doWrite )

protected

Execute the requested action.

Definition at line 436 of file fvExpressionField.C.

References action_, actionNames_, IOobjectOption::AUTO_WRITE, autowrite_, doLocalCode, driver_, Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::fieldGeoType(), fieldName(), autoPtr< T >::get(), loadFields(), loadFromFiles_, maskExpr_, fvMeshFunctionObject::mesh_, name, Foam::nl, opModify, opNone, preloadFields_, autoPtr< T >::release(), autoPtr< T >::reset(), store_, Foam::type(), valueExpr_, and WarningInFunction.

Referenced by execute(), and write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "exprField" )

Runtime type information.

References dict, Foam::name(), and runTime.

Here is the call graph for this function:

◆ operator=()

void operator= ( const fvExpressionField & )

delete

No copy assignment.

References dict, and fvExpressionField().

Here is the call graph for this function:

◆ fieldName()

Foam::word fieldName ( ) const

virtual

Qualified/unqualified field name (depends on action).

Definition at line 321 of file fvExpressionField.C.

References action_, fieldName_, word::null, opModify, opNew, opNone, and functionObject::scopedName().

Referenced by loadFields(), performAction(), and read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read()

bool read ( const dictionary & dict )

virtual

Read the function-object dictionary.

Reimplemented from regionFunctionObject.

Definition at line 343 of file fvExpressionField.C.

References action_, actionNames_, autowrite_, dict, dict_, dimensions_, driver_, Foam::endl(), fieldName(), fieldName_, hasDimensions_, loadFromFiles_, Log, maskExpr_, fvMeshFunctionObject::mesh_, name, Foam::nl, opModify, opNew, opNone, preloadFields_, functionObject::read(), exprDriver::SEARCH_FILES, exprDriver::SEARCH_REGISTRY, store_, Foam::type(), and valueExpr_.

Referenced by fvExpressionField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ execute()

bool execute ( )

virtual

Execute the function-object operations.

Implements functionObject.

Definition at line 672 of file fvExpressionField.C.

References performAction().

Here is the call graph for this function:

◆ write()

bool write ( )

virtual

Write the function-object results.

Implements functionObject.

Definition at line 678 of file fvExpressionField.C.

References performAction().

Here is the call graph for this function:

Member Data Documentation

◆ actionNames_

const Foam::Enum< Foam::functionObjects::fvExpressionField::actionType > actionNames_

static

Action type names.

Definition at line 225 of file fvExpressionField.H.

Referenced by performAction(), and read().

◆ dict_

dictionary dict_

protected

The context dictionary.

Definition at line 235 of file fvExpressionField.H.

Referenced by fvExpressionField(), and read().

◆ fieldName_

word fieldName_

protected

Name of the field.

Definition at line 240 of file fvExpressionField.H.

Referenced by fieldName(), fvExpressionField(), and read().

◆ preloadFields_

wordList preloadFields_

protected

Names fields to preload.

Definition at line 245 of file fvExpressionField.H.

Referenced by fvExpressionField(), performAction(), and read().

◆ maskExpr_

expressions::exprString maskExpr_

protected

The field-mask expression (modify mode).

Definition at line 250 of file fvExpressionField.H.

Referenced by fvExpressionField(), performAction(), and read().

◆ valueExpr_

expressions::exprString valueExpr_

protected

Expression to evaluate.

Definition at line 255 of file fvExpressionField.H.

Referenced by fvExpressionField(), performAction(), and read().

◆ dimensions_

dimensionSet dimensions_

protected

Dimensions for new field.

Definition at line 260 of file fvExpressionField.H.

Referenced by fvExpressionField(), read(), and setField().

◆ action_

actionType action_

protected

Operation mode.

Definition at line 265 of file fvExpressionField.H.

Referenced by fieldName(), fvExpressionField(), performAction(), read(), and setField().

◆ autowrite_

bool autowrite_

protected

Set AUTO_WRITE for new field.

Definition at line 270 of file fvExpressionField.H.

Referenced by fvExpressionField(), performAction(), and read().

◆ store_

bool store_

protected

Store calculated field.

Definition at line 275 of file fvExpressionField.H.

Referenced by fvExpressionField(), performAction(), and read().

◆ hasDimensions_

bool hasDimensions_

protected

True if dimensions_ should be used (creation).

Definition at line 280 of file fvExpressionField.H.

Referenced by fvExpressionField(), read(), and setField().

◆ loadFromFiles_

bool loadFromFiles_

protected

Load fields from files (not from objectRegistry).

Definition at line 285 of file fvExpressionField.H.

Referenced by fvExpressionField(), performAction(), and read().

◆ driver_

autoPtr<expressions::volumeExprDriver> driver_

protected

Definition at line 287 of file fvExpressionField.H.

Referenced by performAction(), and read().

The documentation for this class was generated from the following files:

src/functionObjects/field/expressions/fvExpressionField.H
src/functionObjects/field/expressions/fvExpressionField.C

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ actionType

Constructor & Destructor Documentation

◆ fvExpressionField() [1/2]

◆ fvExpressionField() [2/2]

◆ ~fvExpressionField()

Member Function Documentation

◆ loadAndStore()

◆ loadField()

◆ loadFields()

◆ setField()

◆ performAction()

◆ TypeName()

◆ operator=()

◆ fieldName()

◆ read()

◆ execute()

◆ write()

Member Data Documentation

◆ actionNames_

◆ dict_

◆ fieldName_

◆ preloadFields_

◆ maskExpr_

◆ valueExpr_

◆ dimensions_

◆ action_

◆ autowrite_

◆ store_

◆ hasDimensions_

◆ loadFromFiles_

◆ driver_
