Determines a mapping between patch face centres and mesh cell or face centres and processors they're on. More...

#include <mappedPolyPatch.H>

Inheritance diagram for mappedPolyPatch:

[legend]

Collaboration diagram for mappedPolyPatch:

[legend]

Public Member Functions

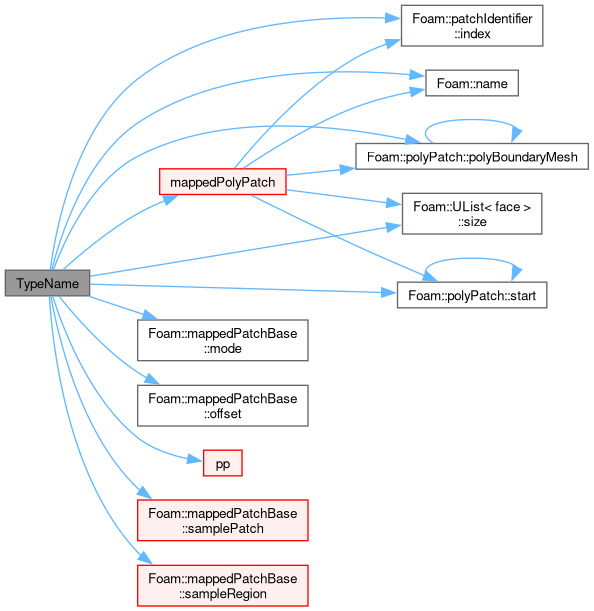

	TypeName ("mappedPatch")
	Runtime type information.

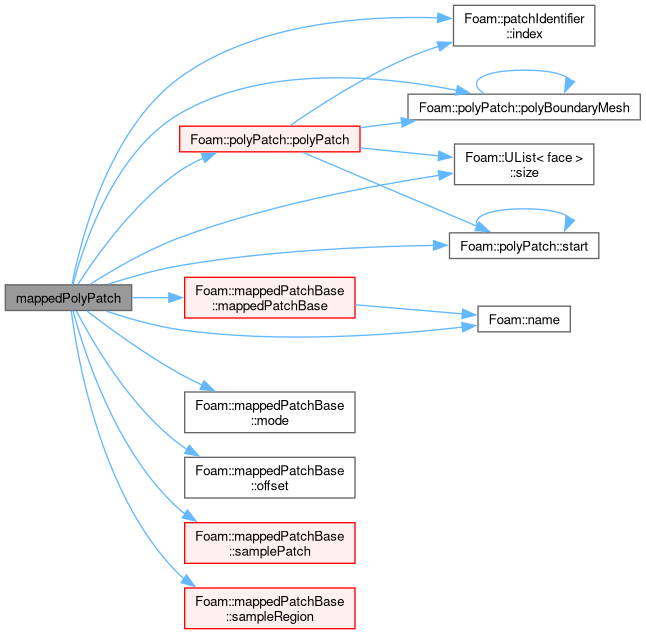

	mappedPolyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType)
	Construct from components.
	mappedPolyPatch (const word &name, const label size, const label start, const label index, const word &sampleRegion, const mappedPatchBase::sampleMode mode, const word &samplePatch, const vectorField &offset, const polyBoundaryMesh &bm)
	Construct from components.
	mappedPolyPatch (const word &name, const label size, const label start, const label index, const word &sampleRegion, const mappedPatchBase::sampleMode mode, const word &samplePatch, const vector &offset, const polyBoundaryMesh &bm)
	Construct from components. Uniform offset.

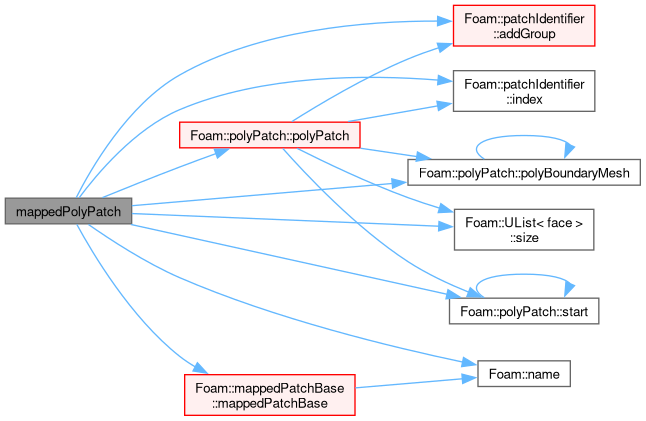

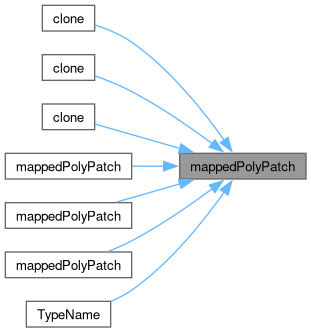

	mappedPolyPatch (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType)
	Construct from dictionary.
	mappedPolyPatch (const mappedPolyPatch &, const polyBoundaryMesh &)
	Construct as copy, resetting the boundary mesh.

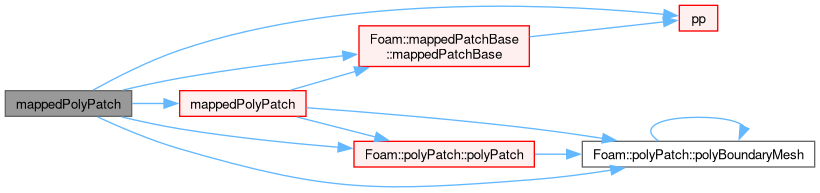

	mappedPolyPatch (const mappedPolyPatch &pp, const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart)
	Construct given the original patch and resetting the.

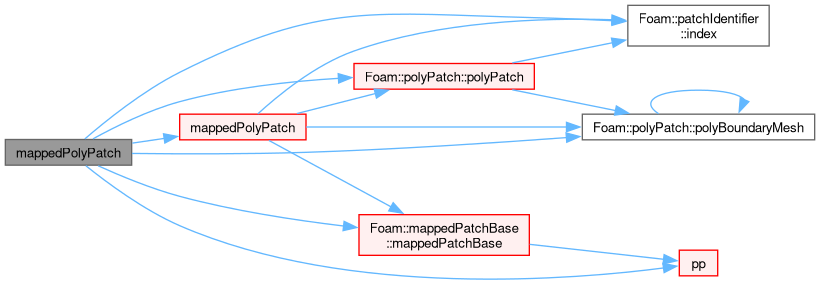

	mappedPolyPatch (const mappedPolyPatch &pp, const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart)
	Construct given the original patch and a map.

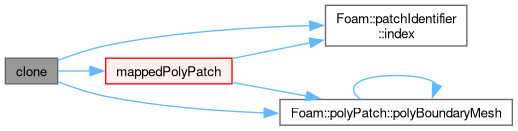

virtual autoPtr< polyPatch >	clone (const polyBoundaryMesh &bm) const
	Construct and return a clone, resetting the boundary mesh.
virtual autoPtr< polyPatch >	clone (const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart) const
	Construct and return a clone, resetting the face list.
virtual autoPtr< polyPatch >	clone (const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart) const
	Construct and return a clone, resetting the face list.
virtual void	newInternalProcFaces (label &iFaces, label &pFaces) const
	Return number of new internal of this polyPatch faces.
virtual const labelUList &	nbrCells () const
	Return nbrCells.
virtual label	neighbPolyPatchID () const
	Return nbr patch ID.
virtual refPtr< labelListList >	mapCollocatedFaces () const
	Return collocated faces map.
virtual bool	masterImplicit () const
	Return implicit master.
virtual word	neighbRegionID () const
	Return neigh region ID.
virtual	~mappedPolyPatch ()
	Destructor.

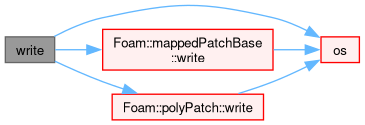

virtual void	write (Ostream &) const
	Write the polyPatch data as a dictionary.
Public Member Functions inherited from polyPatch
	TypeName ("patch")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, polyPatch, word,(const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType),(name, size, start, index, bm, patchType))
	declareRunTimeSelectionTable (autoPtr, polyPatch, dictionary,(const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType),(name, dict, index, bm, patchType))
	polyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType)
	Construct from components.
	polyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &physicalType, const wordList &inGroups)
	Construct from components.
	polyPatch (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType)
	Construct from dictionary.
	polyPatch (const polyPatch &, const polyBoundaryMesh &)
	Copy construct, resetting the boundary mesh.
	polyPatch (const polyPatch &pp, const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart)
	Construct given the original patch and resetting the face list and boundary mesh information.
	polyPatch (const polyPatch &pp, const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart)
	Construct given the original patch and a map.
	polyPatch (const polyPatch &p)
	Copy construct.
	polyPatch (const polyPatch &p, const labelList &faceCells)
	Copy construct, setting faceCells.
virtual autoPtr< polyPatch >	clone (const labelList &faceCells) const
	Construct and return a clone, setting faceCells.
virtual	~polyPatch ()
	Destructor.
label	offset () const noexcept
	The offset where this patch starts in the boundary face list.
label	start () const noexcept
	Return start label of this patch in the polyMesh face list.
labelRange	range () const
	Return start/size range of this patch.
const polyBoundaryMesh &	boundaryMesh () const noexcept
	Return boundaryMesh reference.
virtual bool	coupled () const
	Return true if this patch is geometrically coupled (i.e. faces and.
template<class T>
const UIndirectList< T >	patchInternalList (const UList< T > &internalValues) const
	Extract face cell data.
template<class T>
const List< T >::subList	patchSlice (const UList< T > &values) const
	This patch slice from the complete list, which has size mesh::nFaces(), using the number of patch faces.
template<class T>
const Field< T >::subField	patchSlice (const Field< T > &values) const
	Slice Field to patch, using the number of patch faces.
template<class T>
const List< T >::subList	boundarySlice (const UList< T > &values) const
	This patch slice from the list of boundary values, which has size mesh::nBoundaryFaces(), using the number of patch faces.
const faceList::subList	faces () const
	Return mesh faces for the patch.
const labelList::subList	faceOwner () const
	Return face owner for the patch.
const vectorField::subField	faceCentres () const
	Return face centres.
const vectorField::subField	faceAreas () const
	Return face normals.
tmp< vectorField >	faceCellCentres () const
	Return face cell centres.
tmp< scalarField >	areaFraction (const pointField &points) const
	Calculate the area fraction as the ratio of the stored face area and the area given by the face points.
tmp< scalarField >	areaFraction () const
	Return the cached area fraction. Usually only set for the non-overlap patches on ACMI.
void	areaFraction (const scalar fraction)
	Set uniform cached area fraction.
void	areaFraction (const tmp< scalarField > &fraction)
	Set cached area fraction (non-uniform).
const labelUList &	faceCells () const
	Return face-cell addressing.
const labelList &	meshEdges () const
	Return global edge index for local edges.
virtual void	clearAddressing ()
	Clear addressing.
label	whichFace (const label facei) const noexcept
	Return label of face in patch from global face label.
virtual void	initOrder (PstreamBuffers &, const primitivePatch &) const
	Initialize ordering for primitivePatch. Does not.
virtual bool	order (PstreamBuffers &, const primitivePatch &, labelList &faceMap, labelList &rotation) const
	Return new ordering for primitivePatch.
virtual bool	changeTopology () const
	For dynamic mesh cases - return true if this patch will change the topology.
virtual bool	setTopology (polyTopoChange &)
	Collect topology changes in a polyTopoChange object.
void	operator= (const polyPatch &p)
	Copy assignment.
Public Member Functions inherited from patchIdentifier
	patchIdentifier (const patchIdentifier &)=default
	Copy construct.
	patchIdentifier (patchIdentifier &&)=default
	Move construct.
patchIdentifier &	operator= (const patchIdentifier &)=default
	Copy assignment.
patchIdentifier &	operator= (patchIdentifier &&)=default
	Move assignment.
virtual	~patchIdentifier ()=default
	Destructor.
	patchIdentifier ()
	Default construct: name="", index=0.
	patchIdentifier (const word &name, const label index)
	Construct from mandatory components.
	patchIdentifier (const word &name, const label index, const word &physicalType, const wordList &inGroups=wordList())
	Construct from components.
	patchIdentifier (const word &name, const dictionary &dict, const label index)
	Construct from dictionary.
	patchIdentifier (const patchIdentifier &ident, const label newIndex)
	Copy construct, resetting the index (if non-negative).
	patchIdentifier (patchIdentifier &&ident, const label newIndex)
	Move construct, resetting the index (if non-negative).
const word &	name () const noexcept
	The patch name.
word &	name () noexcept
	Modifiable patch name.
label	index () const noexcept
	The index of this patch in the boundaryMesh.
label &	index () noexcept
	Modifiable index of this patch in the boundaryMesh.
const word &	physicalType () const noexcept
	The (optional) physical type of the patch.
word &	physicalType () noexcept
	Modifiable (optional) physical type of the patch.
const wordList &	inGroups () const noexcept
	The (optional) groups that the patch belongs to.
wordList &	inGroups () noexcept
	Modifiable (optional) groups that the patch belongs to.
bool	inGroup (const word &name) const
	True if given name is in a group.
void	addGroup (const word &name)
	Add (unique) group for the patch.
void	removeGroup (const word &name)
	Remove group for the patch.
void	write (Ostream &os) const
	Write (physicalType, inGroups) dictionary entries (without surrounding braces).
Public Member Functions inherited from PrimitivePatch< SubList< face >, const pointField & >
	PrimitivePatch (const SubList< face > &faces, const const pointField &&points)
	Construct from components.
	PrimitivePatch (SubList< face > &&faces, const const pointField &&points)
	Construct from components, transferring faces.
	PrimitivePatch (SubList< face > &faces, const pointField &&points, const bool reuse)
	Construct from components, reuse storage.
	PrimitivePatch (const PrimitivePatch< SubList< face >, const pointField & > &pp)
	Copy construct.
virtual	~PrimitivePatch ()
	Destructor.
void	clearOut ()
void	clearGeom ()
void	clearTopology ()
void	clearPatchMeshAddr ()
void	swap (PrimitivePatch &)=delete
	Suppress direct swapping, since storage containers may be const.
const Field< point_type > &	points () const noexcept
	Return reference to global points.
label	nFaces () const noexcept
	Number of faces in the patch.
label	nPoints () const
	Number of points supporting patch faces.
label	nEdges () const
	Number of edges in patch.
const edgeList &	edges () const
	Return list of edges, address into LOCAL point list.
const edgeList::subList	internalEdges () const
	Return sub-list of internal edges, address into LOCAL point list.
const edgeList::subList	boundaryEdges () const
	Return sub-list of boundary edges, address into LOCAL point list.
label	nInternalEdges () const
	Number of internal edges.
label	nBoundaryEdges () const
	Number of boundary edges == (nEdges() - nInternalEdges()).
bool	isInternalEdge (const label edgei) const
	Is internal edge?
const labelList &	boundaryPoints () const
	Return list of boundary points, address into LOCAL point list.
const labelListList &	faceFaces () const
	Return face-face addressing.
const labelListList &	edgeFaces () const
	Return edge-face addressing.
const labelListList &	faceEdges () const
	Return face-edge addressing.
const labelListList &	pointEdges () const
	Return point-edge addressing.
const labelListList &	pointFaces () const
	Return point-face addressing.
const List< face_type > &	localFaces () const
	Return patch faces addressing into local point list.
labelList	boundaryFaces () const
	Extract list of local faces corresponding to the boundary edges.
labelList	uniqBoundaryFaces () const
	Extract sorted list of unique local faces associated with the boundary edges.
const labelList &	meshPoints () const
	Return labelList of mesh points in patch.
const Map< label > &	meshPointMap () const
	Mesh point map.
const Field< point_type > &	localPoints () const
	Return pointField of points in patch.
const labelList &	localPointOrder () const
	Return orders the local points for most efficient search.
label	whichPoint (const label gp) const
	Given a global point index, return the local point index.
edge	meshEdge (const label edgei) const
	From patch edge to global edge using meshPoints.
edge	meshEdge (const edge &e) const
	From patch edge to global edge using meshPoints.
label	findEdge (const edge &e) const
	Search for edge (local point labels) and return its index in the edge list or -1 if not found.
labelList	meshEdges (const edgeList &allEdges, const labelListList &cellEdges, const labelList &faceCells) const
	Return labels of patch edges in the global edge list using cell addressing.
labelList	meshEdges (const edgeList &allEdges, const labelListList &pointEdges) const
	Return labels of patch edges into the global edge list using basic edge addressing.
label	meshEdge (const label edgei, const edgeList &allEdges, const labelListList &pointEdges) const
	Return label of the local patch edge into the global edge list using basic edge addressing.
labelList	meshEdges (const labelUList &edgeLabels, const edgeList &allEdges, const labelListList &pointEdges) const
	Return labels of specified patch edges into the global edge list using basic edge addressing.
const Field< point_type > &	faceCentres () const
	Return face centres for patch.
const Field< point_type > &	faceAreas () const
	Return face area vectors for patch.
const Field< scalar > &	magFaceAreas () const
	Return face area magnitudes for patch.
const Field< point_type > &	faceNormals () const
	Return face unit normals for patch.
const Field< point_type > &	pointNormals () const
	Return point normals for patch.
Pair< point_type >	box () const
	The enclosing (bounding) box for the patch points.
scalar	sphere (const label facei) const
	The enclosing (bounding) sphere radius^2 for specified face.
bool	hasFaceAreas () const
bool	hasFaceCentres () const
bool	hasFaceNormals () const
bool	hasPointNormals () const
bool	hasBoundaryPoints () const
bool	hasEdges () const
bool	hasFaceFaces () const
bool	hasEdgeFaces () const
bool	hasFaceEdges () const
bool	hasPointEdges () const
bool	hasPointFaces () const
bool	hasMeshPoints () const
bool	hasMeshPointMap () const
List< objectHit >	projectPoints (const ToPatch &targetPatch, const Field< point_type > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const
	Project vertices of patch onto another patch.
List< objectHit >	projectFaceCentres (const ToPatch &targetPatch, const Field< point_type > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const
	Project vertices of patch onto another patch.
const labelListList &	edgeLoops () const
	Return list of closed loops of boundary vertices.
surfaceTopo	surfaceType (labelHashSet *badEdgesPtr=nullptr) const
	Calculate surface type formed by patch, optionally recording the indices of illegal edges.
bool	checkTopology (const bool report=false, labelHashSet *pointSetPtr=nullptr) const
	Check surface formed by patch for manifoldness (see above).
bool	checkPointManifold (const bool report=false, labelHashSet *pointSetPtr=nullptr) const
	Checks primitivePatch for faces sharing point but not edge.
void	operator= (const PrimitivePatch< SubList< face >, const pointField & > &rhs)
	Copy assign faces. Leave points alone (could be a reference).
void	operator= (PrimitivePatch< SubList< face >, const pointField & > &&rhs)
	Move assign faces. Leave points alone (could be a reference).
label	whichEdge (const edge &e) const
	Identical to findEdge.
Foam::List< Foam::objectHit >	projectPoints (const ToPatch &targetPatch, const Field< typename Foam::PrimitivePatch< SubList< face >, const pointField & >::point_type > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const
Foam::List< Foam::objectHit >	projectFaceCentres (const ToPatch &targetPatch, const Field< typename Foam::PrimitivePatch< SubList< face >, const pointField & >::point_type > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const
Public Member Functions inherited from PrimitivePatchBase
	ClassName ("PrimitivePatch")
	Runtime type information.
	PrimitivePatchBase ()=default
	Default construct.
Public Member Functions inherited from SubList< face >
	SubList () noexcept=default
	Default construct, zero-sized and nullptr.
	SubList (const SubList< face > &) noexcept=default
	Copy construct, shallow copy.
	SubList (const UList< face > &list) noexcept
	Construct from UList, the entire size.
	SubList (const FixedList< face, N > &list) noexcept
	Construct from FixedList, the entire size.
	SubList (const UList< face > &list, const label len)
	Construct from UList and sub-list size, start at 0.
	SubList (const UList< face > &list, const label len, const label start)
	Construct from UList, sub-list size and start index.
	SubList (const UList< face > &list, const labelRange &range)
	Construct from UList and a (start,size) range.
	SubList (const labelRange &range, const UList< face > &list)
	Construct from UList and a (start,size) range, but bypassing run-time range checking.
UList< face > &	reset (std::nullptr_t) noexcept
	Reset to zero-sized and nullptr.
UList< face > &	reset (const UList< face > &list) noexcept
	Reset to use entire UList.
UList< face > &	reset (const UList< face > &list, const label len)
	Reset to use UList with sub-list size, start at 0.
UList< face > &	reset (const UList< face > &list, const label len, const label start)
	Reset to use UList with sub-list size and start index.
UList< face > &	reset (const UList< face > &list, const labelRange &range)
	Reset to use UList with a (start,size) range.
UList< face > &	reset (const labelRange &range, const UList< face > &list)
	Reset to use UList with a (start,size) range, but bypassing run-time range checking.
	operator const Foam::List< face > & () const
	Allow cast to a const List<T>&.
void	operator= (const SubList< face > &list)
	Copy assign entries (deep copy) from given sub-list. Sizes must match!
void	operator= (const UList< face > &list)
	Copy assign entries (deep copy) from given list. Sizes must match!
void	operator= (const IndirectListBase< face, Addr > &list)
	Copy assign entries from given indirect list. Sizes must match!
void	operator= (const face &val)
	Assign all entries to the given value.
void	operator= (Foam::zero)
	Assign all entries to zero.
	operator const Foam::List< face > & () const
	Allow cast to a const List<T>&.
Public Member Functions inherited from UList< face >
	UList (const UList< face > &) noexcept=default
	Copy construct, shallow copy.
	UList (UList< face > &&) noexcept=default
	Move construct, shallow copy.
UList< face > &	operator= (const UList< face > &)=delete
	No copy assignment (default: shallow copy).
UList< face > &	operator= (UList< face > &&) noexcept=default
	Move assignment, shallow copy.
constexpr	UList () noexcept
	Default construct, zero-sized and nullptr.
	UList (face *__restrict__ ptr, const label len) noexcept
	Construct from components.
	UList (SubList< face > &&) noexcept
	Move construct from a SubList, shallow copy.
label	fcIndex (const label i) const noexcept
	The forward circular index. The next index in the list which returns to the first at the end of the list.
label	rcIndex (const label i) const noexcept
	The reverse circular index. The previous index in the list which returns to the last at the beginning of the list.
const face &	fcValue (const label i) const
	Return forward circular value (ie, next value in the list).
face &	fcValue (const label i)
	Return forward circular value (ie, next value in the list).
const face &	rcValue (const label i) const
	Return reverse circular value (ie, previous value in the list).
face &	rcValue (const label i)
	Return reverse circular value (ie, previous value in the list).
const face *	cdata () const noexcept
	Return pointer to the underlying array serving as data storage.
face *	data () noexcept
	Return pointer to the underlying array serving as data storage.
const char *	cdata_bytes () const noexcept
	Return pointer to the underlying array serving as data storage,.
char *	data_bytes () noexcept
	Return pointer to the underlying array serving as data storage,.
face &	front ()
	Access first element of the list, position [0].
const face &	front () const
	Access first element of the list.
face &	back ()
	Access last element of the list, position [size()-1].
const face &	back () const
	Access last element of the list, position [size()-1].
std::streamsize	size_bytes () const noexcept
	Number of contiguous bytes for the List data.
std::streamsize	byteSize () const
	Number of contiguous bytes for the List data, runtime FatalError if type is not contiguous.
void	checkStart (const label start) const
	Check start is within valid range [0,size).
void	checkSize (const label size) const
	Check size is within valid range [0,size].
void	checkRange (const label start, const label len) const
	Check that start and length define a valid range.
void	checkIndex (const label i) const
	Check index is within valid range [0,size).
bool	uniform () const
	True if all entries have identical values, and list is non-empty.
bool	contains (const face &val) const
	True if the value is contained in the list.
bool	contains (const face &val, label pos, label len=-1) const
	Is the value contained in the list?
label	find (const face &val) const
	Find index of the first occurrence of the value.
label	find (const face &val, label pos, label len=-1) const
	Find index of the first occurrence of the value.
label	rfind (const face &val, label pos=-1) const
	Find index of the last occurrence of the value.
void	moveFirst (const label i)
	Move element to the first position.
void	moveLast (const label i)
	Move element to the last position.
void	swapFirst (const label i)
	Swap element with the first element. Fatal on an empty list.
void	swapLast (const label i)
	Swap element with the last element. Fatal on an empty list.
void	shallowCopy (face *__restrict__ ptr, const label len) noexcept
	Copy the pointer and size.
void	shallowCopy (std::nullptr_t) noexcept
	Copy nullptr and zero size.
void	shallowCopy (const UList< face > &list) noexcept
	Copy the pointer and size held by the given UList.
void	deepCopy (const UList< face > &list)
	Copy elements of the given UList. Sizes must match!
void	deepCopy (const IndirectListBase< face, Addr > &list)
	Copy elements of the given indirect list. Sizes must match!
SubList< face >	slice (const label pos, label len=-1)
	Return SubList slice (non-const access) - no range checking.
const SubList< face >	slice (const label pos, label len=-1) const
	Return SubList slice (const access) - no range checking.
SubList< face >	slice (const labelRange &range)
	Return SubList slice (non-const access) - with range checking.
const SubList< face >	slice (const labelRange &range) const
	Return SubList slice (const access) - with range checking.
face &	operator[] (const label i)
	Return element of UList.
const face &	operator[] (const label i) const
	Return element of constant UList.
	operator const Foam::List< face > & () const
	Allow cast to a const List<T>&.
void	operator= (const face &val)
	Assignment of all entries to the given value.
void	operator= (Foam::zero)
	Assignment of all entries to zero.
iterator	begin () noexcept
	Return an iterator to begin traversing the UList.
iterator	end () noexcept
	Return an iterator to end traversing the UList.
iterator	begin (const label i) noexcept
	Return iterator at offset i from begin, clamped to [0,size] range.
const_iterator	cbegin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	cend () const noexcept
	Return const_iterator to end traversing the constant UList.
const_iterator	begin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	end () const noexcept
	Return const_iterator to end traversing the constant UList.
const_iterator	cbegin (const label i) const noexcept
	Return const_iterator at offset i from begin, clamped to [0,size] range.
const_iterator	begin (const label i) const noexcept
	Return const_iterator at offset i from begin, clamped to [0,size] range.
reverse_iterator	rbegin ()
	Return reverse_iterator to begin reverse traversing the UList.
reverse_iterator	rend ()
	Return reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	crbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	crend () const
	Return const_reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	rbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	rend () const
	Return const_reverse_iterator to end reverse traversing the UList.
bool	empty () const noexcept
	True if List is empty (ie, size() is zero).
label	size () const noexcept
	The number of elements in the container.
label	capacity () const noexcept
	Size of the underlying storage.
void	swap (UList< face > &list) noexcept
	Swap content with another UList of the same type in constant time.
bool	operator== (const UList< face > &list) const
	Equality operation on ULists of the same type.
bool	operator!= (const UList< face > &list) const
	The opposite of the equality operation. Takes linear time.
bool	operator< (const UList< face > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator> (const UList< face > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator<= (const UList< face > &list) const
	Return true if !(a > b). Takes linear time.
bool	operator>= (const UList< face > &list) const
	Return true if !(a < b). Takes linear time.
Istream &	readList (Istream &is)
	Read List contents from Istream.
void	writeEntry (const word &keyword, Ostream &os) const
	Write the List as a dictionary entry with keyword.
Ostream &	writeList (Ostream &os, const label shortLen=0) const
	Write List, with line-breaks in ASCII when length exceeds shortLen.
bool	all () const
	True if all entries are 'true' or if the list is empty.
bool	any () const
	True if any entries are 'true'.
bool	none () const
	True if no entries are 'true'.
bool	test (const label i) const
	Test `bool` value at specified position, always false for out-of-range access.
bool	get (const label i) const
	Return `bool` value at specified position, always false for out-of-range access.
bool	unset (const label i)
	Unset the `bool` entry at specified position, always false for out-of-range access.
std::string_view	view () const
	Return a string_view of the charList. Content is non-modifiable.
face &	first ()
	Access first element of the list, position [0].
const face &	first () const
	Access first element of the list.
face &	last ()
	Access last element of the list, position [size()-1].
const face &	last () const
	Access last element of the list, position [size()-1].
bool	found (const face &val, label pos=0) const
	Same as contains().
auto	expr () const
	Wrap value as expression.
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.
	operator const Foam::List< face > & () const
	Allow cast to a const List<T>&.
Public Member Functions inherited from mappedPatchBase
	TypeName ("mappedPatchBase")
	Runtime type information.
	mappedPatchBase (const polyPatch &)
	Construct from patch.
	mappedPatchBase (const polyPatch &pp, const word &sampleRegion, const sampleMode sampleMode, const word &samplePatch, const vectorField &offsets)
	Construct with offsetMode=non-uniform.
	mappedPatchBase (const polyPatch &pp, const word &sampleRegion, const sampleMode sampleMode, const word &samplePatch, const vector &uniformOffset)
	Construct from offsetMode=uniform.
	mappedPatchBase (const polyPatch &pp, const word &sampleRegion, const sampleMode sampleMode, const word &samplePatch, const scalar normalDistance)
	Construct from offsetMode=normal and distance.
	mappedPatchBase (const polyPatch &, const dictionary &)
	Construct from dictionary.
	mappedPatchBase (const polyPatch &, const sampleMode, const dictionary &)
	Construct from dictionary and (collocated) sample mode.
	mappedPatchBase (const polyPatch &, const mappedPatchBase &)
	Construct as copy, resetting patch.
	mappedPatchBase (const polyPatch &, const mappedPatchBase &, const labelUList &mapAddressing)
	Construct as copy, resetting patch, map original data.
virtual	~mappedPatchBase ()
	Destructor.
void	clearOut ()
void	setOffset (const scalar normalDist)
	Change to normal offset with given distance.
void	setOffset (const vector &uniformOffset)
	Change to uniform offset with value.
void	setOffset (const vectorField &offsets)
	Change to non-uniform offsets.
sampleMode	mode () const noexcept
	What to sample.
const word &	sampleWorld () const noexcept
	World to sample.
const word &	sampleRegion () const
	Region to sample.
const word &	samplePatch () const
	Patch (only if NEARESTPATCHFACE).
const word &	coupleGroup () const
	PatchGroup (only if NEARESTPATCHFACE).
label	sampleSize () const
	Return size of mapped mesh/patch/boundary.
const vector &	offset () const noexcept
	Offset vector (from patch faces to destination mesh objects).
const vectorField &	offsets () const noexcept
	Offset vectors (from patch faces to destination mesh objects).
label	getCommunicator () const
	Get the communicator (worldComm or world-to-world).
label	comm () const
	Identical to getCommunicator().
bool	sameWorld () const
	Is sample world the local world?
bool	masterWorld () const
	Is my world ordered before the sampleWorld?
bool	sameRegion () const noexcept
	Cached sampleRegion != mesh.name().
uniformDimensionedScalarField &	updateSampleMeshTime () const
	Local mesh update time.
uniformDimensionedScalarField &	updateMeshTime () const
	Sample mesh upate time.
bool	upToDate () const
const mapDistribute &	map () const
	Return reference to the parallel distribution map.
const AMIPatchToPatchInterpolation &	AMI (const bool forceUpdate=false) const
	Return reference to the AMI interpolator.
bool	owner () const
	Is it owner.
const autoPtr< Foam::searchableSurface > &	surfPtr () const
	Return a pointer to the AMI projection surface.
const polyMesh &	sampleMesh () const
	Get the region mesh.
const polyPatch &	samplePolyPatch () const
	Get the patch on the region.
tmp< pointField >	samplePoints () const
	Get the sample points.
const fileName &	sampleDatabasePath () const
bool	sampleDatabase () const noexcept
virtual fileName	sendPath (const label proci) const
virtual fileName	receivePath (const label proci) const
template<class Type>
void	distribute (List< Type > &lst) const
	Wrapper around map/interpolate data distribution.
template<class Type, class CombineOp>
void	distribute (List< Type > &lst, const CombineOp &cop) const
	Wrapper around map/interpolate data distribution with operation.
template<class Type>
void	reverseDistribute (List< Type > &lst) const
	Wrapper around map/interpolate data distribution.
template<class Type, class CombineOp>
void	reverseDistribute (List< Type > &lst, const CombineOp &cop) const
	Wrapper around map/interpolate data distribution with operation.

Protected Member Functions
virtual void	initGeometry (PstreamBuffers &)
	Initialise the calculation of the patch geometry.
virtual void	calcGeometry (PstreamBuffers &)
	Calculate the patch geometry.
virtual void	initMovePoints (PstreamBuffers &, const pointField &)
	Initialise the patches for moving points.
virtual void	movePoints (PstreamBuffers &, const pointField &)
	Correct patches after moving points.
virtual void	initUpdateMesh (PstreamBuffers &)
	Initialise the update of the patch topology.
virtual void	updateMesh (PstreamBuffers &)
	Update of the patch topology.
Protected Member Functions inherited from polyPatch
virtual void	clearGeom ()
	Clear geometry.
virtual void	movePoints (const Field< point_type > &)
	Inherit movePoints from primitivePatch.
Protected Member Functions inherited from UList< face >
void	setAddressableSize (const label n) noexcept
	Set addressed size to be inconsistent with allocated storage.
void	size (const label n)
	Older name for setAddressableSize.
void	writeEntry (Ostream &os) const
	Write the UList with its compound type.
labelRange	validateRange (const labelRange &requestedRange) const
	Return a validated (start,size) subset range, which means that it always addresses a valid section of the list.
void	fill_uniform (const face &val)
	Assign all entries to the given value.
void	fill_uniform (Foam::zero)
	Assign all entries to zero.
Protected Member Functions inherited from mappedPatchBase
bool	addWorldConnection ()
	Add a world-world connection.
label	getWorldCommunicator () const
	Get the communicator for the world-world connection.
const polyMesh &	lookupMesh (const word &region) const
	Lookup mesh.
const polyPatch &	lookupPatch (const word &sampleRegion, const word &samplePatch) const
	Lookup patch.
tmp< pointField >	facePoints (const polyPatch &) const
	Get the points from face-centre-decomposition face centres and project them onto the face-diagonal-decomposition triangles.
void	collectSamples (const label mySampleWorld, const pointField &facePoints, pointField &samples, labelList &patchFaceWorlds, labelList &patchFaceProcs, labelList &patchFaces, pointField &patchFc) const
	Collect single list of samples and originating processor+face + wanted world.
void	findLocalSamples (const sampleMode mode, const label sampleWorld, const word &sampleRegion, const word &samplePatch, const pointField &samplePoints, List< nearInfoWorld > &nearest) const
	Find (local) cells/faces containing samples.
void	findSamples (const sampleMode mode, const label myWorldIndex, const pointField &, const labelList &wantedWorlds, const labelList &origProcs, labelList &sampleProcs, labelList &sampleIndices, pointField &sampleLocations) const
	Find (global) cells/faces containing samples.
tmp< pointField >	samplePoints (const pointField &) const
	Get the sample points given the face points.
void	calcMapping () const
	Calculate mapping.
void	calcAMI () const
	Calculate AMI interpolator.

Additional Inherited Members
Public Types inherited from PrimitivePatch< SubList< face >, const pointField & >
enum	surfaceTopo
	Enumeration defining the surface type. Used in check routines. More...
typedef std::remove_reference< SubList< face > >::type::value_type	face_type
	The face type.
typedef std::remove_reference< const pointField & >::type::value_type	point_type
	The point type.
typedef SubList< face >	FaceListType
	The face list type.
typedef const pointField &	PointFieldType
	The point field type.
typedef face_type	FaceType
	Deprecated(2020-03) prefer face_type typedef.
Public Types inherited from UList< face >
typedef face	value_type
	The value type the list contains.
typedef face *	pointer
	The pointer type for non-const access to value_type items.
typedef const face *	const_pointer
	The pointer type for const access to value_type items.
typedef face &	reference
	The type used for storing into value_type objects.
typedef const face &	const_reference
	The type used for reading from constant value_type objects.
typedef face *	iterator
	Random access iterator for traversing a UList.
typedef const face *	const_iterator
	Random access iterator for traversing a UList.
typedef label	size_type
	The type to represent the size of a UList.
typedef label	difference_type
	The difference between iterator objects.
typedef std::reverse_iterator< iterator >	reverse_iterator
	Reverse iterator (non-const access).
typedef std::reverse_iterator< const_iterator >	const_reverse_iterator
	Reverse iterator (const access).
using	is_List
	Have unique tag.
Public Types inherited from mappedPatchBase
enum	sampleMode { NEARESTCELL , NEARESTPATCHFACE , NEARESTPATCHFACEAMI , NEARESTPATCHPOINT , NEARESTFACE , NEARESTONLYCELL }
	Mesh items to sample. More...
enum	offsetMode { UNIFORM , NONUNIFORM , NORMAL }
	How to project face centres. More...
typedef Tuple2< pointIndexHit, Tuple2< scalar, label > >	nearInfo
	Helper class for finding nearest.
typedef Tuple2< nearInfo, label >	nearInfoWorld
	nearest + world
Static Public Member Functions inherited from polyPatch
static autoPtr< polyPatch >	New (const word &patchType, const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm)
	Return pointer to a new patch created on freestore from components.
static autoPtr< polyPatch >	New (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm)
	Return pointer to a new patch created on freestore from dictionary.
static autoPtr< polyPatch >	New (const word &patchType, const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm)
	Return pointer to a new patch created on freestore from dictionary.
static bool	constraintType (const word &patchType)
	Return true if the given type is a constraint type.
static wordList	constraintTypes ()
	Return a list of all the constraint patch types.
Static Public Member Functions inherited from patchIdentifier
static word	defaultName (const label n=-1)
	Default patch name: "patch" or "patchN".
Static Public Member Functions inherited from SubList< face >
static const SubList< face > &	null () noexcept
	Return a null SubList (reference to a nullObject). Behaves like an empty SubList.
Static Public Member Functions inherited from UList< face >
static const UList< face > &	null () noexcept
	Return a null UList (reference to a nullObject). Behaves like an empty UList.
static constexpr label	max_size () noexcept
	The size of the largest possible UList.
Static Public Member Functions inherited from mappedPatchBase
static pointIndexHit	facePoint (const polyMesh &, const label facei, const polyMesh::cellDecomposition)
	Get a point on the face given a face decomposition method:
static fileName	sendPath (const fileName &root, const label proci)
	Helper: return path to store data to be sent to processor i.
static fileName	receivePath (const fileName &root, const label proci)
	Helper: return path to store data to be received from processor i.
static FOAM_NO_DANGLING_REFERENCE const objectRegistry &	subRegistry (const objectRegistry &obr, const fileName &path)
	Lookup (sub)objectRegistry from '/' separated path (relative to objectRegistry). Creates non-existing intermediate ones.
template<class Type>
static void	storeField (objectRegistry &obr, const word &fieldName, const Field< Type > &values)
	Store an IOField on the objectRegistry relative to obr.
static void	writeDict (const objectRegistry &obr, dictionary &dict)
	Convert objectRegistry contents into dictionary.
static void	readDict (const dictionary &d, objectRegistry &obr)
	(recursively) construct and register IOFields from dictionary
Static Public Attributes inherited from polyPatch
static int	disallowGenericPolyPatch
	Debug switch to disallow the use of genericPolyPatch.
Static Public Attributes inherited from mappedPatchBase
static const Enum< sampleMode >	sampleModeNames_
static const Enum< offsetMode >	offsetModeNames_
Static Protected Member Functions inherited from mappedPatchBase
static autoPtr< fileName >	readDatabase (const dictionary &dict)
	Read optional database name from dictionary.
static FOAM_NO_DANGLING_REFERENCE const objectRegistry &	subRegistry (const objectRegistry &obr, const wordList &names, const label index)
	Lookup (sub)objectRegistry by following names of sub registries. Creates non-existing intermediate ones.
template<class Type>
static bool	writeIOField (const regIOobject &obj, dictionary &dict)
	Attempt to detect an IOField<Type> and write to dictionary.
template<class Type>
static bool	constructIOField (const word &name, token &tok, Istream &is, objectRegistry &obr)
	Attempt to read an IOField<Type> and store on objectRegistry.
Protected Attributes inherited from mappedPatchBase
const polyPatch &	patch_
	Patch to sample.
word	sampleWorld_
	World to sample.
word	sampleRegion_
	Region to sample.
const sampleMode	mode_
	What to sample.
word	samplePatch_
	Patch (if in sampleMode NEARESTPATCH*).
const coupleGroupIdentifier	coupleGroup_
	PatchGroup (if in sampleMode NEARESTPATCH*).
const autoPtr< fileName >	sampleDatabasePtr_
	Empty or location of database.
offsetMode	offsetMode_
	How to obtain samples.
vector	offset_
	Offset vector (uniform).
vectorField	offsets_
	Offset vector (nonuniform).
scalar	distance_
	Offset distance (normal).
label	communicator_
	Communicator.
bool	sameRegion_
	Same region.
autoPtr< mapDistribute >	mapPtr_
	Communication schedule:
const bool	AMIReverse_
	Flag to indicate that slave patch should be reversed for AMI.
autoPtr< AMIPatchToPatchInterpolation >	AMIPtr_
	Pointer to AMI interpolator.
autoPtr< searchableSurface >	surfPtr_
	Pointer to projection surface employed by AMI interpolator.
dictionary	surfDict_
	Dictionary storing projection surface description.
autoPtr< uniformDimensionedScalarField >	updateMeshTimePtr_
	Local mesh update time.
autoPtr< uniformDimensionedScalarField >	updateSampleMeshTimePtr_
	Sample mesh update time.

Detailed Description

Determines a mapping between patch face centres and mesh cell or face centres and processors they're on.

Note: Storage is not optimal. It stores all face centres and cells on all processors to keep the addressing calculation simple.

Source files

Definition at line 55 of file mappedPolyPatch.H.

Constructor & Destructor Documentation

◆ mappedPolyPatch() [1/7]

mappedPolyPatch	(	const word &	name,
		const label	size,
		const label	start,
		const label	index,
		const polyBoundaryMesh &	bm,
		const word &	patchType )

Construct from components.

Definition at line 38 of file mappedPolyPatch.C.

References patchIdentifier::addGroup(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, patchIdentifier::index(), mappedPatchBase::mappedPatchBase(), Foam::name(), polyPatch::polyBoundaryMesh, polyPatch::polyPatch(), UList< face >::size(), and polyPatch::start().

Referenced by clone(), clone(), clone(), mappedPolyPatch(), mappedPolyPatch(), mappedPolyPatch(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mappedPolyPatch() [2/7]

mappedPolyPatch	(	const word &	name,
		const label	size,
		const label	start,
		const label	index,
		const word &	sampleRegion,
		const mappedPatchBase::sampleMode	mode,
		const word &	samplePatch,
		const vectorField &	offset,
		const polyBoundaryMesh &	bm )

Construct from components.

Definition at line 56 of file mappedPolyPatch.C.

References Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, patchIdentifier::index(), mappedPatchBase::mappedPatchBase(), mappedPatchBase::mode(), Foam::name(), mappedPatchBase::offset(), polyPatch::polyBoundaryMesh, polyPatch::polyPatch(), mappedPatchBase::samplePatch(), mappedPatchBase::sampleRegion(), UList< face >::size(), and polyPatch::start().

Here is the call graph for this function:

◆ mappedPolyPatch() [3/7]

mappedPolyPatch	(	const word &	name,
		const label	size,
		const label	start,
		const label	index,
		const word &	sampleRegion,
		const mappedPatchBase::sampleMode	mode,
		const word &	samplePatch,
		const vector &	offset,
		const polyBoundaryMesh &	bm )

Construct from components. Uniform offset.

Definition at line 81 of file mappedPolyPatch.C.

References Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, patchIdentifier::index(), mappedPatchBase::mappedPatchBase(), mappedPatchBase::mode(), Foam::name(), mappedPatchBase::offset(), polyPatch::polyBoundaryMesh, polyPatch::polyPatch(), mappedPatchBase::samplePatch(), mappedPatchBase::sampleRegion(), UList< face >::size(), and polyPatch::start().

Here is the call graph for this function:

◆ mappedPolyPatch() [4/7]

mappedPolyPatch	(	const word &	name,
		const dictionary &	dict,
		const label	index,
		const polyBoundaryMesh &	bm,
		const word &	patchType )

Construct from dictionary.

Definition at line 106 of file mappedPolyPatch.C.

References patchIdentifier::addGroup(), dict, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, patchIdentifier::index(), mappedPatchBase::mappedPatchBase(), Foam::name(), polyPatch::polyBoundaryMesh, and polyPatch::polyPatch().

Here is the call graph for this function:

◆ mappedPolyPatch() [5/7]

mappedPolyPatch	(	const mappedPolyPatch &	pp,
		const polyBoundaryMesh &	bm )

Construct as copy, resetting the boundary mesh.

Definition at line 123 of file mappedPolyPatch.C.

References mappedPatchBase::mappedPatchBase(), mappedPolyPatch(), polyPatch::polyBoundaryMesh, polyPatch::polyPatch(), and pp().

Here is the call graph for this function:

◆ mappedPolyPatch() [6/7]

mappedPolyPatch	(	const mappedPolyPatch &	pp,
		const polyBoundaryMesh &	bm,
		const label	index,
		const label	newSize,
		const label	newStart )

Construct given the original patch and resetting the.

face list and boundary mesh information

Definition at line 134 of file mappedPolyPatch.C.

References patchIdentifier::index(), mappedPatchBase::mappedPatchBase(), mappedPolyPatch(), polyPatch::polyBoundaryMesh, polyPatch::polyPatch(), and pp().

Here is the call graph for this function:

◆ mappedPolyPatch() [7/7]

mappedPolyPatch	(	const mappedPolyPatch &	pp,
		const polyBoundaryMesh &	bm,
		const label	index,
		const labelUList &	mapAddressing,
		const label	newStart )

Construct given the original patch and a map.

Definition at line 148 of file mappedPolyPatch.C.

References patchIdentifier::index(), mappedPatchBase::mappedPatchBase(), mappedPolyPatch(), polyPatch::polyBoundaryMesh, polyPatch::polyPatch(), and pp().

Here is the call graph for this function:

◆ ~mappedPolyPatch()

~mappedPolyPatch ( )

virtual

Destructor.

Definition at line 164 of file mappedPolyPatch.C.

Member Function Documentation

◆ initGeometry()

void initGeometry ( PstreamBuffers & pBufs )

protectedvirtual

Initialise the calculation of the patch geometry.

Reimplemented from polyPatch.

Definition at line 170 of file mappedPolyPatch.C.

References mappedPatchBase::initGeometry(), and polyPatch::initGeometry().

Here is the call graph for this function:

◆ calcGeometry()

void calcGeometry ( PstreamBuffers & pBufs )

protectedvirtual

Calculate the patch geometry.

Reimplemented from polyPatch.

Definition at line 177 of file mappedPolyPatch.C.

References mappedPatchBase::calcGeometry(), and polyPatch::calcGeometry().

Here is the call graph for this function:

◆ initMovePoints()

void initMovePoints	(	PstreamBuffers &	pBufs,
		const pointField &	p )

protectedvirtual

Initialise the patches for moving points.

Reimplemented from polyPatch.

Definition at line 184 of file mappedPolyPatch.C.

References mappedPatchBase::initMovePoints(), polyPatch::initMovePoints(), and p.

Here is the call graph for this function:

◆ movePoints()

void movePoints	(	PstreamBuffers &	pBufs,
		const pointField &	p )

protectedvirtual

Correct patches after moving points.

Reimplemented from polyPatch.

Definition at line 195 of file mappedPolyPatch.C.

References mappedPatchBase::movePoints(), polyPatch::movePoints(), and p.

Here is the call graph for this function:

◆ initUpdateMesh()

void initUpdateMesh ( PstreamBuffers & pBufs )

protectedvirtual

Initialise the update of the patch topology.

Reimplemented from polyPatch.

Definition at line 206 of file mappedPolyPatch.C.

References mappedPatchBase::initUpdateMesh(), and polyPatch::initUpdateMesh().

Here is the call graph for this function:

◆ updateMesh()

void updateMesh ( PstreamBuffers & pBufs )

protectedvirtual

Update of the patch topology.

Reimplemented from polyPatch.

Definition at line 213 of file mappedPolyPatch.C.

References mappedPatchBase::updateMesh(), and polyPatch::updateMesh().

Here is the call graph for this function:

◆ TypeName()

TypeName ( "mappedPatch" )

Runtime type information.

References dict, patchIdentifier::index(), mappedPolyPatch(), mappedPatchBase::mode(), Foam::name(), mappedPatchBase::offset(), polyPatch::polyBoundaryMesh, pp(), mappedPatchBase::samplePatch(), mappedPatchBase::sampleRegion(), UList< face >::size(), and polyPatch::start().

Here is the call graph for this function:

◆ clone() [1/3]

virtual autoPtr< polyPatch > clone ( const polyBoundaryMesh & bm ) const

inlinevirtual

Construct and return a clone, resetting the boundary mesh.

Reimplemented from polyPatch.

Definition at line 199 of file mappedPolyPatch.H.

References mappedPolyPatch(), and polyPatch::polyBoundaryMesh.

Here is the call graph for this function:

◆ clone() [2/3]

virtual autoPtr< polyPatch > clone	(	const polyBoundaryMesh &	bm,
		const label	index,
		const label	newSize,
		const label	newStart ) const

inlinevirtual

Construct and return a clone, resetting the face list.

and boundary mesh

Reimplemented from polyPatch.

Definition at line 209 of file mappedPolyPatch.H.

References patchIdentifier::index(), mappedPolyPatch(), and polyPatch::polyBoundaryMesh.

Here is the call graph for this function:

◆ clone() [3/3]

virtual autoPtr< polyPatch > clone	(	const polyBoundaryMesh &	bm,
		const label	index,
		const labelUList &	mapAddressing,
		const label	newStart ) const

inlinevirtual

Construct and return a clone, resetting the face list.

and boundary mesh

Reimplemented from polyPatch.

Definition at line 228 of file mappedPolyPatch.H.

References patchIdentifier::index(), mappedPolyPatch(), and polyPatch::polyBoundaryMesh.

Here is the call graph for this function:

◆ newInternalProcFaces()

virtual void newInternalProcFaces	(	label &	iFaces,
		label &	pFaces ) const

inlinevirtual

Return number of new internal of this polyPatch faces.

Reimplemented from polyPatch.

Definition at line 254 of file mappedPolyPatch.H.

References mappedPatchBase::lookupPatch(), Foam::max(), mappedPatchBase::patch_, pFaces, mappedPatchBase::samplePatch_, mappedPatchBase::sampleRegion_, and UList< T >::size().

Here is the call graph for this function:

◆ nbrCells()

virtual const labelUList & nbrCells ( ) const

inlinevirtual

Return nbrCells.

Reimplemented from polyPatch.

Definition at line 270 of file mappedPolyPatch.H.

References polyPatch::faceCells(), mappedPatchBase::lookupPatch(), mappedPatchBase::samplePatch_, and mappedPatchBase::sampleRegion_.

Here is the call graph for this function:

◆ neighbPolyPatchID()

virtual label neighbPolyPatchID ( ) const

inlinevirtual

Return nbr patch ID.

Reimplemented from polyPatch.

Definition at line 278 of file mappedPolyPatch.H.

References patchIdentifier::index(), mappedPatchBase::lookupPatch(), mappedPatchBase::samplePatch_, and mappedPatchBase::sampleRegion_.

Here is the call graph for this function:

◆ mapCollocatedFaces()

virtual refPtr< labelListList > mapCollocatedFaces ( ) const

inlinevirtual

Return collocated faces map.

Reimplemented from polyPatch.

Definition at line 286 of file mappedPolyPatch.H.

References forAll, mappedPatchBase::map(), mappedPatchBase::patch_, refPtr< T >::ref(), and List< T >::setSize().

Here is the call graph for this function:

◆ masterImplicit()

virtual bool masterImplicit ( ) const

inlinevirtual

Return implicit master.

Reimplemented from polyPatch.

Definition at line 302 of file mappedPolyPatch.H.

References mappedPatchBase::owner().

Here is the call graph for this function:

◆ neighbRegionID()

virtual word neighbRegionID ( ) const

inlinevirtual

Return neigh region ID.

Reimplemented from polyPatch.

Definition at line 310 of file mappedPolyPatch.H.

References mappedPatchBase::sampleRegion_.

◆ write()

void write ( Ostream & os ) const

virtual

Write the polyPatch data as a dictionary.

Reimplemented from polyPatch.

Definition at line 220 of file mappedPolyPatch.C.

References os(), mappedPatchBase::write(), and polyPatch::write().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/meshTools/mappedPatches/mappedPolyPatch/mappedPolyPatch.H
src/meshTools/mappedPatches/mappedPolyPatch/mappedPolyPatch.C

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ mappedPolyPatch() [1/7]

◆ mappedPolyPatch() [2/7]

◆ mappedPolyPatch() [3/7]

◆ mappedPolyPatch() [4/7]

◆ mappedPolyPatch() [5/7]

◆ mappedPolyPatch() [6/7]

◆ mappedPolyPatch() [7/7]

◆ ~mappedPolyPatch()

Member Function Documentation

◆ initGeometry()

◆ calcGeometry()

◆ initMovePoints()

◆ movePoints()

◆ initUpdateMesh()

◆ updateMesh()

◆ TypeName()

◆ clone() [1/3]

◆ clone() [2/3]

◆ clone() [3/3]

◆ newInternalProcFaces()

◆ nbrCells()

◆ neighbPolyPatchID()

◆ mapCollocatedFaces()

◆ masterImplicit()

◆ neighbRegionID()

◆ write()
