Displacement follows a triSurface. Use in a displacementMotionSolver as a bc on the pointDisplacement field. Following is done by calculating the projection onto the surface according to the projectMode. More...

#include <surfaceSlipDisplacementPointPatchVectorField.H>

Inheritance diagram for surfaceSlipDisplacementPointPatchVectorField:

[legend]

Collaboration diagram for surfaceSlipDisplacementPointPatchVectorField:

[legend]

Public Types
enum	projectMode { NEAREST , POINTNORMAL , FIXEDNORMAL }
Public Types inherited from pointPatchField< vector >
typedef pointPatch	Patch
	The patch type for the patch field.
typedef vector	value_type
	The value_type for the patch field.
typedef pTraits< vector >::cmptType	cmptType
	The component type for patch field.
typedef DimensionedField< vector, pointMesh >	Internal
	The internal field type associated with the patch field.
typedef calculatedPointPatchField< vector >	Calculated
	Type for a calculated patch.

Public Member Functions
	TypeName ("surfaceSlipDisplacement")
	Runtime type information.
	surfaceSlipDisplacementPointPatchVectorField (const pointPatch &, const DimensionedField< vector, pointMesh > &)
	Construct from patch and internal field.
	surfaceSlipDisplacementPointPatchVectorField (const pointPatch &, const DimensionedField< vector, pointMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	surfaceSlipDisplacementPointPatchVectorField (const surfaceSlipDisplacementPointPatchVectorField &, const pointPatch &, const DimensionedField< vector, pointMesh > &, const pointPatchFieldMapper &)
	Construct by mapping given patch field onto a new patch.
	surfaceSlipDisplacementPointPatchVectorField (const surfaceSlipDisplacementPointPatchVectorField &, const DimensionedField< vector, pointMesh > &)
	Copy construct with internal field reference.
	surfaceSlipDisplacementPointPatchVectorField (const surfaceSlipDisplacementPointPatchVectorField &pfld)
	Copy construct.
virtual autoPtr< pointPatchField< vector > >	clone () const
	Return a clone.
virtual autoPtr< pointPatchField< vector > >	clone (const DimensionedField< vector, pointMesh > &iF) const
	Construct and return a clone setting internal field reference.
const searchableSurfaces &	surfaces () const
	Surface to follow. Demand loads surfaceNames.

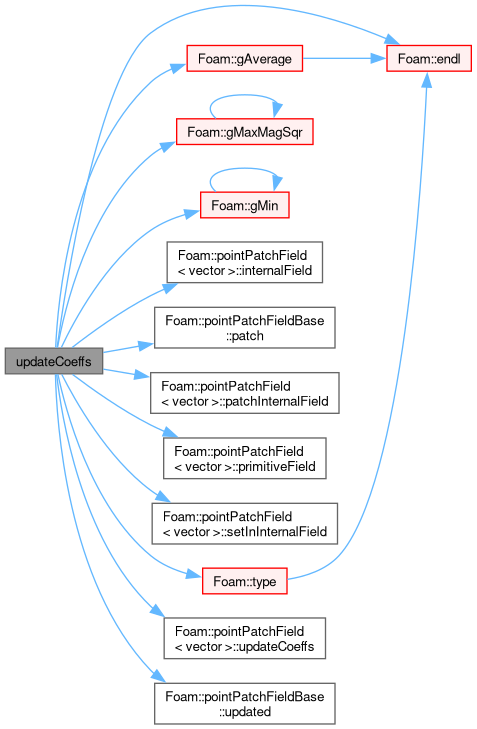

virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	write (Ostream &) const
	Write.
Public Member Functions inherited from pointPatchField< vector >
	declareRunTimeSelectionTable (autoPtr, pointPatchField, patch,(const pointPatch &p, const DimensionedField< vector, pointMesh > &iF),(p, iF))
	declareRunTimeSelectionTable (autoPtr, pointPatchField, patchMapper,(const pointPatchField< vector > &ptf, const pointPatch &p, const DimensionedField< vector, pointMesh > &iF, const pointPatchFieldMapper &m),(dynamic_cast< const pointPatchFieldType & >(ptf), p, iF, m))
	declareRunTimeSelectionTable (autoPtr, pointPatchField, dictionary,(const pointPatch &p, const DimensionedField< vector, pointMesh > &iF, const dictionary &dict),(p, iF, dict))
	pointPatchField (const pointPatch &, const DimensionedField< vector, pointMesh > &)
	Construct from patch and internal field.
	pointPatchField (const pointPatch &, const DimensionedField< vector, pointMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	pointPatchField (const pointPatchField< vector > &, const pointPatch &, const DimensionedField< vector, pointMesh > &, const pointPatchFieldMapper &)
	Construct by mapping given patch field onto a new patch.
	pointPatchField (const pointPatchField< vector > &pfld, const pointPatch &p, const DimensionedField< vector, pointMesh > &iF, const vector &value)
	Copy construct onto a new patch with (unused) value.
	pointPatchField (const pointPatchField< vector > &pfld, const DimensionedField< vector, pointMesh > &iF)
	Copy construct with internal field reference.
	pointPatchField (const pointPatchField< vector > &pfld)
	Copy construct.
virtual	~pointPatchField ()=default
	Destructor.
label	size () const noexcept
	Return the patch size.
const DimensionedField< vector, pointMesh > &	internalField () const noexcept
	Return const-reference to the dimensioned internal field.
const Field< vector > &	primitiveField () const noexcept
	Return const-reference to the internal field values.
void	patchInternalField (const UList< Type1 > &internalData, const labelUList &addressing, UList< Type1 > &pfld) const
	Extract field using specified addressing.
tmp< Field< Type1 > >	patchInternalField (const UList< Type1 > &internalData, const labelUList &addressing) const
	Return field created from selected internal field values given internal field reference.
tmp< Field< Type1 > >	patchInternalField (const UList< Type1 > &internalData) const
	Return field created from appropriate internal field values given internal field reference.
tmp< Field< vector > >	patchInternalField () const
	Return field created from appropriate internal field values.
void	addToInternalField (Field< Type1 > &iF, const Field< Type1 > &pF) const
	Given the internal field and a patch field, add the patch field to the internal field.
void	addToInternalField (Field< Type1 > &iF, const Field< Type1 > &pF, const labelUList &points) const
	Given the internal field and a patch field, add selected elements of the patch field to the internal field.
void	setInInternalField (Field< Type1 > &iF, const Field< Type1 > &pF, const labelUList &meshPoints) const
	Given the internal field and a patch field, set the patch field in the internal field.
void	setInInternalField (Field< Type1 > &iF, const Field< Type1 > &pF) const
	Given the internal field and a patch field, set the patch field in the internal field.
virtual void	autoMap (const pointPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const pointPatchField< vector > &, const labelList &)
	Reverse map the given pointPatchField onto this pointPatchField.
virtual void	initEvaluate (const Pstream::commsTypes commsType=Pstream::commsTypes::buffered)
	Initialise evaluation of the patch field (do nothing).
virtual void	evaluate (const Pstream::commsTypes commsType=Pstream::commsTypes::buffered)
	Evaluate the patch field, sets updated() to false.
virtual void	initEvaluateLocal (const Pstream::commsTypes commsType=Pstream::commsTypes::buffered)
	Initialise the evaluation of the patch field after a local operation.
virtual void	evaluateLocal (const Pstream::commsTypes commsType=Pstream::commsTypes::buffered)
	Evaluate the patch field after a local operation (e.g. *=).
virtual void	operator= (const pointPatchField< vector > &)
virtual void	operator+= (const pointPatchField< vector > &)
virtual void	operator-= (const pointPatchField< vector > &)
virtual void	operator*= (const pointPatchField< scalar > &)
virtual void	operator/= (const pointPatchField< scalar > &)
virtual void	operator= (const Field< vector > &)
virtual void	operator+= (const Field< vector > &)
virtual void	operator-= (const Field< vector > &)
virtual void	operator*= (const Field< scalar > &)
virtual void	operator/= (const Field< scalar > &)
virtual void	operator= (const vector &)
virtual void	operator+= (const vector &)
virtual void	operator-= (const vector &)
virtual void	operator*= (const scalar)
virtual void	operator/= (const scalar)
virtual void	operator== (const pointPatchField< vector > &)
virtual void	operator== (const Field< vector > &)
virtual void	operator== (const vector &)
bool	operator!= (const pointPatchField< vector > &) const=delete
bool	operator!= (const Field< vector > &) const=delete
bool	operator!= (const vector &) const=delete
void	negate ()
	Negate the field inplace. Dummy placeholder for FieldField.
void	normalise ()
	Normalise the field inplace. Dummy placeholder for FieldField.
Foam::autoPtr< Foam::pointPatchField< vector > >	NewCalculatedType (const pointPatchField< AnyType > &pf)
Foam::tmp< Foam::Field< Type1 > >	patchInternalField (const UList< Type1 > &internalData, const labelUList &addressing) const
Foam::tmp< Foam::Field< Type1 > >	patchInternalField (const UList< Type1 > &internalData) const
Public Member Functions inherited from pointPatchFieldBase
	TypeName ("pointPatchField")
	Runtime type information.
	pointPatchFieldBase (const pointPatch &p)
	Construct from patch.
	pointPatchFieldBase (const pointPatch &p, const word &patchType)
	Construct from patch and patch type.
	pointPatchFieldBase (const pointPatch &p, const dictionary &dict)
	Construct from patch and dictionary.
	pointPatchFieldBase (const pointPatchFieldBase &, const pointPatch &p)
	Copy construct with new patch.
	pointPatchFieldBase (const pointPatchFieldBase &)
	Copy construct.
virtual	~pointPatchFieldBase ()=default
	Destructor.
virtual bool	assignable () const
	True if the value of the patch field is altered by assignment.
virtual bool	fixesValue () const
	True if the patch field fixes a value.
virtual bool	coupled () const
	True if the patch field is coupled.
virtual const word &	constraintType () const
	The constraint type the pointPatchField implements.
const objectRegistry &	db () const
	The associated objectRegistry.
const pointPatch &	patch () const noexcept
	Return the patch.
const word &	patchType () const noexcept
	The optional patch type.
word &	patchType () noexcept
	The optional patch type.
virtual bool	constraintOverride () const
	True if the type does not correspond to the constraint type.
bool	updated () const noexcept
	True if the boundary condition has already been updated.
void	setUpdated (bool state) noexcept
	Set updated state.
bool	manipulatedMatrix () const noexcept
	True if the matrix has already been manipulated. Currently always false for pointPatchField.
void	setManipulated (bool state) noexcept
	Set matrix manipulated state. Currently a no-op for pointPatchField.
void	checkPatch (const pointPatchFieldBase &rhs) const
	Check that patches are identical.

Additional Inherited Members
Static Public Member Functions inherited from pointPatchField< vector >
static autoPtr< pointPatchField< vector > >	Clone (const DerivedPatchField &pf, Args &&... args)
	Clone a patch field, optionally with internal field reference etc.
static autoPtr< pointPatchField< vector > >	New (const word &patchFieldType, const pointPatch &p, const DimensionedField< vector, pointMesh > &iF)
	Return a pointer to a new patchField created on freestore given.
static autoPtr< pointPatchField< vector > >	New (const word &patchFieldType, const word &actualPatchType, const pointPatch &p, const DimensionedField< vector, pointMesh > &iF)
	Return a pointer to a new patchField created on freestore given.
static autoPtr< pointPatchField< vector > >	New (const pointPatchField< vector > &, const pointPatch &, const DimensionedField< vector, pointMesh > &, const pointPatchFieldMapper &)
	Return a pointer to a new patchField created on freestore from.
static autoPtr< pointPatchField< vector > >	New (const pointPatch &, const DimensionedField< vector, pointMesh > &, const dictionary &)
	Return a pointer to a new patchField created on freestore.
static autoPtr< pointPatchField< vector > >	NewCalculatedType (const pointPatch &p)
	Return a pointer to a new calculatedPointPatchField created on.
static autoPtr< pointPatchField< vector > >	NewCalculatedType (const pointPatchField< AnyType > &pf)
	Return a pointer to a new calculatedPointPatchField created on.
Static Public Member Functions inherited from pointPatchFieldBase
static const word &	emptyType () noexcept
	The type name for `empty` patch fields.
static const word &	calculatedType () noexcept
	The type name for `calculated` patch fields.
static const word &	zeroGradientType () noexcept
	The type name for `zeroGradient` patch fields.
static const word &	zeroValueType () noexcept
	The type name for `zeroValue` patch fields.
Static Public Attributes inherited from pointPatchFieldBase
static int	disallowGenericPatchField
	Debug switch to disallow the use of generic pointPatchField.
Protected Member Functions inherited from pointPatchFieldBase
virtual void	readDict (const dictionary &dict)
	Read dictionary entries.

Detailed Description

Displacement follows a triSurface. Use in a displacementMotionSolver as a bc on the pointDisplacement field. Following is done by calculating the projection onto the surface according to the projectMode.

NEAREST : nearest
POINTNORMAL : intersection with point normal
FIXEDNORMAL : intersection with fixed vector

Optionally (intersection only) removes a component ("wedgePlane") to stay in 2D.

Needs:

geometry : dictionary with searchableSurfaces. (usually triSurfaceMeshes in constant/triSurface)
projectMode : see above
projectDirection : if projectMode = fixedNormal
wedgePlane : -1 or component to knock out of intersection normal
frozenPointsZone : empty or name of pointZone containing points that do not move
scale : optional scaling factor as PatchFunction1. Note that this is only supported for polyPatch-derived pointPatches ('facePointPatch') and not for stand-alone pointPatches.

Source files

Definition at line 71 of file surfaceSlipDisplacementPointPatchVectorField.H.

Member Enumeration Documentation

◆ projectMode

enum projectMode

Enumerator
NEAREST
POINTNORMAL
FIXEDNORMAL

Definition at line 79 of file surfaceSlipDisplacementPointPatchVectorField.H.

Constructor & Destructor Documentation

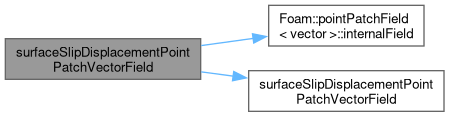

◆ surfaceSlipDisplacementPointPatchVectorField() [1/5]

surfaceSlipDisplacementPointPatchVectorField	(	const pointPatch &	p,
		const DimensionedField< vector, pointMesh > &	iF )

Construct from patch and internal field.

Definition at line 298 of file surfaceSlipDisplacementPointPatchVectorField.C.

References NEAREST, p, and Foam::Zero.

Referenced by surfaceSlipDisplacementPointPatchVectorField(), surfaceSlipDisplacementPointPatchVectorField(), surfaceSlipDisplacementPointPatchVectorField(), and TypeName().

Here is the caller graph for this function:

◆ surfaceSlipDisplacementPointPatchVectorField() [2/5]

surfaceSlipDisplacementPointPatchVectorField	(	const pointPatch &	p,
		const DimensionedField< vector, pointMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 312 of file surfaceSlipDisplacementPointPatchVectorField.C.

References dict, FIXEDNORMAL, Foam::isA(), PatchFunction1< Type >::NewIfPresent(), p, pointPatchFieldBase::patch(), and Foam::Zero.

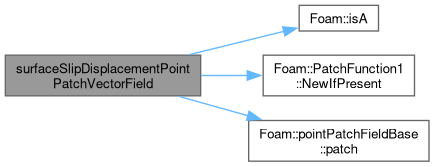

Here is the call graph for this function:

◆ surfaceSlipDisplacementPointPatchVectorField() [3/5]

surfaceSlipDisplacementPointPatchVectorField	(	const surfaceSlipDisplacementPointPatchVectorField &	ppf,
		const pointPatch &	p,
		const DimensionedField< vector, pointMesh > &	iF,
		const pointPatchFieldMapper &	)

Construct by mapping given patch field onto a new patch.

Definition at line 347 of file surfaceSlipDisplacementPointPatchVectorField.C.

References Foam::isA(), p, pointPatchFieldBase::patch(), and surfaceSlipDisplacementPointPatchVectorField().

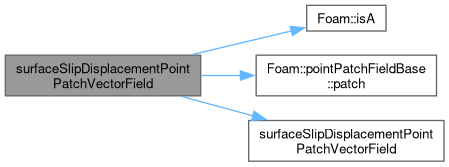

Here is the call graph for this function:

◆ surfaceSlipDisplacementPointPatchVectorField() [4/5]

surfaceSlipDisplacementPointPatchVectorField	(	const surfaceSlipDisplacementPointPatchVectorField &	ppf,
		const DimensionedField< vector, pointMesh > &	iF )
