Write an OpenFOAM volume (internal) geometry and internal fields as a vtu file or a legacy vtk file. More...

#include <foamVtkInternalMeshWriter.H>

Inheritance diagram for internalMeshWriter:

[legend]

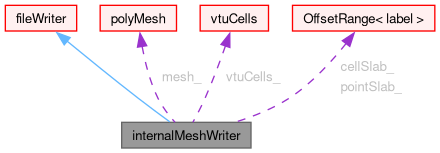

Collaboration diagram for internalMeshWriter:

[legend]

Public Member Functions
	internalMeshWriter (const internalMeshWriter &)=delete
	File extension for given output type.
void	operator= (const internalMeshWriter &)=delete
	No copy assignment.
	internalMeshWriter (const polyMesh &mesh, const vtk::vtuCells &cells, const vtk::outputOptions opts=vtk::formatType::INLINE_BASE64)
	Construct from components (default format INLINE_BASE64),.
	internalMeshWriter (const polyMesh &mesh, const vtk::vtuCells &cells, const fileName &file, bool parallel=UPstream::parRun())
	Construct from components (default format INLINE_BASE64),.
	internalMeshWriter (const polyMesh &mesh, const vtk::vtuCells &cells, const vtk::outputOptions opts, const fileName &file, bool parallel=UPstream::parRun())
	Construct from components (default format INLINE_BASE64),.
virtual	~internalMeshWriter ()=default
	Destructor.
virtual bool	beginFile (std::string title="")
	Write file header (non-collective).
virtual bool	writeGeometry ()
	Write mesh topology.
virtual bool	beginCellData (label nFields=0)
	Begin CellData output section for specified number of fields.
virtual bool	beginPointData (label nFields=0)
	Begin PointData for specified number of fields.
void	writeCellIDs ()
	Write cell ids as CellData.
bool	writeProcIDs ()
	Write processor ids as CellData. This is no-op in serial.
void	writePointIDs ()
	Write point ids as PointData.
template<class Type>
void	writeUniform (const word &fieldName, const Type &val)
	Write a uniform field of Cell or Point values.
template<class Type>
void	writeCellData (const word &fieldName, const UList< Type > &field)
	Write primitive field of CellData.
template<class Type>
void	writePointData (const word &fieldName, const UList< Type > &field)
	Write primitive field of PointData.
word	ext () const
	File extension for current format type.
Public Member Functions inherited from fileWriter
	fileWriter (const vtk::fileTag contentType, const vtk::outputOptions opts)
	Construct from components.
virtual	~fileWriter ()
	Destructor.
vtk::fileTag	contentType () const noexcept
	The content type.
vtk::outputOptions	opts () const noexcept
	The output options in use.
word	ext () const
	File extension for current format type.
bool	legacy () const noexcept
	Commonly used query.
bool	parallel () const noexcept
	Parallel output requested?
const word &	state () const
	The output state in printable format.
const fileName &	output () const noexcept
	The current output file name.
virtual bool	open (const fileName &file, bool parallel=UPstream::parRun())
	Open file for writing (creates parent directory).
void	close ()
	End the file contents and close the file after writing.
bool	beginFieldData (label nFields=0)
	Begin FieldData output section for specified number of fields.
bool	isCellData () const noexcept
	True if output state corresponds to CELL_DATA.
bool	isPointData () const noexcept
	True if output state corresponds to POINT_DATA.
label	nCellData () const noexcept
	The number of CellData written for the Piece thus far.
label	nPointData () const noexcept
	The number of PointData written for the Piece thus far.
bool	endFieldData ()
	Explicitly end FieldData output and switch to DECLARED state.
bool	endCellData ()
	Explicitly end CellData output and switch to PIECE state.
bool	endPointData ()
	Explicitly end PointData output and switch to PIECE state.
void	writeTimeValue (scalar timeValue)
	Write "TimeValue" FieldData (name as per Catalyst output).

Static Public Member Functions
static word	ext (vtk::outputOptions opts)
	File extension for given output type.

Static Public Attributes
static int	debug
	Debug information.

Protected Member Functions
label	nTotalPoints () const noexcept
	Total number of field points for the current Piece.
label	nTotalCells () const noexcept
	Total number of field cells for the current Piece.
Protected Member Functions inherited from fileWriter
void	checkFormatterValidity () const
	Verify that formatter in either allocated or not required.
Ostream &	reportBadState (Ostream &, outputState expected) const
	Generate message reporting bad writer state.
Ostream &	reportBadState (Ostream &, outputState, outputState) const
	Generate message reporting bad writer state.
std::ofstream &	os () noexcept
	The backend ostream in use.
vtk::formatter &	format ()
	The VTK formatter in use. FatalError for off-processor.
bool	isState (outputState test) const noexcept
	True if output state corresponds to the test state.
bool	notState (outputState test) const noexcept
	True if output state does not correspond to the test state.
template<class Type>
void	beginDataArray (const word &fieldName, const label nValues)
	Start of a field or DataArray output (legacy or non-legacy).
void	endDataArray ()
	Flush formatter and end of DataArray output (non-legacy).
void	beginPoints (const label nPoints)
	Start of a POINTS DataArray.
void	endPoints ()
	End of a POINTS DataArray.
bool	enter_Piece ()
	Trigger change state to Piece. Resets nCellData_, nPointData_.
bool	endPiece ()
	Explicitly end Piece output and switch to DECLARED state.
bool	enter_CellData (label nEntries, label nFields)
	Trigger change state to CellData.
bool	enter_PointData (label nEntries, label nFields)
	Trigger change state to PointData.
bool	exit_File ()
	Emit file footer (end data, end piece, end file).
template<class Type>
void	writeUniform (const word &fieldName, const Type &val, const label nValues)
	Write uniform field content.
template<class Type>
void	writeBasicField (const word &fieldName, const UList< Type > &field)
	Write basic (primitive) field content.
bool	writeProcIDs (const label nValues)
	Write nValues of processor ids as CellData or PointData (no-op in serial).
	fileWriter (const fileWriter &)=delete
	No copy construct.
void	operator= (const fileWriter &)=delete
	No copy assignment.

Protected Attributes
const polyMesh &	mesh_
	Reference to the OpenFOAM mesh (or subset).
const vtk::vtuCells &	vtuCells_
	The volume cells (internalMesh).
OffsetRange< label >	pointSlab_
	Slab addressing for field points of the current Piece.
OffsetRange< label >	cellSlab_
	Slab addressing for field cells of the current Piece.
Protected Attributes inherited from fileWriter
outputState	state_
	The output state.
vtk::fileTag	contentType_
	The content type (PolyData, UnstructuredGrid ...).
bool	parallel_
	Parallel writing (via master).
vtk::outputOptions	opts_
	Requested output options.
label	nCellData_
	The number of CellData written for the Piece thus far.
label	nPointData_
	The number of PointData written for the Piece thus far.
fileName	outputFile_
	The output file name.
autoPtr< vtk::formatter >	format_
	The VTK formatter in use (only valid on master process).
std::ofstream	os_
	The backend ostream in use (only opened on master process).

Additional Inherited Members
Protected Types inherited from fileWriter
enum class	outputState : uint8_t { CLOSED = 0 , OPENED , DECLARED , FIELD_DATA , PIECE , CELL_DATA , POINT_DATA }
	Internal tracking of the output state. More...
Static Protected Attributes inherited from fileWriter
static const Enum< outputState >	stateNames
	Names for the output state (for messages, not for file output).

Detailed Description

Write an OpenFOAM volume (internal) geometry and internal fields as a vtu file or a legacy vtk file.

The file output states are managed by the Foam::vtk::fileWriter class. FieldData (eg, TimeValue) must appear before any geometry pieces.

Note: Parallel output is combined into a single Piece without point merging, which is similar to using multi-piece data sets, but allows more convenient creation as a streaming process. In the future, the duplicate points at processor connections may be addressed using ghost points.

See also: Foam::vtk::internalWriter

Source files

Definition at line 65 of file foamVtkInternalMeshWriter.H.

Constructor & Destructor Documentation

◆ internalMeshWriter() [1/4]

internalMeshWriter ( const internalMeshWriter & )

delete

File extension for given output type.

constexpr static vtk::fileTag content = vtk::fileTag::UNSTRUCTURED_GRID;

No copy construct

References internalMeshWriter().

Referenced by internalMeshWriter(), internalWriter::internalWriter(), internalWriter::internalWriter(), internalWriter::internalWriter(), and operator=().

Here is the call graph for this function:

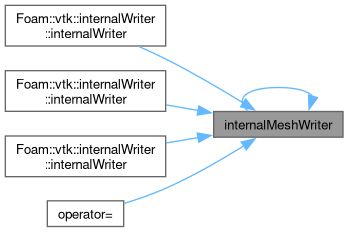

Here is the caller graph for this function:

◆ internalMeshWriter() [2/4]

internalMeshWriter	(	const polyMesh &	mesh,
		const vtk::vtuCells &	cells,
		const vtk::outputOptions	opts = vtk::formatType::INLINE_BASE64 )

Construct from components (default format INLINE_BASE64),.

References cells, Foam::vtk::INLINE_BASE64, mesh, and fileWriter::opts().

Here is the call graph for this function:

◆ internalMeshWriter() [3/4]

internalMeshWriter	(	const polyMesh &	mesh,
		const vtk::vtuCells &	cells,
		const fileName &	file,
		bool	parallel = UPstream::parRun() )

Construct from components (default format INLINE_BASE64),.

The file name is with/without an extension.

References cells, mesh, fileWriter::parallel(), and UPstream::parRun().

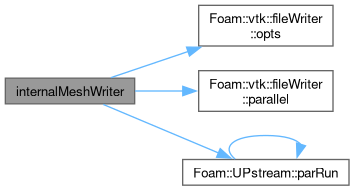

Here is the call graph for this function:

◆ internalMeshWriter() [4/4]

internalMeshWriter	(	const polyMesh &	mesh,
		const vtk::vtuCells &	cells,
		const vtk::outputOptions	opts,
		const fileName &	file,
		bool	parallel = UPstream::parRun() )

Construct from components (default format INLINE_BASE64),.

The file name is with/without an extension.

References cells, mesh, fileWriter::opts(), fileWriter::parallel(), and UPstream::parRun().

Here is the call graph for this function:

◆ ~internalMeshWriter()

virtual ~internalMeshWriter ( )

virtualdefault

Destructor.

References fileWriter::ext().

Here is the call graph for this function:

Member Function Documentation

◆ nTotalPoints()

label nTotalPoints ( ) const

inlineprotectednoexcept

Total number of field points for the current Piece.

Definition at line 99 of file foamVtkInternalMeshWriter.H.

References Foam::noexcept, and pointSlab_.

◆ nTotalCells()

label nTotalCells ( ) const

inlineprotectednoexcept

Total number of field cells for the current Piece.

Definition at line 104 of file foamVtkInternalMeshWriter.H.

References cellSlab_, and Foam::noexcept.

◆ operator=()

void operator= ( const internalMeshWriter & )

delete

No copy assignment.

References internalMeshWriter().

Here is the call graph for this function:

◆ ext() [1/2]

word ext ( vtk::outputOptions opts )

inlinestatic

File extension for given output type.

Definition at line 218 of file foamVtkInternalMeshWriter.H.

References fileWriter::opts(), and Foam::vtk::UNSTRUCTURED_GRID.

Here is the call graph for this function:

◆ beginFile()

virtual bool beginFile ( std::string title = "" )

virtual

Write file header (non-collective).

Note: Expected calling states: (OPENED)

Reimplemented from fileWriter.

◆ writeGeometry()

virtual bool writeGeometry ( )

virtual

Write mesh topology.

Also writes the file header if not previously written.

Note: Must be called prior to writing CellData or PointData

Implements fileWriter.

◆ beginCellData()

virtual bool beginCellData ( label nFields = 0 )

virtual

Begin CellData output section for specified number of fields.

Must be called prior to writing any cell data fields.

Parameters

nFields is for legacy format only. When nFields=0, this a no-op for legacy format.

Note: Expected calling states: (PIECE | POINT_DATA).

Returns: True if the state changed

Implements fileWriter.

◆ beginPointData()

virtual bool beginPointData ( label nFields = 0 )

virtual

Begin PointData for specified number of fields.

Must be called prior to writing any point data fields.

Parameters

nFields is for legacy format only. When nFields=0, this a no-op for legacy format.

Note: Expected calling states: (PIECE | CELL_DATA).

Returns: True if the state changed

Implements fileWriter.

Referenced by isoSurfaceTopo::isoSurfaceTopo().

Here is the caller graph for this function:

◆ writeCellIDs()

void writeCellIDs ( )

Write cell ids as CellData.

Must be called within the CELL_DATA state.

◆ writeProcIDs()

bool writeProcIDs ( )

Write processor ids as CellData. This is no-op in serial.

Must be called within the CELL_DATA state.

◆ writePointIDs()

void writePointIDs ( )

Write point ids as PointData.

Must be called within the POINT_DATA state.

◆ writeUniform()

template<class Type>

void writeUniform	(	const word &	fieldName,
		const Type &	val )

Write a uniform field of Cell or Point values.

◆ writeCellData()

template<class Type>

void writeCellData	(	const word &	fieldName,
		const UList< Type > &	field )

Write primitive field of CellData.

References field().

Here is the call graph for this function:

◆ writePointData()

template<class Type>

void writePointData	(	const word &	fieldName,
		const UList< Type > &	field )

Write primitive field of PointData.

References field().

Here is the call graph for this function:

◆ ext() [2/2]

Foam::word ext ( ) const

inline

File extension for current format type.

Definition at line 318 of file foamVtkFileWriterI.H.

Member Data Documentation

◆ mesh_

const polyMesh& mesh_

protected

Reference to the OpenFOAM mesh (or subset).

Definition at line 76 of file foamVtkInternalMeshWriter.H.

◆ vtuCells_

const vtk::vtuCells& vtuCells_

protected

The volume cells (internalMesh).

Definition at line 81 of file foamVtkInternalMeshWriter.H.

◆ pointSlab_

OffsetRange<label> pointSlab_

protected

Slab addressing for field points of the current Piece.

Definition at line 86 of file foamVtkInternalMeshWriter.H.

Referenced by nTotalPoints().

◆ cellSlab_

OffsetRange<label> cellSlab_

protected

Slab addressing for field cells of the current Piece.

Definition at line 91 of file foamVtkInternalMeshWriter.H.

Referenced by nTotalCells().

◆ debug

int debug

static

Debug information.

Definition at line 141 of file foamVtkInternalMeshWriter.H.

The documentation for this class was generated from the following file:

src/meshTools/output/vtk/mesh/foamVtkInternalMeshWriter.H

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ internalMeshWriter() [1/4]

◆ internalMeshWriter() [2/4]

◆ internalMeshWriter() [3/4]

◆ internalMeshWriter() [4/4]

◆ ~internalMeshWriter()

Member Function Documentation

◆ nTotalPoints()

◆ nTotalCells()

◆ operator=()

◆ ext() [1/2]

◆ beginFile()

◆ writeGeometry()

◆ beginCellData()

◆ beginPointData()

◆ writeCellIDs()

◆ writeProcIDs()

◆ writePointIDs()

◆ writeUniform()

◆ writeCellData()

◆ writePointData()

◆ ext() [2/2]

Member Data Documentation

◆ mesh_

◆ vtuCells_

◆ pointSlab_

◆ cellSlab_

◆ debug
