Write OpenFOAM patches and patch fields in VTP or legacy vtk format. More...

#include <foamVtkPatchMeshWriter.H>

Inheritance diagram for patchMeshWriter:

[legend]

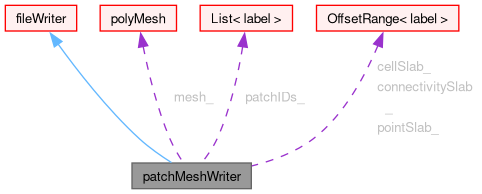

Collaboration diagram for patchMeshWriter:

[legend]

Public Member Functions
	patchMeshWriter (const patchMeshWriter &)=delete
	No copy construct.
void	operator= (const patchMeshWriter &)=delete
	No copy assignment.
	patchMeshWriter (const polyMesh &mesh, const labelUList &patchIDs, const vtk::outputOptions opts=vtk::formatType::INLINE_BASE64)
	Construct from components (default format INLINE_BASE64).
	patchMeshWriter (const polyMesh &mesh, const labelUList &patchIDs, const fileName &file, bool parallel=UPstream::parRun())
	Construct from components (default format INLINE_BASE64), and open the file for writing.
	patchMeshWriter (const polyMesh &mesh, const labelUList &patchIDs, const vtk::outputOptions opts, const fileName &file, bool parallel=UPstream::parRun())
	Construct from components and open the file for writing.
virtual	~patchMeshWriter ()=default
	Destructor.
const labelList &	patchIDs () const noexcept
	The patch IDs.
virtual bool	beginFile (std::string title="")
	Write file header (non-collective).
virtual bool	writeGeometry ()
	Write patch topology.
virtual bool	beginCellData (label nFields=0)
	Begin CellData output section for specified number of fields.
virtual bool	beginPointData (label nFields=0)
	Begin PointData for specified number of fields.
void	writePatchIDs ()
	Write patch ids as CellData.
bool	writeProcIDs ()
	Write processor ids for each line as CellData or for each point as PointData, depending on isPointData() state. No-op in serial.
bool	writeNeighIDs ()
	Write processor neighbour ids as CellData. This is no-op in serial.
template<class Type>
void	writeUniform (const word &fieldName, const Type &val)
	Write a uniform field of Cell (Face) or Point values.
word	ext () const
	File extension for current format type.
Public Member Functions inherited from fileWriter
	fileWriter (const vtk::fileTag contentType, const vtk::outputOptions opts)
	Construct from components.
virtual	~fileWriter ()
	Destructor.
vtk::fileTag	contentType () const noexcept
	The content type.
vtk::outputOptions	opts () const noexcept
	The output options in use.
word	ext () const
	File extension for current format type.
bool	legacy () const noexcept
	Commonly used query.
bool	parallel () const noexcept
	Parallel output requested?
const word &	state () const
	The output state in printable format.
const fileName &	output () const noexcept
	The current output file name.
virtual bool	open (const fileName &file, bool parallel=UPstream::parRun())
	Open file for writing (creates parent directory).
void	close ()
	End the file contents and close the file after writing.
bool	beginFieldData (label nFields=0)
	Begin FieldData output section for specified number of fields.
bool	isCellData () const noexcept
	True if output state corresponds to CELL_DATA.
bool	isPointData () const noexcept
	True if output state corresponds to POINT_DATA.
label	nCellData () const noexcept
	The number of CellData written for the Piece thus far.
label	nPointData () const noexcept
	The number of PointData written for the Piece thus far.
bool	endFieldData ()
	Explicitly end FieldData output and switch to DECLARED state.
bool	endCellData ()
	Explicitly end CellData output and switch to PIECE state.
bool	endPointData ()
	Explicitly end PointData output and switch to PIECE state.
void	writeTimeValue (scalar timeValue)
	Write "TimeValue" FieldData (name as per Catalyst output).

Static Public Member Functions
static word	ext (vtk::outputOptions opts)
	File extension for given output type.

Protected Member Functions
label	nTotalPoints () const noexcept
	Total number of field points for the current Piece.
label	nTotalCells () const noexcept
	Total number of field cells (faces) for the current Piece.
void	beginPiece ()
	Determine sizes and begin piece.
void	writePoints ()
	Write patch points.
void	writePolys_legacy ()
	Write patch faces, legacy format.
void	writePolys ()
	Write patch faces.
Protected Member Functions inherited from fileWriter
void	checkFormatterValidity () const
	Verify that formatter in either allocated or not required.
Ostream &	reportBadState (Ostream &, outputState expected) const
	Generate message reporting bad writer state.
Ostream &	reportBadState (Ostream &, outputState, outputState) const
	Generate message reporting bad writer state.
std::ofstream &	os () noexcept
	The backend ostream in use.
vtk::formatter &	format ()
	The VTK formatter in use. FatalError for off-processor.
bool	isState (outputState test) const noexcept
	True if output state corresponds to the test state.
bool	notState (outputState test) const noexcept
	True if output state does not correspond to the test state.
template<class Type>
void	beginDataArray (const word &fieldName, const label nValues)
	Start of a field or DataArray output (legacy or non-legacy).
void	endDataArray ()
	Flush formatter and end of DataArray output (non-legacy).
void	beginPoints (const label nPoints)
	Start of a POINTS DataArray.
void	endPoints ()
	End of a POINTS DataArray.
bool	enter_Piece ()
	Trigger change state to Piece. Resets nCellData_, nPointData_.
bool	endPiece ()
	Explicitly end Piece output and switch to DECLARED state.
bool	enter_CellData (label nEntries, label nFields)
	Trigger change state to CellData.
bool	enter_PointData (label nEntries, label nFields)
	Trigger change state to PointData.
bool	exit_File ()
	Emit file footer (end data, end piece, end file).
template<class Type>
void	writeUniform (const word &fieldName, const Type &val, const label nValues)
	Write uniform field content.
template<class Type>
void	writeBasicField (const word &fieldName, const UList< Type > &field)
	Write basic (primitive) field content.
bool	writeProcIDs (const label nValues)
	Write nValues of processor ids as CellData or PointData (no-op in serial).
	fileWriter (const fileWriter &)=delete
	No copy construct.
void	operator= (const fileWriter &)=delete
	No copy assignment.

Protected Attributes
const polyMesh &	mesh_
	Reference to the OpenFOAM mesh (or subset).
labelList	patchIDs_
	The selected patch ids.
OffsetRange< label >	pointSlab_
	Slab addressing for field points of the current Piece.
OffsetRange< label >	cellSlab_
	Slab addressing for field cells (faces) for the current Piece.
OffsetRange< label >	connectivitySlab_
	Slab addressing for cell (face) connectivity count, which is just the sum of the face sizes.
Protected Attributes inherited from fileWriter
outputState	state_
	The output state.
vtk::fileTag	contentType_
	The content type (PolyData, UnstructuredGrid ...).
bool	parallel_
	Parallel writing (via master).
vtk::outputOptions	opts_
	Requested output options.
label	nCellData_
	The number of CellData written for the Piece thus far.
label	nPointData_
	The number of PointData written for the Piece thus far.
fileName	outputFile_
	The output file name.
autoPtr< vtk::formatter >	format_
	The VTK formatter in use (only valid on master process).
std::ofstream	os_
	The backend ostream in use (only opened on master process).

Additional Inherited Members
Protected Types inherited from fileWriter
enum class	outputState : uint8_t { CLOSED = 0 , OPENED , DECLARED , FIELD_DATA , PIECE , CELL_DATA , POINT_DATA }
	Internal tracking of the output state. More...
Static Protected Attributes inherited from fileWriter
static const Enum< outputState >	stateNames
	Names for the output state (for messages, not for file output).

Detailed Description

Write OpenFOAM patches and patch fields in VTP or legacy vtk format.

The file output states are managed by the Foam::vtk::fileWriter class. FieldData (eg, TimeValue) must appear before any geometry pieces.

Note: Parallel output is combined into a single Piece without point merging, which is similar to using multi-piece data sets, but allows more convenient creation as a streaming process. In the future, the duplicate points at processor connections may be addressed using ghost points.

See also: Foam::vtk::patchWriter

Source files

Definition at line 63 of file foamVtkPatchMeshWriter.H.

Constructor & Destructor Documentation

◆ patchMeshWriter() [1/4]

patchMeshWriter ( const patchMeshWriter & )

delete

No copy construct.

References patchMeshWriter().

Referenced by operator=(), patchMeshWriter(), patchWriter::patchWriter(), patchWriter::patchWriter(), patchWriter::patchWriter(), and patchWriter::patchWriter().

Here is the call graph for this function:

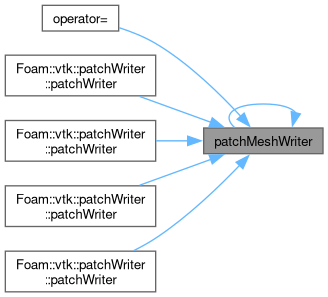

Here is the caller graph for this function:

◆ patchMeshWriter() [2/4]

patchMeshWriter	(	const polyMesh &	mesh,
		const labelUList &	patchIDs,
		const vtk::outputOptions	opts = vtk::formatType::INLINE_BASE64 )

Construct from components (default format INLINE_BASE64).

References Foam::vtk::INLINE_BASE64, mesh, fileWriter::opts(), and patchIDs().

Here is the call graph for this function:

◆ patchMeshWriter() [3/4]

patchMeshWriter	(	const polyMesh &	mesh,
		const labelUList &	patchIDs,
		const fileName &	file,
		bool	parallel = UPstream::parRun() )

Construct from components (default format INLINE_BASE64), and open the file for writing.

The file name is with/without an extension.

References mesh, fileWriter::parallel(), UPstream::parRun(), and patchIDs().

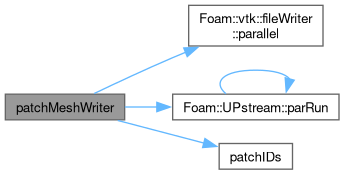

Here is the call graph for this function:

◆ patchMeshWriter() [4/4]

patchMeshWriter	(	const polyMesh &	mesh,
		const labelUList &	patchIDs,
		const vtk::outputOptions	opts,
		const fileName &	file,
		bool	parallel = UPstream::parRun() )

Construct from components and open the file for writing.

The file name is with/without an extension.

References mesh, fileWriter::opts(), fileWriter::parallel(), UPstream::parRun(), and patchIDs().

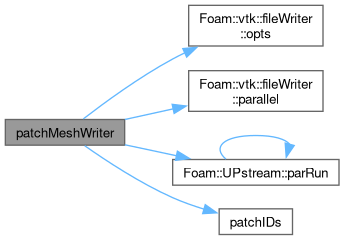

Here is the call graph for this function:

◆ ~patchMeshWriter()

virtual ~patchMeshWriter ( )

virtualdefault

Destructor.

References fileWriter::ext().

Here is the call graph for this function:

Member Function Documentation

◆ nTotalPoints()

label nTotalPoints ( ) const

inlineprotectednoexcept

Total number of field points for the current Piece.

Definition at line 103 of file foamVtkPatchMeshWriter.H.

References Foam::noexcept, and pointSlab_.

◆ nTotalCells()

label nTotalCells ( ) const

inlineprotectednoexcept

Total number of field cells (faces) for the current Piece.

Definition at line 108 of file foamVtkPatchMeshWriter.H.

References cellSlab_, and Foam::noexcept.

◆ beginPiece()

void beginPiece ( )

protected

Determine sizes and begin piece.

◆ writePoints()

void writePoints ( )

protected

Write patch points.

◆ writePolys_legacy()

void writePolys_legacy ( )

protected

Write patch faces, legacy format.

◆ writePolys()

void writePolys ( )

protected

Write patch faces.

◆ operator=()

void operator= ( const patchMeshWriter & )

delete

No copy assignment.

References patchMeshWriter().

Here is the call graph for this function:

◆ ext() [1/2]

word ext ( vtk::outputOptions opts )

inlinestatic

File extension for given output type.

Definition at line 202 of file foamVtkPatchMeshWriter.H.

References fileWriter::opts(), and Foam::vtk::POLY_DATA.

Here is the call graph for this function:

◆ patchIDs()

const labelList & patchIDs ( ) const

inlinenoexcept

The patch IDs.

Definition at line 210 of file foamVtkPatchMeshWriter.H.

References Foam::noexcept, and patchIDs_.

Referenced by patchMeshWriter(), patchMeshWriter(), patchMeshWriter(), patchWriter::patchWriter(), patchWriter::patchWriter(), patchWriter::patchWriter(), and patchWriter::patchWriter().

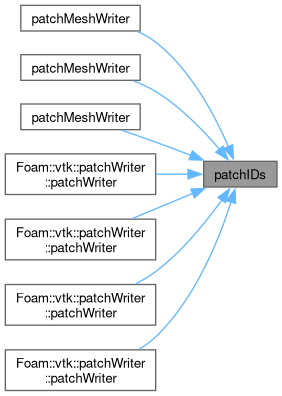

Here is the caller graph for this function:

◆ beginFile()

virtual bool beginFile ( std::string title = "" )

virtual

Write file header (non-collective).

Note: Expected calling states: (OPENED).

Reimplemented from fileWriter.

◆ writeGeometry()

virtual bool writeGeometry ( )

virtual

Write patch topology.

Also writes the file header if not previously written.

Note: Must be called prior to writing CellData or PointData

Implements fileWriter.

◆ beginCellData()

virtual bool beginCellData ( label nFields = 0 )

virtual

Begin CellData output section for specified number of fields.

Must be called prior to writing any cell data fields.

Parameters

nFields is for legacy format only. When nFields=0, this a no-op for legacy format.

Note: Expected calling states: (PIECE | POINT_DATA).

Returns: True if the state changed

Implements fileWriter.

◆ beginPointData()

virtual bool beginPointData ( label nFields = 0 )

virtual

Begin PointData for specified number of fields.

Must be called prior to writing any point data fields.

Parameters

nFields is for legacy format only. When nFields=0, this a no-op for legacy format.

Note: Expected calling states: (PIECE | CELL_DATA).

Returns: True if the state changed

Implements fileWriter.

◆ writePatchIDs()

void writePatchIDs ( )

Write patch ids as CellData.

Must be called within the CELL_DATA state.

◆ writeProcIDs()

bool writeProcIDs ( )

Write processor ids for each line as CellData or for each point as PointData, depending on isPointData() state. No-op in serial.

◆ writeNeighIDs()

bool writeNeighIDs ( )

Write processor neighbour ids as CellData. This is no-op in serial.

Must be called within the CELL_DATA state.

◆ writeUniform()

template<class Type>

void writeUniform	(	const word &	fieldName,
		const Type &	val )

Write a uniform field of Cell (Face) or Point values.

◆ ext() [2/2]

Foam::word ext ( ) const

inline

File extension for current format type.

Definition at line 318 of file foamVtkFileWriterI.H.

Member Data Documentation

◆ mesh_

const polyMesh& mesh_

protected

Reference to the OpenFOAM mesh (or subset).

Definition at line 74 of file foamVtkPatchMeshWriter.H.

◆ patchIDs_

labelList patchIDs_

protected

The selected patch ids.

Definition at line 79 of file foamVtkPatchMeshWriter.H.

Referenced by patchIDs().

◆ pointSlab_

OffsetRange<label> pointSlab_

protected

Slab addressing for field points of the current Piece.

Definition at line 84 of file foamVtkPatchMeshWriter.H.

Referenced by nTotalPoints().

◆ cellSlab_

OffsetRange<label> cellSlab_

protected

Slab addressing for field cells (faces) for the current Piece.

Definition at line 89 of file foamVtkPatchMeshWriter.H.

Referenced by nTotalCells().

◆ connectivitySlab_

OffsetRange<label> connectivitySlab_

protected

Slab addressing for cell (face) connectivity count, which is just the sum of the face sizes.

Definition at line 95 of file foamVtkPatchMeshWriter.H.

The documentation for this class was generated from the following file:

src/meshTools/output/vtk/patch/foamVtkPatchMeshWriter.H

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ patchMeshWriter() [1/4]

◆ patchMeshWriter() [2/4]

◆ patchMeshWriter() [3/4]

◆ patchMeshWriter() [4/4]

◆ ~patchMeshWriter()

Member Function Documentation

◆ nTotalPoints()

◆ nTotalCells()

◆ beginPiece()

◆ writePoints()

◆ writePolys_legacy()

◆ writePolys()

◆ operator=()

◆ ext() [1/2]

◆ patchIDs()

◆ beginFile()

◆ writeGeometry()

◆ beginCellData()

◆ beginPointData()

◆ writePatchIDs()

◆ writeProcIDs()

◆ writeNeighIDs()

◆ writeUniform()

◆ ext() [2/2]

Member Data Documentation

◆ mesh_

◆ patchIDs_

◆ pointSlab_

◆ cellSlab_

◆ connectivitySlab_
