Write OpenFOAM patches and patch fields in VTP or legacy vtk format. More...

#include <foamVtkPatchWriter.H>

Inheritance diagram for patchWriter:

Collaboration diagram for patchWriter:

Public Member Functions
	patchWriter (const patchWriter &)=delete
	No copy construct.
void	operator= (const patchWriter &)=delete
	No copy assignment.
	patchWriter (const polyMesh &mesh, const labelUList &patchIDs, const vtk::outputOptions opts=vtk::formatType::INLINE_BASE64, const bool useNearCellValue=false)
	Construct from components (default format INLINE_BASE64).
	patchWriter (const polyMesh &mesh, const labelUList &patchIDs, const fileName &file, bool parallel=UPstream::parRun())
	Construct from components (default format INLINE_BASE64), and open the file for writing.
	patchWriter (const polyMesh &mesh, const labelUList &patchIDs, const vtk::outputOptions opts, const fileName &file, bool parallel=UPstream::parRun())
	Construct from components (default format INLINE_BASE64), and open the file for writing.
virtual	~patchWriter ()=default
	Destructor.
bool	useCellValue () const noexcept
	Use patch internal field values?
bool	useCellValue (bool on) noexcept
	Select use of patch internal field values.
template<class Type, template< class > class PatchField>
void	write (const GeometricField< Type, PatchField, pointMesh > &field)
	Write point field.
template<class Type, template< class > class PatchField>
void	write (const GeometricField< Type, PatchField, volMesh > &field)
	Write volume field.
template<class Type>
void	write (const GeometricField< Type, fvPatchField, volMesh > &field, const PrimitivePatchInterpolation< primitivePatch > &pInterp)
	Write volume field with point interpolation.
template<class Type>
void	write (const GeometricField< Type, fvPatchField, volMesh > &field, const PrimitivePatchInterpolation< primitivePatch > *pInterp)
	Write volume field with point interpolation.
	patchWriter (const polyMesh &mesh, const labelUList &patchIDs, const vtk::outputOptions opts, const bool useNearCellValue, const fileName &file, bool parallel=UPstream::parRun())
	Construct with `useNearCellValue` setting.
Public Member Functions inherited from patchMeshWriter
	patchMeshWriter (const patchMeshWriter &)=delete
	No copy construct.
void	operator= (const patchMeshWriter &)=delete
	No copy assignment.
	patchMeshWriter (const polyMesh &mesh, const labelUList &patchIDs, const vtk::outputOptions opts=vtk::formatType::INLINE_BASE64)
	Construct from components (default format INLINE_BASE64).
	patchMeshWriter (const polyMesh &mesh, const labelUList &patchIDs, const fileName &file, bool parallel=UPstream::parRun())
	Construct from components (default format INLINE_BASE64), and open the file for writing.
	patchMeshWriter (const polyMesh &mesh, const labelUList &patchIDs, const vtk::outputOptions opts, const fileName &file, bool parallel=UPstream::parRun())
	Construct from components and open the file for writing.
virtual	~patchMeshWriter ()=default
	Destructor.
const labelList &	patchIDs () const noexcept
	The patch IDs.
virtual bool	beginFile (std::string title="")
	Write file header (non-collective).
virtual bool	writeGeometry ()
	Write patch topology.
virtual bool	beginCellData (label nFields=0)
	Begin CellData output section for specified number of fields.
virtual bool	beginPointData (label nFields=0)
	Begin PointData for specified number of fields.
void	writePatchIDs ()
	Write patch ids as CellData.
bool	writeProcIDs ()
	Write processor ids for each line as CellData or for each point as PointData, depending on isPointData() state. No-op in serial.
bool	writeNeighIDs ()
	Write processor neighbour ids as CellData. This is no-op in serial.
template<class Type>
void	writeUniform (const word &fieldName, const Type &val)
	Write a uniform field of Cell (Face) or Point values.
word	ext () const
	File extension for current format type.
Public Member Functions inherited from fileWriter
	fileWriter (const vtk::fileTag contentType, const vtk::outputOptions opts)
	Construct from components.
virtual	~fileWriter ()
	Destructor.
vtk::fileTag	contentType () const noexcept
	The content type.
vtk::outputOptions	opts () const noexcept
	The output options in use.
word	ext () const
	File extension for current format type.
bool	legacy () const noexcept
	Commonly used query.
bool	parallel () const noexcept
	Parallel output requested?
const word &	state () const
	The output state in printable format.
const fileName &	output () const noexcept
	The current output file name.
virtual bool	open (const fileName &file, bool parallel=UPstream::parRun())
	Open file for writing (creates parent directory).
void	close ()
	End the file contents and close the file after writing.
bool	beginFieldData (label nFields=0)
	Begin FieldData output section for specified number of fields.
bool	isCellData () const noexcept
	True if output state corresponds to CELL_DATA.
bool	isPointData () const noexcept
	True if output state corresponds to POINT_DATA.
label	nCellData () const noexcept
	The number of CellData written for the Piece thus far.
label	nPointData () const noexcept
	The number of PointData written for the Piece thus far.
bool	endFieldData ()
	Explicitly end FieldData output and switch to DECLARED state.
bool	endCellData ()
	Explicitly end CellData output and switch to PIECE state.
bool	endPointData ()
	Explicitly end PointData output and switch to PIECE state.
void	writeTimeValue (scalar timeValue)
	Write "TimeValue" FieldData (name as per Catalyst output).

Additional Inherited Members
Static Public Member Functions inherited from patchMeshWriter
static word	ext (vtk::outputOptions opts)
	File extension for given output type.
Protected Types inherited from fileWriter
enum class	outputState : uint8_t { CLOSED = 0 , OPENED , DECLARED , FIELD_DATA , PIECE , CELL_DATA , POINT_DATA }
	Internal tracking of the output state. More...
Protected Member Functions inherited from patchMeshWriter
label	nTotalPoints () const noexcept
	Total number of field points for the current Piece.
label	nTotalCells () const noexcept
	Total number of field cells (faces) for the current Piece.
void	beginPiece ()
	Determine sizes and begin piece.
void	writePoints ()
	Write patch points.
void	writePolys_legacy ()
	Write patch faces, legacy format.
void	writePolys ()
	Write patch faces.
Protected Member Functions inherited from fileWriter
void	checkFormatterValidity () const
	Verify that formatter in either allocated or not required.
Ostream &	reportBadState (Ostream &, outputState expected) const
	Generate message reporting bad writer state.
Ostream &	reportBadState (Ostream &, outputState, outputState) const
	Generate message reporting bad writer state.
std::ofstream &	os () noexcept
	The backend ostream in use.
vtk::formatter &	format ()
	The VTK formatter in use. FatalError for off-processor.
bool	isState (outputState test) const noexcept
	True if output state corresponds to the test state.
bool	notState (outputState test) const noexcept
	True if output state does not correspond to the test state.
template<class Type>
void	beginDataArray (const word &fieldName, const label nValues)
	Start of a field or DataArray output (legacy or non-legacy).
void	endDataArray ()
	Flush formatter and end of DataArray output (non-legacy).
void	beginPoints (const label nPoints)
	Start of a POINTS DataArray.
void	endPoints ()
	End of a POINTS DataArray.
bool	enter_Piece ()
	Trigger change state to Piece. Resets nCellData_, nPointData_.
bool	endPiece ()
	Explicitly end Piece output and switch to DECLARED state.
bool	enter_CellData (label nEntries, label nFields)
	Trigger change state to CellData.
bool	enter_PointData (label nEntries, label nFields)
	Trigger change state to PointData.
bool	exit_File ()
	Emit file footer (end data, end piece, end file).
template<class Type>
void	writeUniform (const word &fieldName, const Type &val, const label nValues)
	Write uniform field content.
template<class Type>
void	writeBasicField (const word &fieldName, const UList< Type > &field)
	Write basic (primitive) field content.
bool	writeProcIDs (const label nValues)
	Write nValues of processor ids as CellData or PointData (no-op in serial).
	fileWriter (const fileWriter &)=delete
	No copy construct.
void	operator= (const fileWriter &)=delete
	No copy assignment.
Protected Attributes inherited from patchMeshWriter
const polyMesh &	mesh_
	Reference to the OpenFOAM mesh (or subset).
labelList	patchIDs_
	The selected patch ids.
OffsetRange< label >	pointSlab_
	Slab addressing for field points of the current Piece.
OffsetRange< label >	cellSlab_
	Slab addressing for field cells (faces) for the current Piece.
OffsetRange< label >	connectivitySlab_
	Slab addressing for cell (face) connectivity count, which is just the sum of the face sizes.
Protected Attributes inherited from fileWriter
outputState	state_
	The output state.
vtk::fileTag	contentType_
	The content type (PolyData, UnstructuredGrid ...).
bool	parallel_
	Parallel writing (via master).
vtk::outputOptions	opts_
	Requested output options.
label	nCellData_
	The number of CellData written for the Piece thus far.
label	nPointData_
	The number of PointData written for the Piece thus far.
fileName	outputFile_
	The output file name.
autoPtr< vtk::formatter >	format_
	The VTK formatter in use (only valid on master process).
std::ofstream	os_
	The backend ostream in use (only opened on master process).
Static Protected Attributes inherited from fileWriter
static const Enum< outputState >	stateNames
	Names for the output state (for messages, not for file output).

Detailed Description

Write OpenFOAM patches and patch fields in VTP or legacy vtk format.

The file output states are managed by the Foam::vtk::fileWriter class. FieldData (eg, TimeValue) must appear before any geometry pieces.

Note: Parallel output is combined into a single Piece without point merging, which is similar to using multi-piece data sets, but allows more convenient creation as a streaming process. In the future, the duplicate points at processor connections may be addressed using ghost points.

See also: Foam::vtk::patchMeshWriter

Source files

Definition at line 64 of file foamVtkPatchWriter.H.

Constructor & Destructor Documentation

◆ patchWriter() [1/5]

patchWriter ( const patchWriter & )

delete

No copy construct.

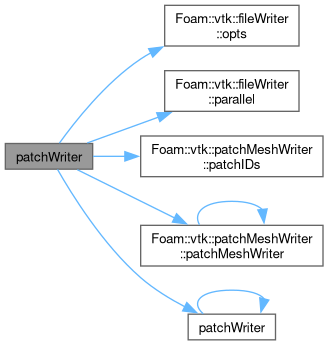

References patchWriter().

Referenced by operator=(), patchWriter(), and patchWriter().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ patchWriter() [2/5]

patchWriter	(	const polyMesh &	mesh,
		const labelUList &	patchIDs,
		const vtk::outputOptions	opts = vtk::formatType::INLINE_BASE64,
		const bool	useNearCellValue = false )

inline

Construct from components (default format INLINE_BASE64).

Parameters

useNearCellValue Use patch internal instead of patch face values

Definition at line 95 of file foamVtkPatchWriter.H.

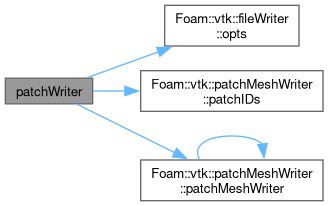

References Foam::vtk::INLINE_BASE64, mesh, fileWriter::opts(), patchMeshWriter::patchIDs(), and patchMeshWriter::patchMeshWriter().

Here is the call graph for this function:

◆ patchWriter() [3/5]

patchWriter	(	const polyMesh &	mesh,
		const labelUList &	patchIDs,
		const fileName &	file,
		bool	parallel = UPstream::parRun() )

inline

Construct from components (default format INLINE_BASE64), and open the file for writing.

The file name is with/without an extension.

Definition at line 114 of file foamVtkPatchWriter.H.

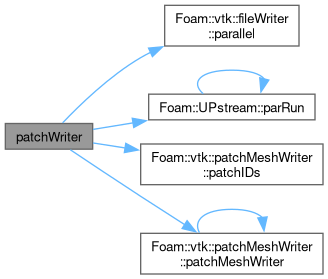

References mesh, fileWriter::parallel(), UPstream::parRun(), patchMeshWriter::patchIDs(), and patchMeshWriter::patchMeshWriter().

Here is the call graph for this function:

◆ patchWriter() [4/5]

patchWriter	(	const polyMesh &	mesh,
		const labelUList &	patchIDs,
		const vtk::outputOptions	opts,
		const fileName &	file,
		bool	parallel = UPstream::parRun() )

inline

Construct from components (default format INLINE_BASE64), and open the file for writing.

The file name is with/without an extension.

Definition at line 132 of file foamVtkPatchWriter.H.

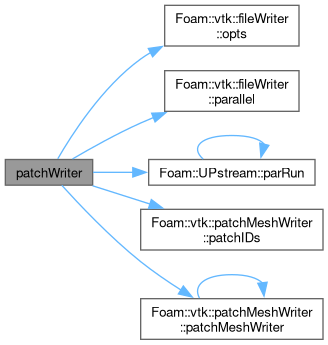

References mesh, fileWriter::opts(), fileWriter::parallel(), UPstream::parRun(), patchMeshWriter::patchIDs(), and patchMeshWriter::patchMeshWriter().

Here is the call graph for this function:

◆ ~patchWriter()

virtual ~patchWriter ( )

virtualdefault

Destructor.

◆ patchWriter() [5/5]

patchWriter	(	const polyMesh &	mesh,
		const labelUList &	patchIDs,
		const vtk::outputOptions	opts,
		const bool	useNearCellValue,
		const fileName &	file,
		bool	parallel = UPstream::parRun() )

inline

Construct with useNearCellValue setting.

Deprecated

Parameters

useNearCellValue Use patch internal instead of patch face values

Definition at line 226 of file foamVtkPatchWriter.H.

References mesh, fileWriter::opts(), fileWriter::parallel(), patchMeshWriter::patchIDs(), patchMeshWriter::patchMeshWriter(), and patchWriter().

Here is the call graph for this function:

Member Function Documentation

◆ operator=()

void operator= ( const patchWriter & )

delete

No copy assignment.

References patchWriter().

Here is the call graph for this function:

◆ useCellValue() [1/2]

bool useCellValue ( ) const

inlinenoexcept

Use patch internal field values?

Definition at line 159 of file foamVtkPatchWriter.H.

References Foam::noexcept.

◆ useCellValue() [2/2]

bool useCellValue ( bool on )

inlinenoexcept

Select use of patch internal field values.

Returns: the previous state

Definition at line 169 of file foamVtkPatchWriter.H.

◆ write() [1/4]

template<class Type, template< class > class PatchField>

void write ( const GeometricField< Type, PatchField, pointMesh > & field )

Write point field.

References field().

Here is the call graph for this function:

◆ write() [2/4]

template<class Type, template< class > class PatchField>

void write ( const GeometricField< Type, PatchField, volMesh > & field )

Write volume field.

References field().

Here is the call graph for this function:

◆ write() [3/4]

template<class Type>

void write	(	const GeometricField< Type, fvPatchField, volMesh > &	field,
		const PrimitivePatchInterpolation< primitivePatch > &	pInterp )

Write volume field with point interpolation.

References field(), and pInterp.

Here is the call graph for this function:

◆ write() [4/4]

template<class Type>

void write	(	const GeometricField< Type, fvPatchField, volMesh > &	field,
		const PrimitivePatchInterpolation< primitivePatch > *	pInterp )

Write volume field with point interpolation.

References field(), and pInterp.

Here is the call graph for this function:

The documentation for this class was generated from the following file:

src/conversion/vtk/output/foamVtkPatchWriter.H

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ patchWriter() [1/5]

◆ patchWriter() [2/5]

◆ patchWriter() [3/5]

◆ patchWriter() [4/5]

◆ ~patchWriter()

◆ patchWriter() [5/5]

Member Function Documentation

◆ operator=()

◆ useCellValue() [1/2]

◆ useCellValue() [2/2]

◆ write() [1/4]

◆ write() [2/4]

◆ write() [3/4]

◆ write() [4/4]
