This BC solves a steady 1D thermal baffle. More...

#include <thermalBaffle1DFvPatchScalarField.H>

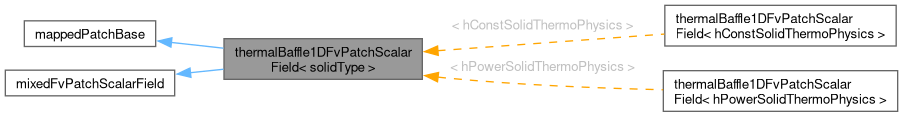

Inheritance diagram for thermalBaffle1DFvPatchScalarField< solidType >:

[legend]

Collaboration diagram for thermalBaffle1DFvPatchScalarField< solidType >:

[legend]

Public Member Functions
	TypeName ("compressible::thermalBaffle1D")
	Runtime type information.
	thermalBaffle1DFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	thermalBaffle1DFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	thermalBaffle1DFvPatchScalarField (const thermalBaffle1DFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given.
	thermalBaffle1DFvPatchScalarField (const thermalBaffle1DFvPatchScalarField &)
	Construct as copy.
	thermalBaffle1DFvPatchScalarField (const thermalBaffle1DFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
virtual void	autoMap (const fvPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const fvPatchScalarField &, const labelList &)
	Reverse map the given fvPatchField onto this fvPatchField.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	write (Ostream &) const
	Write.
Public Member Functions inherited from mappedPatchBase
	TypeName ("mappedPatchBase")
	Runtime type information.
	mappedPatchBase (const polyPatch &)
	Construct from patch.
	mappedPatchBase (const polyPatch &pp, const word &sampleRegion, const sampleMode sampleMode, const word &samplePatch, const vectorField &offsets)
	Construct with offsetMode=non-uniform.
	mappedPatchBase (const polyPatch &pp, const word &sampleRegion, const sampleMode sampleMode, const word &samplePatch, const vector &uniformOffset)
	Construct from offsetMode=uniform.
	mappedPatchBase (const polyPatch &pp, const word &sampleRegion, const sampleMode sampleMode, const word &samplePatch, const scalar normalDistance)
	Construct from offsetMode=normal and distance.
	mappedPatchBase (const polyPatch &, const dictionary &)
	Construct from dictionary.
	mappedPatchBase (const polyPatch &, const sampleMode, const dictionary &)
	Construct from dictionary and (collocated) sample mode.
	mappedPatchBase (const polyPatch &, const mappedPatchBase &)
	Construct as copy, resetting patch.
	mappedPatchBase (const polyPatch &, const mappedPatchBase &, const labelUList &mapAddressing)
	Construct as copy, resetting patch, map original data.
virtual	~mappedPatchBase ()
	Destructor.
void	clearOut ()
void	setOffset (const scalar normalDist)
	Change to normal offset with given distance.
void	setOffset (const vector &uniformOffset)
	Change to uniform offset with value.
void	setOffset (const vectorField &offsets)
	Change to non-uniform offsets.
sampleMode	mode () const noexcept
	What to sample.
const word &	sampleWorld () const noexcept
	World to sample.
const word &	sampleRegion () const
	Region to sample.
const word &	samplePatch () const
	Patch (only if NEARESTPATCHFACE).
const word &	coupleGroup () const
	PatchGroup (only if NEARESTPATCHFACE).
label	sampleSize () const
	Return size of mapped mesh/patch/boundary.
const vector &	offset () const noexcept
	Offset vector (from patch faces to destination mesh objects).
const vectorField &	offsets () const noexcept
	Offset vectors (from patch faces to destination mesh objects).
label	getCommunicator () const
	Get the communicator (worldComm or world-to-world).
label	comm () const
	Identical to getCommunicator().
bool	sameWorld () const
	Is sample world the local world?
bool	masterWorld () const
	Is my world ordered before the sampleWorld?
bool	sameRegion () const noexcept
	Cached sampleRegion != mesh.name().
uniformDimensionedScalarField &	updateSampleMeshTime () const
	Local mesh update time.
uniformDimensionedScalarField &	updateMeshTime () const
	Sample mesh upate time.
bool	upToDate () const
const mapDistribute &	map () const
	Return reference to the parallel distribution map.
const AMIPatchToPatchInterpolation &	AMI (const bool forceUpdate=false) const
	Return reference to the AMI interpolator.
bool	owner () const
	Is it owner.
const autoPtr< Foam::searchableSurface > &	surfPtr () const
	Return a pointer to the AMI projection surface.
const polyMesh &	sampleMesh () const
	Get the region mesh.
const polyPatch &	samplePolyPatch () const
	Get the patch on the region.
tmp< pointField >	samplePoints () const
	Get the sample points.
const fileName &	sampleDatabasePath () const
bool	sampleDatabase () const noexcept
virtual fileName	sendPath (const label proci) const
virtual fileName	receivePath (const label proci) const
template<class Type>
void	distribute (List< Type > &lst) const
	Wrapper around map/interpolate data distribution.
template<class Type, class CombineOp>
void	distribute (List< Type > &lst, const CombineOp &cop) const
	Wrapper around map/interpolate data distribution with operation.
template<class Type>
void	reverseDistribute (List< Type > &lst) const
	Wrapper around map/interpolate data distribution.
template<class Type, class CombineOp>
void	reverseDistribute (List< Type > &lst, const CombineOp &cop) const
	Wrapper around map/interpolate data distribution with operation.

Additional Inherited Members
Public Types inherited from mappedPatchBase
enum	sampleMode { NEARESTCELL , NEARESTPATCHFACE , NEARESTPATCHFACEAMI , NEARESTPATCHPOINT , NEARESTFACE , NEARESTONLYCELL }
	Mesh items to sample. More...
enum	offsetMode { UNIFORM , NONUNIFORM , NORMAL }
	How to project face centres. More...
typedef Tuple2< pointIndexHit, Tuple2< scalar, label > >	nearInfo
	Helper class for finding nearest.
typedef Tuple2< nearInfo, label >	nearInfoWorld
	nearest + world
Static Public Member Functions inherited from mappedPatchBase
static pointIndexHit	facePoint (const polyMesh &, const label facei, const polyMesh::cellDecomposition)
	Get a point on the face given a face decomposition method:
static fileName	sendPath (const fileName &root, const label proci)
	Helper: return path to store data to be sent to processor i.
static fileName	receivePath (const fileName &root, const label proci)
	Helper: return path to store data to be received from processor i.
static FOAM_NO_DANGLING_REFERENCE const objectRegistry &	subRegistry (const objectRegistry &obr, const fileName &path)
	Lookup (sub)objectRegistry from '/' separated path (relative to objectRegistry). Creates non-existing intermediate ones.
template<class Type>
static void	storeField (objectRegistry &obr, const word &fieldName, const Field< Type > &values)
	Store an IOField on the objectRegistry relative to obr.
static void	writeDict (const objectRegistry &obr, dictionary &dict)
	Convert objectRegistry contents into dictionary.
static void	readDict (const dictionary &d, objectRegistry &obr)
	(recursively) construct and register IOFields from dictionary
Static Public Attributes inherited from mappedPatchBase
static const Enum< sampleMode >	sampleModeNames_
static const Enum< offsetMode >	offsetModeNames_
Protected Member Functions inherited from mappedPatchBase
virtual void	initGeometry (PstreamBuffers &)
	Initialise the calculation of the patch geometry.
virtual void	calcGeometry (PstreamBuffers &)
	Calculate the patch geometry.
virtual void	initMovePoints (PstreamBuffers &, const pointField &)
	Initialise the patches for moving points.
virtual void	movePoints (PstreamBuffers &, const pointField &)
	Correct patches after moving points.
virtual void	initUpdateMesh (PstreamBuffers &)
	Initialise the update of the patch topology.
virtual void	updateMesh (PstreamBuffers &)
	Update of the patch topology.
bool	addWorldConnection ()
	Add a world-world connection.
label	getWorldCommunicator () const
	Get the communicator for the world-world connection.
const polyMesh &	lookupMesh (const word &region) const
	Lookup mesh.
const polyPatch &	lookupPatch (const word &sampleRegion, const word &samplePatch) const
	Lookup patch.
tmp< pointField >	facePoints (const polyPatch &) const
	Get the points from face-centre-decomposition face centres and project them onto the face-diagonal-decomposition triangles.
void	collectSamples (const label mySampleWorld, const pointField &facePoints, pointField &samples, labelList &patchFaceWorlds, labelList &patchFaceProcs, labelList &patchFaces, pointField &patchFc) const
	Collect single list of samples and originating processor+face + wanted world.
void	findLocalSamples (const sampleMode mode, const label sampleWorld, const word &sampleRegion, const word &samplePatch, const pointField &samplePoints, List< nearInfoWorld > &nearest) const
	Find (local) cells/faces containing samples.
void	findSamples (const sampleMode mode, const label myWorldIndex, const pointField &, const labelList &wantedWorlds, const labelList &origProcs, labelList &sampleProcs, labelList &sampleIndices, pointField &sampleLocations) const
	Find (global) cells/faces containing samples.
tmp< pointField >	samplePoints (const pointField &) const
	Get the sample points given the face points.
void	calcMapping () const
	Calculate mapping.
void	calcAMI () const
	Calculate AMI interpolator.
Static Protected Member Functions inherited from mappedPatchBase
static autoPtr< fileName >	readDatabase (const dictionary &dict)
	Read optional database name from dictionary.
static FOAM_NO_DANGLING_REFERENCE const objectRegistry &	subRegistry (const objectRegistry &obr, const wordList &names, const label index)
	Lookup (sub)objectRegistry by following names of sub registries. Creates non-existing intermediate ones.
template<class Type>
static bool	writeIOField (const regIOobject &obj, dictionary &dict)
	Attempt to detect an IOField<Type> and write to dictionary.
template<class Type>
static bool	constructIOField (const word &name, token &tok, Istream &is, objectRegistry &obr)
	Attempt to read an IOField<Type> and store on objectRegistry.
Protected Attributes inherited from mappedPatchBase
const polyPatch &	patch_
	Patch to sample.
word	sampleWorld_
	World to sample.
word	sampleRegion_
	Region to sample.
const sampleMode	mode_
	What to sample.
word	samplePatch_
	Patch (if in sampleMode NEARESTPATCH*).
const coupleGroupIdentifier	coupleGroup_
	PatchGroup (if in sampleMode NEARESTPATCH*).
const autoPtr< fileName >	sampleDatabasePtr_
	Empty or location of database.
offsetMode	offsetMode_
	How to obtain samples.
vector	offset_
	Offset vector (uniform).
vectorField	offsets_
	Offset vector (nonuniform).
scalar	distance_
	Offset distance (normal).
label	communicator_
	Communicator.
bool	sameRegion_
	Same region.
autoPtr< mapDistribute >	mapPtr_
	Communication schedule:
const bool	AMIReverse_
	Flag to indicate that slave patch should be reversed for AMI.
autoPtr< AMIPatchToPatchInterpolation >	AMIPtr_
	Pointer to AMI interpolator.
autoPtr< searchableSurface >	surfPtr_
	Pointer to projection surface employed by AMI interpolator.
dictionary	surfDict_
	Dictionary storing projection surface description.
autoPtr< uniformDimensionedScalarField >	updateMeshTimePtr_
	Local mesh update time.
autoPtr< uniformDimensionedScalarField >	updateSampleMeshTimePtr_
	Sample mesh update time.

Detailed Description

template<class solidType>
class Foam::compressible::thermalBaffle1DFvPatchScalarField< solidType >

This BC solves a steady 1D thermal baffle.

The solid properties are specify as dictionary. Optionally radiative heat flux (qr) can be incorporated into the balance. Some under-relaxation might be needed on qr. Baffle and solid properties need to be specified on the master side of the baffle.

Usage: Example of the boundary condition specification using constant solid thermo :

<masterPatchName>
{
    type   compressible::thermalBaffle1D<hConstSolidThermoPhysics>;
    samplePatch     <slavePatchName>;

    thickness       uniform 0.005;  // thickness [m]
    qs              uniform 100;    // heat flux [W/m2]

    qr              none;
    relaxation      1;

    // Solid thermo
    specie
    {
        molWeight       20;
    }
    transport
    {
        kappa           1;
    }
    thermodynamics
    {
        Hf              0;
        Cp              10;
    }
    equationOfState
    {
        rho             10;
    }

    value               uniform 300;
}

<slavePatchName>
{
    type   compressible::thermalBaffle1D<hConstSolidThermoPhysics>;
    samplePatch     <masterPatchName>;

    qr              none;
    relaxation      1;
}

Source files

Definition at line 107 of file thermalBaffle1DFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ thermalBaffle1DFvPatchScalarField() [1/5]

template<class solidType>

thermalBaffle1DFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 37 of file thermalBaffle1DFvPatchScalarField.C.

References mappedPatchBase::mappedPatchBase(), and p.

Referenced by rmap(), thermalBaffle1DFvPatchScalarField(), thermalBaffle1DFvPatchScalarField(), and thermalBaffle1DFvPatchScalarField().

Here is the call graph for this function:

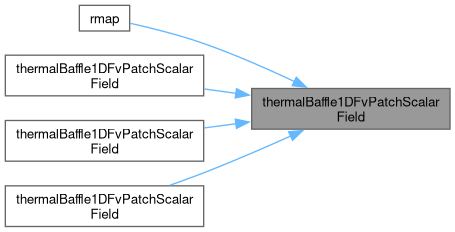

Here is the caller graph for this function:

◆ thermalBaffle1DFvPatchScalarField() [2/5]

template<class solidType>

thermalBaffle1DFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 83 of file thermalBaffle1DFvPatchScalarField.C.

References dict, mappedPatchBase::mappedPatchBase(), mappedPatchBase::NEARESTPATCHFACE, p, and Foam::Zero.

Here is the call graph for this function:

◆ thermalBaffle1DFvPatchScalarField() [3/5]

template<class solidType>

thermalBaffle1DFvPatchScalarField	(	const thermalBaffle1DFvPatchScalarField< solidType > &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given.

thermalBaffle1DFvPatchScalarField onto a new patch

Definition at line 59 of file thermalBaffle1DFvPatchScalarField.C.

References mappedPatchBase::mappedPatchBase(), p, and thermalBaffle1DFvPatchScalarField().

Here is the call graph for this function:

◆ thermalBaffle1DFvPatchScalarField() [4/5]

template<class solidType>

thermalBaffle1DFvPatchScalarField ( const thermalBaffle1DFvPatchScalarField< solidType > & ptf )

Construct as copy.

Definition at line 139 of file thermalBaffle1DFvPatchScalarField.C.

References mappedPatchBase::mappedPatchBase(), and thermalBaffle1DFvPatchScalarField().

Here is the call graph for this function:

◆ thermalBaffle1DFvPatchScalarField() [5/5]

template<class solidType>

thermalBaffle1DFvPatchScalarField	(	const thermalBaffle1DFvPatchScalarField< solidType > &	ptf,
		const DimensionedField< scalar, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 160 of file thermalBaffle1DFvPatchScalarField.C.

References mappedPatchBase::mappedPatchBase(), and thermalBaffle1DFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

template<class solidType>

TypeName ( "compressible::thermalBaffle1D" )

Runtime type information.

◆ clone() [1/2]

template<class solidType>

virtual tmp< fvPatchField< scalar > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 245 of file thermalBaffle1DFvPatchScalarField.H.

◆ clone() [2/2]

template<class solidType>

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 253 of file thermalBaffle1DFvPatchScalarField.H.

◆ autoMap()

template<class solidType>

void autoMap ( const fvPatchFieldMapper & m )

virtual

Map (and resize as needed) from self given a mapping object.

Definition at line 288 of file thermalBaffle1DFvPatchScalarField.C.

References mappedPatchBase::clearOut().

Here is the call graph for this function:

◆ rmap()

template<class solidType>

void rmap	(	const fvPatchScalarField &	ptf,
		const labelList &	addr )

virtual

Reverse map the given fvPatchField onto this fvPatchField.

Definition at line 306 of file thermalBaffle1DFvPatchScalarField.C.

References Foam::refCast(), and thermalBaffle1DFvPatchScalarField().

Here is the call graph for this function:

◆ updateCoeffs()

template<class solidType>

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 326 of file thermalBaffle1DFvPatchScalarField.C.

References alpha, mapDistribute::distribute(), Foam::endl(), forAll, Foam::gAverage(), Foam::gMinMax(), UPstream::incrMsgType(), Foam::Info, ThermalDiffusivity< BasicTurbulenceModel >::kappaEff(), limits, mappedPatchBase::map(), UPstream::msgType(), fvPatch::name(), turbulenceModel::propertiesName, mappedPatchBase::samplePolyPatch(), UList< T >::size(), TurbulenceModel< Alpha, Rho, BasicTurbulenceModel, TransportModel >::transport(), and Foam::Zero.

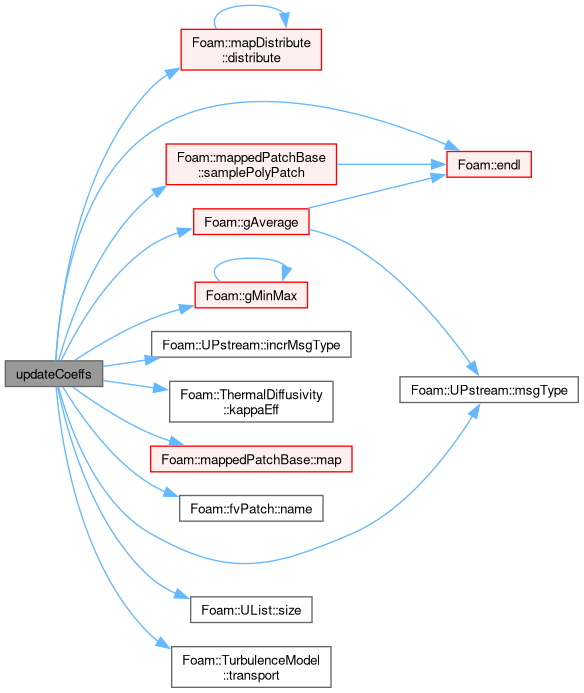

Here is the call graph for this function:

◆ write()

template<class solidType>

void write ( Ostream & os ) const

virtual

Write.

Reimplemented from mappedPatchBase.

Definition at line 420 of file thermalBaffle1DFvPatchScalarField.C.

References os(), mappedPatchBase::write(), and mixedFvPatchField< Type >::write().

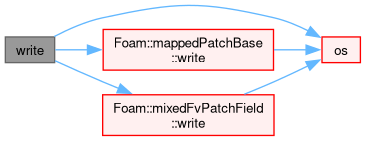

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/thermoTools/derivedFvPatchFields/thermalBaffle1D/thermalBaffle1DFvPatchScalarField.H
src/thermoTools/derivedFvPatchFields/thermalBaffle1D/thermalBaffle1DFvPatchScalarField.C

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ thermalBaffle1DFvPatchScalarField() [1/5]

◆ thermalBaffle1DFvPatchScalarField() [2/5]

◆ thermalBaffle1DFvPatchScalarField() [3/5]

◆ thermalBaffle1DFvPatchScalarField() [4/5]

◆ thermalBaffle1DFvPatchScalarField() [5/5]

Member Function Documentation

◆ TypeName()

◆ clone() [1/2]

◆ clone() [2/2]

◆ autoMap()

◆ rmap()

◆ updateCoeffs()

◆ write()
