Support for overset functionality. More...

#include <oversetFvMeshBase.H>

Inheritance diagram for oversetFvMeshBase:

[legend]

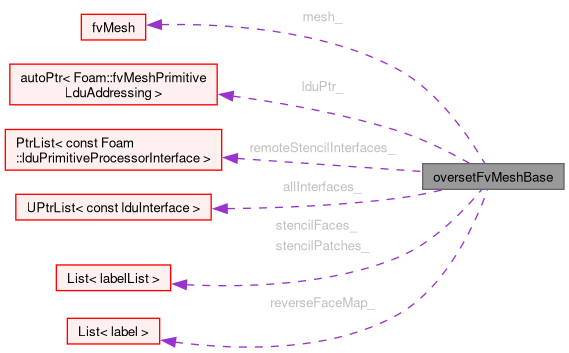

Collaboration diagram for oversetFvMeshBase:

[legend]

Public Member Functions
	TypeName ("oversetFvMeshBase")
	Runtime type information.
	oversetFvMeshBase (const fvMesh &mesh, const bool doInit=true)
	Construct from IOobject.
virtual	~oversetFvMeshBase ()
	Destructor.
const fvMeshPrimitiveLduAddressing &	primitiveLduAddr () const
	Return extended ldu addressing.
virtual const lduAddressing &	lduAddr () const
	Return ldu addressing. If active: is (extended).
virtual lduInterfacePtrsList	interfaces () const
	Return a list of pointers for each patch.
const labelList &	reverseFaceMap () const
	Return old to new face addressing.
bool	active () const
	Return true if using extended addressing.
void	active (const bool f) const
	Enable/disable extended addressing.
template<class Type>
void	addInterpolation (fvMatrix< Type > &m, const scalarField &normalisation, const bool setHoleCellValue, const Type &holeCellValue) const
	Manipulate the matrix to add the interpolation/set hole.
void	clearOut ()
	Clear out local storage.
virtual bool	update ()
	Update the mesh for both mesh motion and topology change.
virtual bool	interpolateFields ()
	Update fields when mesh is updated.
virtual bool	writeObject (IOstreamOption streamOpt, const bool writeOnProc) const
	Write using stream options.
template<class Type>
tmp< scalarField >	normalisation (const fvMatrix< Type > &m) const
	Determine normalisation for interpolation. This equals the original diagonal except stabilised for zero diagonals (possible in hole cells).
template<class Type>
Foam::tmp< Foam::scalarField >	normalisation (const fvMatrix< Type > &m) const
template<class Type>
Foam::SolverPerformance< Type >	solveOverset (fvMatrix< Type > &m, const dictionary &dict) const

Static Public Member Functions
template<class GeoField>
static void	checkCoupledBC (const GeoField &fld)
	Debug: check halo swap is ok.
template<class GeoField, class PatchType, bool TypeOnly>
static void	correctBoundaryConditions (typename GeoField::Boundary &bfld)
	Correct boundary conditions of certain type (TypeOnly = true) or explicitly not of the type (TypeOnly = false).

Protected Member Functions
virtual bool	updateAddressing () const
	Calculate the extended lduAddressing.
template<class Type>
void	write (Ostream &, const fvMatrix< Type > &, const lduAddressing &, const lduInterfacePtrsList &) const
	Debug: print matrix.
template<class Type>
void	scaleConnection (Field< Type > &coeffs, const labelUList &types, const scalarList &factor, const bool setHoleCellValue, const label celli, const label facei) const
	Freeze values at holes.
template<class Type>
SolverPerformance< Type >	solveOverset (fvMatrix< Type > &m, const dictionary &) const
	Solve given dictionary with settings.
scalar	cellAverage (const labelUList &types, const labelUList &nbrTypes, const scalarField &norm, const scalarField &nbrNorm, const label celli, bitSet &isFront) const
	Average norm of valid neighbours.
void	writeAgglomeration (const GAMGAgglomeration &agglom) const
	Debug: dump agglomeration.

Static Protected Member Functions
template<class GeoField>
static void	correctCoupledBoundaryConditions (GeoField &fld)
	Debug: correct coupled bc.

Protected Attributes
const fvMesh &	mesh_
	Reference to mesh.
bool	active_
	Select base addressing (false) or locally stored extended.
autoPtr< fvMeshPrimitiveLduAddressing >	lduPtr_
	Extended addressing (extended with local interpolation stencils).
PtrList< const lduPrimitiveProcessorInterface >	remoteStencilInterfaces_
	Added (processor)lduInterfaces for remote bits of stencil.
lduInterfacePtrsList	allInterfaces_
	Interfaces for above mesh. Contains both original and above added processorLduInterfaces.
labelListList	stencilFaces_
	Corresponding faces (in above lduPtr) to the stencil.
labelListList	stencilPatches_
	Corresponding patches (in above lduPtr) to the stencil.
labelList	reverseFaceMap_
	From old to new face labels.

Detailed Description

Support for overset functionality.

Source files

Definition at line 51 of file oversetFvMeshBase.H.

Constructor & Destructor Documentation

◆ oversetFvMeshBase()

oversetFvMeshBase	(	const fvMesh &	mesh,
		const bool	doInit = true )

Construct from IOobject.

Definition at line 514 of file oversetFvMeshBase.C.

References active_, mesh, mesh_, and MeshObject< fvMesh, MoveableMeshObject, cellCellStencilObject >::New().

Here is the call graph for this function:

◆ ~oversetFvMeshBase()

~oversetFvMeshBase ( )

virtual

Destructor.

Definition at line 526 of file oversetFvMeshBase.C.

Member Function Documentation

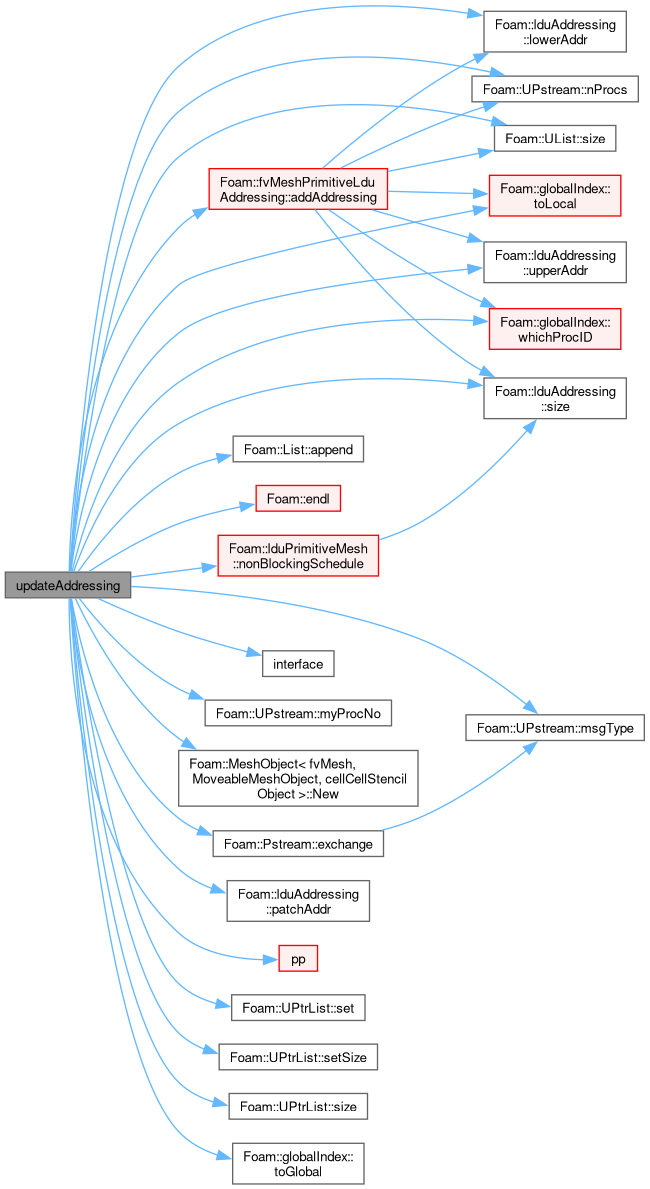

◆ updateAddressing()

bool updateAddressing ( ) const

protectedvirtual

Calculate the extended lduAddressing.

Definition at line 39 of file oversetFvMeshBase.C.

References fvMeshPrimitiveLduAddressing::addAddressing(), allInterfaces_, List< T >::append(), boundary, Foam::endl(), Pstream::exchange(), forAll, interface(), lduPtr_, lduAddressing::lowerAddr(), mesh_, UPstream::msgType(), UPstream::myProcNo(), MeshObject< fvMesh, MoveableMeshObject, cellCellStencilObject >::New(), lduPrimitiveMesh::nonBlockingSchedule(), UPstream::nProcs(), overlap, lduAddressing::patchAddr(), patches, Foam::Pout, pp(), remoteStencilInterfaces_, reverseFaceMap_, UPtrList< T >::set(), UPtrList< T >::setSize(), lduAddressing::size(), UList< T >::size(), UPtrList< T >::size(), stencilFaces_, stencilPatches_, globalIndex::toGlobal(), globalIndex::toLocal(), lduAddressing::upperAddr(), and globalIndex::whichProcID().

Referenced by interfaces(), lduAddr(), and update().

Here is the call graph for this function:

Here is the caller graph for this function:

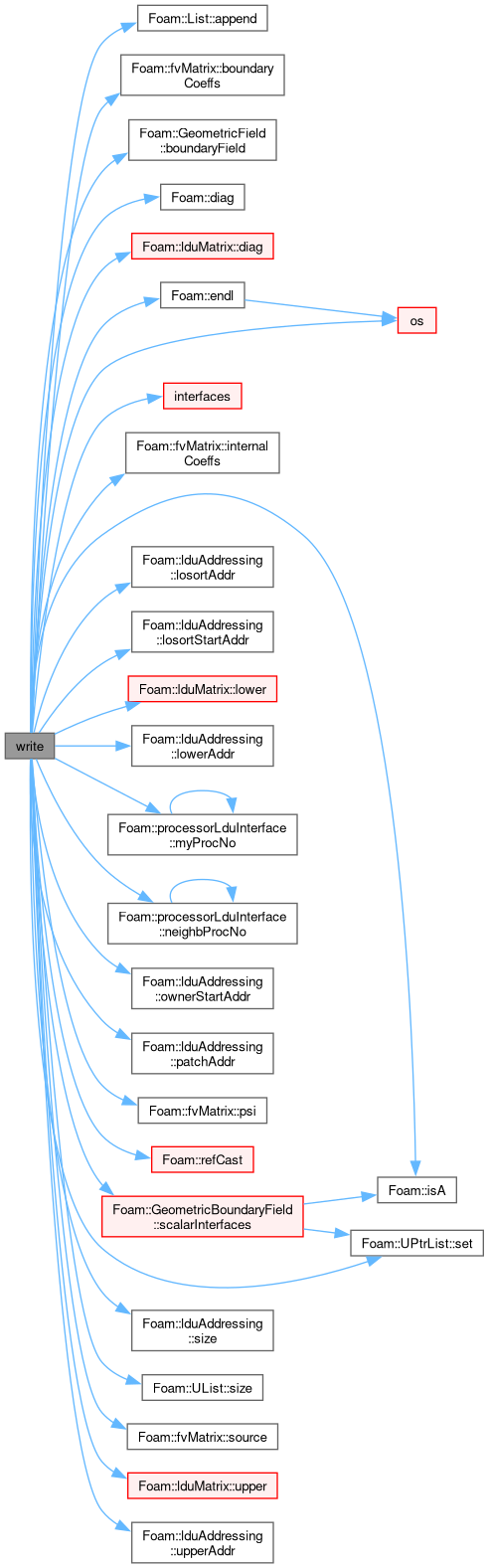

◆ write()

template<class Type>

void write	(	Ostream &	os,
		const fvMatrix< Type > &	m,
		const lduAddressing &	addr,
		const lduInterfacePtrsList &	interfaces ) const

protected

Debug: print matrix.

Definition at line 849 of file oversetFvMeshBaseTemplates.C.

References List< T >::append(), fvMatrix< Type >::boundaryCoeffs(), GeometricField< Type, PatchField, GeoMesh >::boundaryField(), Foam::diag(), lduMatrix::diag(), Foam::endl(), forAll, interfaces(), fvMatrix< Type >::internalCoeffs(), Foam::isA(), lduAddressing::losortAddr(), lduAddressing::losortStartAddr(), lduMatrix::lower(), lduAddressing::lowerAddr(), processorLduInterface::myProcNo(), processorLduInterface::neighbProcNo(), os(), lduAddressing::ownerStartAddr(), lduAddressing::patchAddr(), fvMatrix< Type >::psi(), Foam::refCast(), GeometricBoundaryField< Type, PatchField, GeoMesh >::scalarInterfaces(), UPtrList< T >::set(), lduAddressing::size(), UList< T >::size(), fvMatrix< Type >::source(), lduMatrix::upper(), and lduAddressing::upperAddr().

Here is the call graph for this function:

◆ scaleConnection()

template<class Type>

void scaleConnection	(	Field< Type > &	coeffs,
		const labelUList &	types,
		const scalarList &	factor,
		const bool	setHoleCellValue,
		const label	celli,
		const label	facei ) const

protected

Freeze values at holes.

template<class Type> void freezeHoles(fvMatrix<Type>&) const;

Scale coefficient depending on cell type

Definition at line 32 of file oversetFvMeshBaseTemplates.C.

References f(), cellCellStencil::HOLE, cellCellStencil::INTERPOLATED, and cellCellStencil::SPECIAL.

Referenced by addInterpolation().

Here is the call graph for this function:

Here is the caller graph for this function:

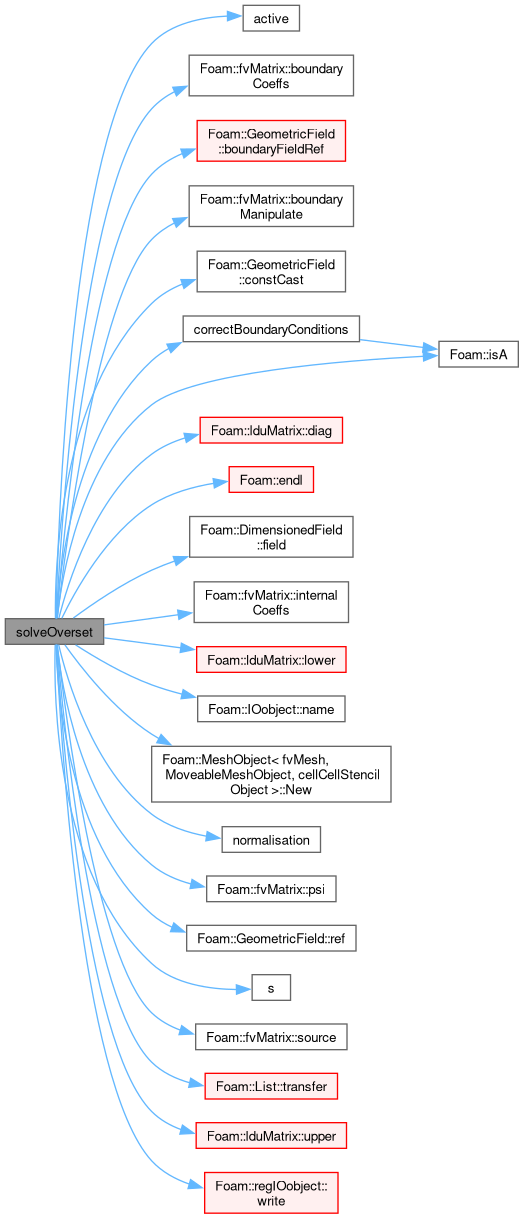

◆ solveOverset() [1/2]

template<class Type>

SolverPerformance< Type > solveOverset	(	fvMatrix< Type > &	m,
		const dictionary &	) const

protected

Solve given dictionary with settings.

References fld().

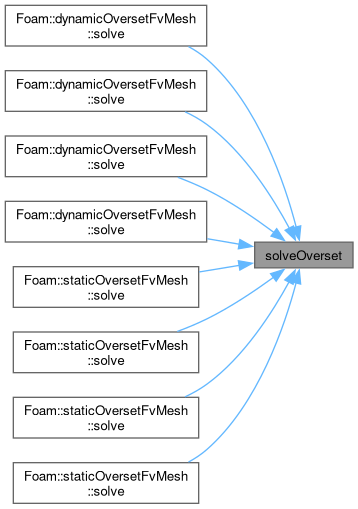

Referenced by dynamicOversetFvMesh::solve(), dynamicOversetFvMesh::solve(), dynamicOversetFvMesh::solve(), dynamicOversetFvMesh::solve(), staticOversetFvMesh::solve(), staticOversetFvMesh::solve(), staticOversetFvMesh::solve(), and staticOversetFvMesh::solve().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ correctCoupledBoundaryConditions()

template<class GeoField>

void correctCoupledBoundaryConditions ( GeoField & fld )

staticprotected

Debug: correct coupled bc.

Definition at line 976 of file oversetFvMeshBaseTemplates.C.

References fld().

Referenced by checkCoupledBC().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cellAverage()

Foam::scalar cellAverage	(	const labelUList &	types,
		const labelUList &	nbrTypes,
		const scalarField &	norm,
		const scalarField &	nbrNorm,
		const label	celli,
		bitSet &	isFront ) const

protected

Average norm of valid neighbours.

Definition at line 353 of file oversetFvMeshBase.C.

References mesh_, and bitSet::set().

Referenced by normalisation().

Here is the call graph for this function:

Here is the caller graph for this function:

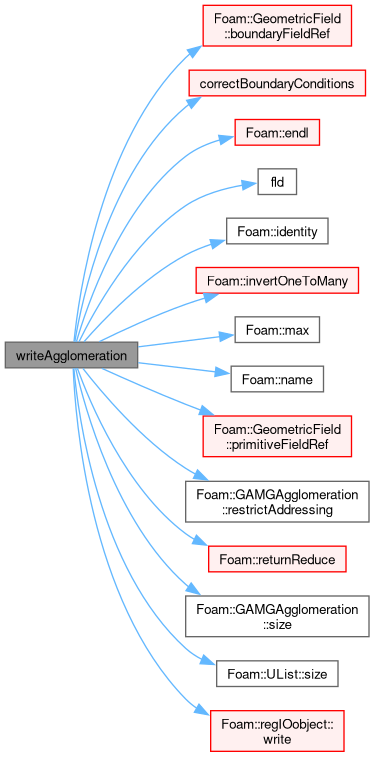

◆ writeAgglomeration()

void writeAgglomeration ( const GAMGAgglomeration & agglom ) const

protected

Debug: dump agglomeration.

Definition at line 411 of file oversetFvMeshBase.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), correctBoundaryConditions(), Foam::dimless, Foam::endl(), fld(), forAll, Foam::identity(), Foam::Info, Foam::invertOneToMany(), Foam::max(), mesh_, Foam::name(), IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, GeometricField< Type, PatchField, GeoMesh >::primitiveFieldRef(), GAMGAgglomeration::restrictAddressing(), Foam::returnReduce(), GAMGAgglomeration::size(), UList< T >::size(), regIOobject::write(), and Foam::Zero.

Here is the call graph for this function:

◆ TypeName()

TypeName ( "oversetFvMeshBase" )

Runtime type information.

References mesh.

◆ primitiveLduAddr()

const Foam::fvMeshPrimitiveLduAddressing & primitiveLduAddr ( ) const

Return extended ldu addressing.

Definition at line 564 of file oversetFvMeshBase.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and lduPtr_.

Referenced by active().

Here is the call graph for this function:

Here is the caller graph for this function:

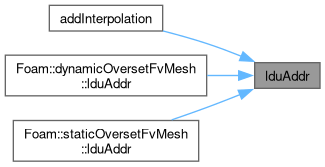

◆ lduAddr()

const Foam::lduAddressing & lduAddr ( ) const

virtual

Return ldu addressing. If active: is (extended).

primitiveLduAddr

Reimplemented in dynamicOversetFvMesh, and staticOversetFvMesh.

Definition at line 532 of file oversetFvMeshBase.C.

References active_, lduPtr_, mesh_, and updateAddressing().

Referenced by addInterpolation(), dynamicOversetFvMesh::lduAddr(), and staticOversetFvMesh::lduAddr().

Here is the call graph for this function:

Here is the caller graph for this function:

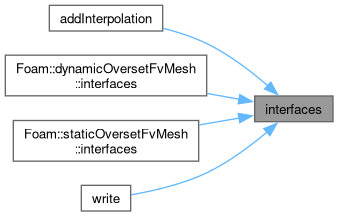

◆ interfaces()

Foam::lduInterfacePtrsList interfaces ( ) const

virtual

Return a list of pointers for each patch.

with only those pointing to interfaces being set. If active: return additional remoteStencilInterfaces_

Reimplemented in dynamicOversetFvMesh, and staticOversetFvMesh.

Definition at line 548 of file oversetFvMeshBase.C.

References active_, allInterfaces_, lduPtr_, mesh_, and updateAddressing().

Referenced by addInterpolation(), dynamicOversetFvMesh::interfaces(), staticOversetFvMesh::interfaces(), and write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reverseFaceMap()

const labelList & reverseFaceMap ( ) const

inline

Return old to new face addressing.

Definition at line 242 of file oversetFvMeshBase.H.

References reverseFaceMap_.

◆ active() [1/2]

bool active ( ) const

inline

Return true if using extended addressing.

Definition at line 250 of file oversetFvMeshBase.H.

References active_.

Referenced by solveOverset().

Here is the caller graph for this function:

◆ active() [2/2]

void active ( const bool f ) const

inline

Enable/disable extended addressing.

Definition at line 258 of file oversetFvMeshBase.H.

References active_, allInterfaces_, DebugInfo, Foam::endl(), f(), fvMeshPrimitiveLduAddressing::lowerAddr(), mesh_, primitiveLduAddr(), and UList< T >::size().

Here is the call graph for this function:

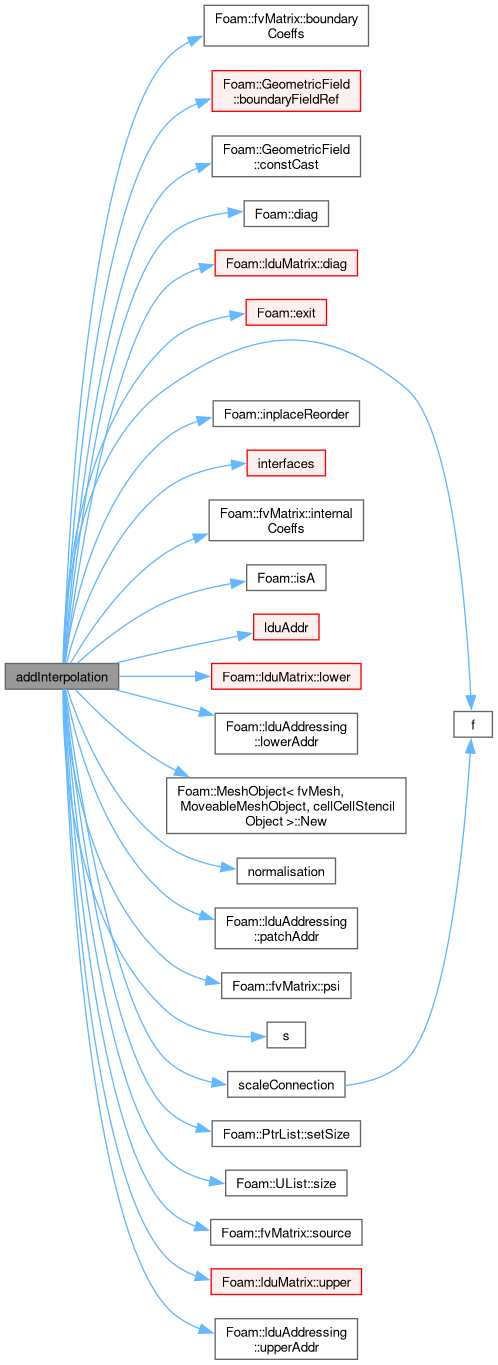

◆ addInterpolation()

template<class Type>

void addInterpolation	(	fvMatrix< Type > &	m,
		const scalarField &	normalisation,
		const bool	setHoleCellValue,
		const Type &	holeCellValue ) const

Manipulate the matrix to add the interpolation/set hole.

values

Definition at line 281 of file oversetFvMeshBaseTemplates.C.

References allInterfaces_, fvMatrix< Type >::boundaryCoeffs(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), GeometricField< Type, PatchField, GeoMesh >::constCast(), Foam::diag(), lduMatrix::diag(), Foam::exit(), f(), Foam::FatalError, FatalErrorInFunction, forAll, cellCellStencil::HOLE, Foam::inplaceReorder(), interfaces(), fvMatrix< Type >::internalCoeffs(), cellCellStencil::INTERPOLATED, Foam::isA(), lduAddr(), lduMatrix::lower(), lduAddressing::lowerAddr(), mesh_, MeshObject< fvMesh, MoveableMeshObject, cellCellStencilObject >::New(), normalisation(), overlap, lduAddressing::patchAddr(), fvMatrix< Type >::psi(), reverseFaceMap_, s(), scaleConnection(), PtrList< T >::setSize(), UList< T >::size(), fvMatrix< Type >::source(), cellCellStencil::SPECIAL, stencilFaces_, stencilPatches_, lduMatrix::upper(), lduAddressing::upperAddr(), and Foam::Zero.

Here is the call graph for this function:

◆ clearOut()

void clearOut ( )

Clear out local storage.

Definition at line 576 of file oversetFvMeshBase.C.

References lduPtr_.

Referenced by cellCellStencilObject::movePoints().

Here is the caller graph for this function:

◆ update()

bool update ( )

virtual

Update the mesh for both mesh motion and topology change.

Reimplemented in dynamicOversetFvMesh, and staticOversetFvMesh.

Definition at line 584 of file oversetFvMeshBase.C.

References interpolateFields(), and updateAddressing().

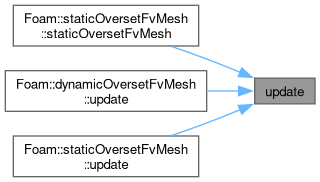

Referenced by staticOversetFvMesh::staticOversetFvMesh(), dynamicOversetFvMesh::update(), and staticOversetFvMesh::update().

Here is the call graph for this function:

Here is the caller graph for this function:

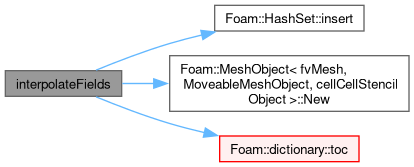

◆ interpolateFields()

bool interpolateFields ( )

virtual

Update fields when mesh is updated.

Definition at line 602 of file oversetFvMeshBase.C.

References HashSet< Key, Hash >::insert(), mesh_, MeshObject< fvMesh, MoveableMeshObject, cellCellStencilObject >::New(), overlap, and dictionary::toc().

Referenced by update().

Here is the call graph for this function:

Here is the caller graph for this function:

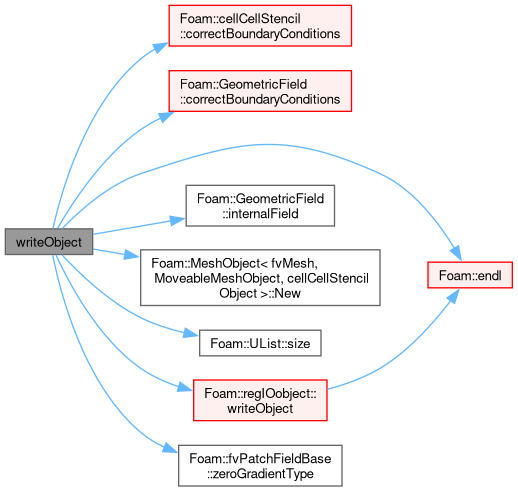

◆ writeObject()

bool writeObject	(	IOstreamOption	streamOpt,
		const bool	writeOnProc ) const

virtual

Write using stream options.

Do not correctBoundaryConditions since re-interpolates!

volDonorZoneID.correctBoundaryConditions();

Reimplemented in dynamicOversetFvMesh, and staticOversetFvMesh.

Definition at line 629 of file oversetFvMeshBase.C.

References cellTypes, cellCellStencil::correctBoundaryConditions(), GeometricField< Type, PatchField, GeoMesh >::correctBoundaryConditions(), Foam::dimless, Foam::endl(), forAll, GeometricField< Type, PatchField, GeoMesh >::internalField(), mesh_, MeshObject< fvMesh, MoveableMeshObject, cellCellStencilObject >::New(), IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, overlap, UList< T >::size(), WarningInFunction, regIOobject::writeObject(), Foam::Zero, and fvPatchFieldBase::zeroGradientType().

Referenced by dynamicOversetFvMesh::writeObject(), and staticOversetFvMesh::writeObject().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkCoupledBC()

template<class GeoField>

void checkCoupledBC ( const GeoField & fld )

static

Debug: check halo swap is ok.

Definition at line 984 of file oversetFvMeshBaseTemplates.C.

References correctCoupledBoundaryConditions(), Foam::endl(), fld(), forAll, and Foam::Pout.

Here is the call graph for this function:

◆ correctBoundaryConditions()

template<class GeoField, class PatchType, bool TypeOnly>

void correctBoundaryConditions ( typename GeoField::Boundary & bfld )

static

Correct boundary conditions of certain type (TypeOnly = true) or explicitly not of the type (TypeOnly = false).

Definition at line 70 of file oversetFvMeshBaseTemplates.C.

References Foam::isA().

Referenced by solveOverset(), cellVolumeWeight::update(), inverseDistance::update(), trackingInverseDistance::update(), and writeAgglomeration().

Here is the call graph for this function:

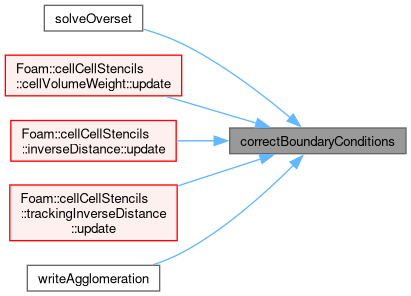

Here is the caller graph for this function:

◆ normalisation() [1/2]

template<class Type>

tmp< scalarField > normalisation ( const fvMatrix< Type > & m ) const

Determine normalisation for interpolation. This equals the original diagonal except stabilised for zero diagonals (possible in hole cells).

Referenced by addInterpolation(), and solveOverset().

Here is the caller graph for this function:

◆ normalisation() [2/2]

template<class Type>

Foam::tmp< Foam::scalarField > normalisation ( const fvMatrix< Type > & m ) const

Definition at line 99 of file oversetFvMeshBaseTemplates.C.

References cellAverage(), Field< Type >::component(), lduMatrix::diag(), Foam::endl(), forAll, cellCellStencil::HOLE, fvMatrix< Type >::internalCoeffs(), Foam::magSqr(), mesh_, n, IOobject::name(), MeshObject< fvMesh, MoveableMeshObject, cellCellStencilObject >::New(), tmp< T >::New(), overlap, Foam::Pout, fvMatrix< Type >::psi(), tmp< T >::ref(), Foam::returnReduce(), Foam::returnReduceOr(), bitSet::set(), Foam::sqr(), syncTools::swapBoundaryCellList(), syncTools::syncFaceList(), and List< T >::transfer().

Here is the call graph for this function:

◆ solveOverset() [2/2]

template<class Type>

Foam::SolverPerformance< Type > solveOverset	(	fvMatrix< Type > &	m,
		const dictionary &	dict ) const

Definition at line 690 of file oversetFvMeshBaseTemplates.C.

References active(), fvMatrix< Type >::boundaryCoeffs(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), fvMatrix< Type >::boundaryManipulate(), cellCellStencil::CALCULATED, GeometricField< Type, PatchField, GeoMesh >::constCast(), correctBoundaryConditions(), lduMatrix::diag(), dict, Foam::dimless, Foam::endl(), DimensionedField< Type, GeoMesh >::field(), forAll, cellCellStencil::HOLE, fvMatrix< Type >::internalCoeffs(), Foam::isA(), lduMatrix::lower(), mesh_, IOobject::name(), MeshObject< fvMesh, MoveableMeshObject, cellCellStencilObject >::New(), IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, normalisation(), overlap, Foam::Pout, fvMatrix< Type >::psi(), psi, GeometricField< Type, PatchField, GeoMesh >::ref(), s(), fvMatrix< Type >::source(), List< T >::transfer(), lduMatrix::upper(), regIOobject::write(), and Foam::Zero.

Here is the call graph for this function:

Member Data Documentation

◆ mesh_

const fvMesh& mesh_

protected

Reference to mesh.

Definition at line 73 of file oversetFvMeshBase.H.

Referenced by active(), addInterpolation(), cellAverage(), interfaces(), interpolateFields(), lduAddr(), normalisation(), oversetFvMeshBase(), solveOverset(), updateAddressing(), writeAgglomeration(), and writeObject().

◆ active_

bool active_

mutableprotected

Select base addressing (false) or locally stored extended.

lduAddressing (true)

Definition at line 80 of file oversetFvMeshBase.H.

Referenced by active(), active(), interfaces(), lduAddr(), and oversetFvMeshBase().

◆ lduPtr_

autoPtr<fvMeshPrimitiveLduAddressing> lduPtr_

mutableprotected

Extended addressing (extended with local interpolation stencils).

Definition at line 85 of file oversetFvMeshBase.H.

Referenced by clearOut(), interfaces(), lduAddr(), primitiveLduAddr(), and updateAddressing().

◆ remoteStencilInterfaces_

PtrList<const lduPrimitiveProcessorInterface> remoteStencilInterfaces_

mutableprotected

Added (processor)lduInterfaces for remote bits of stencil.

Definition at line 91 of file oversetFvMeshBase.H.

Referenced by updateAddressing().

◆ allInterfaces_

lduInterfacePtrsList allInterfaces_

mutableprotected

Interfaces for above mesh. Contains both original and above added processorLduInterfaces.

Definition at line 97 of file oversetFvMeshBase.H.

Referenced by active(), addInterpolation(), interfaces(), and updateAddressing().

◆ stencilFaces_

labelListList stencilFaces_

mutableprotected

Corresponding faces (in above lduPtr) to the stencil.

Definition at line 102 of file oversetFvMeshBase.H.

Referenced by addInterpolation(), and updateAddressing().

◆ stencilPatches_

labelListList stencilPatches_

mutableprotected

Corresponding patches (in above lduPtr) to the stencil.

Definition at line 107 of file oversetFvMeshBase.H.

Referenced by addInterpolation(), and updateAddressing().

◆ reverseFaceMap_

labelList reverseFaceMap_

mutableprotected

From old to new face labels.

Definition at line 112 of file oversetFvMeshBase.H.

Referenced by addInterpolation(), reverseFaceMap(), and updateAddressing().

The documentation for this class was generated from the following files:

src/overset/oversetFvMesh/oversetFvMeshBase.H
src/overset/oversetFvMesh/oversetFvMeshBase.C
src/overset/oversetFvMesh/oversetFvMeshBaseTemplates.C

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ oversetFvMeshBase()

◆ ~oversetFvMeshBase()

Member Function Documentation

◆ updateAddressing()

◆ write()

◆ scaleConnection()

◆ solveOverset() [1/2]

◆ correctCoupledBoundaryConditions()

◆ cellAverage()

◆ writeAgglomeration()

◆ TypeName()

◆ primitiveLduAddr()

◆ lduAddr()

◆ interfaces()

◆ reverseFaceMap()

◆ active() [1/2]

◆ active() [2/2]

◆ addInterpolation()

◆ clearOut()

◆ update()

◆ interpolateFields()

◆ writeObject()

◆ checkCoupledBC()

◆ correctBoundaryConditions()

◆ normalisation() [1/2]

◆ normalisation() [2/2]

◆ solveOverset() [2/2]

Member Data Documentation

◆ mesh_

◆ active_

◆ lduPtr_

◆ remoteStencilInterfaces_

◆ allInterfaces_

◆ stencilFaces_

◆ stencilPatches_

◆ reverseFaceMap_
