dynamicRefineFvMesh Class Reference

A fvMesh with built-in refinement. More...

#include <dynamicRefineFvMesh.H>

Inheritance diagram for dynamicRefineFvMesh:

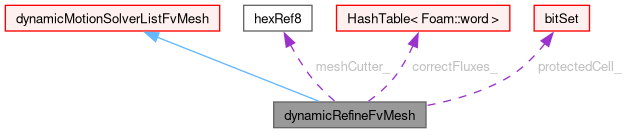

Collaboration diagram for dynamicRefineFvMesh:

Public Member Functions
	TypeName ("dynamicRefineFvMesh")
	Runtime type information.
	dynamicRefineFvMesh (const IOobject &io, const bool doInit=true)
	Construct from IOobject.
virtual	~dynamicRefineFvMesh ()=default
	Destructor.

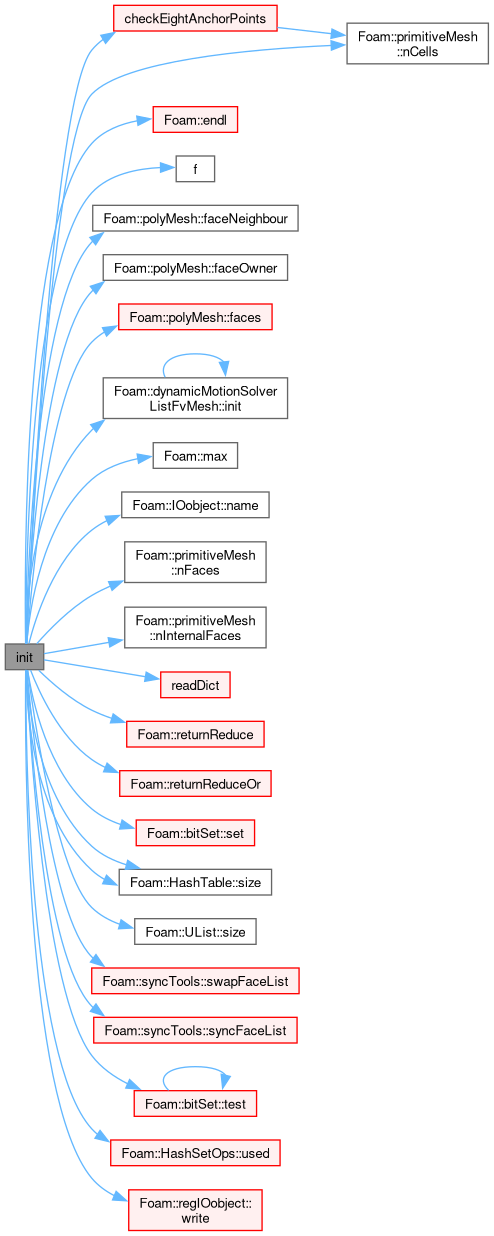

virtual bool	init (const bool doInit)
	Initialise all non-demand-driven data.
const hexRef8 &	meshCutter () const
	Direct access to the refinement engine.
const bitSet &	protectedCell () const
	Cells which should not be refined/unrefined.
bitSet &	protectedCell ()
	Cells which should not be refined/unrefined.
virtual bool	update ()
	Update the mesh for both mesh motion and topology change.
virtual void	mapFields (const mapPolyMesh &mpm)
	Map all fields in time using given map.

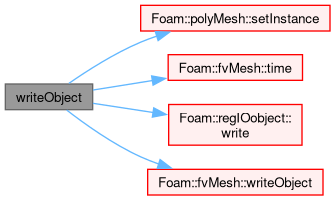

virtual bool	writeObject (IOstreamOption streamOpt, const bool writeOnProc) const
	Write using stream options.
Public Member Functions inherited from dynamicMotionSolverListFvMesh
	TypeName ("dynamicMotionSolverListFvMesh")
	Runtime type information.
	dynamicMotionSolverListFvMesh (const IOobject &io, const bool doInit=true)
	Construct from IOobject.
	~dynamicMotionSolverListFvMesh ()
	Destructor.
virtual bool	init (const bool doInit, const bool mandatory)
	Initialise all non-demand-driven data. Used for initialising.
Public Member Functions inherited from dynamicFvMesh
	TypeName ("dynamicFvMesh")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, dynamicFvMesh, IOobject,(const IOobject &io),(io))
	declareRunTimeSelectionTable (autoPtr, dynamicFvMesh, doInit,(const IOobject &io, const bool doInit),(io, doInit))
	dynamicFvMesh (const IOobject &io, const bool doInit=true)
	Construct from IOobject.
	dynamicFvMesh (const IOobject &io, const Foam::zero, bool syncPar=true)
	Construct from IOobject or as zero-sized mesh.
	dynamicFvMesh (const IOobject &io, pointField &&points, faceList &&faces, labelList &&allOwner, labelList &&allNeighbour, const bool syncPar=true)
	Construct from components without boundary.
	dynamicFvMesh (const IOobject &io, pointField &&points, faceList &&faces, cellList &&cells, const bool syncPar=true)
	Construct without boundary from cells rather than owner/neighbour.
virtual	~dynamicFvMesh ()=default
	Destructor.
virtual bool	dynamic () const
	Is mesh dynamic.
virtual bool	controlledUpdate ()
	Update the mesh if controller permits.
Public Member Functions inherited from fvMesh
	ClassName ("fvMesh")
	fvMesh (const IOobject &io, const bool doInit=true)
	Construct from IOobject.
	fvMesh (const IOobject &io, const Foam::zero, bool syncPar=true)
	Construct from IOobject or as zero-sized mesh.
	fvMesh (const IOobject &io, const fvMesh &baseMesh, const Foam::zero, const bool syncPar=true)
	Construct as copy (for dictionaries) and zero-sized components.
	fvMesh (const IOobject &io, pointField &&points, faceList &&faces, labelList &&allOwner, labelList &&allNeighbour, const bool syncPar=true)
	Construct from components without boundary.
	fvMesh (const IOobject &io, pointField &&points, faceList &&faces, cellList &&cells, const bool syncPar=true)
	Construct without boundary from cells rather than owner/neighbour.
	fvMesh (const IOobject &io, const fvMesh &baseMesh, pointField &&points, faceList &&faces, labelList &&allOwner, labelList &&allNeighbour, const bool syncPar=true)
	Copy construct (for dictionaries) with components, without boundary.
	fvMesh (const IOobject &io, const fvMesh &baseMesh, pointField &&points, faceList &&faces, cellList &&cells, const bool syncPar=true)
	Copy construct (for dictionaries) with cells, without boundary.
virtual	~fvMesh ()
	Destructor.
void	addFvPatches (polyPatchList &plist, const bool validBoundary=true)
	Add boundary patches. Constructor helper.
void	addFvPatches (const List< polyPatch * > &p, const bool validBoundary=true)
	Add boundary patches. Constructor helper.
virtual readUpdateState	readUpdate ()
	Update the mesh based on the mesh files saved in time.
const Time &	time () const
	Return the top-level database.
virtual bool	hasDb () const
	Return true if thisDb() is a valid DB.
virtual const objectRegistry &	thisDb () const
	Return the object registry - resolve conflict polyMesh/lduMesh.
const word &	name () const
	Return reference to name.
const fvBoundaryMesh &	boundary () const noexcept
	Return reference to boundary mesh.
virtual const lduAddressing &	lduAddr () const
	Return ldu addressing.
virtual lduInterfacePtrsList	interfaces () const
	Return a list of pointers for each patch.
virtual label	comm () const
	Return communicator used for parallel communication.
const fvSchemes *	hasSchemes () const
	Non-null if fvSchemes exists (can test as bool).
const fvSolution *	hasSolution () const
	Non-null if fvSolution exists (can test as bool).
const fvSchemes &	schemes () const
	Read-access to the fvSchemes controls.
fvSchemes &	schemes ()
	Read/write-access to the fvSchemes controls.
const fvSolution &	solution () const
	Read-access to the fvSolution controls.
fvSolution &	solution ()
	Read/write-access to the fvSolution controls.
virtual void	interpolate (volScalarField &) const
	Interpolate interpolationCells only.
virtual void	interpolate (volVectorField &) const
	Interpolate interpolationCells only.
virtual void	interpolate (volSphericalTensorField &) const
	Interpolate interpolationCells only.
virtual void	interpolate (volSymmTensorField &) const
	Interpolate interpolationCells only.
virtual void	interpolate (volTensorField &) const
	Interpolate interpolationCells only.
virtual void	interpolate (scalarField &) const
	Interpolate interpolationCells only. No bcs.
virtual void	interpolate (vectorField &) const
	Interpolate interpolationCells only. No bcs.
virtual void	interpolate (sphericalTensorField &) const
	Interpolate interpolationCells only. No bcs.
virtual void	interpolate (symmTensorField &) const
	Interpolate interpolationCells only. No bcs.
virtual void	interpolate (tensorField &) const
	Interpolate interpolationCells only. No bcs.
virtual SolverPerformance< scalar >	solve (fvMatrix< scalar > &, const dictionary &) const
	Solve returning the solution statistics given convergence tolerance. Use the given solver controls.
virtual SolverPerformance< vector >	solve (fvMatrix< vector > &, const dictionary &) const
	Solve returning the solution statistics given convergence tolerance. Use the given solver controls.
virtual SolverPerformance< sphericalTensor >	solve (fvMatrix< sphericalTensor > &, const dictionary &) const
	Solve returning the solution statistics given convergence tolerance. Use the given solver controls.
virtual SolverPerformance< symmTensor >	solve (fvMatrix< symmTensor > &, const dictionary &) const
	Solve returning the solution statistics given convergence tolerance. Use the given solver controls.
virtual SolverPerformance< tensor >	solve (fvMatrix< tensor > &, const dictionary &) const
	Solve returning the solution statistics given convergence tolerance. Use the given solver controls.
const labelUList &	owner () const
	Internal face owner. Note bypassing virtual mechanism so.
const labelUList &	neighbour () const
	Internal face neighbour.
const DimensionedField< scalar, volMesh > &	V () const
	Return cell volumes.
const DimensionedField< scalar, volMesh > &	V0 () const
	Return old-time cell volumes.
const DimensionedField< scalar, volMesh > &	V00 () const
	Return old-old-time cell volumes.
tmp< DimensionedField< scalar, volMesh > >	Vsc () const
	Return sub-cycle cell volumes.
tmp< DimensionedField< scalar, volMesh > >	Vsc0 () const
	Return sub-cycle old-time cell volumes.
const surfaceVectorField &	Sf () const
	Return cell face area vectors.
const surfaceScalarField &	magSf () const
	Return cell face area magnitudes.
tmp< surfaceVectorField >	unitSf () const
	Return cell face unit normals.
const surfaceScalarField &	phi () const
	Return cell face motion fluxes.
const volVectorField &	C () const
	Return cell centres as volVectorField.
const surfaceVectorField &	Cf () const
	Return face centres as surfaceVectorField.
tmp< surfaceVectorField >	delta () const
	Return face deltas as surfaceVectorField.
template<class Type>
pTraits< Type >::labelType	validComponents () const
	Return a labelType of valid component indicators.
void	clearOut (const bool isMeshUpdate=false)
	Clear all geometry and addressing.
virtual void	updateMesh (const mapPolyMesh &mpm)
	Update mesh corresponding to the given map.
virtual void	movePoints (const pointField &)
	Move points, returns volumes swept by faces in motion.
virtual void	updateGeom ()
	Update all geometric data. This gets redirected up from primitiveMesh level.
void	removeFvBoundary ()
	Remove boundary patches. Warning: fvPatchFields hold ref to these fvPatches.
void	clearMeshPhi ()
	Clear cell face motion fluxes.
refPtr< surfaceScalarField >	setPhi ()
	Return cell face motion fluxes, if any (can be nullptr).
DimensionedField< scalar, volMesh > &	setV0 ()
	Return old-time cell volumes.
virtual bool	write (const bool writeOnProc=true) const
	Write mesh using IO settings from time.
bool	operator!= (const fvMesh &rhs) const
	Compares addresses.
bool	operator== (const fvMesh &rhs) const
	Compares addresses.
template<>
pTraits< sphericalTensor >::labelType	validComponents () const
template<class Type>
Foam::pTraits< Type >::labelType	validComponents () const
virtual bool	movePoints ()
	Avoid masking surfaceInterpolation method.
Public Member Functions inherited from polyMesh
	TypeName ("polyMesh")
	Runtime type information.
	polyMesh (const IOobject &io, const bool doInit=true)
	Read construct from IOobject.
	polyMesh (const IOobject &io, const Foam::zero, const bool syncPar=true)
	Construct from IOobject or as zero-sized mesh.
	polyMesh (const IOobject &io, pointField &&points, faceList &&faces, labelList &&owner, labelList &&neighbour, const bool syncPar=true)
	Construct from IOobject and components.
	polyMesh (const IOobject &io, pointField &&points, faceList &&faces, cellList &&cells, const bool syncPar=true)
	Construct without boundary with cells rather than owner/neighbour.
	polyMesh (const IOobject &io, pointField &&points, const cellShapeList &shapes, const faceListList &boundaryFaces, const wordList &boundaryPatchNames, const wordList &boundaryPatchTypes, const word &defaultBoundaryPatchName, const word &defaultBoundaryPatchType, const wordList &boundaryPatchPhysicalTypes, const bool syncPar=true)
	Construct from cell shapes.
	polyMesh (const IOobject &io, pointField &&points, const cellShapeList &shapes, const faceListList &boundaryFaces, const wordList &boundaryPatchNames, const PtrList< dictionary > &boundaryDicts, const word &defaultBoundaryPatchName, const word &defaultBoundaryPatchType, const bool syncPar=true)
	Construct from cell shapes, with patch information in dictionary format.
virtual	~polyMesh ()
	Destructor.
virtual const fileName &	dbDir () const
	Override the objectRegistry dbDir for a single-region case.
fileName	meshDir () const
	Return the local mesh directory (dbDir()/meshSubDir).
const fileName &	pointsInstance () const
	Return the current instance directory for points.
const fileName &	facesInstance () const
	Return the current instance directory for faces.
void	setInstance (const fileName &instance, const IOobjectOption::writeOption wOpt=IOobject::AUTO_WRITE)
	Set the instance for mesh files.
const word &	regionName () const
	The mesh region name or word::null if polyMesh::defaultRegion.
virtual const meshState &	data () const noexcept
	Const reference to the mesh and solver state data.
virtual meshState &	data () noexcept
	Reference to the mesh and solver state data.
virtual const pointField &	points () const
	Return raw points.
virtual bool	upToDatePoints (const regIOobject &io) const
	Return true if io is up-to-date with points.
virtual void	setUpToDatePoints (regIOobject &io) const
	Set io to be up-to-date with points.
virtual const faceList &	faces () const
	Return raw faces.
virtual const labelList &	faceOwner () const
	Return face owner.
virtual const labelList &	faceNeighbour () const
	Return face neighbour.
virtual const pointField &	oldPoints () const
	Return old points (mesh motion).
virtual const pointField &	oldCellCentres () const
	Return old cellCentres (mesh motion).
const polyBoundaryMesh &	boundaryMesh () const noexcept
	Return boundary mesh.
const boundBox &	bounds () const noexcept
	Return mesh bounding box.
const Vector< label > &	geometricD () const
	Return the vector of geometric directions in mesh.
label	nGeometricD () const
	Return the number of valid geometric dimensions in the mesh.
const Vector< label > &	solutionD () const
	Return the vector of solved-for directions in mesh.
label	nSolutionD () const
	Return the number of valid solved-for dimensions in the mesh.
const labelIOList &	tetBasePtIs () const
	Return the tetBasePtIs.
const indexedOctree< treeDataCell > &	cellTree () const
	Return the cell search tree.
const pointZoneMesh &	pointZones () const noexcept
	Return point zone mesh.
const faceZoneMesh &	faceZones () const noexcept
	Return face zone mesh.
const cellZoneMesh &	cellZones () const noexcept
	Return cell zone mesh.
const objectRegistry &	thisDb () const noexcept
	Return the object registry.
label	comm () const noexcept
	The communicator used for parallel communication.
label &	comm () noexcept
	The communicator used for parallel communication.
bool	hasGlobalData () const noexcept
	Is demand-driven parallel info available?
const globalMeshData &	globalData () const
	Return parallel info (demand-driven).
bool	moving () const noexcept
	Is mesh moving.
bool	moving (const bool on) noexcept
	Set the mesh to be moving.
bool	topoChanging () const noexcept
	Is mesh topology changing.
bool	topoChanging (const bool on) noexcept
	Set the mesh topology to be changing.
bool	changing () const noexcept
	Is mesh changing (topology changing and/or moving).
void	resetMotion () const
	Reset motion.
pointZoneMesh &	pointZones () noexcept
	Return non-const access to the pointZones.
faceZoneMesh &	faceZones () noexcept
	Return non-const access to the faceZones.
cellZoneMesh &	cellZones () noexcept
	Return non-const access to the cellZones.
void	addPatches (polyPatchList &plist, const bool validBoundary=true)
	Add boundary patches.
void	addPatches (const List< polyPatch * > &p, const bool validBoundary=true)
	Add boundary patches.
void	addZones (PtrList< pointZone > &&pz, PtrList< faceZone > &&fz, PtrList< cellZone > &&cz)
	Add mesh zones.
void	addZones (const List< pointZone * > &pz, const List< faceZone * > &fz, const List< cellZone * > &cz)
	Add mesh zones.
void	removeBoundary ()
	Remove boundary patches.
void	resetPrimitives (autoPtr< pointField > &&points, autoPtr< faceList > &&faces, autoPtr< labelList > &&owner, autoPtr< labelList > &&neighbour, const labelUList &patchSizes, const labelUList &patchStarts, const bool validBoundary=true)
	Reset mesh primitive data. Assumes all patch info correct.
void	clearGeom ()
	Clear geometry.
void	updateGeomPoints (pointIOField &&newPoints, autoPtr< labelIOList > &newTetBasePtIsPtr)
	Update geometry points; keep topology. Optionally with new face decomposition.
void	clearAddressing (const bool isMeshUpdate=false)
	Clear addressing.
void	clearOut (const bool isMeshUpdate=false)
	Clear all geometry and addressing.
void	clearPrimitives ()
	Clear primitive data (points, faces and cells).
void	clearTetBasePtIs ()
	Clear tet base points.
void	clearCellTree ()
	Clear cell tree data.
void	removeFiles (const fileName &instanceDir) const
	Remove all files from mesh instance.
void	removeFiles () const
	Remove all files from mesh instance().
bool	hasTetBasePtIs () const
virtual bool	checkFaceOrthogonality (const bool report=false, labelHashSet *setPtr=nullptr) const
	Check non-orthogonality.
virtual bool	checkFaceSkewness (const bool report=false, labelHashSet *setPtr=nullptr) const
	Check face skewness.
virtual bool	checkEdgeAlignment (const bool report, const Vector< label > &directions, labelHashSet *setPtr) const
	Check edge alignment for 1D/2D cases.
virtual bool	checkCellDeterminant (const bool report, labelHashSet *setPtr) const
virtual bool	checkMeshMotion (const pointField &newPoints, const bool report=false, const bool detailedReport=false) const
	Check mesh motion for correctness given motion points.
virtual bool	checkFaceWeight (const bool report, const scalar minWeight=0.05, labelHashSet *setPtr=nullptr) const
	Check for face weights.
virtual bool	checkVolRatio (const bool report, const scalar minRatio=0.01, labelHashSet *setPtr=nullptr) const
	Check for neighbouring cell volumes.
void	findCellFacePt (const point &p, label &celli, label &tetFacei, label &tetPti) const
	Find the cell, tetFacei and tetPti for point p.
void	findTetFacePt (const label celli, const point &p, label &tetFacei, label &tetPti) const
	Find the tetFacei and tetPti for point p in celli.
bool	pointInCell (const point &p, label celli, const cellDecomposition=CELL_TETS) const
	Test if point p is in the celli.
label	findCell (const point &p, const cellDecomposition=CELL_TETS) const
	Find cell enclosing this location and return index.
Public Member Functions inherited from objectRegistry
	TypeName ("objectRegistry")
	Declare type name for this IOobject.
	objectRegistry (const Time &db, const label initialCapacity=128)
	Construct the time objectRegistry, with estimated table capacity (default: 128).
	objectRegistry (const IOobject &io, const label initialCapacity=128)
	Construct sub-registry given an IObject to describe the registry, with estimated table capacity (default: 128).
virtual	~objectRegistry ()
	Destructor, with checkOut() for all objects that are ownedByRegistry.
const objectRegistry &	thisDb () const noexcept
	Return the object registry.
const objectRegistry &	parent () const noexcept
	Return the parent objectRegistry.
const Time &	time () const noexcept
	Return time registry.
bool	isTimeDb () const noexcept
	True if the registry is Time.
IOobject	newIOobject (const word &name, IOobjectOption ioOpt) const
	Create an IOobject at the current time instance (timeName) with the specified options.
IOobject	newIOobject (const word &name, IOobjectOption::readOption rOpt=IOobjectOption::NO_READ, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, IOobjectOption::registerOption regOpt=IOobjectOption::NO_REGISTER) const
	Create an IOobject at the current time instance (timeName).
HashTable< wordHashSet >	classes () const
	A summary hash of classes used and their associated object names.
template<class MatchPredicate>
HashTable< wordHashSet >	classes (const MatchPredicate &matchName) const
	A summary hash of classes used and their associated object names, restricted to objects that have a matching object name.
template<class Type, bool Strict = false>
UPtrList< const Type >	cobjects () const
	Return unsorted list of objects with a class satisfying isA<Type> or isType<Type> (with Strict).
template<class Type, bool Strict = false>
UPtrList< Type >	objects ()
	Return unsorted list of objects with a class satisfying isA<Type> or isType<Type> (with Strict).
template<class Type, class MatchPredicate>
UPtrList< const Type >	cobjects (const MatchPredicate &matchName) const
	Return unsorted list of objects with a class satisfying isA<Type> that also have a matching object name.
template<class Type, class MatchPredicate>
UPtrList< Type >	objects (const MatchPredicate &matchName)
	Return sorted list of objects with a class satisfying isA<Type> that also have a matching object name.
template<class Type, bool Strict = false>
UPtrList< const Type >	csorted () const
	Return sorted list of objects with a class satisfying isA<Type> or isType<Type> (with Strict).
template<class Type, bool Strict = false>
UPtrList< Type >	sorted ()
	Return sorted list of objects with a class satisfying isA<Type> or isType<Type> (with Strict).
UPtrList< const regIOobject >	csorted () const
	Return sorted list of objects.
UPtrList< regIOobject >	sorted ()
	Return sorted list of objects.
template<class Type, class MatchPredicate>
UPtrList< const Type >	csorted (const MatchPredicate &matchName) const
	Return sorted list of objects with a class satisfying isA<Type> that also have a matching object name.
template<class Type, class MatchPredicate>
UPtrList< Type >	sorted (const MatchPredicate &matchName)
	Return sorted list of objects with a class satisfying isA<Type> that also have a matching object name.
label	count (const char *clsName) const
	The number of objects of the given class name.
template<class MatchPredicate>
label	count (const MatchPredicate &matchClass) const
	The number of objects of the given class name.
template<class MatchPredicate1, class MatchPredicate2>
label	count (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const
	The number of objects of the given class name.
template<class Type>
label	count (const bool strict=false) const
	The names of objects with a class satisfying isA<Type>.
template<class Type, class MatchPredicate>
label	count (const MatchPredicate &matchName) const
	The names of objects with a class satisfying isA<Type> that also have a matching object name.
wordList	names () const
	The unsorted names of all objects.
wordList	names (const char *clsName) const
	The unsorted names of objects with the given class name.
template<class MatchPredicate>
wordList	names (const MatchPredicate &matchClass) const
	The unsorted names of objects with a matching class name.
template<class MatchPredicate1, class MatchPredicate2>
wordList	names (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const
	The unsorted names of objects with a matching class name that also have a matching object name.
template<class Type>
wordList	names () const
	The unsorted names of objects with a class satisfying isA<Type>.
template<class Type, class MatchPredicate>
wordList	names (const MatchPredicate &matchName) const
	The unsorted names of objects with a class satisfying isA<Type> that also have a matching object name.
wordList	sortedNames () const
	The sorted names of all objects.
wordList	sortedNames (const char *clsName) const
	The sorted names of objects with the given class name.
template<class MatchPredicate>
wordList	sortedNames (const MatchPredicate &matchClass) const
	The sorted names objects with a matching class name.
template<class MatchPredicate1, class MatchPredicate2>
wordList	sortedNames (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const
	The sorted names of objects with a matching class name that also have a matching object name.
template<class Type>
wordList	sortedNames () const
	The sorted names of objects with a class satisfying isA<Type>.
template<class Type, class MatchPredicate>
wordList	sortedNames (const MatchPredicate &matchName) const
	The sorted names of objects with a class satisfying isA<Type> that also have a matching object name.
const objectRegistry &	subRegistry (const word &name, const bool forceCreate=false, const bool recursive=false) const
	Lookup and return a const sub-objectRegistry.
template<class Type, bool Strict = false>
HashTable< const Type * >	lookupClass () const
	Return all objects with a class satisfying isA<Type> or isType<Type> (with Strict).
template<class Type, bool Strict = false>
HashTable< Type * >	lookupClass ()
	Return all objects with a class satisfying isA<Type> or isType<Type> (with Strict).
template<class Type>
HashTable< const Type * >	lookupClass (const bool strict) const
	Return all objects with a class satisfying isA<Type>.
template<class Type>
HashTable< Type * >	lookupClass (const bool strict)
	Return all objects with a class satisfying isA<Type>.
const regIOobject *	cfindIOobject (const word &name, const bool recursive=false) const
	Return const pointer to the regIOobject.
bool	contains (const word &name, const bool recursive=false) const
	Does the registry contain the regIOobject object (by name).
template<class Type>
bool	foundObject (const word &name, const bool recursive=false) const
	Contains the named Type?
template<class Type>
const Type *	cfindObject (const word &name, const bool recursive=false) const
	Return const pointer to the object of the given Type.
template<class Type>
const Type *	findObject (const word &name, const bool recursive=false) const
	Return const pointer to the object of the given Type.
template<class Type>
Type *	findObject (const word &name, const bool recursive=false)
	Return non-const pointer to the object of the given Type.
template<class Type>
Type *	getObjectPtr (const word &name, const bool recursive=false) const
	Return non-const pointer to the object of the given Type, using a const-cast to have it behave like a mutable.
template<class Type>
const Type &	lookupObject (const word &name, const bool recursive=false) const
	Lookup and return const reference to the object of the given Type. Fatal if not found or the wrong type.
template<class Type>
Type &	lookupObjectRef (const word &name, const bool recursive=false) const
	Lookup and return non-const reference to the object of the given Type. Fatal if not found or the wrong type.
label	getEvent () const
	Return new event number.
bool	checkIn (regIOobject *io) const
	Add a regIOobject to registry. A nullptr is ignored.
bool	checkIn (regIOobject &io) const
	Add a regIOobject to registry.
bool	checkOut (regIOobject *io) const
	Remove a regIOobject from registry and free memory if the object is ownedByRegistry. A nullptr is ignored.
bool	checkOut (regIOobject &io) const
	Remove a regIOobject from registry and free memory if the object is ownedByRegistry.
bool	checkOut (const word &key) const
	Remove a regIOobject by name from registry and free memory if the object is ownedByRegistry.
void	clear ()
	Clear all entries from the registry.
void	clearStorage ()
	Clear all entries from the registry and the table itself.
bool	erase (const iterator &iter)
	Erase an entry specified by the given iterator.
bool	erase (const word &key)
	Erase an entry specified by the given key.
label	erase (std::initializer_list< word > keys)
	Remove entries given by the listed keys.
label	erase (const UList< word > &keys)
	Remove entries given by the listed keys.
virtual void	rename (const word &newName)
	Rename.
bool	is_cacheTemporaryObject (const word &name) const
	True if given name is in the cacheTemporaryObjects set.
bool	is_cacheTemporaryObject (const regIOobject *io) const
	True if name of object is in the cacheTemporaryObjects set.
bool	is_cacheTemporaryObject (const regIOobject &io) const
	True if name of object is in the cacheTemporaryObjects set.
template<class Type>
bool	cacheTemporaryObject (Type &obj) const
	Cache the given object. Moves content and stores.
void	resetCacheTemporaryObject (const regIOobject *io) const
	Reset the cache state of the given object (nullptr is ignored).
void	resetCacheTemporaryObject (const regIOobject &io) const
	Reset the cache state of the given object in the cacheTemporaryObjects set.
bool	checkCacheTemporaryObjects () const
	Check that all objects specified in the cacheTemporaryObjects were also cached.
virtual bool	modified () const
	Return true if any of the object's files have been modified.
void	readModifiedObjects ()
	Read the objects that have been modified.
virtual bool	readIfModified ()
	Read object if modified.
virtual bool	writeData (Ostream &) const
	The writeData function is required by regIOobject but not used.
bool	found (const word &name, bool recursive=false) const
	Same as contains().
template<class Type>
const Type *	lookupObjectPtr (const word &name, bool recursive=false) const
	Deprecated(2018-10) find object.
template<class Type>
Type *	lookupObjectRefPtr (const word &name, bool recursive=false) const
	Deprecated(2018-10) get object pointer, ignoring constness.
template<class Type>
UPtrList< const Type >	sorted () const
	Deprecated(2023-07) use csorted() method.
UPtrList< const regIOobject >	sorted () const
	Deprecated(2023-07) use csorted() method.
template<class Type, class MatchPredicate>
UPtrList< const Type >	sorted (const MatchPredicate &matchName) const
	Deprecated(2023-07) use csorted() method.
template<class MatchPredicate>
Foam::HashTable< Foam::wordHashSet >	classesImpl (const objectRegistry &list, const MatchPredicate &matchName)
template<class MatchPredicate1, class MatchPredicate2>
Foam::label	countImpl (const objectRegistry &list, const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName)
template<class Type, class MatchPredicate>
Foam::label	countTypeImpl (const objectRegistry &list, const MatchPredicate &matchName)
template<class MatchPredicate1, class MatchPredicate2>
Foam::wordList	namesImpl (const objectRegistry &list, const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName, const bool doSort)
template<class Type, class MatchPredicate>
Foam::wordList	namesTypeImpl (const objectRegistry &list, const MatchPredicate &matchName, const bool doSort)
template<class Type, class MatchPredicate>
Foam::UPtrList< Type >	objectsTypeImpl (const bool strict, const objectRegistry &list, const MatchPredicate &matchName, const bool doSort)
template<class Type>
Foam::HashTable< Type * >	lookupClassTypeImpl (const bool strict, const objectRegistry &list)
template<class MatchPredicate>
Foam::HashTable< Foam::wordHashSet >	classes (const MatchPredicate &matchName) const
template<class MatchPredicate>
Foam::label	count (const MatchPredicate &matchClass) const
template<class MatchPredicate1, class MatchPredicate2>
Foam::label	count (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const
template<class Type, class MatchPredicate>
Foam::label	count (const MatchPredicate &matchName) const
template<class Type>
Foam::label	count (const bool strict) const
template<class Type, bool Strict>
Foam::UPtrList< const Type >	cobjects () const
template<class Type, bool Strict>
Foam::UPtrList< Type >	objects ()
template<class Type, bool Strict>
Foam::UPtrList< const Type >	csorted () const
template<class Type, bool Strict>
Foam::UPtrList< Type >	sorted ()
template<class Type, class MatchPredicate>
Foam::UPtrList< const Type >	cobjects (const MatchPredicate &matchName) const
template<class Type, class MatchPredicate>
Foam::UPtrList< Type >	objects (const MatchPredicate &matchName)
template<class Type, class MatchPredicate>
Foam::UPtrList< const Type >	csorted (const MatchPredicate &matchName) const
template<class Type, class MatchPredicate>
Foam::UPtrList< Type >	sorted (const MatchPredicate &matchName)
template<class MatchPredicate>
Foam::wordList	names (const MatchPredicate &matchClass) const
template<class MatchPredicate1, class MatchPredicate2>
Foam::wordList	names (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const
template<class Type>
Foam::wordList	names () const
template<class Type, class MatchPredicate>
Foam::wordList	names (const MatchPredicate &matchName) const
template<class MatchPredicate>
Foam::wordList	sortedNames (const MatchPredicate &matchClass) const
template<class MatchPredicate1, class MatchPredicate2>
Foam::wordList	sortedNames (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const
template<class Type>
Foam::wordList	sortedNames () const
template<class Type, class MatchPredicate>
Foam::wordList	sortedNames (const MatchPredicate &matchName) const
template<class Type, bool Strict>
Foam::HashTable< const Type * >	lookupClass () const
template<class Type, bool Strict>
Foam::HashTable< Type * >	lookupClass ()
template<class Type>
Foam::HashTable< const Type * >	lookupClass (const bool strict) const
template<class Type>
Foam::HashTable< Type * >	lookupClass (const bool strict)
Public Member Functions inherited from regIOobject
void	operator= (const regIOobject &)=delete
	No copy assignment.
	TypeName ("regIOobject")
	Runtime type information.
	regIOobject (const IOobject &io, const bool isTimeObject=false)
	Construct from IOobject. The optional flag adds special handling if the object is the top-level regIOobject (eg, Time).
	regIOobject (const regIOobject &rio)
	Copy construct.
	regIOobject (const regIOobject &rio, bool registerCopy)
	Copy construct, transferring registry registration to the copy if registerCopy is true.
	regIOobject (const word &newName, const regIOobject &, bool registerCopy)
	Copy construct with new name, transferring registry registration to the copy if registerCopy is true.
	regIOobject (const IOobject &io, const regIOobject &rio)
	Copy construct with new IO parameters.
virtual	~regIOobject ()
	Destructor.
bool	checkIn ()
	Add object to registry, if not already registered.
bool	checkOut ()
	Remove object from registry, and remove all file watches.
virtual void	addWatch ()
	Add file watch on object (if registered and READ_IF_MODIFIED).
bool	registered () const noexcept
	Query the registered state (ie, has been checked in). This is not necessarily the same as registerObject(), which is just a stated preference.
bool	ownedByRegistry () const noexcept
	Is this object owned by the registry?
bool	store ()
	Register object with its registry and transfer ownership to the registry.
void	release (const bool unregister=false) noexcept
	Set object as not ownedByRegistry.
label	eventNo () const noexcept
	Event number at last update.
label &	eventNo () noexcept
	Event number at last update.
bool	upToDate (const regIOobject &) const
	Return true if up-to-date with respect to given object.
bool	upToDate (const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects.
bool	upToDate (const regIOobject &, const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects.
bool	upToDate (const regIOobject &, const regIOobject &, const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects.
void	setUpToDate ()
	Set as up-to-date.
const dictionary *	findMetaData () const noexcept
	Return pointer to meta-data or nullptr.
dictionary &	getMetaData () noexcept
	Get or create meta-data.
void	removeMetaData ()
	Remove meta-data.
virtual void	updateMetaData ()
	Update internal meta-data (eg, prior to writing).
bool	headerOk ()
	Read and check header info. Does not check the headerClassName.
Istream &	readStream (const word &, const bool readOnProc=true)
	Return Istream and check object type against that given.
void	close ()
	Close Istream.
virtual label	addWatch (const fileName &)
	Add file watch for fileName on object if not yet watched.
const labelList &	watchIndices () const noexcept
	Read access to file-monitoring handles.
labelList &	watchIndices () noexcept
	Write access to file-monitoring handles.
void	operator= (const IOobject &io)
	Copy assignment.
virtual bool	writeObject (IOstreamOption::streamFormat fmt, IOstreamOption::versionNumber ver, IOstreamOption::compressionType cmp, const bool writeOnProc) const
	Write using given format, version and compression.
Public Member Functions inherited from IOobject
	TypeName ("IOobject")
	Declare type-name, virtual type (with debug switch).
	IOobject (const IOobject &)=default
	Copy construct.
virtual	~IOobject ()=default
	Destructor.
	IOobject (const word &name, const fileName &instance, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from name, instance, registry, io options.
	IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from name, instance, local, registry, io options.
	IOobject (const fileName &path, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from path, registry, io options.
	IOobject (const word &name, const fileName &instance, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from name, instance, registry, io options.
	IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from name, instance, local, registry, io options.
	IOobject (const fileName &path, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from path, registry, io options.
	IOobject (const IOobject &io, const objectRegistry &registry)
	Copy construct, resetting registry.
	IOobject (const IOobject &io, const word &name)
	Copy construct, resetting name.
	IOobject (const IOobject &io, const word &name, const fileName &local)
	Copy construct, resetting name and local component.
	IOobject (const IOobject &io, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt)
	Copy construct, resetting read/write options.
	IOobject (const IOobject &io, IOobjectOption::registerOption regOpt)
	Copy construct, resetting register option.
autoPtr< IOobject >	clone () const
	Clone.
autoPtr< IOobject >	clone (const objectRegistry &registry) const
	Clone resetting registry.
const objectRegistry &	db () const noexcept
	Return the local objectRegistry.
const Time &	time () const noexcept
	Return Time associated with the objectRegistry.
const word &	name () const noexcept
	Return the object name.
const word &	headerClassName () const noexcept
	Return name of the class name read from header.
word &	headerClassName () noexcept
	Modifiable access to the class name read from header.
const string &	note () const noexcept
	Return the optional note.
string &	note () noexcept
	Modifiable access to the optional note.
unsigned	labelByteSize () const noexcept
	The sizeof (label) in bytes, possibly read from the header.
unsigned	scalarByteSize () const noexcept
	The sizeof (scalar) in bytes, possibly read from the header.
void	resetHeader (const word &newName=word::null)
	Clear various bits (headerClassName, note, sizeof...) that would be obtained when reading from a file.
bool	hasHeaderClass () const noexcept
	True if headerClassName() is non-empty (after reading).
bool	isHeaderClass (const word &expectedType) const
	Check if headerClassName() equals the expected type. Always true if the expected type is empty.
template<class Type>
bool	isHeaderClass () const
	Check if headerClassName() equals Type::typeName Always true for a void type.
word	group () const
	Return group (extension part of name).
word	member () const
	Return member (name without the extension).
const fileName &	rootPath () const noexcept
	Return the Time::rootPath().
const fileName &	caseName () const noexcept
	Return the Time::caseName().
const fileName &	globalCaseName () const noexcept
	Return the Time::globalCaseName().
const fileName &	caseName (IOobjectOption::Layout) const noexcept
	Return the Time::caseName() - normal or global.
const fileName &	instance () const noexcept
	Read access to instance path component.
fileName &	instance () noexcept
	Modifiable access to instance path component.
scalar	instanceValue () const
	Return the scalar value of the instance component (or 0), which often corresponds to a time index/value.
const fileName &	local () const noexcept
	Read access to local path component.
fileName &	local () noexcept
	Modifiable access to the local path component.
fileName	path () const
	The complete path for the object (with instance, local,...).
fileName	globalPath () const
	The complete global path for the object (with instance, local,...).
fileName	path (IOobjectOption::Layout) const
	The complete path (normal or global) for the object.
fileName	path (const word &instance, const fileName &local=fileName::null) const
	The complete path with alternative instance and local.
fileName	globalPath (const word &instance, const fileName &local=fileName::null) const
	The complete global path with alternative instance and local.
fileName	path (IOobjectOption::Layout, const word &instance, const fileName &local=fileName::null) const
	The complete path (normal or global) with alternative instance and local.
fileName	objectPath () const
	The complete path + object name.
fileName	globalObjectPath () const
	The complete global path + object name.
fileName	objectPath (IOobjectOption::Layout) const
	The complete path (normal or global) + object name.
fileName	objectPath (IOobjectOption::Layout, const word &instance) const
	The complete path (normal or global) + object name with alternative instance.
fileName	objectPath (const word &instance) const
	The complete path + object name with alternative instance.
fileName	globalObjectPath (const word &instance) const
	The complete global path + object name with alternative instance.
fileName	objectRelPath () const
	The object path relative to the case.
fileName	localFilePath (const word &typeName, const bool search=true) const
	Redirect to fileHandler filePath, searching locally.
fileName	globalFilePath (const word &typeName, const bool search=true) const
	Redirect to fileHandler filePath, searching up if in parallel.
IOstreamOption	parseHeader (const dictionary &headerDict)
	Parse 'FoamFile' header contents and set the IOobject characteristics and return the stream characteristics.
bool	readHeader (Istream &is)
	Read header ('FoamFile' dictionary) and set the IOobject and stream characteristics.
bool	readHeader (dictionary &headerDict, Istream &is)
	Read header (the 'FoamFile' dictionary) and set the IOobject and stream characteristics.
template<class Type>
bool	typeHeaderOk (const bool checkType=true, const bool search=true, const bool verbose=true)
	Read header (respects is_globalIOobject trait) and check its info. A void type suppresses trait and type-name checks.
template<class Type, bool Searching>
bool	typeHeaderOk (const bool checkType=true, const bool verbose=true)
	Forwards to single-parameter version with the specified search type. A void type suppresses trait and type-name checks.
template<class Type>
fileName	typeFilePath (const bool search=true) const
	Call localFilePath or globalFilePath for given type depending on its is_globalIOobject trait.
template<class Type>
void	warnNoRereading () const
	Helper: warn that type does not support re-reading.
bool	writeHeader (Ostream &os) const
	Write header with current type().
bool	writeHeader (Ostream &os, const word &objectType) const
	Write header with override of type.
void	writeHeader (dictionary &dict, IOstreamOption streamOpt) const
	Write header into a dictionary with current type() and given output format.
void	writeHeader (dictionary &dict, const word &objectType, IOstreamOption streamOpt) const
	Write header into a dictionary with override of type and given output format.
bool	good () const noexcept
	Did last readHeader() succeed?
bool	bad () const noexcept
	Did last readHeader() fail?
InfoProxy< IOobject >	info () const noexcept
	Return info proxy, for printing information to a stream.
void	operator= (const IOobject &io)
	Copy assignment, copies all values (except the registry).
template<class Type>
bool	isHeaderClassName () const
	Same as isHeaderClass().
template<class StringType>
Foam::word	groupName (StringType base, const word &group)
template<class Type>
Foam::fileName	typeFilePath (const bool search) const
Public Member Functions inherited from IOobjectOption
constexpr	IOobjectOption (readOption rOpt=readOption::NO_READ, writeOption wOpt=writeOption::NO_WRITE, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Default construct (NO_READ, NO_WRITE, REGISTER, non-global) or construct with specified options.
constexpr	IOobjectOption (readOption rOpt, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Construct NO_WRITE with specified read/register options.
constexpr	IOobjectOption (writeOption wOpt, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Construct NO_READ with specified write/register options.
constexpr	IOobjectOption (registerOption registerObject, bool globalObject=false) noexcept
	Construct (NO_READ, NO_WRITE) with specified register option.
constexpr	IOobjectOption (readOption rOpt, writeOption wOpt, bool registerObject, bool globalObject=false) noexcept
	Construct from components with specified register option as bool.
constexpr	IOobjectOption (bool registerObject, bool globalObject=false) noexcept
	Construct (NO_READ, NO_WRITE) with specified register option as bool.
readOption	readOpt () const noexcept
	Get the read option.
readOption	readOpt (readOption opt) noexcept
	Set the read option.
writeOption	writeOpt () const noexcept
	Get the write option.
writeOption	writeOpt (writeOption opt) noexcept
	Set the write option.
bool	registerObject () const noexcept
	Should objects created with this IOobject be registered?
bool	registerObject (bool on) noexcept
	Change registration preference.
bool	globalObject () const noexcept
	True if object is treated the same for all processors.
bool	globalObject (bool on) noexcept
	Change global-object status.
bool	isAnyRead () const noexcept
	True if any reading may be required (ie, != NO_READ).
bool	isReadRequired () const noexcept
	True if (MUST_READ | READ_MODIFIED) bits are set.
bool	isReadOptional () const noexcept
	True if (LAZY_READ) bits are set [same as READ_IF_PRESENT].
readOption &	readOpt () noexcept
	Access to the read option.
writeOption &	writeOpt () noexcept
	Access to the write option.
bool &	registerObject () noexcept
	Access to the register object option.
bool &	globalObject () noexcept
	Access to the global object option.
Public Member Functions inherited from HashTable< regIOobject * >
Foam::List< word >	sortedToc (const Compare &comp) const
Foam::List< word >	tocKeys (const UnaryPredicate &pred, const bool invert) const
Foam::List< word >	tocValues (const UnaryPredicate &pred, const bool invert) const
Foam::List< word >	tocEntries (const BinaryPredicate &pred, const bool invert) const
Foam::label	countKeys (const UnaryPredicate &pred, const bool invert) const
Foam::label	countValues (const UnaryPredicate &pred, const bool invert) const
Foam::label	countEntries (const BinaryPredicate &pred, const bool invert) const
Foam::label	erase (InputIter first, InputIter last)
Foam::label	erase (const FixedList< word, N > &keys)
Foam::label	erase (const HashTable< AnyType, word, AnyHash > &other)
Foam::label	retain (const HashTable< AnyType, word, AnyHash > &other)
Foam::label	filterKeys (const UnaryPredicate &pred, const bool pruning)
Foam::label	filterValues (const UnaryPredicate &pred, const bool pruning)
Foam::label	filterEntries (const BinaryPredicate &pred, const bool pruning)
constexpr	HashTable () noexcept
	Default construct: empty without allocation (capacity=0).
	~HashTable ()
	Destructor.
bool	empty () const noexcept
	True if the hash table is empty.
label	size () const noexcept
	The number of elements in table.
label	capacity () const noexcept
	The size of the underlying table (the number of buckets).
regIOobject *&	at (const word &key)
	Find and return a hashed entry. FatalError if it does not exist.
bool	contains (const word &key) const
	True if hashed key is contained (found) in table.
iterator	find (const word &key)
	Find and return an iterator set at the hashed entry.
const_iterator	cfind (const word &key) const
	Find and return an const_iterator set at the hashed entry.
const regIOobject *&	lookup (const word &key, const regIOobject *&deflt) const
	Return hashed entry if it exists, or return the given default.
List< word >	toc () const
	The table of contents (the keys) in unsorted order.
UPtrList< const node_type >	csorted () const
	Const access to the hash-table contents in sorted order (sorted by keys).
UPtrList< node_type >	sorted ()
	Non-const access to the hash-table contents in sorted order (sorted by keys).
bool	emplace (const word &key, Args &&... args)
	Emplace insert a new entry, not overwriting existing entries.
bool	emplace_set (const word &key, Args &&... args)
	Emplace set an entry, overwriting any existing entries.
bool	insert (const word &key, const regIOobject *&obj)
	Copy insert a new entry, not overwriting existing entries.
bool	set (const word &key, const regIOobject *&obj)
	Copy assign a new entry, overwriting existing entries.
void	clear ()
	Remove all entries from table.
void	clearStorage ()
	Remove all entries from table and the table itself.
void	setCapacity (label newCapacity)
	Change the hash table capacity (number of buckets).
void	resize (label newCapacity)
	Rehash the hash table with new number of buckets. Currently identical to setCapacity().
void	reserve (label numEntries)
	Reserve space for at least the specified number of elements (not the number of buckets) and regenerates the hash table.
void	swap (HashTable< regIOobject *, word, Foam::Hash< word > > &rhs) noexcept
	Swap contents into this table.
void	transfer (HashTable< regIOobject *, word, Foam::Hash< word > > &rhs)
	Transfer contents into this table.
void	merge (HashTable< regIOobject *, word, Foam::Hash< word > > &source)
	Attempts to extract entries from source parameter and insert them into this, does not overwrite existing entries. The source will contains any items that could not be merged.
regIOobject *&	operator[] (const word &key)
	Find and return a hashed entry. FatalError if it does not exist.
regIOobject *&	operator() (const word &key)
	Return existing entry or create a new entry.
void	operator= (const this_type &rhs)
	Copy assign.
bool	operator== (const this_type &rhs) const
	Equality. Tables are equal if all keys and values are equal, independent of order or underlying storage size.
bool	operator!= (const this_type &rhs) const
	The opposite of the equality operation.
this_type &	operator+= (const this_type &rhs)
	Add entries into this HashTable.
const_iterator_pair< const_key_iterator, this_type >	keys () const
	A const iterator begin/end pair for iterating over keys.
iterator	begin ()
	iterator set to the beginning of the HashTable
const_iterator	cbegin () const
	const_iterator set to the beginning of the HashTable
iterator	end () noexcept
	iterator to signal the end (for any HashTable)
constexpr const_iterator	cend () const noexcept
	const_iterator to signal the end (for any HashTable)
Ostream &	printInfo (Ostream &os) const
	Print information.
Ostream &	writeKeys (Ostream &os, const label shortLen=0) const
	Write unordered keys (list), with line-breaks when length exceeds shortLen.
bool	found (const word &key) const
	Same as contains().
Public Member Functions inherited from HashTableCore
	ClassName ("HashTable")
	Declare type-name (with debug switch).
constexpr	HashTableCore () noexcept=default
	Default construct.
Public Member Functions inherited from primitiveMesh
	ClassName ("primitiveMesh")
	primitiveMesh (const label nPoints, const label nInternalFaces, const label nFaces, const label nCells)
	Construct from components.
virtual	~primitiveMesh ()
	Destructor.
void	reset (const label nPoints, const label nInternalFaces, const label nFaces, const label nCells)
	Reset this primitiveMesh given the primitive array sizes.
void	reset (const label nPoints, const label nInternalFaces, const label nFaces, const label nCells, cellList &cells)
	Reset this primitiveMesh given the primitive array sizes and cells.
void	resetGeometry (pointField &&faceCentres, pointField &&faceAreas, pointField &&cellCentres, scalarField &&cellVolumes)
	Reset the local geometry.
label	nPoints () const noexcept
	Number of mesh points.
label	nEdges () const
	Number of mesh edges.
label	nFaces () const noexcept
	Number of mesh faces.
label	nCells () const noexcept
	Number of mesh cells.
label	nInternalFaces () const noexcept
	Number of internal faces.
label	nBoundaryFaces () const noexcept
	Number of boundary faces (== nFaces - nInternalFaces).
label	nInternalPoints () const noexcept
	Points not on boundary.
label	nInternal0Edges () const
	Internal edges (i.e. not on boundary face) using no boundary point.
label	nInternal1Edges () const
	Internal edges using 0 or 1 boundary point.
label	nInternalEdges () const
	Internal edges using 0,1 or 2 boundary points.
const cellShapeList &	cellShapes () const
	Return cell shapes.
const edgeList &	edges () const
	Return mesh edges. Uses calcEdges.
const labelListList &	cellCells () const
const labelListList &	edgeCells () const
const labelListList &	pointCells () const
const cellList &	cells () const
const labelListList &	edgeFaces () const
const labelListList &	pointFaces () const
const labelListList &	cellEdges () const
const labelListList &	faceEdges () const
const labelListList &	pointEdges () const
const labelListList &	pointPoints () const
const labelListList &	cellPoints () const
const vectorField &	cellCentres () const
const vectorField &	faceCentres () const
const scalarField &	cellVolumes () const
const vectorField &	faceAreas () const
void	movePoints (const pointField &p, const pointField &oldP)
	Move points.
bool	isInternalFace (const label faceIndex) const noexcept
	Return true if given face label is internal to the mesh.
virtual bool	checkUpperTriangular (const bool report=false, labelHashSet *setPtr=nullptr) const
	Check face ordering.
virtual bool	checkCellsZipUp (const bool report=false, labelHashSet *setPtr=nullptr) const
	Check cell zip-up.
virtual bool	checkFaceVertices (const bool report=false, labelHashSet *setPtr=nullptr) const
	Check uniqueness of face vertices.
virtual bool	checkPoints (const bool report=false, labelHashSet *setPtr=nullptr) const
	Check for unused points.
virtual bool	checkFaceFaces (const bool report=false, labelHashSet *setPtr=nullptr) const
	Check face-face connectivity.
virtual bool	checkClosedBoundary (const bool report=false) const
	Check boundary for closedness.
virtual bool	checkClosedCells (const bool report=false, labelHashSet *setPtr=nullptr, labelHashSet *highAspectSetPtr=nullptr, const Vector< label > &solutionD=Vector< label >::one) const
	Check cells for closedness.
virtual bool	checkFaceAreas (const bool report=false, labelHashSet *setPtr=nullptr) const
	Check for negative face areas.
virtual bool	checkCellVolumes (const bool report=false, labelHashSet *setPtr=nullptr) const
	Check for negative cell volumes.
virtual bool	checkFacePyramids (const bool report=false, const scalar minPyrVol=-SMALL, labelHashSet *setPtr=nullptr) const
	Check face pyramid volume.
virtual bool	checkFaceAngles (const bool report=false, const scalar maxSin=10, labelHashSet *setPtr=nullptr) const
	Check face angles.
virtual bool	checkFaceFlatness (const bool report, const scalar warnFlatness, labelHashSet *setPtr) const
	Check face warpage: decompose face and check ratio between.
virtual bool	checkPointNearness (const bool report, const scalar reportDistSqr, labelHashSet *setPtr=nullptr) const
	Check for point-point-nearness,.
virtual bool	checkEdgeLength (const bool report, const scalar minLenSqr, labelHashSet *setPtr=nullptr) const
	Check edge length.
virtual bool	checkConcaveCells (const bool report=false, labelHashSet *setPtr=nullptr) const
	Check for concave cells by the planes of faces.
virtual bool	checkTopology (const bool report=false) const
	Check mesh topology for correctness.
virtual bool	checkGeometry (const bool report=false) const
	Check mesh geometry (& implicitly topology) for correctness.
virtual bool	checkMesh (const bool report=false) const
	Check mesh for correctness. Returns false for no error.
boundBox	cellBb (const label celli) const
	The bounding box for given cell index.
bool	pointInCellBB (const point &p, label celli, scalar inflationFraction=0) const
	Return true if the point in the cell bounding box.
bool	pointInCell (const point &p, label celli) const
	Return true if the point is in the cell.
label	findNearestCell (const point &location) const
	Find the cell with the nearest cell centre to location.
label	findCell (const point &location) const
	Find cell enclosing this location (-1 if not in mesh).
void	printAllocated () const
	Print a list of all the currently allocated mesh data.
bool	hasCellShapes () const noexcept
bool	hasEdges () const noexcept
bool	hasCellCells () const noexcept
bool	hasEdgeCells () const noexcept
bool	hasPointCells () const noexcept
bool	hasCells () const noexcept
bool	hasEdgeFaces () const noexcept
bool	hasPointFaces () const noexcept
bool	hasCellEdges () const noexcept
bool	hasFaceEdges () const noexcept
bool	hasPointEdges () const noexcept
bool	hasPointPoints () const noexcept
bool	hasCellPoints () const noexcept
bool	hasCellCentres () const noexcept
bool	hasCellVolumes () const noexcept
bool	hasFaceCentres () const noexcept
bool	hasFaceAreas () const noexcept
const labelList &	cellCells (const label celli, DynamicList< label > &) const
	cellCells using cells.
const labelList &	cellCells (const label celli) const
const labelList &	cellPoints (const label celli, labelHashSet &, DynamicList< label > &) const
	cellPoints using cells
const labelList &	cellPoints (const label celli) const
const labelList &	pointCells (const label pointi, DynamicList< label > &) const
	pointCells using pointFaces
const labelList &	pointCells (const label pointi) const
const labelList &	pointPoints (const label pointi, DynamicList< label > &) const
	pointPoints using edges, pointEdges
const labelList &	pointPoints (const label pointi) const
const labelList &	faceEdges (const label facei, DynamicList< label > &) const
	faceEdges using pointFaces, edges, pointEdges
const labelList &	faceEdges (const label facei) const
const labelList &	edgeFaces (const label edgeI, DynamicList< label > &) const
	edgeFaces using pointFaces, edges, pointEdges
const labelList &	edgeFaces (const label edgeI) const
const labelList &	edgeCells (const label edgeI, DynamicList< label > &) const
	edgeCells using pointFaces, edges, pointEdges
const labelList &	edgeCells (const label edgeI) const
const labelList &	cellEdges (const label celli, labelHashSet &, DynamicList< label > &) const
	cellEdges using cells, pointFaces, edges, pointEdges
const labelList &	cellEdges (const label celli) const
void	clearGeom ()
	Clear geometry.
void	clearCellGeom ()
	Clear cell-based geometry only.
void	clearAddressing ()
	Clear topological data.
void	clearOut ()
	Clear all geometry and addressing unnecessary for CFD.
Public Member Functions inherited from lduMesh
	TypeName ("lduMesh")
	Runtime type information.
virtual	~lduMesh ()=default
	Destructor.
template<class T, class BinaryOp>
void	reduce (T &val, BinaryOp bop) const
	Helper: reduce with current communicator.
InfoProxy< lduMesh >	info () const noexcept
	Return info proxy, used to print mesh information to a stream.
Public Member Functions inherited from fvSchemes
	fvSchemes (const fvSchemes &)=delete
	No copy construct.
void	operator= (const fvSchemes &)=delete
	No copy assignment.
	fvSchemes (const objectRegistry &obr, IOobjectOption::readOption rOpt, const word &dictName, const dictionary *fallback=nullptr)
	Construct for objectRegistry, readOption, (system) dictionary name.
	fvSchemes (const objectRegistry &obr, const word &dictName, const dictionary *fallback=nullptr)
	Construct for objectRegistry, (system) dictionary name using the readOption from the registry.
	fvSchemes (const objectRegistry &obr, IOobjectOption::readOption rOpt, const dictionary *fallback=nullptr)
	Construct for objectRegistry, readOption with the default dictionary name ("fvSchemes").
	fvSchemes (const objectRegistry &obr, IOobjectOption::readOption rOpt, const dictionary &dict)
	Construct for objectRegistry, readOption with the default dictionary name ("fvSchemes") and fallback dictionary content.
	fvSchemes (const objectRegistry &obr, const dictionary *fallback=nullptr)
	Construct for objectRegistry with the default dictionary name ("fvSchemes").
	fvSchemes (const objectRegistry &obr, const dictionary &dict)
	Construct for objectRegistry with the default dictionary name ("fvSchemes") and fallback dictionary content.
Public Member Functions inherited from schemesLookup
	schemesLookup (const objectRegistry &obr, IOobjectOption::readOption rOpt, const word &dictName, const dictionary *fallback=nullptr)
	Construct for objectRegistry, readOption, (system) dictionary name.
	schemesLookup (const objectRegistry &obr, const word &dictName, const dictionary *fallback=nullptr)
	Construct for objectRegistry, (system) dictionary name using the readOption from the registry.
bool	steady () const noexcept
	True if default ddt scheme is steady-state.
bool	transient () const noexcept
	True if default ddt scheme is not steady-state.
const dictionary &	schemesDict () const
	The entire dictionary or the optional "select" sub-dictionary.
ITstream &	ddtScheme (const word &name) const
	Get ddt scheme for given name, or default.
ITstream &	d2dt2Scheme (const word &name) const
	Get d2dt2 scheme for given name, or default.
ITstream &	interpolationScheme (const word &name) const
	Get interpolation scheme for given name, or default.
ITstream &	divScheme (const word &name) const
	Get div scheme for given name, or default.
ITstream &	gradScheme (const word &name) const
	Get grad scheme for given name, or default.
ITstream &	lnGradScheme (const word &name) const
	Get (finiteArea) lnGrad scheme for given name, or default.
ITstream &	snGradScheme (const word &name) const
	Get (finiteVolume) snGrad scheme for given name, or default.
ITstream &	laplacianScheme (const word &name) const
	Get laplacian scheme for given name, or default.
void	setFluxRequired (const word &name) const
	Set flux-required for given name (mutable).
bool	fluxRequired (const word &name) const
	Get flux-required for given name, or default.
const dictionary &	ddtSchemes () const noexcept
	Access ddt schemes dictionary.
const dictionary &	d2dt2Schemes () const noexcept
	Access d2dt2 schemes dictionary.
const dictionary &	interpolationSchemes () const noexcept
	Access interpolation schemes dictionary.
const dictionary &	divSchemes () const noexcept
	Access div schemes dictionary.
const dictionary &	gradSchemes () const noexcept
	Access grad schemes dictionary.
const dictionary &	lnGradSchemes () const noexcept
	Access lnGrad schemes dictionary (finiteArea).
const dictionary &	snGradSchemes () const noexcept
	Access snGrad schemes dictionary (finiteVolume).
const dictionary &	laplacianSchemes () const noexcept
	Access laplacian schemes dictionary.
const dictionary &	fluxRequired () const noexcept
	Access flux-required dictionary.
dictionary &	ddtSchemes () noexcept
	Access ddt schemes dictionary.
dictionary &	d2dt2Schemes () noexcept
	Access d2dt2 schemes dictionary.
dictionary &	interpolationSchemes () noexcept
	Access interpolation schemes dictionary.
dictionary &	divSchemes () noexcept
	Access div schemes dictionary.
dictionary &	gradSchemes () noexcept
	Access grad schemes dictionary.
dictionary &	lnGradSchemes () noexcept
	Access lnGrad schemes dictionary (finiteArea).
dictionary &	snGradSchemes () noexcept
	Access snGrad schemes dictionary (finiteVolume).
dictionary &	laplacianSchemes () noexcept
	Access laplacian schemes dictionary.
dictionary &	fluxRequired () noexcept
	Access flux-required dictionary.
bool	read ()
	Read schemes from IOdictionary, respects the "select" keyword.
void	writeDicts (Ostream &os) const
	Write dictionary (possibly modified) settings.
Public Member Functions inherited from IOdictionary
	IOdictionary (const IOobject &io, const dictionary *fallback=nullptr)
	Construct given an IOobject and optional fallback dictionary content.
	IOdictionary (const IOobject &io, const dictionary &dict)
	Construct given an IOobject and fallback dictionary content.
	IOdictionary (const IOobject &io, const word &wantedType, const dictionary *fallback=nullptr)
	Construct given an IOobject, wanted typeName and optional fallback dictionary content.
	IOdictionary (const IOobject &io, Istream &is)
	Construct given an IOobject and Istream.
virtual	~IOdictionary ()=default
	Destructor.
virtual bool	global () const
	The object is global.
virtual fileName	filePath () const
	Return complete path + object name if the file exists either in the case/processor or case otherwise null.
Public Member Functions inherited from baseIOdictionary
	TypeName ("dictionary")
	Declare type-name, virtual type (with debug switch).
	baseIOdictionary (const baseIOdictionary &)=default
	Copy construct.
	baseIOdictionary (baseIOdictionary &&)=default
	Move construct.
virtual	~baseIOdictionary ()=default
	Destructor.
	baseIOdictionary (const IOobject &io, const dictionary *fallback=nullptr)
	Construct given an IOobject and optional fallback dictionary content (ununsed).
	baseIOdictionary (const IOobject &io, const dictionary &dict)
	Construct given an IOobject and fallback dictionary content (ununsed).
	baseIOdictionary (const IOobject &io, Istream &is)
	Construct given an IOobject and Istream (ununsed).
const word &	name () const
	Name function is needed to disambiguate those inherited from regIOobject and dictionary.
virtual bool	readData (Istream &)
	The readData function required by regIOobject read operation.
virtual bool	writeData (Ostream &) const
	The writeData function required by regIOobject write operation.
void	operator= (const baseIOdictionary &rhs)
	Copy assignment of dictionary entries.
void	operator= (baseIOdictionary &&rhs)
	Move assignment of dictionary entries.
void	operator= (const dictionary &rhs)
	Copy assignment of dictionary entries.
Public Member Functions inherited from dictionary
	ClassName ("dictionary")
	dictionary ()
	Default construct, a top-level empty dictionary.
	dictionary (const fileName &name)
	Construct top-level empty dictionary with given name.
	dictionary (const fileName &name, const dictionary &parentDict, Istream &is, bool keepHeader=false)
	Construct given the entry name, parent dictionary and Istream, reading entries until EOF, optionally keeping the header.
	dictionary (Istream &is)
	Construct top-level dictionary from Istream (discards the header). Reads entries until EOF or when the first token is a '{' character, it will stop reading at the matching '}' character.
	dictionary (Istream &is, bool keepHeader)
	Construct top-level dictionary from Istream, reading entries until EOF, optionally keeping the header.
	dictionary (const dictionary &parentDict, const dictionary &dict)
	Copy construct given the parent dictionary.
	dictionary (const dictionary &dict)
	Copy construct top-level dictionary.
	dictionary (const dictionary *dict)
	Construct top-level dictionary as copy from pointer to dictionary.
	dictionary (const dictionary &parentDict, dictionary &&dict)
	Move construct for given parent dictionary.
	dictionary (dictionary &&dict)
	Move construct top-level dictionary.
autoPtr< dictionary >	clone () const
	Construct and return clone.
virtual	~dictionary ()
	Destructor.
const fileName &	name () const noexcept
	The dictionary name.
fileName &	name () noexcept
	The dictionary name for modification (use with caution).
word	dictName () const
	The local dictionary name (final part of scoped name).
fileName	relativeName (const bool caseTag=false) const
	The dictionary name relative to the case.
bool	isNullDict () const noexcept
	The dictionary is actually dictionary::null (root dictionary).
const dictionary &	parent () const noexcept
	Return the parent dictionary.
const dictionary &	topDict () const
	Return the top of the tree.
label	startLineNumber () const
	Return line number of first token in dictionary.
label	endLineNumber () const
	Return line number of last token in dictionary.
SHA1Digest	digest () const
	Return the SHA1 digest of the dictionary contents.
tokenList	tokens () const
	Return the dictionary as a list of tokens.
const entry *	findEntry (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Find an entry (const access) with the given keyword.
entry *	findEntry (const word &keyword, enum keyType::option matchOpt=keyType::REGEX)
	Find an entry (non-const access) with the given keyword.
bool	found (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Find an entry (const access) with the given keyword.
const entry *	findScoped (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Search for a scoped entry (const access) with the given keyword.
const dictionary *	findDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a sub-dictionary pointer if present (and it is a dictionary) otherwise return nullptr.
dictionary *	findDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX)
	Find and return a sub-dictionary pointer if present (and it is a dictionary) otherwise return nullptr.
ITstream *	findStream (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return an entry stream if present (and it is a stream) otherwise return nullptr.
const entry &	lookupEntry (const word &keyword, enum keyType::option matchOpt) const
	Search for an entry (const access) with the given keyword.
ITstream &	lookup (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return an entry data stream. FatalIOError if not found, or not a stream.
template<class T>
T	get (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a T. FatalIOError if not found, or if the number of tokens is incorrect.
template<class T>
T	getOrDefault (const word &keyword, const T &deflt, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a T, or return the given default value. FatalIOError if it is found and the number of tokens is incorrect.
template<class T>
T	getOrAdd (const word &keyword, const T &deflt, enum keyType::option matchOpt=keyType::REGEX)
	Find and return a T, or return the given default value and add it to dictionary. FatalIOError if it is found and the number of tokens is incorrect.
template<class T>
bool	readEntry (const word &keyword, T &val, enum keyType::option matchOpt=keyType::REGEX, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ) const
	Find entry and assign to T val. FatalIOError if it is found and the number of tokens is incorrect, or it is mandatory and not found.
template<class T>
bool	readIfPresent (const word &keyword, T &val, enum keyType::option matchOpt=keyType::REGEX) const
	Find an entry if present, and assign to T val. FatalIOError if it is found and the number of tokens is incorrect.
template<class T, class Predicate>
T	getCheck (const word &keyword, const Predicate &pred, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a T with additional checking FatalIOError if not found, or if the number of tokens is incorrect.
template<class T, class Predicate>
T	getCheckOrDefault (const word &keyword, const T &deflt, const Predicate &pred, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a T, or return the given default value. FatalIOError if it is found and the number of tokens is incorrect.
template<class T, class Predicate>
T	getCheckOrAdd (const word &keyword, const T &deflt, const Predicate &pred, enum keyType::option matchOpt=keyType::REGEX)
	Find and return a T, or return the given default value and add it to dictionary. FatalIOError if it is found and the number of tokens is incorrect.
template<class T, class Predicate>
bool	readCheck (const word &keyword, T &val, const Predicate &pred, enum keyType::option matchOpt=keyType::REGEX, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ) const
	Find entry and assign to T val. FatalIOError if it is found and the number of tokens is incorrect, or it is mandatory and not found.
template<class T, class Predicate>
bool	readCheckIfPresent (const word &keyword, T &val, const Predicate &pred, enum keyType::option matchOpt=keyType::REGEX) const
	Find an entry if present, and assign to T val. FatalIOError if it is found and the number of tokens is incorrect.
const dictionary &	subDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a sub-dictionary.
dictionary &	subDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX)
	Find and return a sub-dictionary for manipulation.
dictionary &	subDictOrAdd (const word &keyword, enum keyType::option matchOpt=keyType::REGEX)
	Find and return a sub-dictionary for manipulation.
dictionary	subOrEmptyDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX, const bool mandatory=false) const
	Find and return a sub-dictionary as a copy, otherwise return an empty dictionary.
const dictionary &	optionalSubDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a sub-dictionary, otherwise return this dictionary.
wordList	toc () const
	Return the table of contents.
wordList	sortedToc () const
	Return the sorted table of contents.
template<class Compare>
wordList	sortedToc (const Compare &comp) const
	Return table of contents sorted using the specified comparator.
List< keyType >	keys (bool patterns=false) const
	Return the list of available keys or patterns.
bool	substituteKeyword (const word &keyword, bool mergeEntry=false)
	Substitute the given keyword (which is prefixed by '$').
bool	substituteScopedKeyword (const word &keyword, bool mergeEntry=false)
	Substitute the given scoped keyword (which is prefixed by '$').
entry *	add (entry *entryPtr, bool mergeEntry=false)
	Add a new entry.
entry *	add (const entry &e, bool mergeEntry=false)
	Add an entry.
entry *	add (const keyType &k, const word &v, bool overwrite=false)
	Add a word entry.
entry *	add (const keyType &k, const string &v, bool overwrite=false)
	Add a string entry.
entry *	add (const keyType &k, const label v, bool overwrite=false)
	Add a label entry.
entry *	add (const keyType &k, const scalar v, bool overwrite=false)
	Add a scalar entry.
entry *	add (const keyType &k, const dictionary &d, bool mergeEntry=false)
	Add a dictionary entry.
template<class T>
entry *	add (const keyType &k, const T &v, bool overwrite=false)
	Add a T entry.
entry *	set (entry *entryPtr)
	Assign a new entry, overwriting any existing entry.
entry *	set (const entry &e)
	Assign a new entry, overwriting any existing entry.
entry *	set (const keyType &k, const dictionary &v)
	Assign a dictionary entry, overwriting any existing entry.
entry *	set (const keyType &k, std::nullptr_t)
	Assign an empty primitive entry, overwriting any existing entry.
entry *	set (const keyType &k, const UList< token > &tokens)
	Assign a primitive entry from a list of tokens, overwriting any existing entry.
entry *	set (const keyType &k, List< token > &&tokens)
	Assign a primitive entry from a list of tokens, overwriting any existing entry.
template<class T>
entry *	set (const keyType &k, const T &v)
	Assign a T entry, overwriting any existing entry.
bool	remove (const word &keyword)
	Remove an entry specified by keyword.
bool	changeKeyword (const keyType &oldKeyword, const keyType &newKeyword, bool overwrite=false)
	Change the keyword for an entry,.
bool	merge (const dictionary &dict)
	Merge entries from the given dictionary.
void	clear ()
	Clear the dictionary.
void	transfer (dictionary &dict)
	Transfer the contents of the argument and annul the argument.
void	checkITstream (const ITstream &is, const word &keyword) const
	Check after reading if the input token stream has unconsumed tokens remaining or if there were no tokens in the first place.
bool	read (Istream &is)
	Read dictionary from Istream (discards the header). Reads entries until EOF or when the first token is a '{' character, it will stop reading at the matching '}' character.
bool	read (Istream &is, bool keepHeader)
	Read dictionary from Istream (optionally keeping the header) Reads entries until EOF or when the first token is a '{' character, it will stop reading at the matching '}' character.
void	writeEntry (Ostream &os) const
	Write sub-dictionary with its dictName as its header.
void	writeEntry (const keyType &keyword, Ostream &os) const
	Write sub-dictionary with the keyword as its header.
void	writeEntries (Ostream &os, const bool extraNewLine=false) const
	Write dictionary entries.
void	write (Ostream &os, const bool subDict=true) const
	Write dictionary, normally with sub-dictionary formatting.
const_searcher	csearch (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Search dictionary for given keyword.
const_searcher	search (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Search dictionary for given keyword.
searcher	search (const word &keyword, enum keyType::option matchOpt=keyType::REGEX)
	Search dictionary for given keyword.
const_searcher	csearchScoped (const word &keyword, enum keyType::option matchOpt) const
	Search using scoping.
const_searcher	searchScoped (const word &keyword, enum keyType::option matchOpt) const
	Search using dot or slash scoping.
searcher	searchScoped (const word &keyword, enum keyType::option matchOpt)
	Search using dot or slash scoping.
const dictionary *	cfindScopedDict (const fileName &dictPath) const
	Locate a sub-dictionary using slash-scoping.
const dictionary *	findScopedDict (const fileName &dictPath) const
	Locate a sub-dictionary using slash-scoping.
dictionary *	findScopedDict (const fileName &dictPath)
	Locate a sub-dictionary using slash-scoping.
dictionary *	makeScopedDict (const fileName &dictPath)
	Locate existing or create sub-dictionary using slash-scoping.
const_searcher	csearchCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt=keyType::REGEX) const
	Search dictionary for given keyword and any compatibility names.
const entry *	findCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt) const
	Find and return an entry pointer if present, or return a nullptr, using any compatibility names if needed.
bool	foundCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt=keyType::REGEX) const
	Search dictionary for given keyword and any compatibility names.
const entry &	lookupEntryCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt) const
	Find and return an entry if present, otherwise FatalIOError, using any compatibility names if needed.
ITstream &	lookupCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return an entry data stream, using any compatibility names if needed.
template<class T>
T	getCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a T using any compatibility names if needed. FatalIOError if not found, or if there are excess tokens.
template<class T>
T	getOrDefaultCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, const T &deflt, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a T, or return the given default value using any compatibility names if needed.
template<class T>
bool	readCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, T &val, enum keyType::option matchOpt=keyType::REGEX, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ) const
	Find entry and assign to T val using any compatibility names if needed. FatalIOError if there are excess tokens.
template<class T>
bool	readIfPresentCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, T &val, enum keyType::option matchOpt=keyType::REGEX) const
	Find an entry if present, and assign to T val using any compatibility names if needed. FatalIOError if it is found and there are excess tokens.
void	operator= (const dictionary &rhs)
	Copy assignment.
void	operator+= (const dictionary &rhs)
	Include entries from the given dictionary.
void	operator|= (const dictionary &rhs)
	Conditionally include entries from the given dictionary.
void	operator<<= (const dictionary &rhs)
	Unconditionally include entries from the given dictionary.
bool	getBool (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Same as get<bool>(const word&, keyType::option).
label	getLabel (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Same as get<label>(const word&, keyType::option).
scalar	getScalar (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Same as get<scalar>(const word&, keyType::option).
string	getString (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Same as get<string>(const word&, keyType::option).
word	getWord (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Same as get<word>(const word&, keyType::option).
fileName	getFileName (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Same as get<fileName>(const word&, keyType::option).
bool	isDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Check for existence of a sub-dictionary. Generally prefer findDict() for more flexibility.
template<class T>
T	lookupOrDefault (const word &keyword, const T &deflt, enum keyType::option matchOpt=keyType::REGEX) const
	Same as getOrDefault().
template<class T>
T	lookupOrAddDefault (const word &keyword, const T &deflt, enum keyType::option matchOpt=keyType::REGEX)
	Same as getOrAdd().
ITstream &	operator[] (const word &keyword) const
	Deprecated(2018-07) - use lookup() method.
bool	found (const word &keyword, bool recursive, bool patternMatch=true) const
	Deprecated(2018-10).
entry *	lookupEntryPtr (const word &keyword, bool recursive, bool patternMatch)
	Deprecated(2018-10).
const entry *	lookupEntryPtr (const word &keyword, bool recursive, bool patternMatch) const
	Deprecated(2018-10).
const entry *	lookupScopedEntryPtr (const word &keyword, bool recursive, bool patternMatch) const
	Deprecated(2018-10).
const dictionary *	subDictPtr (const word &keyword) const
	Deprecated(2018-10).
dictionary *	subDictPtr (const word &keyword)
	Deprecated(2018-10) Find and return a sub-dictionary pointer if present.
const entry &	lookupEntry (const word &keyword, bool recursive, bool patternMatch) const
	Deprecated(2018-10).
ITstream &	lookup (const word &keyword, bool recursive, bool patternMatch=true) const
	Deprecated(2018-10).
template<class T>
T	lookupOrDefault (const word &keyword, const T &deflt, bool recursive, bool patternMatch=true) const
	Deprecated(2018-10).
template<class T>
T	lookupOrAddDefault (const word &keyword, const T &deflt, bool recursive, bool patternMatch=true)
	Deprecated(2018-10).
template<class T>
bool	readIfPresent (const word &keyword, T &val, bool recursive, bool patternMatch=true) const
	Deprecated(2018-10).
template<class T>
T	lookupType (const word &keyword, bool recursive=false, bool patternMatch=true) const
	Deprecated(2018-10) find and return a T.
template<class Compare>
Foam::wordList	sortedToc (const Compare &comp) const
template<class T>
Foam::entry *	add (const keyType &k, const T &v, bool overwrite)
template<class T>
Foam::entry *	set (const keyType &k, const T &v)
Public Member Functions inherited from ILList< DLListBase, T >
	ILList ()=default
	Default construct.
	ILList (T *item)
	Construct and add initial item pointer.
	ILList (Istream &is)
	Construct from Istream.
	ILList (const ILList< DLListBase, T > &lst)
	Copy construct using the 'clone()' method for each element.
	ILList (ILList< DLListBase, T > &&lst)
	Move construct.
	ILList (const ILList< DLListBase, T > &lst, const CloneArg &cloneArg)
	Copy constructor with additional argument for clone 'clone()'.
	ILList (Istream &is, const INew &inew)
	Construct from Istream using given Istream constructor class.
	~ILList ()
	Destructor. Calls clear().
void	clear ()
	Clear the contents of the list.
void	pop_front (label n=1)
	Remove first element(s) from the list (deletes pointers).
bool	erase (T *item)
	Remove the specified element from the list and delete it.
void	transfer (ILList< DLListBase, T > &lst)
	Transfer the contents of the argument into this List and annul the argument list.
void	operator= (const ILList< DLListBase, T > &lst)
	Copy assignment using the 'clone()' method for each element.
void	operator= (ILList< DLListBase, T > &&lst)
	Move assignment.
Public Member Functions inherited from UILList< DLListBase, T >
	UILList ()=default
	Default construct.
	UILList (T *item)
	Construct and add initial item pointer.
	UILList (const UILList< DLListBase, T > &list)
	Construct as copy.
T *	front ()
	The first entry in the list.
const T *	front () const
	The first entry in the list (const access).
T *	back ()
	The last entry in the list.
const T *	back () const
	The last entry in the list (const access).
T *	removeHead ()
	Remove and return head.
T *	remove (T *item)
	Remove and return element.
T *	remove (iterator &iter)
	Remove and return item specified by iterator.
void	operator= (const UILList< DLListBase, T > &lst)
	Copy assignment.
bool	operator== (const UILList< DLListBase, T > &lst) const
	Equality. True both lists are element-wise equal.
bool	operator!= (const UILList< DLListBase, T > &lst) const
	The opposite of the equality operation. Takes linear time.
Ostream &	writeList (Ostream &os, const label shortLen=0) const
	Write UILList with line-breaks when length exceeds shortLen.
iterator	begin ()
	Iterator to first item in list with non-const access.
const_iterator	cbegin () const
	Iterator to first item in list with const access.
reverse_iterator	rbegin ()
	Iterator to last item in list with non-const access.
const_reverse_iterator	crbegin () const
	Iterator to last item in list with const access.
const_iterator	begin () const
	Iterator to first item in list with const access.
const_reverse_iterator	rbegin () const
	Iterator to last item in list with const access.
const iterator &	end ()
	End of list for forward iterators.
const const_iterator &	cend () const
	End of list for forward iterators.
const reverse_iterator &	rend ()
	End of list for reverse iterators.
const const_reverse_iterator &	crend () const
	End of list for reverse iterators.
const const_iterator &	end () const
	End of list for forward iterators.
const const_reverse_iterator &	rend () const
	End of list for reverse iterators.
T *	first ()
	The first entry in the list.
const T *	first () const
	The first entry in the list (const access).
T *	last ()
	The last entry in the list.
const T *	last () const
	The last entry in the list (const access).
Public Member Functions inherited from DLListBase
	DLListBase ()=default
	Default construct.
	DLListBase (const DLListBase &)=delete
	No copy construct.
void	operator= (const DLListBase &)=delete
	No copy assignment.
	~DLListBase ()=default
	Destructor.
bool	empty () const noexcept
	True if the list is empty.
label	size () const noexcept
	The number of elements in list.
link *	front ()
	Return first entry.
const link *	front () const
	Return const access to first entry.
link *	back ()
	Return last entry.
const link *	back () const
	Return const access to last entry.
void	push_front (link *item)
	Add at front of list.
void	push_back (link *item)
	Add at back of list.
bool	swapUp (link *item)
	Swap this element with the one above unless it is at the top.
bool	swapDown (link *item)
	Swap this element with the one below unless it is at the bottom.
link *	removeHead ()
	Remove and return first entry.
link *	remove (link *item)
	Remove and return element.
link *	remove (iterator &iter)
	Remove and return element specified by iterator.
link *	replace (link *oldLink, link *newLink)
	Replace oldLink with newLink and return element.
link *	replace (iterator &oldIter, link *newitem)
	Replace oldIter with newItem and return element.
void	clear ()
	Clear the list.
void	swap (DLListBase &lst)
	Swap the contents of the list.
void	transfer (DLListBase &lst)
	Transfer the contents of the argument into this list and annul the argument list.
iterator	begin ()
	Iterator to first item in list with non-const access.
const_iterator	cbegin () const
	Iterator to first item in list with const access.
const_iterator	crbegin () const
	Iterator to last item in list with const access.
const iterator &	end ()
	End of list for iterators.
const const_iterator &	cend () const
	End of list for iterators.
const const_iterator &	crend () const
	End of list for reverse iterators.
link *	first ()
	Return first entry.
const link *	first () const
	Return const access to first entry.
link *	last ()
	Return last entry.
const link *	last () const
	Return const access to last entry.
void	prepend (link *item)
	Add at front of list.
void	append (link *item)
	Add at back of list.
Public Member Functions inherited from surfaceInterpolation
	ClassName ("surfaceInterpolation")
	surfaceInterpolation (const fvMesh &)
	Construct given an fvMesh.
virtual	~surfaceInterpolation ()
	Destructor.
virtual const fvGeometryScheme &	geometry () const
	Return reference to geometry calculation scheme.
void	geometry (tmp< fvGeometryScheme > &)
	Set geometry calculation scheme.
virtual const surfaceScalarField &	weights () const
	Return reference to linear difference weighting factors.
virtual const surfaceScalarField &	deltaCoeffs () const
	Return reference to cell-centre difference coefficients.
virtual const surfaceScalarField &	nonOrthDeltaCoeffs () const
	Return reference to non-orthogonal cell-centre difference.
virtual const surfaceVectorField &	nonOrthCorrectionVectors () const
	Return reference to non-orthogonality correction vectors.
bool	hasWeights () const noexcept
	Has weights.
Public Member Functions inherited from fvSolution
	fvSolution (const fvSolution &)=delete
	No copy construct.
void	operator= (const fvSolution &)=delete
	No copy assignment.
	fvSolution (const objectRegistry &obr, IOobjectOption::readOption rOpt, const word &dictName, const dictionary *fallback=nullptr)
	Construct for objectRegistry, readOption, (system) dictionary name.
	fvSolution (const objectRegistry &obr, const word &dictName, const dictionary *fallback=nullptr)
	Construct for objectRegistry, dictionary name and optional fallback dictionary content (for a NO_READ or missing file).
	fvSolution (const objectRegistry &obr, IOobjectOption::readOption rOpt, const dictionary *fallback=nullptr)
	Construct for objectRegistry, readOption with the default dictionary name ("fvSolution").
	fvSolution (const objectRegistry &obr, IOobjectOption::readOption rOpt, const dictionary &dict)
	Construct for objectRegistry, readOption with the default dictionary name ("fvSolution") and fallback dictionary content.
	fvSolution (const objectRegistry &obr, const dictionary *fallback=nullptr)
	Construct for objectRegistry with the default dictionary name ("fvSolution").
	fvSolution (const objectRegistry &obr, const dictionary &dict)
	Construct for objectRegistry with the default dictionary name ("fvSolution") and optional contents.
Public Member Functions inherited from solution
	solution (const objectRegistry &obr, IOobjectOption::readOption rOpt, const fileName &dictName, const dictionary *fallback=nullptr)
	Construct for objectRegistry, readOption, (system) dictionary name.
	solution (const objectRegistry &obr, const fileName &dictName, const dictionary *fallback=nullptr)
	Construct for objectRegistry, (system) dictionary name using the readOption from the registry.
virtual	~solution ()
	Destructor. Non-default in header (incomplete types).
bool	cache (const word &name) const
	True if the given field should be cached.
bool	relaxField (const word &name) const
	True if the relaxation factor is given for the field.
bool	relaxField (const word &name, scalar &factor) const
	Get the relaxation factor specified for the field or the specified "default" entry, if present. Does not change factor if neither direct nor "default" can be used,.
bool	relaxEquation (const word &name) const
	True if the relaxation factor is given for the equation.
bool	relaxEquation (const word &name, scalar &factor) const
	Get the relaxation factor specified for the equation or the specified "default" entry, if present. Does not change factor if neither direct nor "default" can be used,.
scalar	fieldRelaxationFactor (const word &name) const
	Get the relaxation factor for the given field. Fatal if not found.
scalar	equationRelaxationFactor (const word &name) const
	Get the relaxation factor for the given equation. Fatal if not found.
const dictionary &	solutionDict () const
	The entire dictionary or the optional "select" sub-dictionary.
const dictionary &	solutionDict (const word &name) const
	Return name sub-dictionary within the solutionDict().
const dictionary &	solversDict () const
	The solver controls dictionary (all fields).
const dictionary &	solverDict (const word &name) const
	The solver controls dictionary for the given field. Same as solversDict().subDict(...).
const dictionary &	solver (const word &name) const
	The solver controls dictionary for the given field. Same as solverDict(...).
bool	read ()
	Read the solution dictionary.

Protected Member Functions
void	calculateProtectedCells (bitSet &unrefineableCell) const
	Calculate cells that cannot be refined since would trigger.
void	readDict ()
	Read the projection parameters from dictionary.
virtual autoPtr< mapPolyMesh >	refine (const labelList &)
	Refine cells. Update mesh and fields.
virtual autoPtr< mapPolyMesh >	unrefine (const labelList &)
	Unrefine cells. Gets passed in centre points of cells to combine.
scalar	getRefineLevel (const label maxCells, const label maxRefinement, const scalar refineLevel, const scalarField &) const
	Calculates approximate value for refinement level so.
scalarField	maxPointField (const scalarField &) const
	Get per cell max of connected point.
scalarField	maxCellField (const volScalarField &) const
	Get point max of connected cell.
scalarField	cellToPoint (const scalarField &vFld) const
scalarField	error (const scalarField &fld, const scalar minLevel, const scalar maxLevel) const
virtual void	selectRefineCandidates (const scalar lowerRefineLevel, const scalar upperRefineLevel, const scalarField &vFld, bitSet &candidateCell) const
	Select candidate cells for refinement.
virtual labelList	selectRefineCells (const label maxCells, const label maxRefinement, const bitSet &candidateCell) const
	Subset candidate cells for refinement.
virtual labelList	selectUnrefinePoints (const scalar unrefineLevel, const bitSet &markedCell, const scalarField &pFld) const
	Select points that can be unrefined.
void	extendMarkedCells (bitSet &markedCell) const
	Extend markedCell with cell-face-cell.
void	checkEightAnchorPoints (bitSet &protectedCell) const
	Check all cells have 8 anchor points.
template<class T>
void	mapNewInternalFaces (const labelList &faceMap, GeometricField< T, fvsPatchField, surfaceMesh > &)
	Map single non-flux surface<Type>Field.
template<class T>
void	mapNewInternalFaces (const labelList &faceMap)
	Correct surface fields for new faces.
template<class T>
void	mapNewInternalFaces (const surfaceVectorField &Sf, const surfaceScalarField &magSf, const labelList &faceMap)
	Correct surface fields for new faces. Converts any oriented.
bool	updateTopology ()
	Update topology (refinement, unrefinement).
Protected Member Functions inherited from fvMesh
void	clearGeomNotOldVol ()
	Clear geometry but not the old-time cell volumes.
void	updateGeomNotOldVol ()
	Clear geometry like clearGeomNotOldVol but recreate any.
void	clearGeom ()
	Clear local geometry.
void	clearAddressing (const bool isMeshUpdate=false)
	Clear local addressing.
void	clearOutLocal (const bool isMeshUpdate=false)
	Clear local-only storage (geometry, addressing etc).
void	storeOldVol (const scalarField &)
	Preserve old volume(s).
void	makeSf () const
void	makeMagSf () const
void	makeC () const
void	makeCf () const
	fvMesh (const fvMesh &)=delete
	No copy construct.
void	operator= (const fvMesh &)=delete
	No copy assignment.
Protected Member Functions inherited from regIOobject
bool	readHeaderOk (const IOstreamOption::streamFormat fmt, const word &typeName)
	Helper: check readOpt flags and read if necessary.
Protected Member Functions inherited from IOobject
void	setBad (const string &s)
	Set the object state to bad.
Protected Member Functions inherited from primitiveMesh
void	calcFaceCentresAndAreas () const
	Calculate face centres and areas.
void	calcCellCentresAndVols () const
	Calculate cell centres and volumes.
void	calcEdgeVectors () const
	Calculate edge vectors.
bool	checkDuplicateFaces (const label, const Map< label > &, label &nBaffleFaces, labelHashSet *) const
	Check if all points on face are shared with another face.
bool	checkCommonOrder (const label, const Map< label > &, labelHashSet *) const
	Check that shared points are in consecutive order.
bool	checkClosedBoundary (const vectorField &areas, const bool report, const bitSet &internalOrCoupledFaces) const
	Check boundary for closedness.
bool	checkClosedCells (const vectorField &faceAreas, const scalarField &cellVolumes, const bool report, labelHashSet *setPtr, labelHashSet *aspectSetPtr, const Vector< label > &meshD) const
	Check cells for closedness.
bool	checkFaceAreas (const vectorField &faceAreas, const bool report, const bool detailedReport, labelHashSet *setPtr) const
	Check for negative face areas.
bool	checkCellVolumes (const scalarField &vols, const bool report, const bool detailedReport, labelHashSet *setPtr) const
	Check for negative cell volumes.
bool	checkFaceOrthogonality (const vectorField &fAreas, const vectorField &cellCtrs, const bool report, labelHashSet *setPtr) const
	Check for non-orthogonality.
bool	checkFacePyramids (const pointField &points, const vectorField &ctrs, const bool report, const bool detailedReport, const scalar minPyrVol, labelHashSet *setPtr) const
	Check face pyramid volume.
bool	checkFaceSkewness (const pointField &points, const vectorField &fCtrs, const vectorField &fAreas, const vectorField &cellCtrs, const bool report, labelHashSet *setPtr) const
	Check face skewness.
bool	checkFaceAngles (const pointField &points, const vectorField &faceAreas, const bool report, const scalar maxDeg, labelHashSet *setPtr) const
	Check face angles.
bool	checkFaceFlatness (const pointField &points, const vectorField &faceCentres, const vectorField &faceAreas, const bool report, const scalar warnFlatness, labelHashSet *setPtr) const
	Check face warpage.
bool	checkConcaveCells (const vectorField &fAreas, const pointField &fCentres, const bool report, labelHashSet *setPtr) const
	Check for concave cells by the planes of faces.
	primitiveMesh ()
	Construct null.
Protected Member Functions inherited from DLListBase
template<class IteratorType>
IteratorType	iterator_first () const
	Return iterator to first item or end-iterator if list is empty.
template<class IteratorType>
IteratorType	iterator_last () const
	Return iterator to last item or end-iterator if list is empty.
Protected Member Functions inherited from surfaceInterpolation
void	clearOut ()
	Clear all geometry and addressing.

Protected Attributes
hexRef8	meshCutter_
	Mesh cutting engine.
HashTable< word >	correctFluxes_
	Fluxes to map.
bitSet	protectedCell_
	Protected cells (usually since not hexes).
label	nRefinementIterations_
	Number of refinement/unrefinement steps done so far.
bool	dumpLevel_
	Dump cellLevel for post-processing.
Protected Attributes inherited from fvMesh
fvBoundaryMesh	boundary_
	Boundary mesh.
std::unique_ptr< fvMeshLduAddressing >	lduPtr_
label	curTimeIndex_
	Current time index for cell volumes.
std::unique_ptr< SlicedDimensionedField< scalar, volMesh > >	VPtr_
	Cell volumes.
std::unique_ptr< DimensionedField< scalar, volMesh > >	V0Ptr_
	Cell volumes old time level.
std::unique_ptr< DimensionedField< scalar, volMesh > >	V00Ptr_
	Cell volumes old-old time level.
std::unique_ptr< slicedSurfaceVectorField >	SfPtr_
	Face area vectors.
std::unique_ptr< surfaceScalarField >	magSfPtr_
	Mag face area vectors.
std::unique_ptr< slicedVolVectorField >	CPtr_
	Cell centres.
std::unique_ptr< slicedSurfaceVectorField >	CfPtr_
	Face centres.
std::unique_ptr< surfaceScalarField >	phiPtr_
	Face motion fluxes.

Additional Inherited Members
Public Types inherited from fvMesh
typedef fvMesh	Mesh
	The mesh type.
typedef fvBoundaryMesh	BoundaryMesh
	The boundary type associated with the mesh.
Public Types inherited from polyMesh
enum	readUpdateState { UNCHANGED , POINTS_MOVED , TOPO_CHANGE , TOPO_PATCH_CHANGE }
	Enumeration defining the state of the mesh after a read update. More...
enum	cellDecomposition { FACE_PLANES , FACE_CENTRE_TRIS , FACE_DIAG_TRIS , CELL_TETS }
	Enumeration defining the decomposition of the cell for. More...
typedef polyMesh	Mesh
	The mesh type.
typedef polyBoundaryMesh	BoundaryMesh
	The boundary type associated with the mesh.
Public Types inherited from IOobject
enum	objectState : char { GOOD , BAD }
	Enumeration defining the valid states of an IOobject. More...
enum	fileCheckTypes : char { timeStamp = 1 , timeStampMaster = 3 , inotify = 4 , inotifyMaster = 6 }
	Enumeration defining the file checking options (time-stamp | inotify) | (all | masterOnly). More...
Public Types inherited from IOobjectOption
enum	readOption : unsigned char {   NO_READ = 0 , MUST_READ = 0x1 , READ_MODIFIED = 0x3 , MUST_READ_IF_MODIFIED = 0x3 ,   LAZY_READ = 0x4 , READ_IF_PRESENT = 0x4 }
	Enumeration defining read preferences. More...
enum	writeOption : unsigned char { NO_WRITE = 0 , AUTO_WRITE = 0x10 }
	Enumeration defining write preferences. More...
enum	registerOption : unsigned char { NO_REGISTER = 0 , REGISTER = 1 , LEGACY_REGISTER = 2 }
	Enumeration for use with registerObject(). Values map to bool (false/true). More...
enum class	Layout : unsigned char { regular , global }
	The layout of the case structure. More...
Public Types inherited from HashTable< regIOobject * >
typedef HashTable< regIOobject *, word, Foam::Hash< word > >	this_type
	The template instance used for this HashTable.
using	node_type
	A table entry (node) that encapsulates the key/val tuple with an additional linked-list entry for hash collisions.
typedef word	key_type
	The second template parameter, type of keys used.
typedef regIOobject *	mapped_type
	The first template parameter, type of objects contained.
typedef regIOobject *	value_type
	Same as mapped_type for OpenFOAM HashTables.
typedef Foam::Hash< word >	hasher
	The third template parameter, the hash index method.
typedef regIOobject **	pointer
	Pointer type for storing into value_type objects.
typedef regIOobject *&	reference
	Reference to the stored value_type.
typedef const regIOobject **	const_pointer
	Const pointer type for the stored value_type.
typedef const regIOobject *&	const_reference
	Const reference to the stored value_type.
typedef label	difference_type
	The type to represent the difference between two iterators.
typedef label	size_type
	The type that can represent the size of a HashTable.
using	key_iterator
	Forward iterator returning the key.
using	const_key_iterator
	Forward const iterator returning the key.
Public Types inherited from dictionary
typedef Searcher< true >	const_searcher
	Searcher with const access.
typedef Searcher< false >	searcher
	Searcher with non-const access.
Public Types inherited from UILList< DLListBase, T >
typedef T	value_type
	Type of values stored.
typedef T *	pointer
	Pointer for value_type.
typedef const T *	const_pointer
	Const pointer for value_type.
typedef T &	reference
	Reference for value_type.
typedef const T &	const_reference
	Const reference for value_type.
typedef label	size_type
	The type that can represent the container size.
typedef label	difference_type
	The difference between iterator objects.
using	base_iterator
using	const_base_iterator
Static Public Member Functions inherited from dynamicFvMesh
static autoPtr< dynamicFvMesh >	New (const IOobject &io)
	Select, construct and return the dynamicFvMesh.
static autoPtr< dynamicFvMesh >	New (const argList &args, const Time &runTime)
	Select, construct and return the dynamicFvMesh.
Static Public Member Functions inherited from polyMesh
static fileName	meshDir (const word &region)
	Return the local mesh directory name (eg, "polyMesh") after applying filter for defaultRegion.
static const word &	regionName (const word &region)
	The mesh region name or word::null if polyMesh::defaultRegion.
Static Public Member Functions inherited from regIOobject
template<class Type>
static Type &	store (Type *p)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (std::unique_ptr< Type > &&ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (autoPtr< Type > &ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (autoPtr< Type > &&ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (refPtr< Type > &ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (refPtr< Type > &&ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (tmp< Type > &ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (tmp< Type > &&ptr)
	Transfer pointer ownership to its registry.
Static Public Member Functions inherited from IOobject
static bool	bannerEnabled () noexcept
	Status of output file banner.
static bool	bannerEnabled (bool on) noexcept
	Enable/disable output file banner.
static bool	fileModificationChecking_masterOnly () noexcept
	Test fileModificationChecking for master-only.
static bool	fileNameComponents (const fileName &path, fileName &instance, fileName &local, word &name)
	Split path into instance, local, name components.
template<class StringType>
static word	groupName (StringType base, const word &group)
	Create dot-delimited name.group string.
static word	group (const word &name)
	Return group (extension part of name).
static word	member (const word &name)
	Return member (name without the extension).
static word	scopedName (const std::string &scope, const word &name)
	Create scope:name or scope_name string.
static word	scopedName (const std::string &scope, const word &name1, const word &name2)
	Create scope:name1:name2 or scope_name1_name2 string.
static IOobject	selectIO (const IOobject &io, const fileName &altFile, const word &ioName="")
	Return the IOobject, but also consider an alternative file name.
static Ostream &	writeBanner (Ostream &os, const bool noSyntaxHint=false)
	Write the standard OpenFOAM file/dictionary banner.
static Ostream &	writeDivider (Ostream &os)
	Write the standard file section divider.
static Ostream &	writeEndDivider (Ostream &os)
	Write the standard end file divider.
Static Public Member Functions inherited from IOobjectOption
static bool	isAnyRead (readOption opt) noexcept
	True if any reading may be required (ie, != NO_READ).
static bool	isReadRequired (readOption opt) noexcept
	True if (MUST_READ | READ_MODIFIED) bits are set.
static bool	isReadOptional (readOption opt) noexcept
	True if (LAZY_READ) bits are set [same as READ_IF_PRESENT].
static readOption	lazierRead (readOption opt) noexcept
	Downgrade readOption optional (LAZY_READ), leaves NO_READ intact.
Static Public Member Functions inherited from HashTableCore
static label	canonicalSize (const label size) noexcept
	Return a canonical (power-of-two) of the requested size.
Static Public Member Functions inherited from primitiveMesh
static void	calcCells (cellList &, const labelUList &own, const labelUList &nei, const label nCells=-1)
	Helper function to calculate cell-face addressing from.
static bool	calcPointOrder (label &nInternalPoints, labelList &pointMap, const faceList &, const label nInternalFaces, const label nPoints)
	Helper function to calculate point ordering. Returns true.
static scalar	setClosedThreshold (const scalar)
	Set the closedness ratio warning threshold.
static scalar	setAspectThreshold (const scalar)
	Set the aspect ratio warning threshold.
static scalar	setNonOrthThreshold (const scalar)
	Set the non-orthogonality warning threshold in degrees.
static scalar	setSkewThreshold (const scalar)
	Set the skewness warning threshold as percentage.
Static Public Member Functions inherited from IOdictionary
static dictionary	readContents (const IOobject &io)
	Read and return contents, testing for "dictionary" type. The IOobject will not be registered.
static dictionary	readContents (const IOobject &io, const word &wantedType)
	Read and return contents, testing for expected type. The IOobject will not be registered.
Static Public Member Functions inherited from dictionary
static int	reportOptional () noexcept
	Return the state of reporting optional (default) entries.
static int	reportOptional (const int level) noexcept
	Change the state of reporting optional (default) entries.
static autoPtr< dictionary >	New (Istream &is)
	Construct top-level dictionary on freestore from Istream.
Static Public Member Functions inherited from solution
static label	upgradeSolverDict (dictionary &dict, const bool verbose=true)
	Update from older solver controls syntax.
template<class FieldType>
static void	cachePrintMessage (const char *message, const word &name, const FieldType &fld)
	Helper for printing cache message.
Public Attributes inherited from dictionary
friend	const_searcher
	Declare friendship with the searcher classes.
friend	searcher
Static Public Attributes inherited from polyMesh
static word	defaultRegion = "region0"
	Return the default region name.
static word	meshSubDir = "polyMesh"
	Return the mesh sub-directory name (usually "polyMesh").
Static Public Attributes inherited from IOobject
static const Enum< fileCheckTypes >	fileCheckTypesNames
	Names for the fileCheckTypes.
static char	scopeSeparator
	Character for scoping object names (':' or '_').
static fileCheckTypes	fileModificationChecking
	Type of file modification checking.
static float	fileModificationSkew
	Time skew (seconds) for file modification checks.
static int	maxFileModificationPolls
	Max number of times to poll for file modification changes.
Static Public Attributes inherited from HashTableCore
static constexpr int32_t	maxTableSize = (1 << (32-3))
	Maximum allowable internal table size (must be a power of two!).
Static Public Attributes inherited from primitiveMesh
static const unsigned	cellsPerEdge_ = 4
	Estimated number of cells per edge.
static const unsigned	cellsPerPoint_ = 8
	Estimated number of cells per point.
static const unsigned	facesPerCell_ = 6
	Estimated number of faces per cell.
static const unsigned	facesPerEdge_ = 4
	Estimated number of faces per edge.
static const unsigned	facesPerPoint_ = 12
	Estimated number of faces per point.
static const unsigned	edgesPerCell_ = 12
	Estimated number of edges per cell.
static const unsigned	edgesPerFace_ = 4
	Estimated number of edges per cell.
static const unsigned	edgesPerPoint_ = 6
	Estimated number of edges per point.
static const unsigned	pointsPerCell_ = 8
	Estimated number of points per cell.
static const unsigned	pointsPerFace_ = 4
	Estimated number of points per face.
Static Public Attributes inherited from schemesLookup
static int	debug
	Debug switch.
Static Public Attributes inherited from dictionary
static int	writeOptionalEntries
	Report optional keywords and values if not present in dictionary.
static const dictionary	null
	An empty dictionary, which is also the parent for all dictionaries.
static refPtr< OSstream >	reportingOutput
	Output location when reporting default values.
Static Public Attributes inherited from solution
static int	debug
	Debug switch (registered name: "solution").
Static Protected Member Functions inherited from IOobject
static void	writeHeaderContent (Ostream &os, const IOobject &io, const word &objectType, const dictionary *metaDataDict=nullptr)
	Helper: write content for FoamFile IOobject header with optional meta information.
static void	writeHeaderContent (dictionary &dict, const IOobject &io, const word &objectType, IOstreamOption streamOpt, const dictionary *metaDataDict=nullptr)
	Helper: write dictionary content for FoamFile header with optional meta information.
Static Protected Member Functions inherited from DLListBase
template<class IteratorType>
static const IteratorType &	iterator_end ()
	Factory method to return an iterator end.
template<class IteratorType>
static const IteratorType &	iterator_rend ()
	Factory method to return an iterator reverse end.
Static Protected Attributes inherited from regIOobject
static bool	masterOnlyReading = false
	To flag master-only reading of objects.
Static Protected Attributes inherited from primitiveMesh
static scalar	closedThreshold_ = 1.0e-6
	Static data to control mesh checking.
static scalar	aspectThreshold_ = 1000
	Aspect ratio warning threshold.
static scalar	nonOrthThreshold_ = 70
	Non-orthogonality warning threshold in deg.
static scalar	skewThreshold_ = 4
	Skewness warning threshold.
static scalar	planarCosAngle_ = 1.0e-6
	Threshold where faces are considered coplanar.

Detailed Description

A fvMesh with built-in refinement.

Determines which cells to refine/unrefine and does all in update().

{
    // How often to refine
    refineInterval  1;
    // Field to be refinement on
    field           alpha.water;
    // Refine field inbetween lower..upper
    lowerRefineLevel 0.001;
    upperRefineLevel 0.999;
    // If value < unrefineLevel (default=GREAT) unrefine
    //unrefineLevel   10;
    // Have slower than 2:1 refinement
    nBufferLayers   1;
    // Refine cells only up to maxRefinement levels
    maxRefinement   2;
    // Stop refinement if maxCells reached
    maxCells        200000;
    // Flux field and corresponding velocity field. Fluxes on changed
    // faces get recalculated by interpolating the velocity. Use 'none'
    // on surfaceScalarFields that do not need to be reinterpolated, use
    // NaN to detect use of mapped variable
    correctFluxes
    (
        (phi none)  //NaN)   //none)
        (nHatf none)   //none)
        (rho*phi none)   //none)
        (ghf none)  //NaN)   //none)
    );

    // Write the refinement level as a volScalarField
    dumpLevel       true;
}

Source files

• dynamicRefineFvMesh.H
• dynamicRefineFvMesh.C

Definition at line 87 of file dynamicRefineFvMesh.H.

Constructor & Destructor Documentation

dynamicRefineFvMesh()

dynamicRefineFvMesh ( const IOobject & io, const bool doInit = true )

explicit

Construct from IOobject.

Definition at line 1077 of file dynamicRefineFvMesh.C.

References init(), io, and meshCutter_.

Here is the call graph for this function:

~dynamicRefineFvMesh()

virtual ~dynamicRefineFvMesh ( )

virtualdefault

Destructor.

Member Function Documentation

calculateProtectedCells()

void calculateProtectedCells ( bitSet & unrefineableCell ) const

protected

Calculate cells that cannot be refined since would trigger.

refinement of protectedCell_ (since 2:1 refinement cascade)

Definition at line 45 of file dynamicRefineFvMesh.C.

References PackedList< Width >::clear(), polyMesh::faceNeighbour(), polyMesh::faceOwner(), meshCutter_, primitiveMesh::nBoundaryFaces(), primitiveMesh::nFaces(), primitiveMesh::nInternalFaces(), protectedCell_, PackedList< Width >::reset(), PackedList< Width >::resize(), Foam::returnReduceOr(), bitSet::set(), syncTools::swapBoundaryFaceList(), syncTools::syncFaceList(), and bitSet::test().

Referenced by selectRefineCells().

Here is the call graph for this function:

Here is the caller graph for this function:

readDict()

void readDict ( )

protected

Read the projection parameters from dictionary.

Definition at line 159 of file dynamicRefineFvMesh.C.

References correctFluxes_, dumpLevel_, dictionary::get(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, IOobjectOption::MUST_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, dictionary::optionalSubDict(), dictionary::readEntry(), and fvMesh::time().

Referenced by init().

Here is the call graph for this function:

Here is the caller graph for this function:

refine()

Foam::autoPtr< Foam::mapPolyMesh > refine ( const labelList & cellsToRefine )

protectedvirtual

Refine cells. Update mesh and fields.

Definition at line 436 of file dynamicRefineFvMesh.C.

References Foam::abort(), polyTopoChange::changeMesh(), Foam::endl(), primitiveMesh::faceCentres(), Foam::FatalError, FatalErrorInFunction, forAll, polyMesh::globalData(), Foam::Info, meshCutter_, polyMesh::moving(), primitiveMesh::nCells(), primitiveMesh::nInternalFaces(), protectedCell_, Foam::returnReduce(), bitSet::set(), and fvMesh::updateMesh().

Referenced by updateTopology().

Here is the call graph for this function:

Here is the caller graph for this function:

unrefine()

Foam::autoPtr< Foam::mapPolyMesh > unrefine ( const labelList & splitPoints )

protectedvirtual

Unrefine cells. Gets passed in centre points of cells to combine.

Definition at line 531 of file dynamicRefineFvMesh.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), polyTopoChange::changeMesh(), correctFluxes_, DebugInfo, primitiveMesh::edges(), Foam::endl(), forAll, forAllConstIters, polyMesh::globalData(), Foam::Info, HashTable< T, Key, Hash >::insert(), Foam::fvc::interpolate(), primitiveMesh::isInternalFace(), objectRegistry::lookupObject(), meshCutter_, polyMesh::moving(), primitiveMesh::nCells(), word::null, pFaces, fvMesh::phi(), primitiveMesh::pointEdges(), primitiveMesh::pointFaces(), protectedCell_, Foam::returnReduce(), bitSet::set(), fvMesh::Sf(), UList< T >::size(), objectRegistry::sorted(), UName(), fvMesh::updateMesh(), and WarningInFunction.

Referenced by updateTopology().

Here is the call graph for this function:

Here is the caller graph for this function:

getRefineLevel()

scalar getRefineLevel ( const label maxCells, const label maxRefinement, const scalar refineLevel, const scalarField &  ) const

protected

Calculates approximate value for refinement level so.

we don't go above maxCell

References Foam::faceMap(), fld(), fvMesh::magSf(), protectedCell(), and fvMesh::Sf().

Here is the call graph for this function:

maxPointField()

Foam::scalarField maxPointField ( const scalarField & pFld ) const

protected

Get per cell max of connected point.

Definition at line 712 of file dynamicRefineFvMesh.C.

References forAll, Foam::max(), and primitiveMesh::nCells().

Referenced by selectRefineCandidates().

Here is the call graph for this function:

Here is the caller graph for this function:

maxCellField()

Foam::scalarField maxCellField ( const volScalarField & vFld ) const

protected

Get point max of connected cell.

Definition at line 730 of file dynamicRefineFvMesh.C.

References forAll, Foam::max(), and nPoints.

Referenced by updateTopology().

Here is the call graph for this function:

Here is the caller graph for this function:

cellToPoint()

Foam::scalarField cellToPoint ( const scalarField & vFld ) const

protected

Definition at line 748 of file dynamicRefineFvMesh.C.

References forAll, nPoints, UList< T >::size(), and Foam::sum().

Referenced by selectRefineCandidates().

Here is the call graph for this function:

Here is the caller graph for this function:

error()

Foam::scalarField error ( const scalarField & fld, const scalar minLevel, const scalar maxLevel ) const

protected

Definition at line 767 of file dynamicRefineFvMesh.C.

References fld(), forAll, and Foam::min().

Referenced by selectRefineCandidates().

Here is the call graph for this function:

Here is the caller graph for this function:

selectRefineCandidates()

void selectRefineCandidates ( const scalar lowerRefineLevel, const scalar upperRefineLevel, const scalarField & vFld, bitSet & candidateCell ) const

protectedvirtual

Select candidate cells for refinement.

Definition at line 789 of file dynamicRefineFvMesh.C.

References cellToPoint(), error(), forAll, maxPointField(), and bitSet::set().

Referenced by updateTopology().

Here is the call graph for this function:

Here is the caller graph for this function:

selectRefineCells()

Foam::labelList selectRefineCells ( const label maxCells, const label maxRefinement, const bitSet & candidateCell ) const

protectedvirtual

Subset candidate cells for refinement.

Definition at line 823 of file dynamicRefineFvMesh.C.

References DynamicList< T, SizeMin >::append(), calculateProtectedCells(), bitSet::count(), Foam::endl(), polyMesh::globalData(), Foam::Info, meshCutter_, Foam::returnReduce(), DynamicList< T, SizeMin >::shrink(), UList< T >::size(), and bitSet::test().

Referenced by updateTopology().

Here is the call graph for this function:

Here is the caller graph for this function:

selectUnrefinePoints()

Foam::labelList selectUnrefinePoints ( const scalar unrefineLevel, const bitSet & markedCell, const scalarField & pFld ) const

protectedvirtual

Select points that can be unrefined.

Definition at line 903 of file dynamicRefineFvMesh.C.

References DynamicList< T, SizeMin >::append(), bitSet::count(), DebugInfo, Foam::endl(), forAll, Foam::Info, meshCutter_, nPoints, protectedCell_, Foam::returnReduce(), bitSet::set(), DynamicList< T, SizeMin >::shrink(), UList< T >::size(), syncTools::syncPointList(), and bitSet::test().

Referenced by updateTopology().

Here is the call graph for this function:

Here is the caller graph for this function:

extendMarkedCells()

void extendMarkedCells ( bitSet & markedCell ) const

protected

Extend markedCell with cell-face-cell.

Definition at line 998 of file dynamicRefineFvMesh.C.

References cells, polyMesh::faceNeighbour(), polyMesh::faceOwner(), primitiveMesh::nFaces(), primitiveMesh::nInternalFaces(), bitSet::set(), syncTools::syncFaceList(), and bitSet::test().

Referenced by updateTopology().

Here is the call graph for this function:

Here is the caller graph for this function:

checkEightAnchorPoints()

void checkEightAnchorPoints ( bitSet & protectedCell ) const

protected

Check all cells have 8 anchor points.

Definition at line 1032 of file dynamicRefineFvMesh.C.

References forAll, meshCutter_, primitiveMesh::nCells(), protectedCell(), and Foam::Zero.

Referenced by init().

Here is the call graph for this function:

Here is the caller graph for this function:

mapNewInternalFaces() [1/3]

template<class T>

void mapNewInternalFaces ( const labelList & faceMap, GeometricField< T, fvsPatchField, surfaceMesh > & sFld )

protected

Map single non-flux surface<Type>Field.

for new internal faces (e.g. AMR refine). This currently interpolates values from surrounding faces (faces on neighbouring cells) that do have a value.

Make flat field for ease of looping

Definition at line 26 of file dynamicRefineFvMeshTemplates.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), polyMesh::boundaryMesh(), cells, Foam::faceMap(), polyMesh::faceNeighbour(), polyMesh::faceOwner(), forAll, GeometricField< Type, PatchField, GeoMesh >::internalField(), fvMesh::neighbour(), primitiveMesh::nFaces(), primitiveMesh::nInternalFaces(), fvMesh::owner(), polyBoundaryMesh::start(), Foam::T(), and Foam::Zero.

Referenced by mapFields(), mapNewInternalFaces(), and mapNewInternalFaces().

Here is the call graph for this function:

Here is the caller graph for this function:

mapNewInternalFaces() [2/3]

template<class T>

void mapNewInternalFaces ( const labelList & faceMap )

protected

Correct surface fields for new faces.

Definition at line 97 of file dynamicRefineFvMeshTemplates.C.

References DebugInfo, Foam::endl(), Foam::faceMap(), mapNewInternalFaces(), objectRegistry::sorted(), and WarningInFunction.

Here is the call graph for this function:

mapNewInternalFaces() [3/3]

template<class T>

void mapNewInternalFaces ( const surfaceVectorField & Sf, const surfaceScalarField & magSf, const labelList & faceMap )

protected

Correct surface fields for new faces. Converts any oriented.

fields into non-oriented (i.e. phi -> Uf) before mapping

Definition at line 127 of file dynamicRefineFvMeshTemplates.C.

References DebugInfo, Foam::endl(), Foam::faceMap(), fvMesh::magSf(), mapNewInternalFaces(), fvMesh::Sf(), objectRegistry::sorted(), and Foam::sqr().

Here is the call graph for this function:

updateTopology()

bool updateTopology ( )

protected

Update topology (refinement, unrefinement).

Definition at line 1267 of file dynamicRefineFvMesh.C.

References Foam::exit(), extendMarkedCells(), Foam::FatalError, FatalErrorInFunction, forAll, dictionary::get(), dictionary::getOrDefault(), polyMesh::globalData(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, objectRegistry::lookupObject(), maxCellField(), meshCutter(), polyMesh::moving(), IOobjectOption::MUST_READ, primitiveMesh::nCells(), Foam::nl, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, nRefinementIterations_, dictionary::optionalSubDict(), refine(), Foam::returnReduceOr(), selectRefineCandidates(), selectRefineCells(), selectUnrefinePoints(), bitSet::set(), UList< T >::size(), fvMesh::time(), timeIndex, polyMesh::topoChanging(), and unrefine().

Referenced by update().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeName()

TypeName

(

"dynamicRefineFvMesh"

)

Runtime type information.

References io.

init()

bool init ( const bool doInit )

virtual

Initialise all non-demand-driven data.

Reimplemented from dynamicMotionSolverListFvMesh.

Definition at line 1094 of file dynamicRefineFvMesh.C.

References cells, checkEightAnchorPoints(), dumpLevel_, Foam::endl(), f(), polyMesh::faceNeighbour(), polyMesh::faceOwner(), polyMesh::faces(), forAll, Foam::Info, dynamicMotionSolverListFvMesh::init(), Foam::max(), meshCutter_, IOobject::name(), primitiveMesh::nCells(), primitiveMesh::nFaces(), primitiveMesh::nInternalFaces(), nRefinementIterations_, protectedCell_, readDict(), Foam::returnReduce(), Foam::returnReduceOr(), bitSet::set(), HashTable< T, Key, Hash >::size(), HashTable< regIOobject * >::size(), UList< T >::size(), syncTools::swapFaceList(), syncTools::syncFaceList(), bitSet::test(), Foam::HashSetOps::used(), regIOobject::write(), and Foam::Zero.

Referenced by dynamicRefineFvMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

meshCutter()

const hexRef8 & meshCutter ( ) const

inline

Direct access to the refinement engine.

Definition at line 308 of file dynamicRefineFvMesh.H.

References meshCutter_.

Referenced by updateTopology().

Here is the caller graph for this function:

protectedCell() [1/2]

const bitSet & protectedCell ( ) const

inline

Cells which should not be refined/unrefined.

Definition at line 316 of file dynamicRefineFvMesh.H.

References protectedCell_.

Referenced by checkEightAnchorPoints(), and getRefineLevel().

Here is the caller graph for this function:

protectedCell() [2/2]

bitSet & protectedCell ( )

inline

Cells which should not be refined/unrefined.

Definition at line 324 of file dynamicRefineFvMesh.H.

References protectedCell_.

update()

bool update ( )

virtual

Update the mesh for both mesh motion and topology change.

Reimplemented from dynamicMotionSolverListFvMesh.

Definition at line 1461 of file dynamicRefineFvMesh.C.

References dynamicMotionSolverListFvMesh::update(), and updateTopology().

Here is the call graph for this function:

mapFields()

void mapFields ( const mapPolyMesh & mpm )

virtual

Map all fields in time using given map.

Reimplemented from dynamicMotionSolverListFvMesh.

Definition at line 190 of file dynamicRefineFvMesh.C.

References Foam::abort(), GeometricField< Type, PatchField, GeoMesh >::boundaryField(), mapPolyMesh::cellMap(), mapPolyMesh::cellsFromCellsMap(), surfaceInterpolation::clearOut(), correctFluxes_, bitSet::count(), Foam::endl(), Foam::faceMap(), mapPolyMesh::faceMap(), Foam::FatalError, FatalErrorInFunction, sigFpe::fillNan(), forAll, Foam::fvc::interpolate(), primitiveMesh::isInternalFace(), objectRegistry::lookupObject(), fvMesh::magSf(), dynamicMotionSolverListFvMesh::mapFields(), mapNewInternalFaces(), primitiveMesh::nFaces(), primitiveMesh::nInternalFaces(), Foam::nl, mapPolyMesh::nOldCells(), word::null, fvsPatchFieldBase::patch(), fvMesh::phi(), Foam::Pout, mapPolyMesh::reverseCellMap(), mapPolyMesh::reverseFaceMap(), s(), bitSet::set(), fvMesh::setV0(), fvMesh::Sf(), objectRegistry::sorted(), fvPatch::start(), UName(), fvMesh::V(), fvMesh::V0(), and WarningInFunction.

Here is the call graph for this function:

writeObject()

bool writeObject ( IOstreamOption streamOpt, const bool writeOnProc ) const

virtual

Write using stream options.

Reimplemented from fvMesh.

Definition at line 1471 of file dynamicRefineFvMesh.C.

References Foam::dimless, dumpLevel_, forAll, meshCutter_, IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, polyMesh::setInstance(), fvMesh::time(), timeName, regIOobject::write(), fvMesh::writeObject(), and Foam::Zero.

Here is the call graph for this function:

Member Data Documentation

meshCutter_

hexRef8 meshCutter_

protected

Mesh cutting engine.

Definition at line 97 of file dynamicRefineFvMesh.H.

Referenced by calculateProtectedCells(), checkEightAnchorPoints(), dynamicRefineFvMesh(), init(), meshCutter(), refine(), selectRefineCells(), selectUnrefinePoints(), unrefine(), and writeObject().

correctFluxes_

HashTable<word> correctFluxes_

protected

Fluxes to map.

Definition at line 102 of file dynamicRefineFvMesh.H.

Referenced by mapFields(), readDict(), and unrefine().

protectedCell_

bitSet protectedCell_

protected

Protected cells (usually since not hexes).

Definition at line 107 of file dynamicRefineFvMesh.H.

Referenced by calculateProtectedCells(), init(), protectedCell(), protectedCell(), refine(), selectUnrefinePoints(), and unrefine().

nRefinementIterations_

label nRefinementIterations_

protected

Number of refinement/unrefinement steps done so far.

Definition at line 112 of file dynamicRefineFvMesh.H.

Referenced by init(), and updateTopology().

dumpLevel_

bool dumpLevel_

protected

Dump cellLevel for post-processing.

Definition at line 117 of file dynamicRefineFvMesh.H.

Referenced by init(), readDict(), and writeObject().

---

The documentation for this class was generated from the following files:

• src/dynamicFvMesh/dynamicRefineFvMesh/dynamicRefineFvMesh.H
• src/dynamicFvMesh/dynamicRefineFvMesh/dynamicRefineFvMesh.C
• src/dynamicFvMesh/dynamicRefineFvMesh/dynamicRefineFvMeshTemplates.C
